I need a part number for the potentiometer that will produce the…

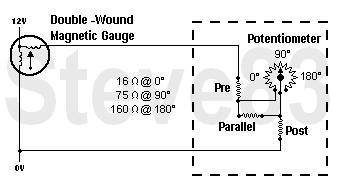

I need a part number for the potentiometer that will produce the indicated output. The gauge winding has ~100 Ohms, so the current through the dashed box is about 80mA (~1/2W). If a pot doesn't exist with those characteristics, I also need the tuning resistor values. Obviously, 0 & 180 can be reversed if necessary.
I need a part number for the potentiometer that will produce the indicated output. The gauge winding has ~100 Ohms, so the current through the dashed box is about 80mA (~1/2W). If a pot doesn't exist with those characteristics, I also need the tuning resistor values. Obviously, 0 & 180 can be reversed if necessary.Original file
I need a part number for the potentiometer that will produce the indicated output. The gauge winding has ~100 Ohms, so the current through the dashed box is about 80mA (~1/2W). If a pot doesn't exist with those characteristics, I also need the tuning resistor values. Obviously, 0 & 180 can be reversed if necessary.

Manual PagesView all 69

MGB Tuning Data spec table, 1798cc 18GF/18GH/18GJ engine, 1971 models MGB Special Tuning: lightened flywheel, timing sprockets, suspension tuning and ignition coil chart Book titled The Complete Official MGB, containing manual pages MGB combined Driver's Handbook, Workshop Manual and Special Tuning Handbook preface Page from a manual with text and diagrams Document titled 'English Amateur Sport Sheets' with two columns of text MGB manual English-to-American automotive terminology glossary (electrical, suspension, body) MGB Tourer and GT Driver's Handbook contents page, 1962-1970 and 1971+ MGB Drivers Handbook contents page: electrical, ignition, engine, emission control sections MGB workshop manual index: braking, electrical, lubrication and body sections Distributor advance curve graph above a dimensioned oil sump baffle drawing MGB oil sump baffle plate detail drawing with dimensions plus oil pump/filter tuning notes Dimensioned engineering drawings of oil pump cover and oil filter head machining with section views Two columns of text on a page, likely from a manual Document page with columns of text and a heading 'Brakes' 1971 MG B photo 69photos in this albumView all

I need a part number for the potentiometer that will produce the indicated output. The gauge winding has ~100 Ohms, so the current through the dashed box is about 80mA (~1/2W). If a pot doesn't exist with those characteristics, I also need the tuning resistor values.

Obviously, 0 & 180 can be reversed if necessary.
