Steve83 > 1975 Ford Bronco > open folder Frank's '75 Bronco

It started as a rustbucket with nice wheels, and ended up as a 2000 Eddie Bauer Bronco.
Hits: 4245
Size: 163.77 KB
Posted: 7/1/03
It started as a rustbucket with nice wheels, and ended up as a 2000 Eddie Bauer Bronco.		This is what Frank bought and asked me to help him restore.
Hits: 2728
Size: 103.57 KB
Posted: 7/1/03
This is what Frank bought and asked me to help him restore.		We quickly decided to start over, so we stripped it.
Hits: 2689
Size: 158.88 KB
Posted: 7/1/03
We quickly decided to start over, so we stripped it.		With some help from the neighbors, we got the body off the frame. I'm wearing the white shirt; Fran...
Hits: 3212
Size: 219.41 KB
Posted: 7/1/03
With some help from the neighbors, we got the body off the frame. I'm wearing the white shirt; Fran...		I think Frank was surprised at how little there was under there.
Hits: 2391
Size: 84.15 KB
Posted: 7/2/03
I think Frank was surprised at how little there was under there.
We think that's a '7? T-bird 351, but we don't know where the transmission (3.03?) came from. Neith...
Hits: 2190
Size: 96.76 KB
Posted: 7/2/03
We think that's a '7? T-bird 351, but we don't know where the transmission (3.03?) came from. Neith...		After cleaning the mud out of the frame (that's why it's up), we cup-brushed the whole thing to prep...
Hits: 2763
Size: 64.69 KB
Posted: 7/2/03
After cleaning the mud out of the frame (that's why it's up), we cup-brushed the whole thing to prep...		I think we used 1 1/2 gallons to get 2 thorough coats on it. [url=https://www.supermotors.net/regis...
Hits: 3015
Size: 102.16 KB
Posted: 7/2/03
I think we used 1 1/2 gallons to get 2 thorough coats on it. [url=https://www.supermotors.net/regis...		The front ring was missing a few teeth, so we tore it down and rebuilt it with new gears.
Hits: 2282
Size: 96.87 KB
Posted: 7/2/03

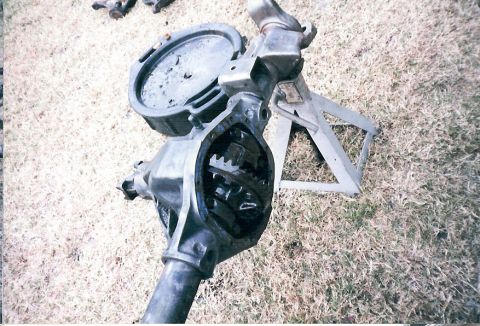

The front ring was missing a few teeth, so we tore it down and rebuilt it with new gears.		While waiting for the body to come back from the painter, we went shopping and found this JEWEL! An...
Hits: 3284
Size: 80.91 KB
Posted: 7/2/03

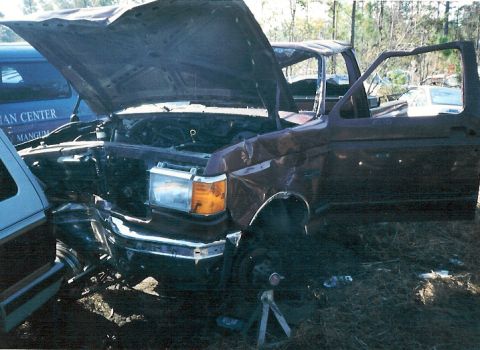

While waiting for the body to come back from the painter, we went shopping and found this JEWEL! An...

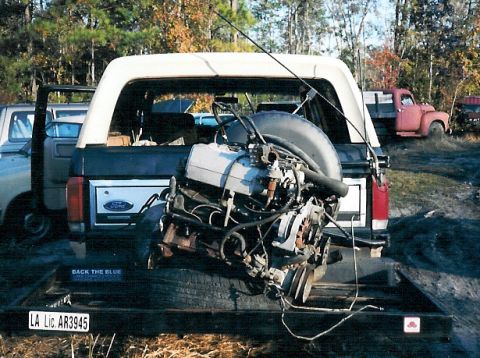

After the (passed) compression test, we carefully removed everything that wasn't ruined and hauled i...
Hits: 2903
Size: 112.31 KB
Posted: 7/2/03
After the (passed) compression test, we carefully removed everything that wasn't ruined and hauled i...		When we were done, only the sheet metal and most of the frame remained. [url=https://www.supermotor...
Hits: 2335
Size: 111.74 KB
Posted: 7/2/03

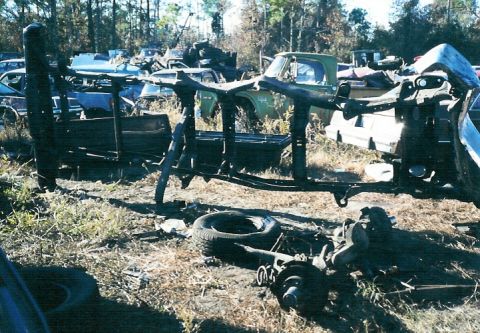

When we were done, only the sheet metal and most of the frame remained. [url=https://www.supermotor...		This was the original goal, but we got a LOT of useful parts, including the whole wiring harness, wi...
Hits: 2239
Size: 95.46 KB
Posted: 7/2/03

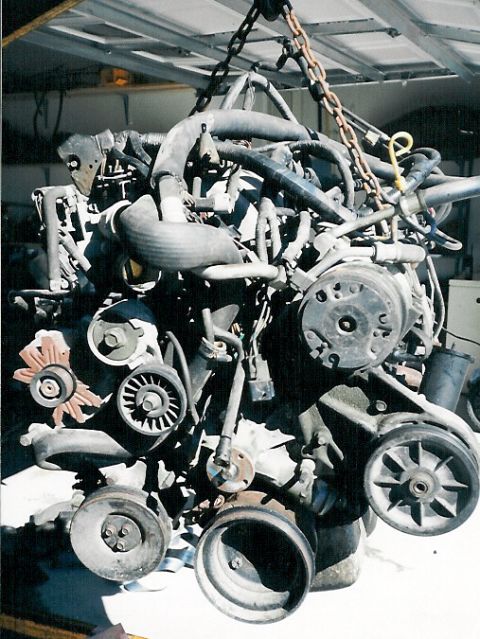

This was the original goal, but we got a LOT of useful parts, including the whole wiring harness, wi...		The inner fenders, rocker panels, and one A-pillar were rusted out, but the painter did a great job....
Hits: 2425
Size: 66.5 KB
Posted: 7/2/03

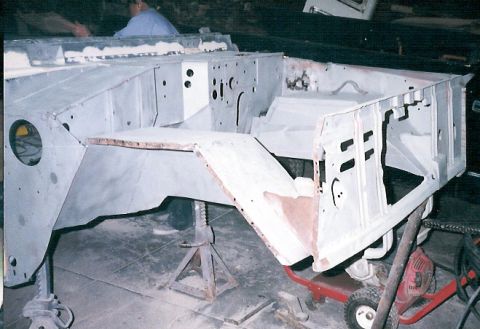

The inner fenders, rocker panels, and one A-pillar were rusted out, but the painter did a great job....		It went straight from the paint shop to the local Rhino-Liner dealer, where the body, camper, and ta...
Hits: 2873
Size: 47.53 KB
Posted: 7/2/03

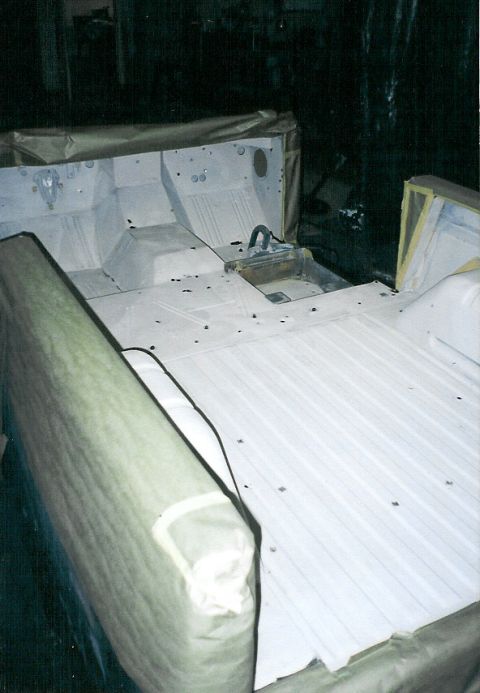

It went straight from the paint shop to the local Rhino-Liner dealer, where the body, camper, and ta...

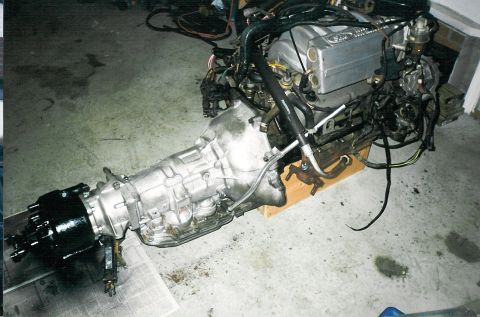

After repairing & rebuilding everything but the t-case, we reassembled the driveline. Later, we fou...
Hits: 2957
Size: 67.31 KB
Posted: 7/2/03
After repairing & rebuilding everything but the t-case, we reassembled the driveline. Later, we fou...		Even Frank's wife started to get enthusiastic when we got back to a rolling chassis.
Hits: 2700
Size: 60.47 KB
Posted: 7/2/03

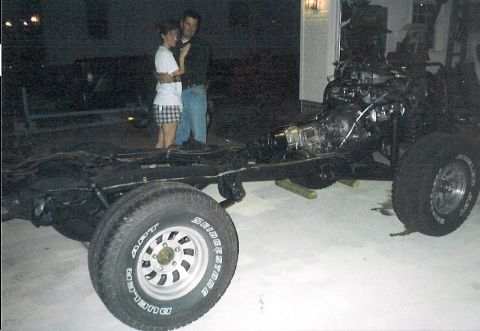

Even Frank's wife started to get enthusiastic when we got back to a rolling chassis.		The crossmember had to be clearanced, lowered, and shifted rearward for the Advance Adapter needed t...
Hits: 3817
Size: 66.96 KB
Posted: 7/2/03

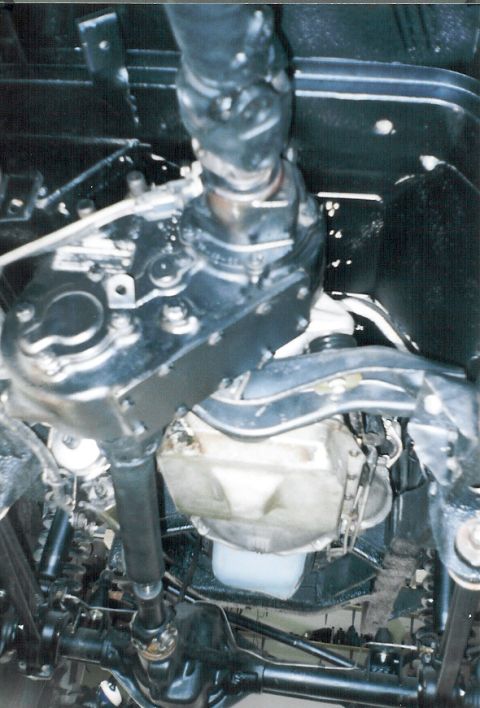

The crossmember had to be clearanced, lowered, and shifted rearward for the Advance Adapter needed t...		The whole '88 wiring harness (minus ABS & a few other circuits) was laid in & arranged to fit. And ...
Hits: 3772
Size: 66.02 KB
Posted: 7/2/03

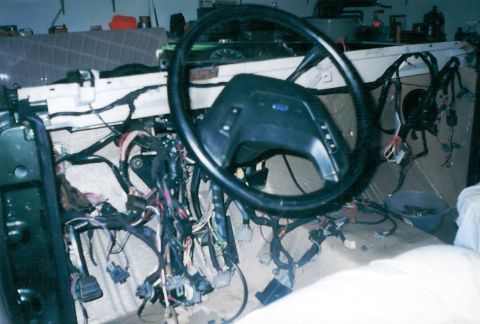

The whole '88 wiring harness (minus ABS & a few other circuits) was laid in & arranged to fit. And ...		We added shoulder belts to the roll bar. They came from the same '86 EB Bronco as the seats, and we...
Hits: 3380
Size: 67.4 KB
Posted: 7/2/03

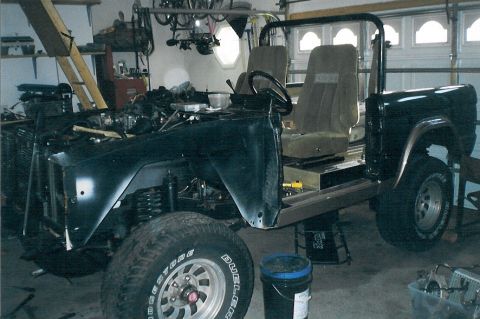

We added shoulder belts to the roll bar. They came from the same '86 EB Bronco as the seats, and we...

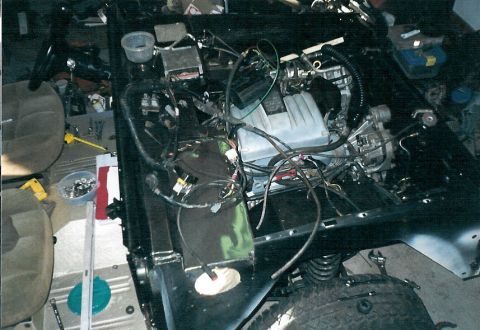

Even the Crown Vic plenum comes close to the hood, and I had to flip the IAC and move a throttle bod...
Hits: 2464
Size: 77.46 KB
Posted: 7/2/03
Even the Crown Vic plenum comes close to the hood, and I had to flip the IAC and move a throttle bod...		I haven't figured out the fan at this point, and the A/C is just gonna have to wait, but it does run...
Hits: 2521
Size: 70.73 KB
Posted: 7/2/03

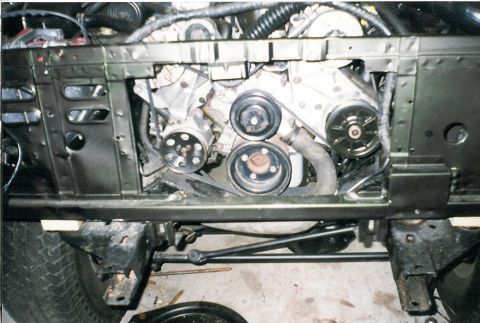

I haven't figured out the fan at this point, and the A/C is just gonna have to wait, but it does run...		At the first rollout, the neighbors were all shocked and eating their words. The colors are 2000 Ed...
Hits: 2595
Size: 48.9 KB
Posted: 7/2/03

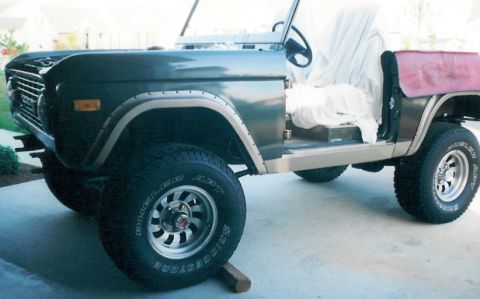

At the first rollout, the neighbors were all shocked and eating their words. The colors are 2000 Ed...		The colors are 2000 Eddie Bauer Expedition Estate Green & Light Prarie Tan. Bedwall panels and rear...
Hits: 4120
Size: 54.67 KB
Posted: 7/2/03

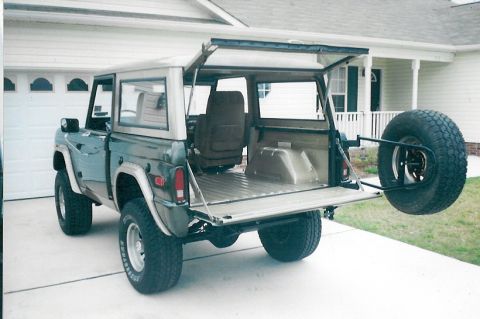

The colors are 2000 Eddie Bauer Expedition Estate Green & Light Prarie Tan. Bedwall panels and rear...		The Rhino-lining goes from the floor to the ceiling, and up the firewall & tailgate. We found a gre...
Hits: 6635
Size: 54.08 KB
Posted: 7/2/03

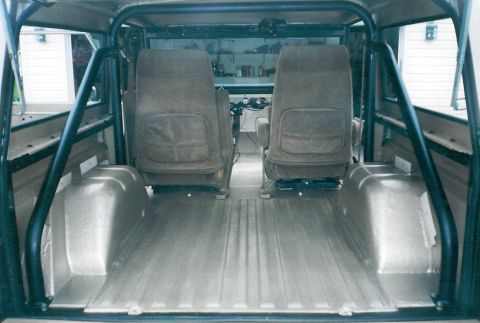

The Rhino-lining goes from the floor to the ceiling, and up the firewall & tailgate. We found a gre...

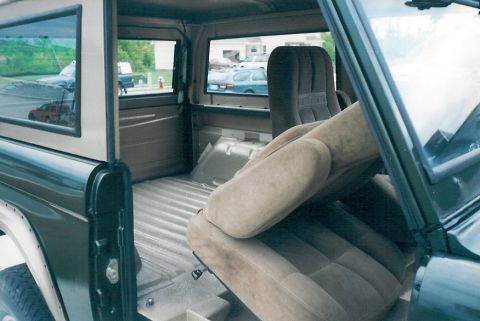

Even with a tilting & sliding base, there's still not much access to the back. You can see the rear...
Hits: 4392
Size: 56.51 KB
Posted: 7/2/03
Even with a tilting & sliding base, there's still not much access to the back. You can see the rear...		The colors are 2000 Eddie Bauer Expedition Estate Green & Light Prarie Tan. Bumpers are waiting, bu...
Hits: 3112
Size: 68.75 KB
Posted: 7/2/03

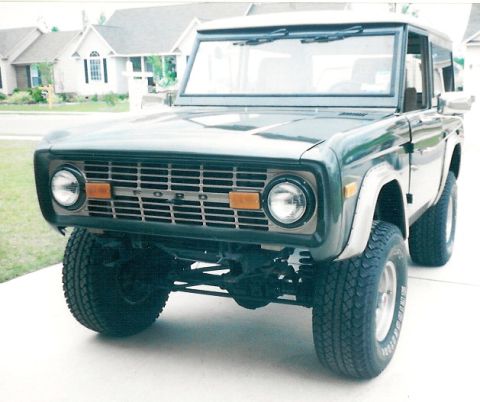

The colors are 2000 Eddie Bauer Expedition Estate Green & Light Prarie Tan. Bumpers are waiting, bu...		That's it until Frank can find enough spare cash to build a dash, bumpers, door panels, and a few ot...
Hits: 6236
Size: 53.28 KB
Posted: 7/2/03

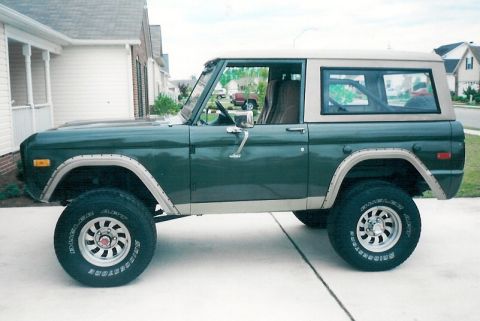

That's it until Frank can find enough spare cash to build a dash, bumpers, door panels, and a few ot...		Frank, his own self, getting his hands dirty (FINALLY). Oil has been dripping onto the ex.mans. for...
Hits: 3162
Size: 90.72 KB
Posted: 10/15/07

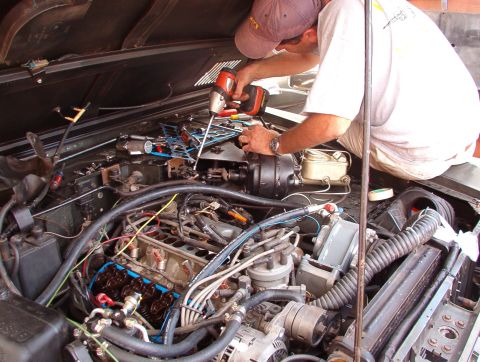

Frank, his own self, getting his hands dirty (FINALLY). Oil has been dripping onto the ex.mans. for...		I don't know why I haven't made a video before, but it just occurred to me how sexy I look in shorts...
Hits: 2400
Size: 34.47 MB
Posted: 10/28/07
I don't know why I haven't made a video before, but it just occurred to me how sexy I look in shorts...
We just replaced the valve cover gaskets & painted the covers, which is why they're so clean.
Hits: 2474
Size: 44.99 MB
Posted: 10/28/07
We just replaced the valve cover gaskets & painted the covers, which is why they're so clean.		NOW it's cool !!! :-D
Hits: 1949
Size: 72.02 KB
Posted: 1/6/08
NOW it's cool !!! :-D		Yesterday: ~65°F Today: ~7" on the roof. BTW Those new tires are WAAAYYYYY too grippy to thr...
Hits: 2009
Size: 59.49 KB
Posted: 2/28/09
Yesterday: ~65°F Today: ~7" on the roof. BTW Those new tires are WAAAYYYYY too grippy to thr...		We're slowly killing off the squeaks & rattles, and the tailgate hinges are next. Energy 4.9102G ...
Hits: 2663
Size: 80.77 KB
Posted: 5/6/09

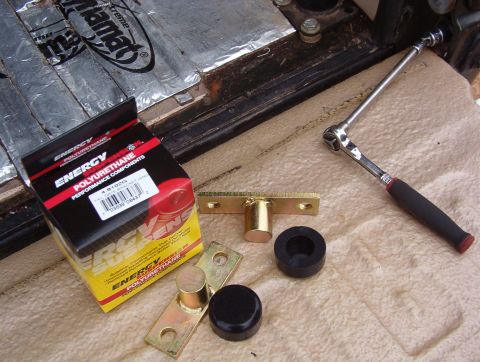

We're slowly killing off the squeaks & rattles, and the tailgate hinges are next. Energy 4.9102G ...		Because of the body lift, the lower hinge bolt is above the bumper. But because of the filler, it'...
Hits: 2139
Size: 48.43 KB
Posted: 5/6/09

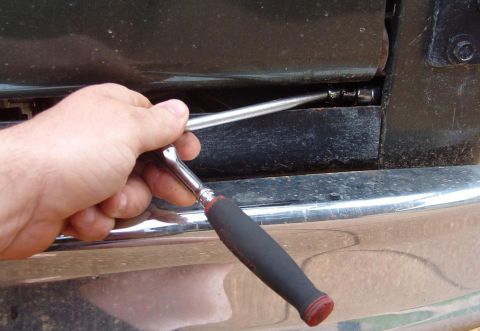

Because of the body lift, the lower hinge bolt is above the bumper. But because of the filler, it'...

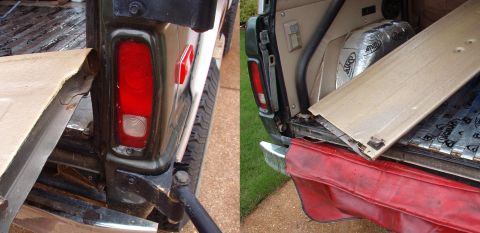

After removing both hinge bolts on the R side, the t/g lifts, carrying the hinge with it. I should ...
Hits: 2022
Size: 48.26 KB
Posted: 5/6/09
After removing both hinge bolts on the R side, the t/g lifts, carrying the hinge with it. I should ...		The hinges are exactly the same height overall, so the same shims can be reused. But because the En...
Hits: 1815
Size: 44.21 KB
Posted: 5/6/09

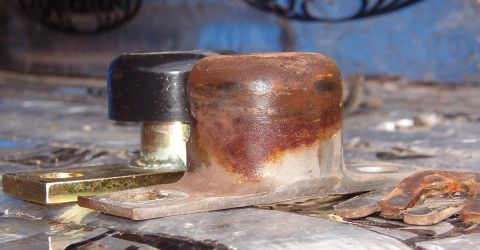

The hinges are exactly the same height overall, so the same shims can be reused. But because the En...		In addition to being a comfortable daily-driver & grocery-getter, it's also off-road almost every da...
Hits: 4301
Size: 108.67 KB
Posted: 5/9/09

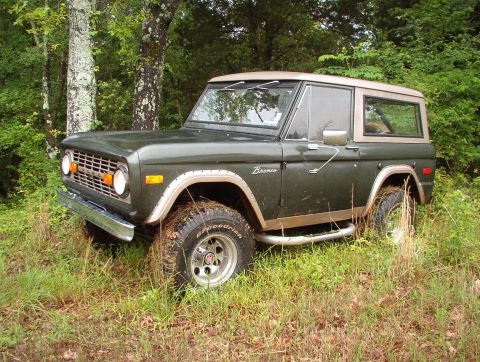

In addition to being a comfortable daily-driver & grocery-getter, it's also off-road almost every da...		In addition to being a comfortable daily-driver & grocery-getter, it's also used almost every day fo...
Hits: 2041
Size: 105.29 KB
Posted: 5/9/09

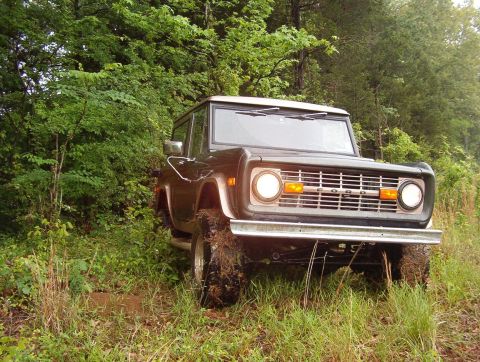

In addition to being a comfortable daily-driver & grocery-getter, it's also used almost every day fo...		In preparation for OCBR09, we added Expedition/F150 towing eyes. These are the cast-iron ones, atta...
Hits: 3016
Size: 88.49 KB
Posted: 9/11/09

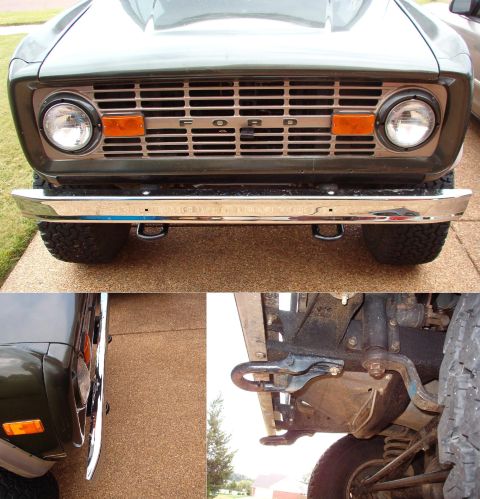

In preparation for OCBR09, we added Expedition/F150 towing eyes. These are the cast-iron ones, atta...

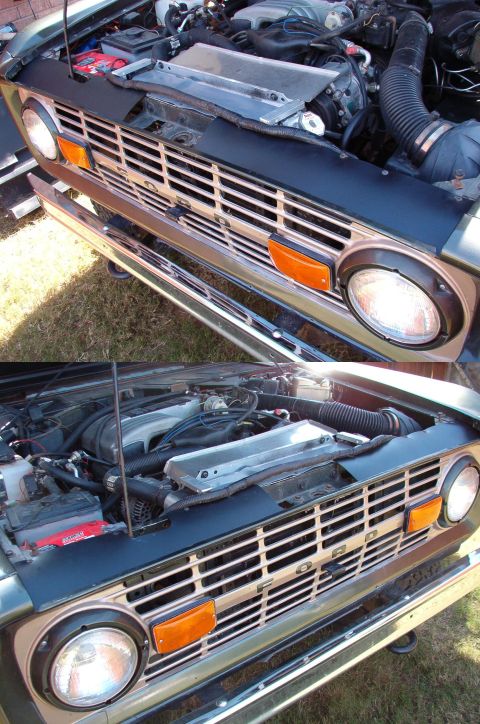

Headlight flaps made from the leftover wheelwell liner material help prevent hot fan air from recirc...
Hits: 2991
Size: 83.55 KB
Posted: 10/21/09
Headlight flaps made from the leftover wheelwell liner material help prevent hot fan air from recirc...		All the others looked practically new (other than the same light surface rust & dirt/oil on the expo...
Hits: 2616
Size: 50.75 KB
Posted: 12/7/09

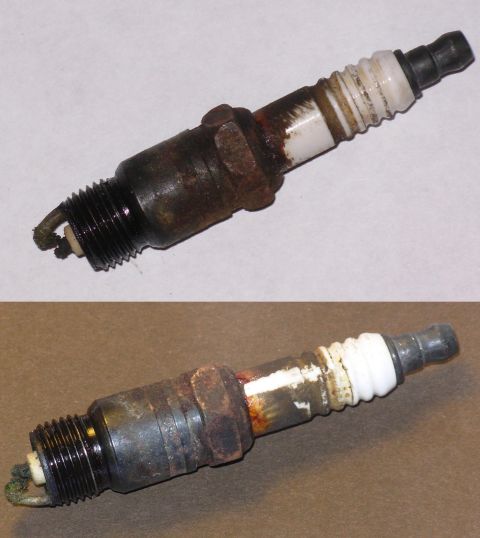

All the others looked practically new (other than the same light surface rust & dirt/oil on the expo...		The one that was on the truck when he bought it had obviously been damaged & repaired at least once,...
Hits: 1564
Size: 56.79 KB
Posted: 8/26/10
The one that was on the truck when he bought it had obviously been damaged & repaired at least once,...		The powdercoated swingaway looks a lot better, but it hasn't solved the weight or visibility problem...
Hits: 1715
Size: 73.54 KB
Posted: 8/27/10
The powdercoated swingaway looks a lot better, but it hasn't solved the weight or visibility problem...		33" is a lot of tire for an eB, and not just on the ground. On the stock swingaway, it blocks ...
Hits: 1473
Size: 63.89 KB
Posted: 8/27/10
33" is a lot of tire for an eB, and not just on the ground. On the stock swingaway, it blocks ...

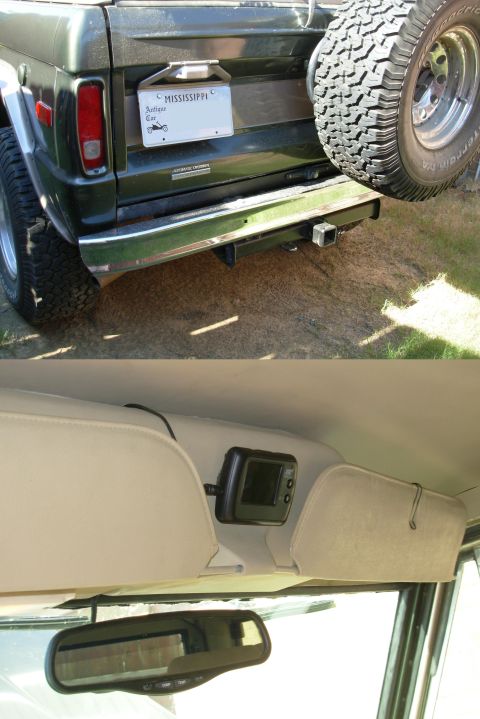

Just a cheapo wireless camera system, but it really helps Frank hook up his 4-wheeler or boat traile...
Hits: 1667
Size: 52.81 KB
Posted: 9/5/10
Just a cheapo wireless camera system, but it really helps Frank hook up his 4-wheeler or boat traile...		Just a quick chop of a trailer idea. The front platform is for dog boxes, and the trailer is for a ...
Hits: 1584
Size: 104.85 KB
Posted: 9/6/10

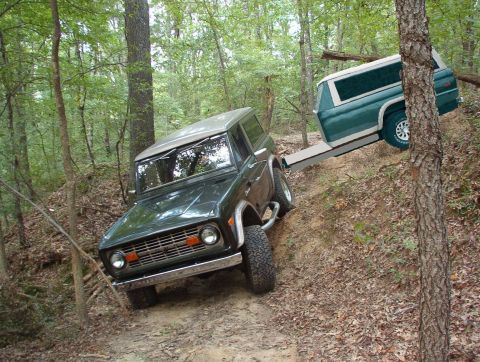

Just a quick chop of a trailer idea. The front platform is for dog boxes, and the trailer is for a ...		When the '88 pump quit, we found [url=http://shop.advanceautoparts.com/webapp/wcs/stores/servlet/pro...
Hits: 2126
Size: 77.76 KB
Posted: 9/10/10

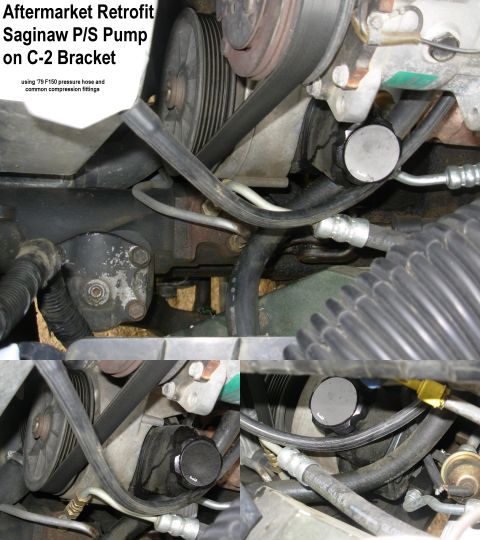

When the '88 pump quit, we found [url=http://shop.advanceautoparts.com/webapp/wcs/stores/servlet/pro...		The engine bay, as of the posting date.
Hits: 2017
Size: 69.95 KB
Posted: 9/10/10

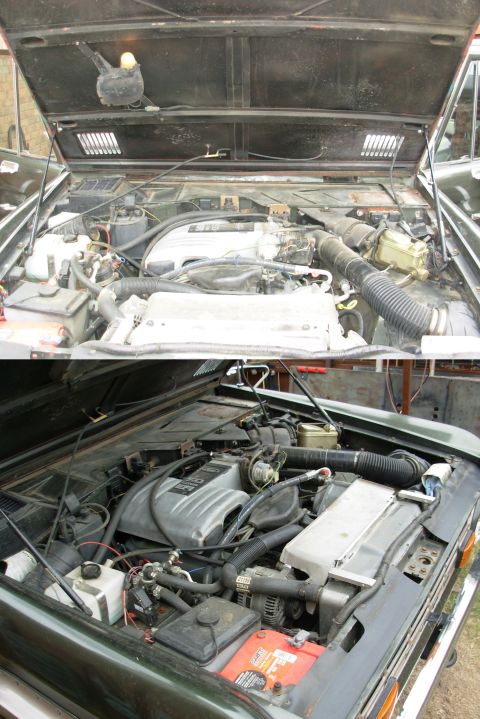

The engine bay, as of the posting date.		After fighting several crappy O-rings from JBG a year ago when the tank was replaced, I used RightSt...
Hits: 1618
Size: 96.65 KB
Posted: 10/5/10

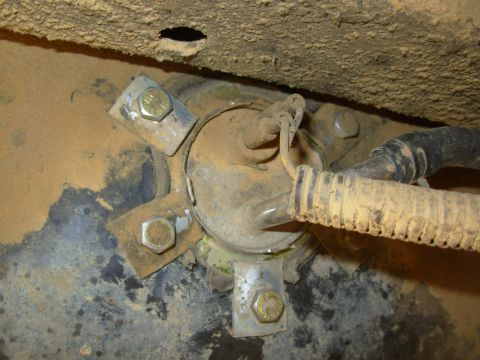

After fighting several crappy O-rings from JBG a year ago when the tank was replaced, I used RightSt...
Just messing around... If you want to try, read this caption: [url=http://www.supermotors.net/re...
Hits: 2349
Size: 38.2 KB
Posted: 1/3/11
Just messing around... If you want to try, read this caption: [url=http://www.supermotors.net/re...		The R door had been locked shut for about a week, and the weather finally got good enough to check i...
Hits: 1563
Size: 78.79 KB
Posted: 1/31/11
The R door had been locked shut for about a week, and the weather finally got good enough to check i...		To make future ignition module changes easier, and to reduce their frequency, I converted the wiring...
Hits: 2855
Size: 96.27 KB
Posted: 5/10/13
To make future ignition module changes easier, and to reduce their frequency, I converted the wiring...		Fuel switching valves, version 2 [url=https://www.supermotors.net/registry/media/727253][img]https:...
Hits: 2125
Size: 62.04 KB
Posted: 3/23/11
Fuel switching valves, version 2 [url=https://www.supermotors.net/registry/media/727253][img]https:...		This BWD/Pollack FSV2A [url=https://www.amazon.com/dp/B097YF5BW3]6-port fuel valve[/url] should fina...
Hits: 3370
Size: 57.63 KB
Posted: 4/12/11

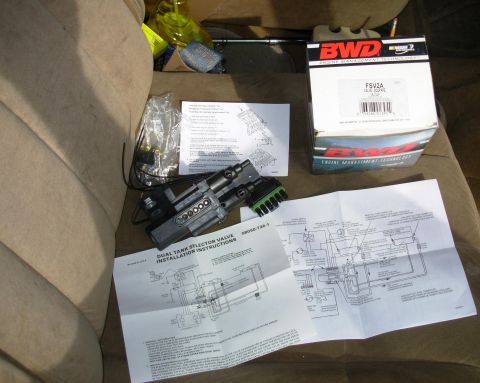

This BWD/Pollack FSV2A [url=https://www.amazon.com/dp/B097YF5BW3]6-port fuel valve[/url] should fina...
This is a BWD (Pollack) FSV2A from O'Reilly attached by 1 bolt to a simple bracket I cut & bent, wit...
Hits: 2016
Size: 106.11 KB
Posted: 3/24/11
This is a BWD (Pollack) FSV2A from O'Reilly attached by 1 bolt to a simple bracket I cut & bent, wit...		The shield protects the valve, wiring, & lines from the exhaust heat. See the NEXT several pics...
Hits: 1634
Size: 85.42 KB
Posted: 3/24/11
The shield protects the valve, wiring, & lines from the exhaust heat. See the NEXT several pics...		The wiring isn't neat, but it works & it's hidden! [url=http://www.supermotors.net/registry/media/8...
Hits: 1769
Size: 86.23 KB
Posted: 3/24/11
The wiring isn't neat, but it works & it's hidden! [url=http://www.supermotors.net/registry/media/8...		The wiring isn't neat, but it works & it's hidden! The forward heat shield protects the single-funct...
Hits: 1691
Size: 97.8 KB
Posted: 3/24/11
The wiring isn't neat, but it works & it's hidden! The forward heat shield protects the single-funct...		As soon as the spark plug wire was fixed, the engine started surging, which eventually turned out to...
Hits: 1571
Size: 110.65 KB
Posted: 4/4/11

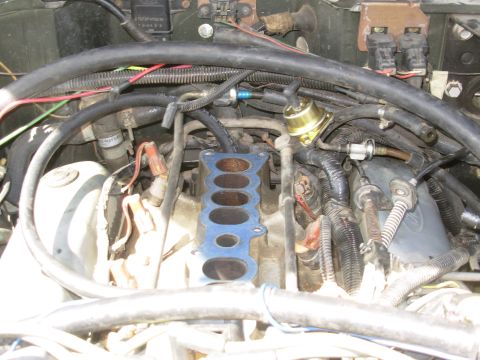

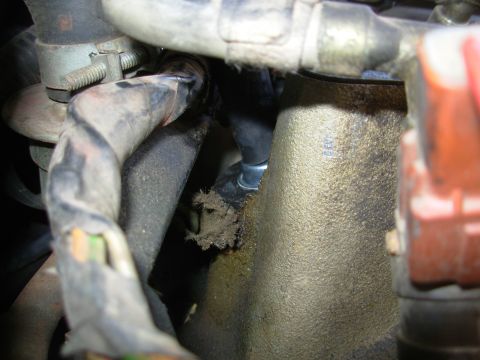

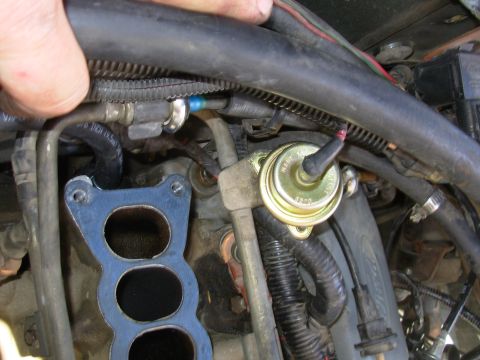

As soon as the spark plug wire was fixed, the engine started surging, which eventually turned out to...
As soon as the spark plug wire was fixed, the engine started surging, which eventually turned out to...
Hits: 1345
Size: 99.2 KB
Posted: 4/4/11
As soon as the spark plug wire was fixed, the engine started surging, which eventually turned out to...		As soon as the spark plug wire was fixed, the engine started surging, which eventually turned out to...
Hits: 7730
Size: 90.38 KB
Posted: 4/4/11
As soon as the spark plug wire was fixed, the engine started surging, which eventually turned out to...		As soon as the spark plug wire was fixed, the engine started surging, which eventually turned out to...
Hits: 1505
Size: 85.23 KB
Posted: 4/4/11
As soon as the spark plug wire was fixed, the engine started surging, which eventually turned out to...		After installing an inferior aftermarket switch, we ordered this, which wasn't significantly more ex...
Hits: 1607
Size: 50.78 KB
Posted: 4/12/11

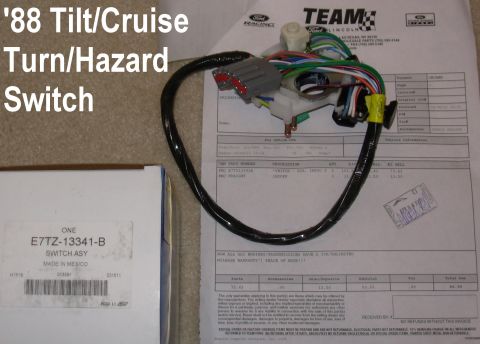

After installing an inferior aftermarket switch, we ordered this, which wasn't significantly more ex...
