Radio

From 1983 Ford Bronco “That dirty old truck” — documented by Steve83.

19 photos
← Back to this vehicle

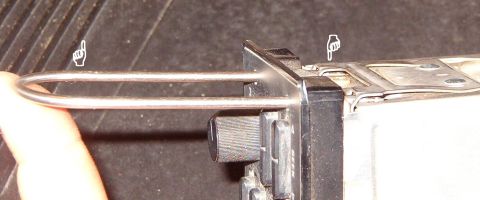

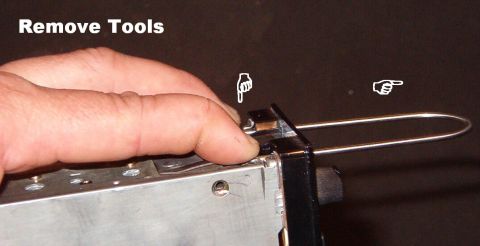

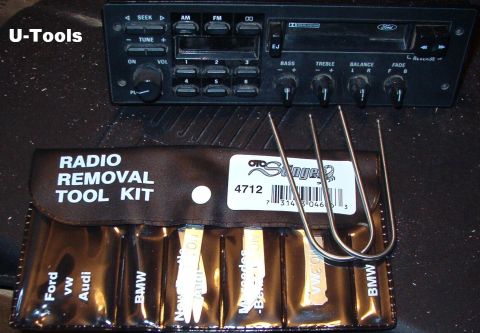

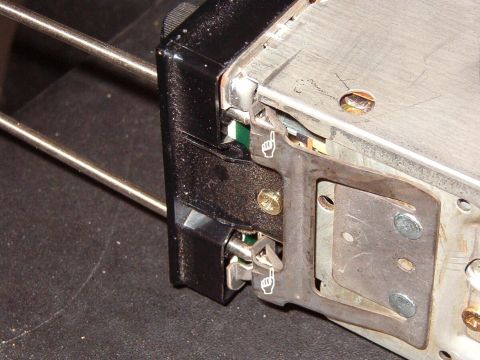

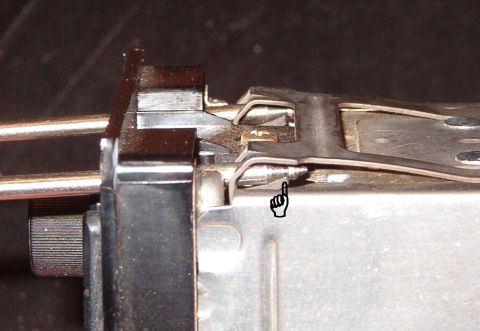

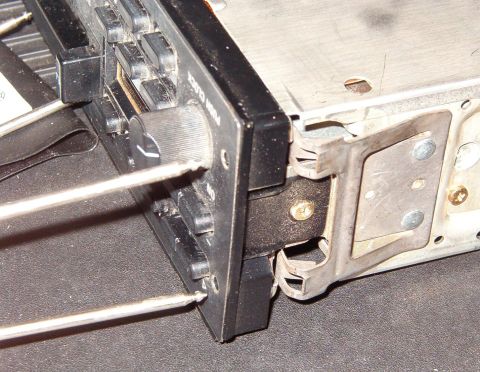

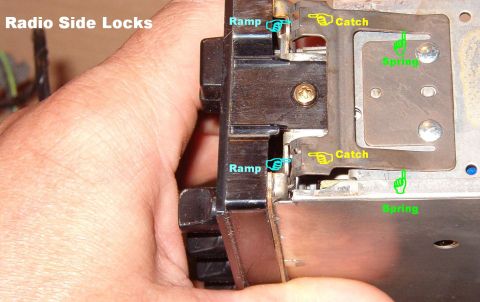

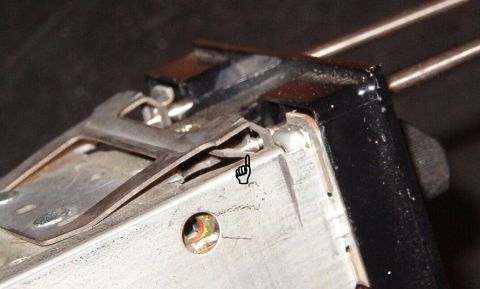

1983 Ford Bronco - Tools are critical - use the right ones for the radio you have. Fortunately, you don't have to buy a set like this - you can make them from… 1983 Ford Bronco - This type of lock clip is used on most '87-up Fords, but read this first: [url=http://www.supermotors.net/registry/media/491894] http://www… 1983 Ford Bronco - It's easy to identify this style of mounting catch by the 2 holes on each side of the radio face, but read this first: [url=http://www.supe… 1983 Ford Bronco - As the tool is inserted, the tapered tip rides up the ramp of the clip, compressing the spring & drawing the catch inward. 1983 Ford Bronco - As the tool is inserted, the tapered tip rides up the ramp of the clip, compressing the spring & drawing the catch inward. 1983 Ford Bronco - When all 4 click, the tools are in far enough. 1983 Ford Bronco - Pull the tools outboard to fully compress the catches, then pull the tools to draw the radio out of the dash. If you're using improvised to… 1983 Ford Bronco - Once the radio is out, manually push the locks in to allow the tools to be extracted. 1983 Ford Bronco - The replacement bulb for this style of radio (backlit LCD display) can be very difficult to find, but here are 2 types that will work. The… 1983 Ford Bronco - Radio Connector Pinout for '87-96 trucks. Premium sound was only offered '94-up. IF THE IMAGE IS TOO SMALL, click it. Note that P=purple; P… 1983 Ford Bronco - '87-96 Radio Connectors (except Premium Sound) equivalent to Metra 71-1770 Mating connectors Metra 70-1770 or Scosche FD02B See also: [url=… 1983 Ford Bronco - '94-96 F-series/Bronco Premium Sound Radio & Amplifier Wiring Front speakers are 6.5", but some nominal 5.25" speakers fit. Rears… 1983 Ford Bronco - SOLD Amp & Harness for 94-96 premium radio & CD tested working on all 4 channels. The harness will fit '92-96 trucks, and possibly '87-91.… 1983 Ford Bronco - 80-96 Antenna Base and Cable F-150-250-350, F-Super Duty and Bronco IF THE IMAGE IS TOO SMALL, click it. [url=https://www.supermotors.net/r… 1983 Ford Bronco - SOLD OE Cassette Radio from '93 Bronco. Tested working; note chipped corner top Left 1983 Ford Bronco - SOLD Radio removed working from a '93 EB Bronco. Non-premium (no factory amplifier). 1983 Ford Bronco - Antenna Base Construction IF THE IMAGE IS TOO SMALL, click it. The center conductor is simply isolated from the mounting base (grounded thr… 1983 Ford Bronco - Speaker Terminals IF THE IMAGE IS TOO SMALL, click it. Instead of splicing aftermarket wires or terminals onto the truck harness, soldering…
