Two labeled Ford radio wiring connectors C257F power and C258F s…

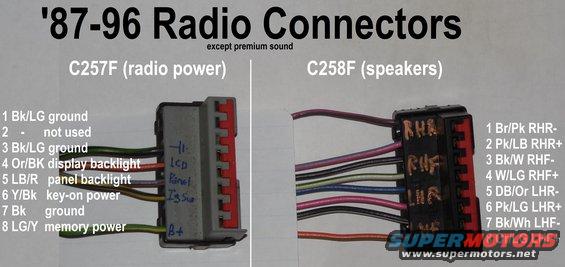

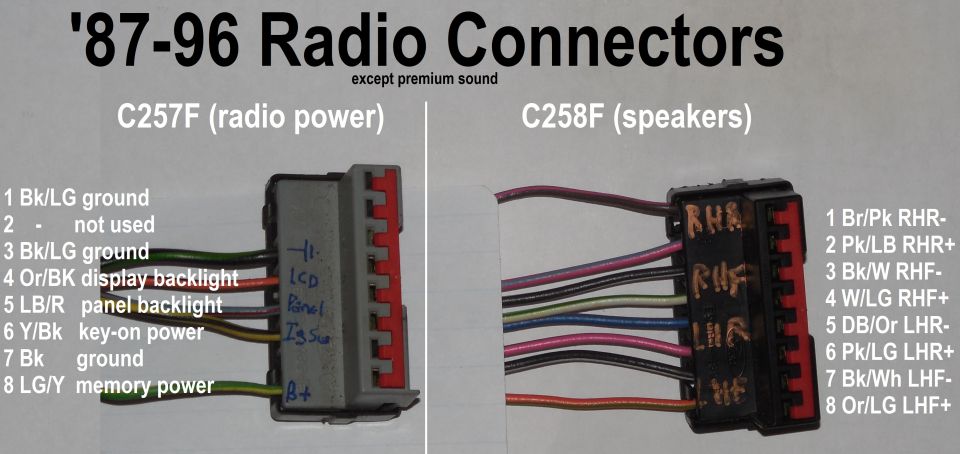

Two labeled Ford radio wiring connectors C257F power and C258F speakers with wire color pinout chart

'87-96 Radio Connectors (except Premium Sound) equivalent to Metra 71-1770
Mating connectors Metra 70-1770 or Scosche FD02B

See also:
MotorCraft 2016 Wiring Pigtail Guide
. . .
