PSOM

From 1983 Ford Bronco “That dirty old truck” — documented by Steve83.

11 photos
← Back to this vehicle

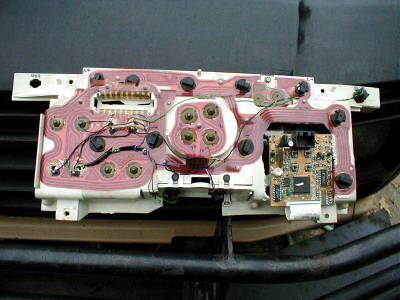

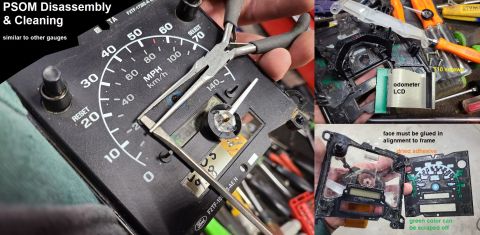

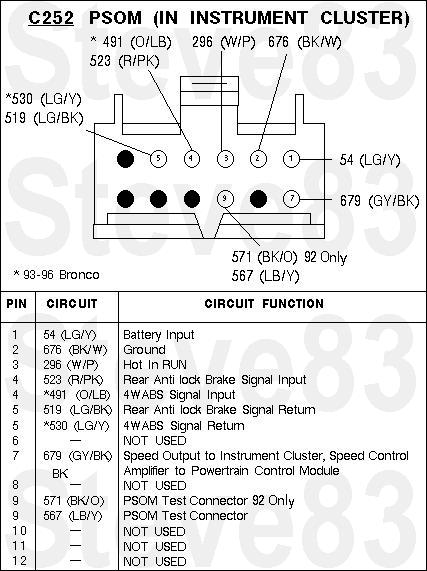

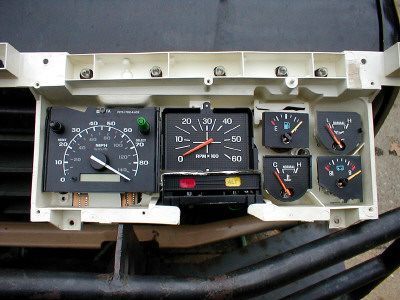

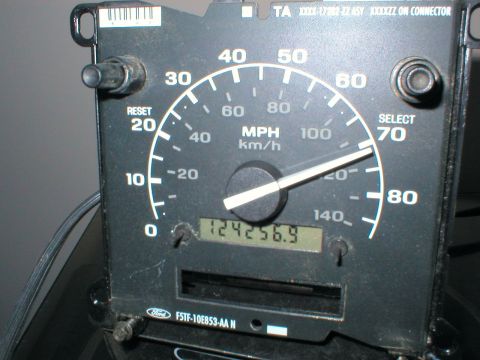

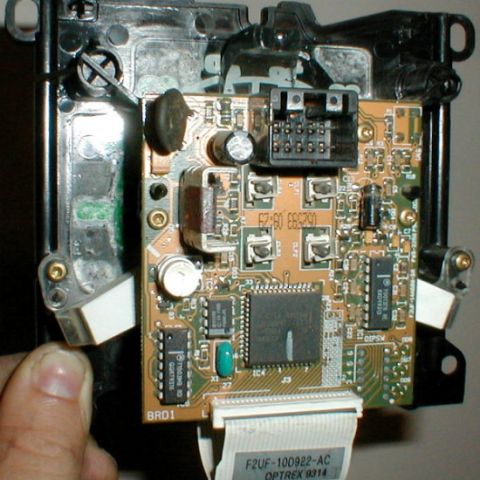

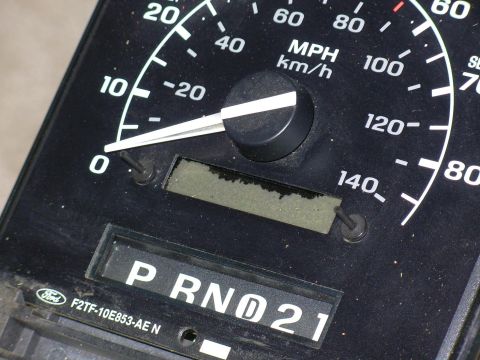

1983 Ford Bronco - Because I was sick of fighting the speedo cable & plastic gears, and since I had already swapped in an '87-96 rear axle with ABS sensor (DY… 1983 Ford Bronco - This shows most of the modifications I had to make to put the new gauges into the old cluster, and the circuit mods for the EFI engine. The… 1983 Ford Bronco - This is while I was running up miles on a '96 PSOM using a computer-generated (GoldWave) tone coming thru the stereo to the ABS sensor (DY1… 1983 Ford Bronco - PSOM '92 Note the empty pads in the lower R corner where the DIP switches would be if this was a digital-display PSOM. [url=https://modulem… 1983 Ford Bronco - Ford warns about leaving a PSOM face-down causing some discoloration, and this is an example of that. Silicone grease from the needle movem… 1983 Ford Bronco - PSOM Disassembly & Cleaning [url=https://modulemechanics.com/product/f4uf-10d922-ba-replacement-lcd-for-1992-1997-ford-psom-odometer-screen… 1983 Ford Bronco - Odometer Display Self-Test 1 - Press and hold the reset button on the front of the speedometer while turning the key to RUN. 2 - Release th… 1983 Ford Bronco - PSOM C252 For more info, read the PREVious/NEXT several pages. CHECK SPEED INPUT SIGNAL NOTE: Only wiring harness end of connector is to be… 1983 Ford Bronco - PSOM diagram for '96 Bronco. '93-95 Bronco similar. http://www.revbase.com/BBBMotor/Wd CHECK SPEED INPUT SIGNAL NOTE: Only wiring harness e… 1983 Ford Bronco - PSOM for '96 pickups. '92-95 similar. http://www.revbase.com/BBBMotor/Wd [url=https://www.supermotors.net/registry/media/494370] https://ww… 1983 Ford Bronco - VSS 93-96 Bronco http://www.revbase.com/BBBMotor/Wd CHECK SPEED INPUT SIGNAL NOTE: Only wiring harness end of connector is to be probed. *…
