Lock Cylinder

From 1983 Ford Bronco “That dirty old truck” — documented by Steve83.

16 photos
← Back to this vehicle

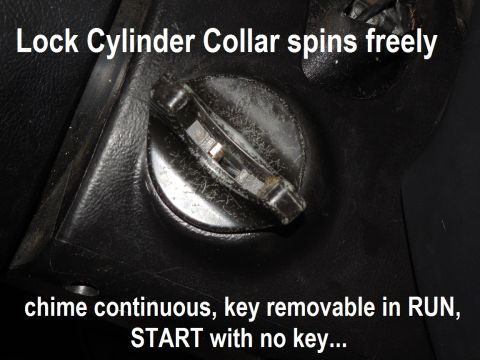

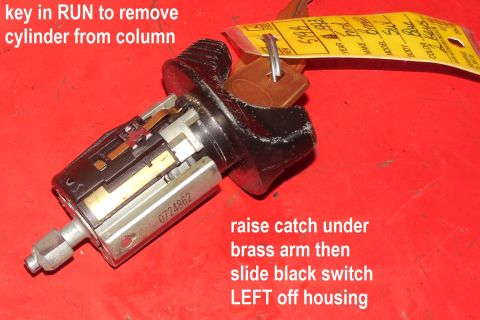

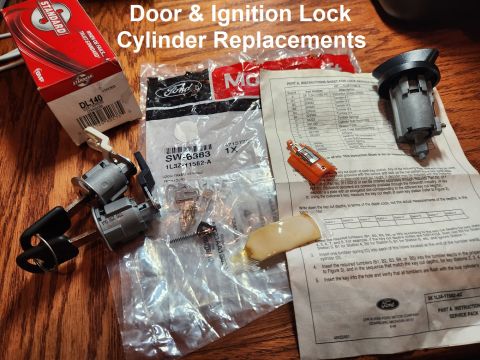

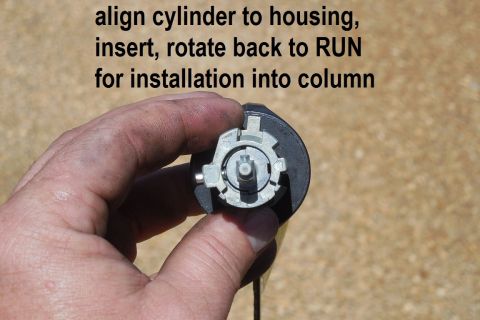

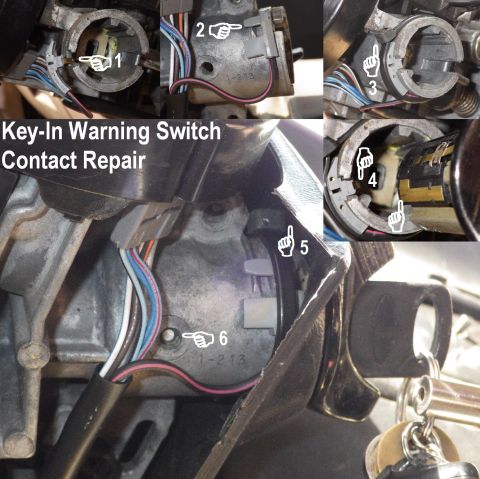

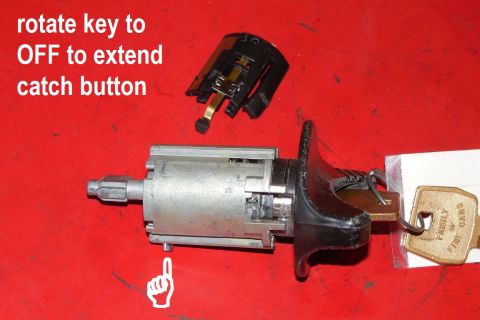

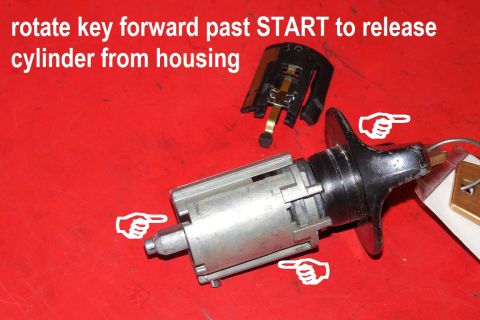

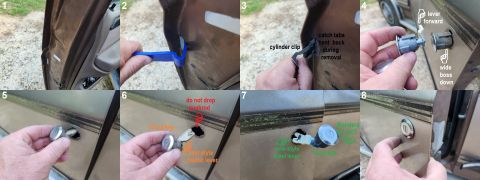

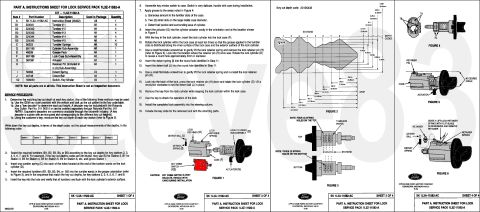

1983 Ford Bronco - Door & Ignition Lock Cylinder Replacements IF THE IMAGE IS TOO SMALL, click it. For any '80-96/7 F-series or Bronco, the best way to return… 1983 Ford Bronco - Instruction Sheet for Ford (StratTech) 8-cut ignition lock cylinder assembly IF THE IMAGE IS TOO SMALL, click it. 1983 Ford Bronco - Door Lock Cylinder Replacement IF THE IMAGE IS TOO SMALL, click it. In addition to removing all wear & damage, replacing the door lock cyli… 1983 Ford Bronco - Key-In Contact Repair [url=https://www.supermotors.net/registry/media/1092884] https://www.supermotors.net/getfile/1092884/thumbnail/chimec… 1983 Ford Bronco - This original '93 collar (using the 10-cut key) is very loose, causing several annoying problems. With the key in RUN, push a probe up thro… 1983 Ford Bronco - If the key-in switch is damaged, it can be discarded. This one is OK, so I removed it carefully. [url=https://www.supermotors.net/registry/… 1983 Ford Bronco - The cylinder must be rotated back to OFF before rotating forward past START to disassemble it from its housing. New [url=https://www.amazon… 1983 Ford Bronco - As the cylinder passes START, the cam on the end will disengage from the mating cam in the housing, and the detent springs will push the cy… 1983 Ford Bronco - Note the orientation of the detent ring as it falls off. Don't lose the brass detent springs & pins from inside the housing (NOT VISIBLE in… 1983 Ford Bronco - Inspect all the working parts of the cylinder. If it's damaged or worn, don't waste your time trying this repair. Buy a new one and have a… 1983 Ford Bronco - Use brake cleaner liberally (in a ventilated area where the overspray & drips won't damage anything) to clean all the old grease & worn met… 1983 Ford Bronco - Insert the key, align the collar perfectly, mark the collar to the cylinder, and remove the key while holding the parts in alignment. Appar… 1983 Ford Bronco - Apply glue to a small area and allow it to dry while holding alignment. Recheck, and if necessary, break the glue and reset for perfect ali… 1983 Ford Bronco - Once they're glued together in one spot, fill the gap between the collar & cylinder, allowing the glue to wick in between the parts. DO NOT… 1983 Ford Bronco - Once the glue is thoroughly dry, and you're satisfied with the alignment, apply light oil to the cylinder's moving parts and work the key a… 1983 Ford Bronco - Insert the cylinder back into the housing, aligning the cams at the inner end, then rotate the cylinder back to RUN so it can be reinstalle…
