Ford Door Lock Cylinder Replacement - Clip Removal & Standard DL140T Swap

Eight numbered step photos showing door lock cylinder removal with annotations

Door Lock Cylinder Replacement
IF THE IMAGE IS TOO SMALL, click it.

In addition to removing all wear & damage, replacing the door lock cylinders with new has the added benefit (on pre-'96 trucks) of updating the keys to the later 8-cut style, which has more aftermarket support (like StratTec's Bolt line of accessories). I also allows matching the new keys to a new 8-cut ignition lock cylinder.

Owner caption March 2024 · Photo 0 of 5000

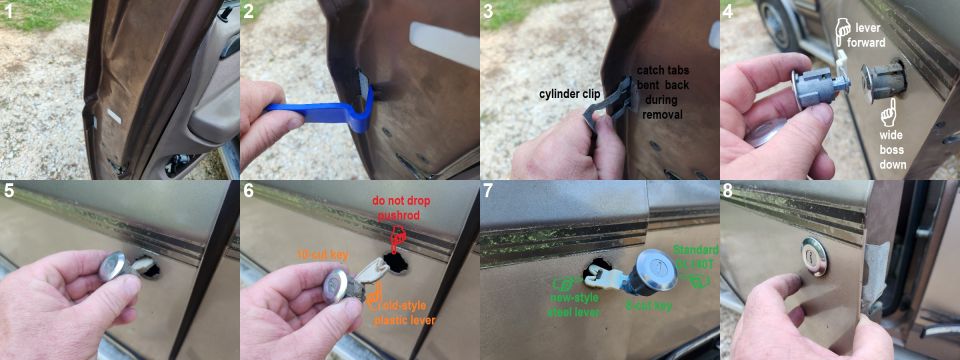

This is an eight-panel photo procedure ("DoorCylSwap") documenting the removal and replacement of a door lock cylinder on a brown Ford vehicle. Panel 1 shows the open door and its rear edge. Panel 2 shows a blue plastic trim tool being used at the door edge to release the cylinder retaining clip. Panel 3 shows the removed "cylinder clip," noting that its "catch tabs" get "bent back during removal." Panel 4 shows old and new cylinders side by side with orientation notes: "lever forward" and "wide boss down." Panel 5 shows the old cylinder withdrawn from the door. Panel 6 identifies the old cylinder as using a "10-cut key" with an "old-style plastic lever," and warns "do not drop pushrod" into the door cavity. Panel 7 shows the replacement — a Standard DL140T cylinder — with a "new-style steel lever" and an "8-cut key." Panel 8 shows the new cylinder installed with the clip seated at the door edge. A reader learns the clip location and removal method, the correct installation orientation, the pushrod caution, key-cut differences between old and new cylinders, and the specific replacement part number (Standard DL140T).
