Custom exhaust

From 1986 Ford Bronco “Eddie Bauer” — documented by Sixlitre.

21 photos
← Back to this vehicle

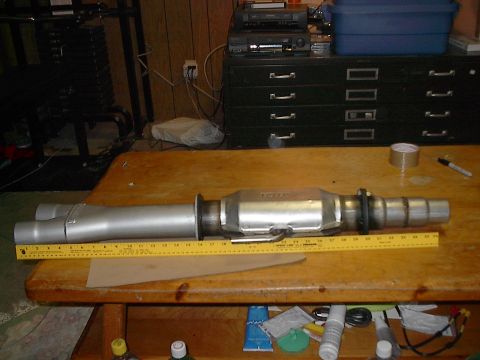

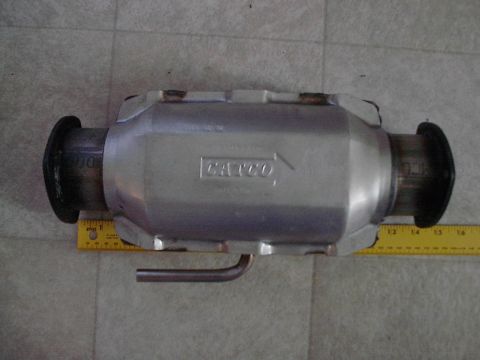

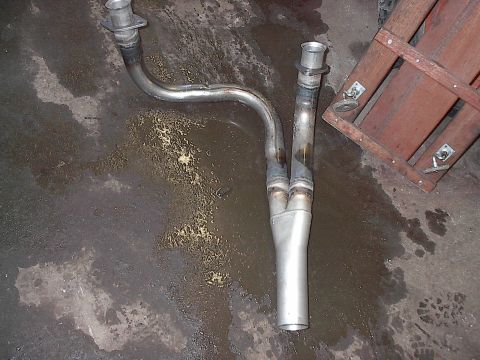

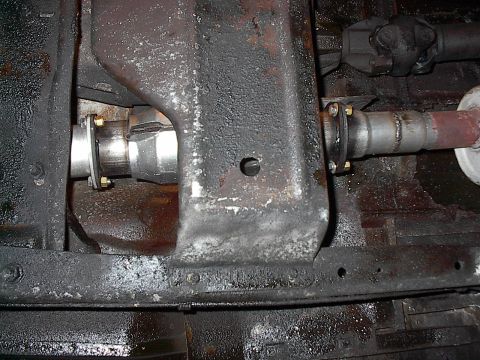

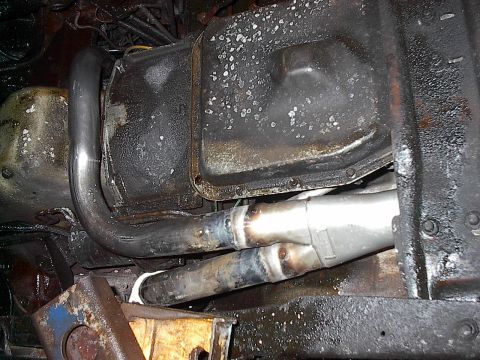

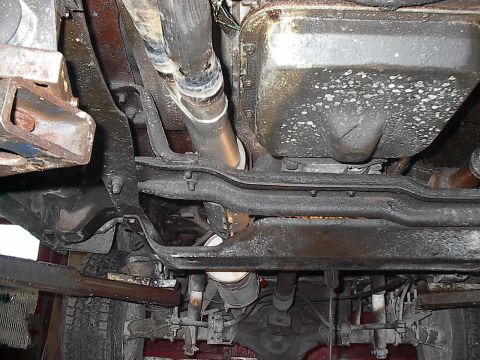

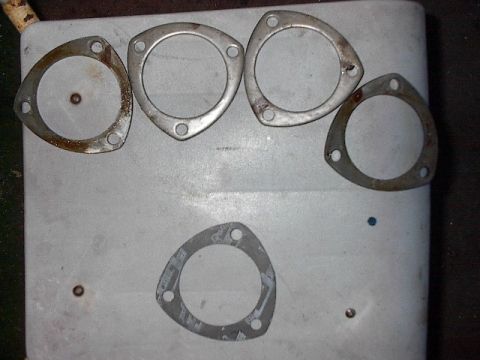

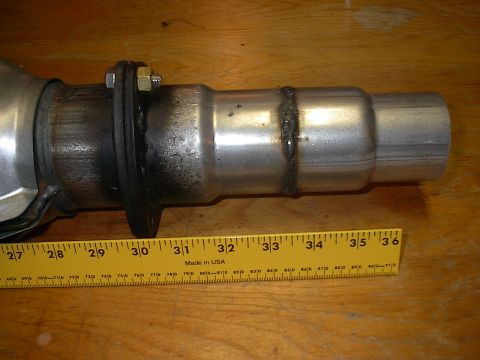

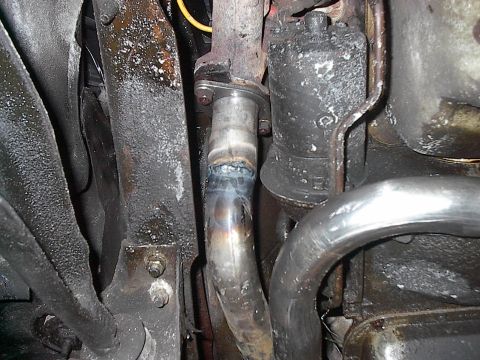

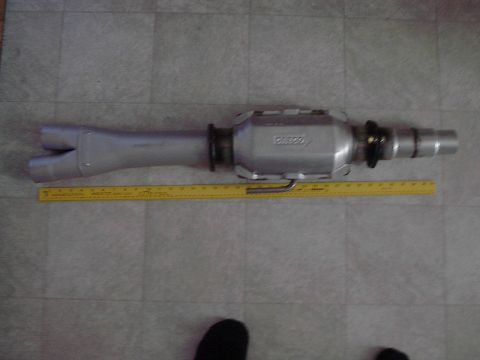

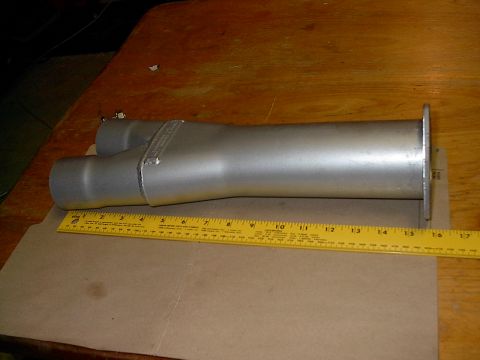

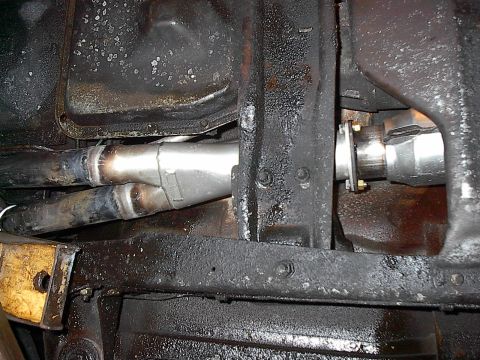

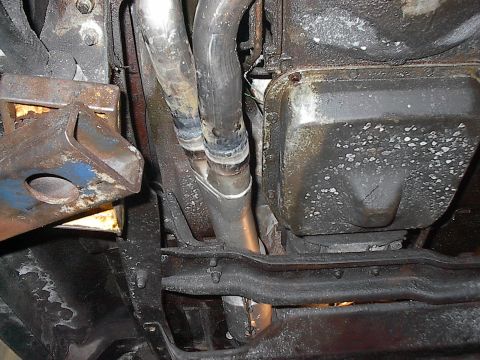

1986 Ford Bronco - Look a little like a header ? 1986 Ford Bronco - Real direct off pass manifold eh ? 1986 Ford Bronco - Can you see air pump pipe ? 1986 Ford Bronco - Keepin' it legal 3" cat w/header flanges 1986 Ford Bronco - Talk about clearance to spare ! Thank you WD-40 for the idea 1986 Ford Bronco - Things have changed since we necked down into this stock muffler and tailpipe. More to follow 1986 Ford Bronco - Actually picked up more room around starter for removal, etc. 1986 Ford Bronco - Plottin' and a schemin' Pretty much all you need to buy and partially weld ahead of time. Ignore the 12s 1986 Ford Bronco - Four 3" header flanges from J.C.W and one Mr.Gasket ultraseal 3" header gasket, less than $7 CDN a pair at CTC. 1986 Ford Bronco - 3" Catco with JCW 3" header flanges welded to both ends. Note it's still only 14" long with the flanges. 1986 Ford Bronco - For those about to build. Here's the Flowmaster 2 into 1 Y connection pipe. Wish I'd shot the insides, it's truly a work of art so far as f… 1986 Ford Bronco - Here's a shot of the overall length of the components. 1986 Ford Bronco - Originally I built this reducer to allow re-using the stock 2 1/4" muffler and tailpipe (cause I was broke). It takes you down from 3", at… 1986 Ford Bronco - Want to make your pipe bender's job even easier ? These are sold at jobbers (Canadian Tire too) for very cheap to fit your stock manifold's… 1986 Ford Bronco - They're made so they slip right over the 2 1/4" pipe I was using for the headpipes that run into the Flowmaster 2 into 1 Y connection pipe.… 1986 Ford Bronco - These ain't cheap, at @$70.00 a pair, but they disconnect faster than my header flanges. 1986 Ford Bronco - What do you do, after six years of Ontario salt damage, when your collector flange falls off when the pipe rots on you ? You buy a $5.00 re… 1986 Ford Bronco - Not pretty on the outside anymore, but inside the flow qualities of that Flowmaster Y are unfettered and still delivering the mileage and t… 1986 Ford Bronco - Band clamps 1986 Ford Bronco - Next time, if I'm in a hurry I may just go Catco 1986 Ford Bronco - This document displays concentric circles and text, likely related to a registry or technical information.
