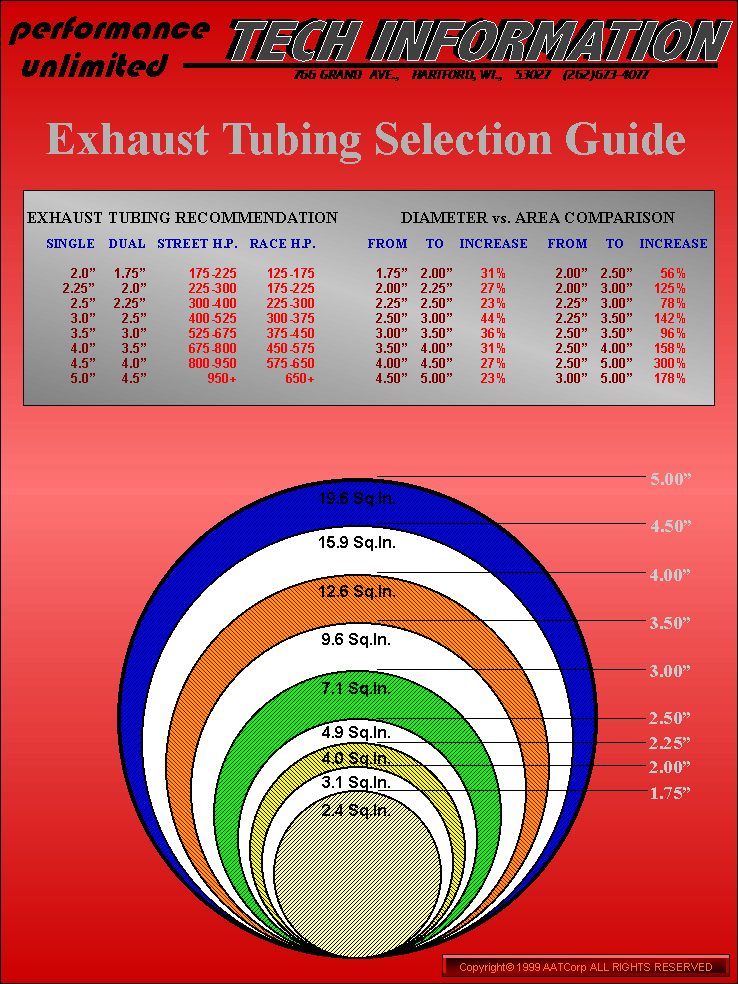

Performance Unlimited exhaust tubing guide: single/dual pipe sizes by street and race HP, plus diameter vs. area from 1.75" (2.4 sq.in.) to 5.00".

Part of 1980-1986 Ford Bronco Brochures & Literature

AI caption · Photo 1095 of 1163

Performance W Unlimited EXHAUST TUBING RECOMMENDATION DIAMETER vs. AREA COMZFARISON SINGLE nmu. STREET HP. RACE HI. FROM TO INCREASE FROM TO INCREASE
