change oil pan gasket and valve cover gasket 001.jpg
1201 hits | 76.09 KB | Posted: 2/24/07

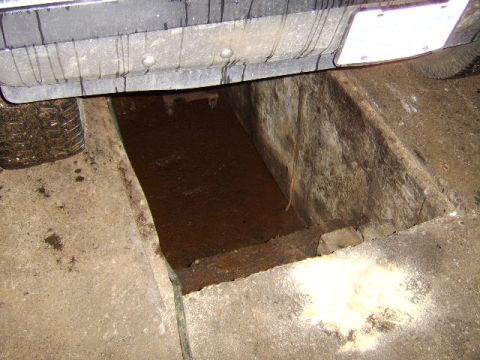

My dads garage with a pit he got put in about 25 years ago

change oil pan gasket and valve cover gasket 002.jpg
901 hits | 73.32 KB | Posted: 2/24/07

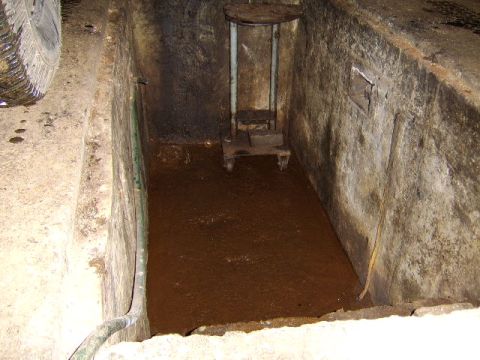

another view of the pit

change oil pan gasket and valve cover gasket 007.jpg
951 hits | 80.08 KB | Posted: 2/24/07

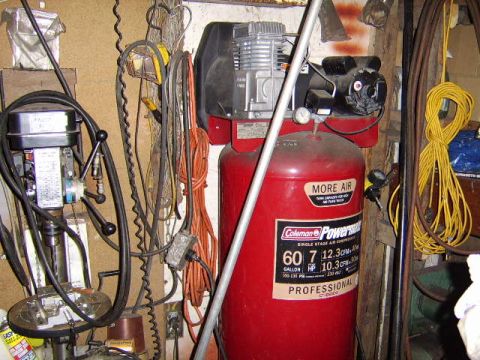

my compressor

change oil pan gasket and valve cover gasket 006.jpg
946 hits | 78.82 KB | Posted: 2/24/07

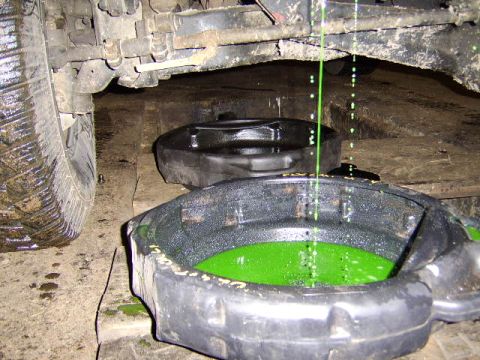

draining the oil and coolant

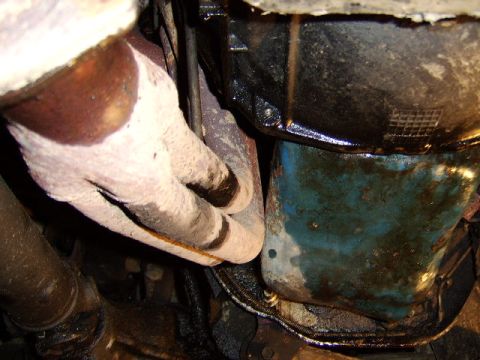

change oil pan gasket and valve cover gasket 004.jpg
1064 hits | 70.59 KB | Posted: 2/24/07

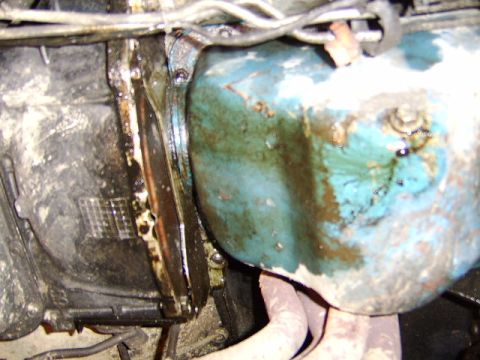

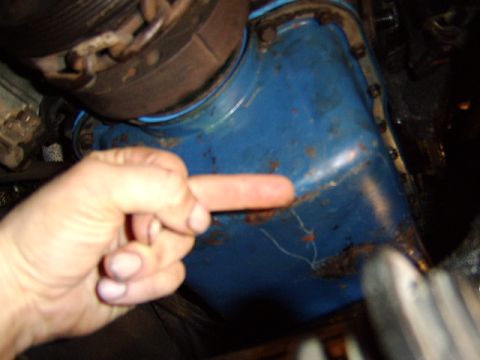

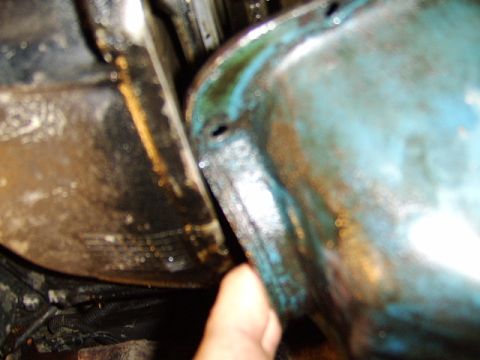

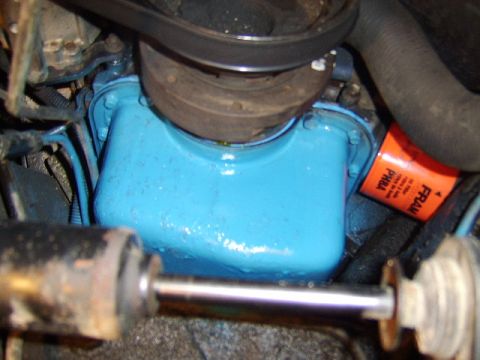

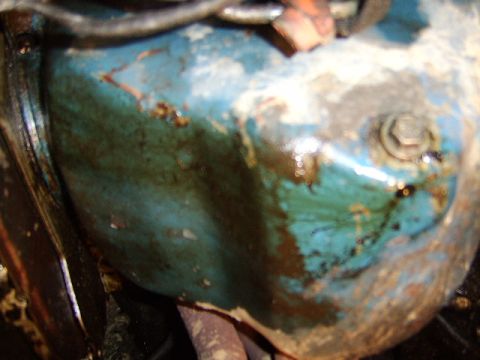

You can see the path of the oil leak here

change oil pan gasket and valve cover gasket 003.jpg
1231 hits | 78.84 KB | Posted: 2/24/07

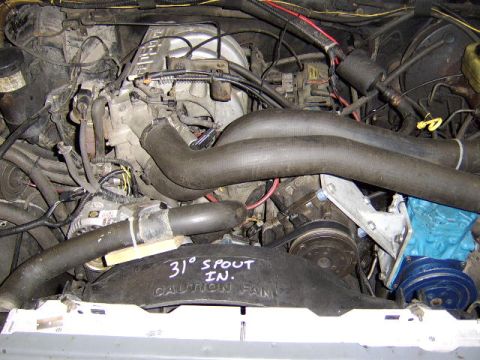

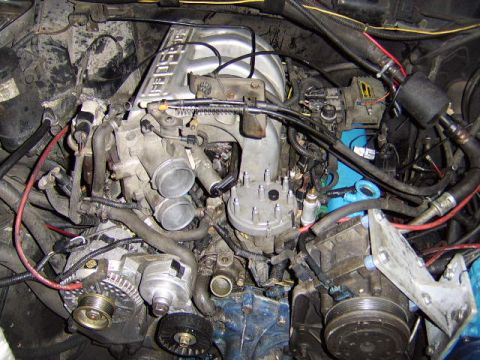

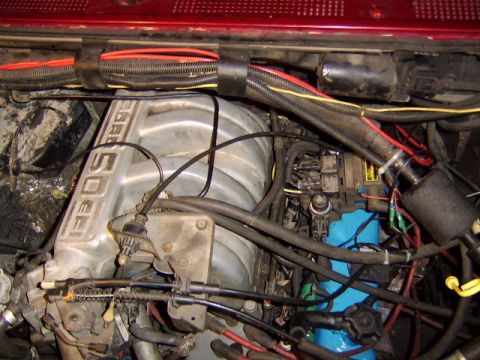

I will now start reomoving all that crap you see here

change oil pan gasket and valve cover gasket 008.jpg
1292 hits | 79.65 KB | Posted: 2/24/07

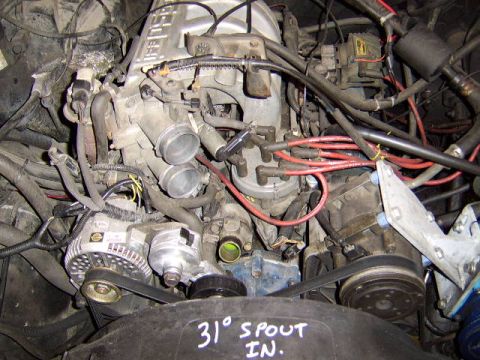

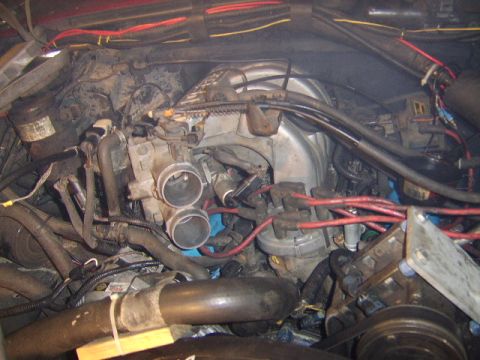

Air intake hoses, upper coolant hose is removed

change oil pan gasket and valve cover gasket 009.jpg
1940 hits | 74.06 KB | Posted: 2/24/07

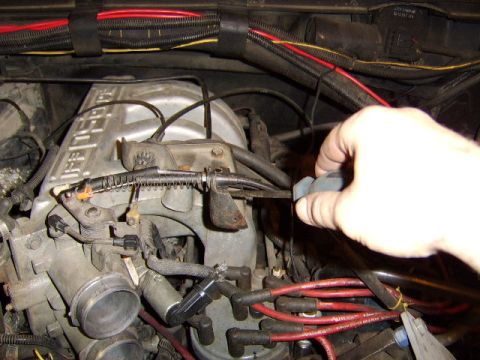

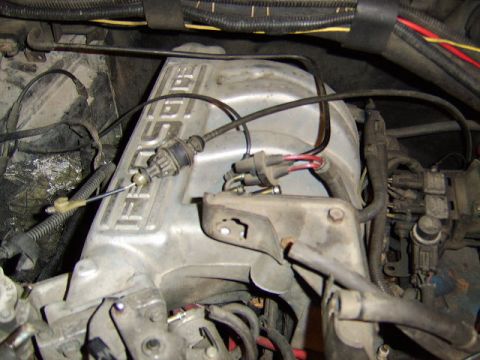

The throttle cable is removed by prying upwards at the bracket to remove it and simply prying upward...

change oil pan gasket and valve cover gasket 010.jpg
1667 hits | 70.25 KB | Posted: 2/24/07

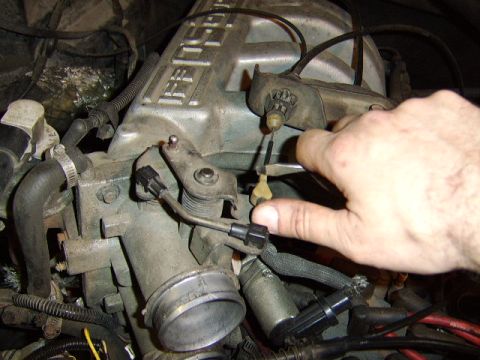

the tranny cable is removed by pulling towards yourself and lifting up.
At the bracket towards the...

change oil pan gasket and valve cover gasket 011.jpg
1438 hits | 63.19 KB | Posted: 2/24/07

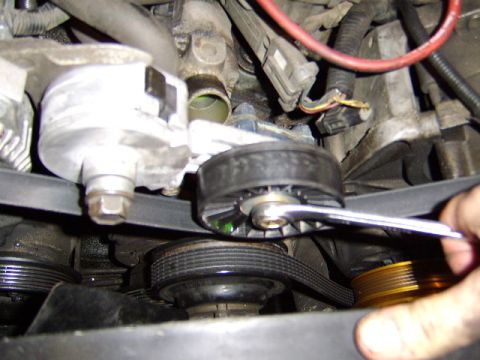

I will now remove the belt by turning counterclockwise on the belt tensioner giving enough slack to ...

change oil pan gasket and valve cover gasket 012.jpg
1301 hits | 74.14 KB | Posted: 2/24/07

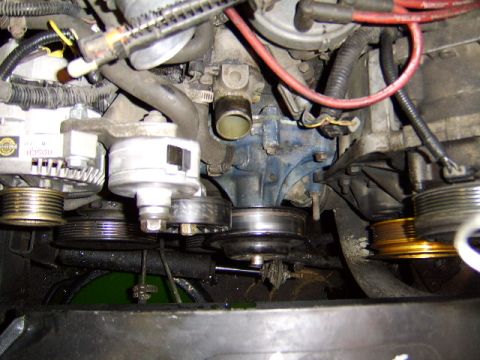

belt removed

change oil pan gasket and valve cover gasket 013.jpg
1325 hits | 49.73 KB | Posted: 2/24/07

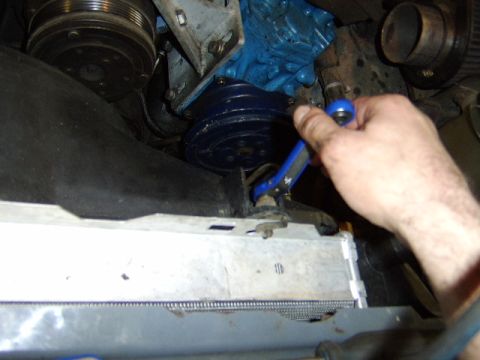

After removing the fan shroud I removed the rad by removing the two bolts on the top and then removi...

change oil pan gasket and valve cover gasket 014.jpg
1300 hits | 77.6 KB | Posted: 2/24/07

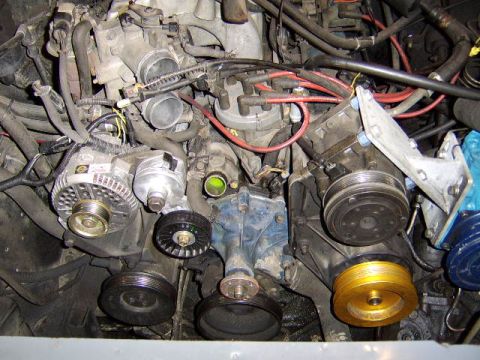

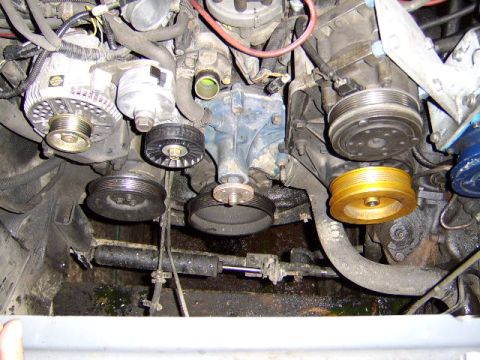

Now there is room to work

change oil pan gasket and valve cover gasket 015.jpg
1272 hits | 77.83 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 016.jpg
2614 hits | 55.34 KB | Posted: 2/24/07

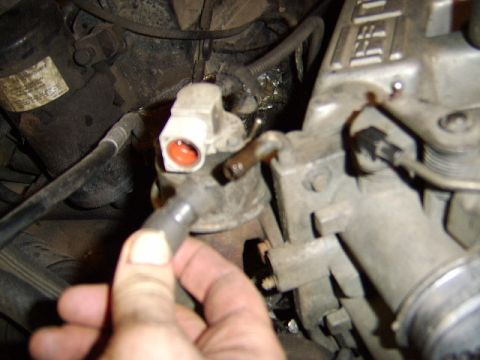

next I removedthe plug from the egr valve and then the coolant hose at the top of the throttle body

change oil pan gasket and valve cover gasket 017.jpg
1386 hits | 68.73 KB | Posted: 2/24/07

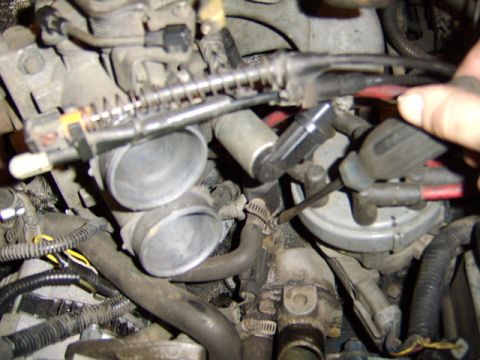

and this one down here by the distributor. It is easyer to loosen the clamp here than at the bottom ...

change oil pan gasket and valve cover gasket 018.jpg
1275 hits | 48.21 KB | Posted: 2/24/07

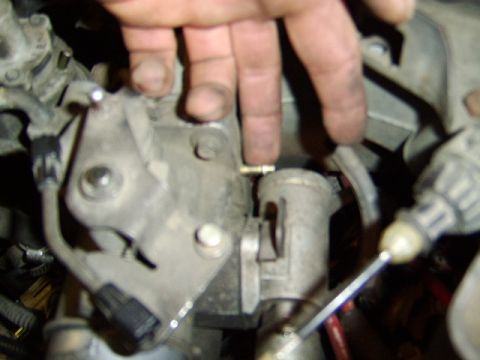

then I removed the vacuum hoses from the throttle body. There is another one below this one.

change oil pan gasket and valve cover gasket 019.jpg
1275 hits | 41.19 KB | Posted: 2/24/07

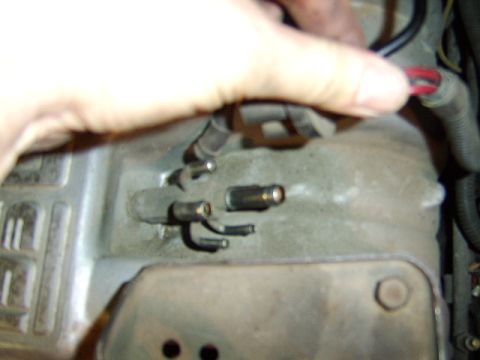

here I removed all the vacuum lines from the centre of the plenum

change oil pan gasket and valve cover gasket 020.jpg
1276 hits | 70.61 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 021.jpg
1280 hits | 57.38 KB | Posted: 2/24/07

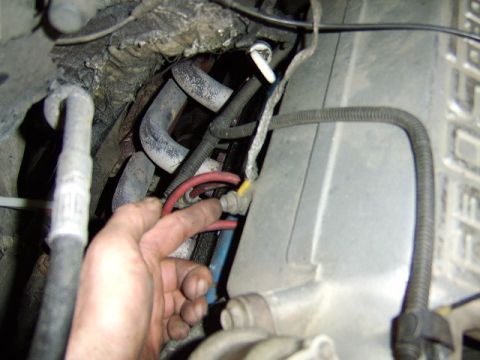

Don't forget to remove this ground wire

change oil pan gasket and valve cover gasket 022.jpg

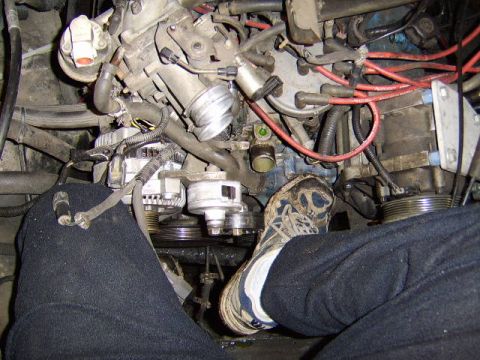

1309 hits | 78.32 KB | Posted: 2/24/07
here I am demonstrating how much easier it is to work on the motor with the rad removed.

change oil pan gasket and valve cover gasket 023.jpg
1469 hits | 63.66 KB | Posted: 2/24/07

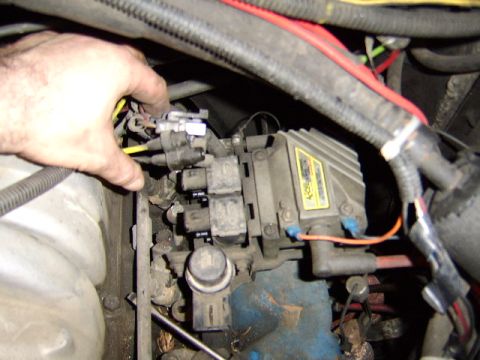

now I am disconnecting the vacuum lines and electrical plugs from these dohickys (Its late, I can't ...

change oil pan gasket and valve cover gasket 024.jpg
7195 hits | 74.68 KB | Posted: 2/24/07

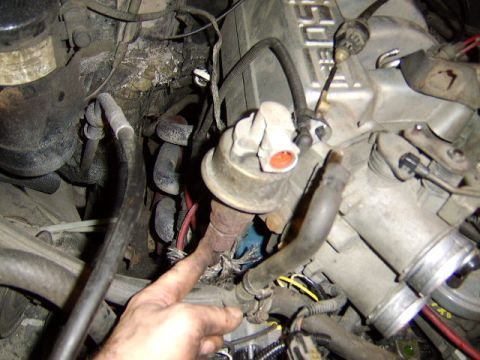

Then I removed the egr pipe from the egr.
BE CAREFUL HERE. USE PENETRATING FLUID HERE PRIOR TO REM...

change oil pan gasket and valve cover gasket 028.jpg
1659 hits | 32.01 KB | Posted: 2/24/07

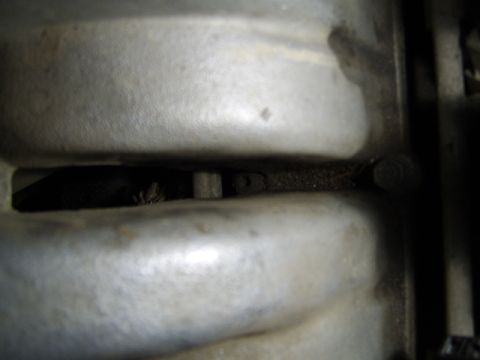

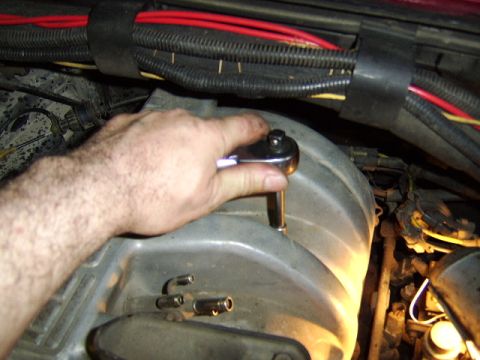

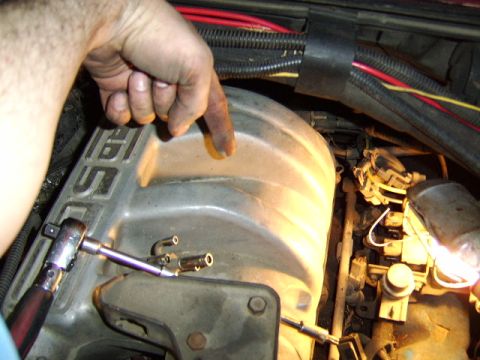

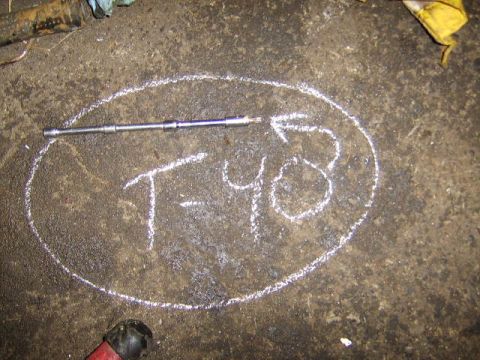

This is the part of removing the plenum which is a hastle. You need a torx bit and a 1/4" drive wren...

change oil pan gasket and valve cover gasket 029.jpg
1548 hits | 67.98 KB | Posted: 2/24/07

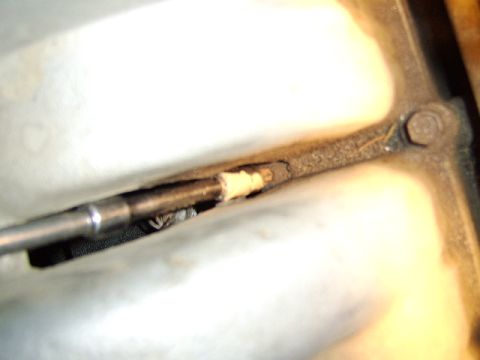

This is where the torx bit and extansion goes

change oil pan gasket and valve cover gasket 030.jpg
2414 hits | 32.62 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 031.jpg
2035 hits | 61.14 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 032.jpg
2007 hits | 77.41 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 033.jpg
1361 hits | 46.68 KB | Posted: 2/24/07

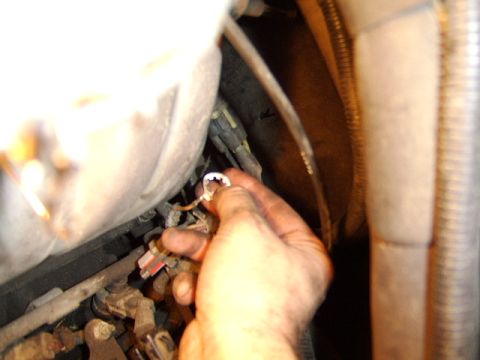

there was a groung wire secured to one of the studs at the rear of the plenum.

Also, don't forget...

change oil pan gasket and valve cover gasket 034.jpg
1440 hits | 78.41 KB | Posted: 2/24/07

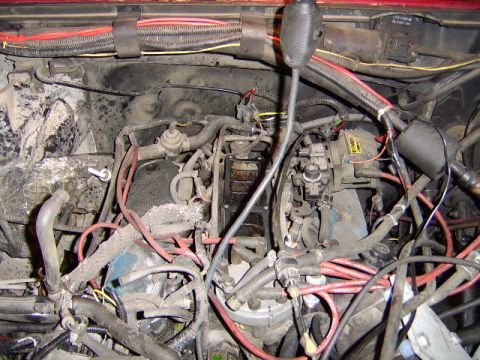

Plenum is now removed

change oil pan gasket and valve cover gasket 035.jpg
2019 hits | 82.34 KB | Posted: 2/24/07

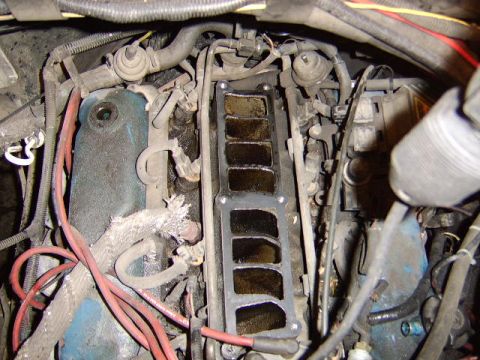

In this pic, you can see the other end of the egr pipe going into the center of the intake. Soak it ...

change oil pan gasket and valve cover gasket 036.jpg
1316 hits | 80.46 KB | Posted: 2/24/07

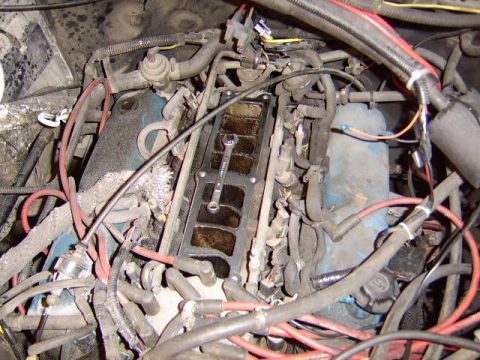

here you can see the coil and dohickys are removed

change oil pan gasket and valve cover gasket 037.jpg
1355 hits | 67.21 KB | Posted: 2/24/07

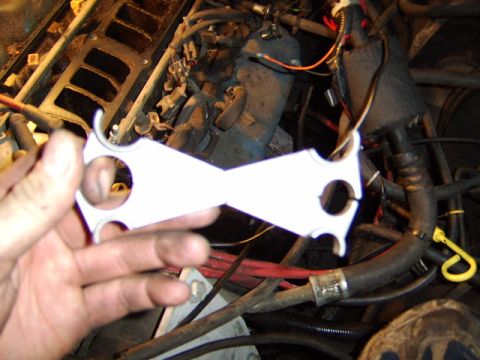

to make removal of the wires going to the injectors and all the sensors and such easier, I needed to...

change oil pan gasket and valve cover gasket 038.jpg
1439 hits | 55.41 KB | Posted: 2/24/07

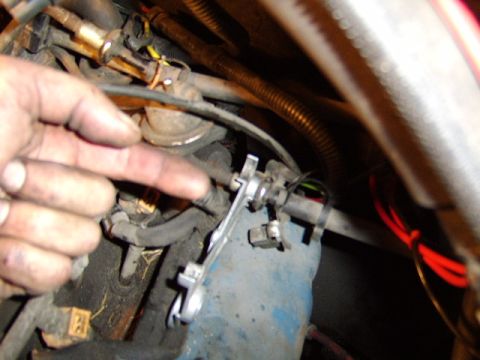

my finger is pointing in the direction the tool has to go in order to unlock the connection and ther...

change oil pan gasket and valve cover gasket 039.jpg
3002 hits | 55.21 KB | Posted: 2/24/07

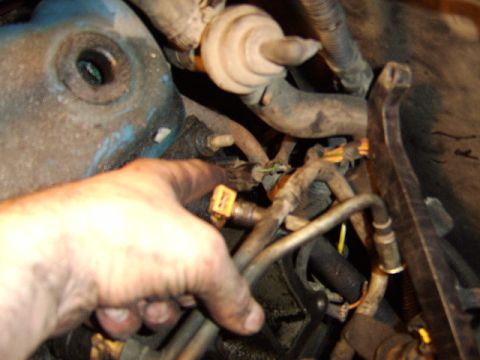

don't forget to unplug the knock sensor which is in the back and easily missed.

change oil pan gasket and valve cover gasket 040.jpg
1278 hits | 79.59 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 041.jpg
1257 hits | 46.52 KB | Posted: 2/24/07

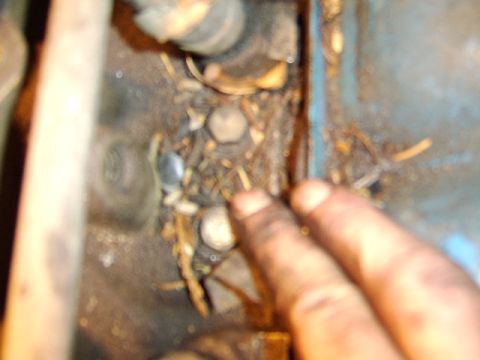

you can't tell from this pic, but there is either mouse or rat terds here. I don't know when it woul...

change oil pan gasket and valve cover gasket 042.jpg
1190 hits | 51.25 KB | Posted: 2/24/07

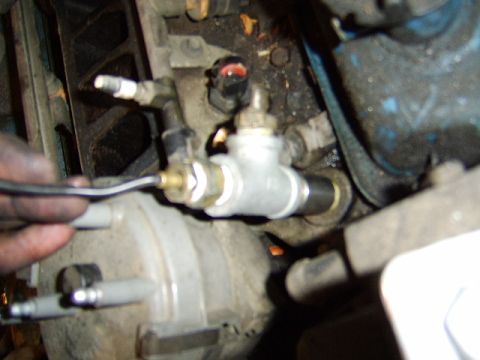

this is how I was able to incorperate the stock temp sensor along with a mechanical one. Not the bes...

change oil pan gasket and valve cover gasket 043.jpg
1208 hits | 80.77 KB | Posted: 2/24/07

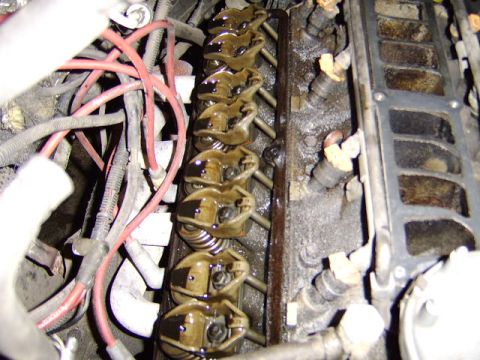

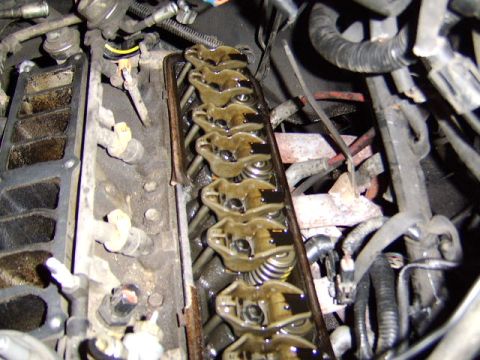

after about 25,000 kilometres, it all looks clean here

change oil pan gasket and valve cover gasket 044.jpg
1215 hits | 83.71 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 045.jpg
1182 hits | 79.19 KB | Posted: 2/24/07

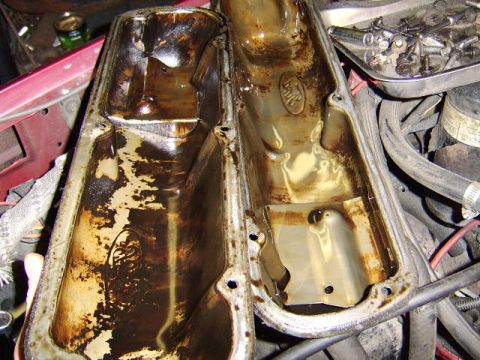

one is still somewhat clean anyways

change oil pan gasket and valve cover gasket 046.jpg
1120 hits | 71.81 KB | Posted: 2/24/07

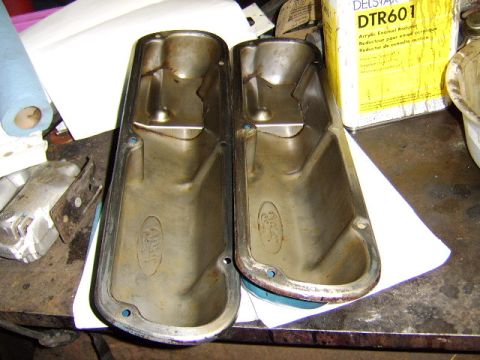

now it is clean. I used what I had handy which happened to be enamel reducer.

change oil pan gasket and valve cover gasket 047.jpg
1359 hits | 77.25 KB | Posted: 2/24/07

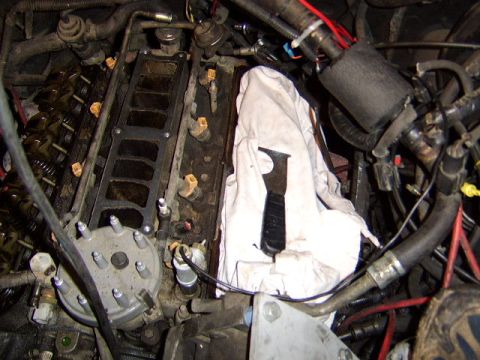

I went and painted my valve covers and while they are drying I went back to the heads to remove the ...

change oil pan gasket and valve cover gasket 048.jpg
1298 hits | 78.71 KB | Posted: 2/24/07

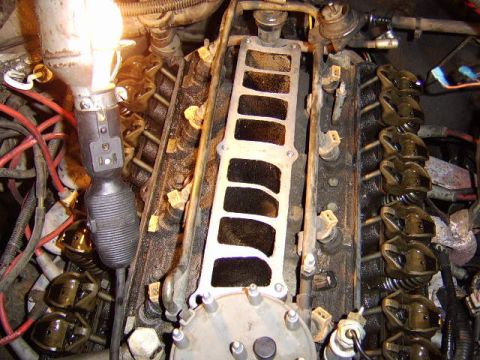

this is a shot of the heads and the intake cleaned off of all the old gaskets

change oil pan gasket and valve cover gasket 049.jpg
1189 hits | 76.36 KB | Posted: 2/24/07

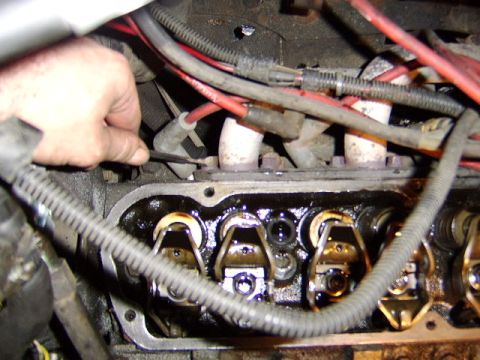

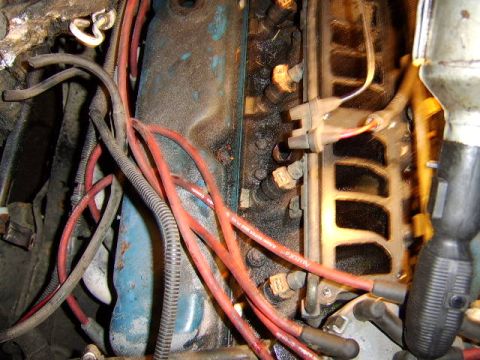

I took the opportunity to make sure my header bolts were snug

change oil pan gasket and valve cover gasket 050.jpg
1218 hits | 51.73 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 051.jpg
1156 hits | 53.16 KB | Posted: 2/24/07

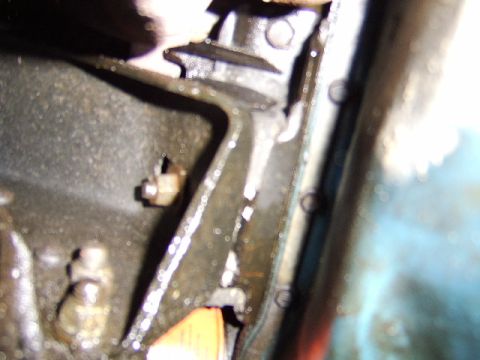

removal of that motor mount bolt is next, this is the driver side

change oil pan gasket and valve cover gasket 052.jpg
1110 hits | 57.35 KB | Posted: 2/24/07

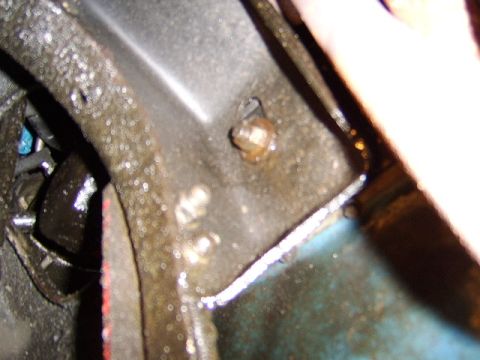

driver side again

change oil pan gasket and valve cover gasket 053.jpg
1108 hits | 50.14 KB | Posted: 2/24/07

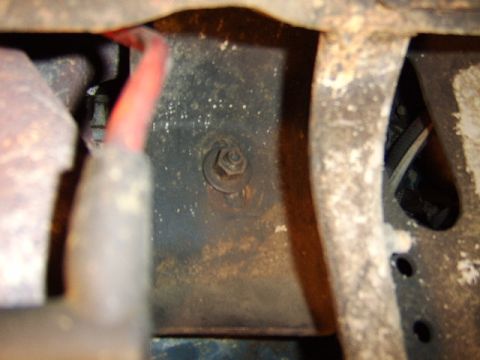

this is the motor mount bolt on the passenger side

change oil pan gasket and valve cover gasket 054.jpg
1168 hits | 54.02 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 055.jpg
1110 hits | 67.28 KB | Posted: 2/24/07

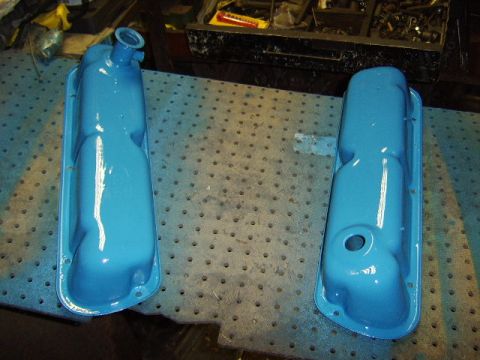

my valve covers cleaned and painted

change oil pan gasket and valve cover gasket 056.jpg
1233 hits | 74.88 KB | Posted: 2/24/07

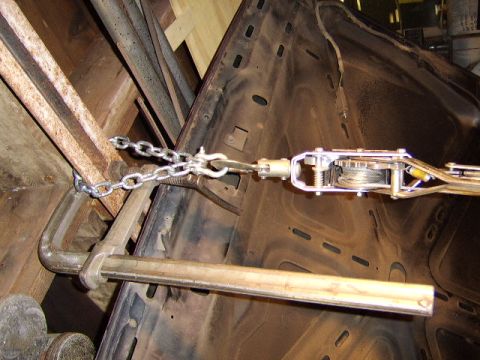

this is how I am going to attempt to raise the motor in order to remove the oil pan.
I secured one ...

change oil pan gasket and valve cover gasket 057.jpg
1191 hits | 79.7 KB | Posted: 2/24/07

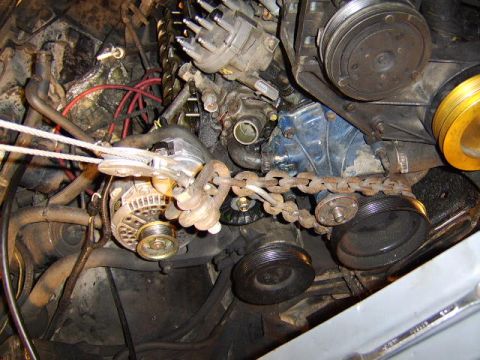

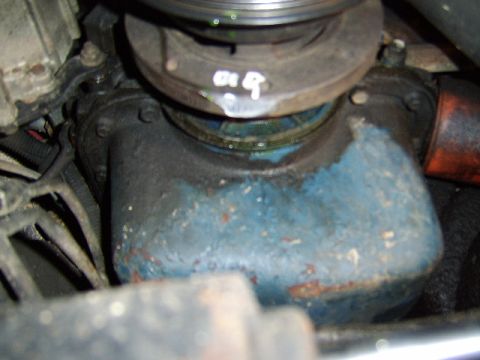

....and the other end around the vibration dampener.

change oil pan gasket and valve cover gasket 058.jpg
1251 hits | 59.92 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 059.jpg
1235 hits | 70.1 KB | Posted: 2/24/07

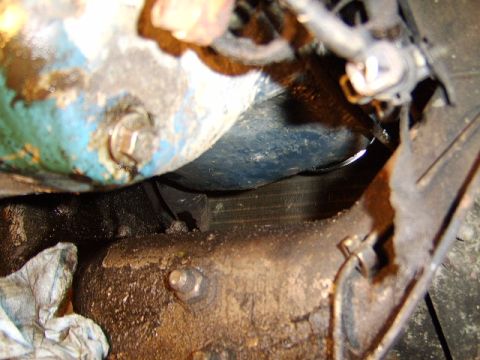

the motor is lifted as high as it will go

change oil pan gasket and valve cover gasket 060.jpg
1245 hits | 58.96 KB | Posted: 2/24/07

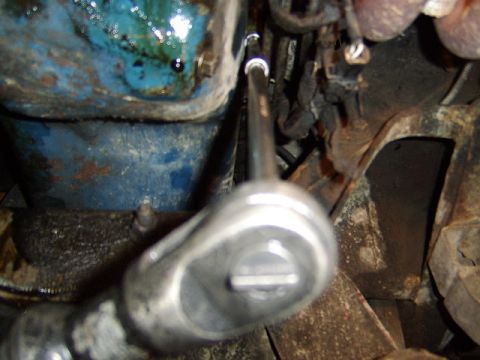

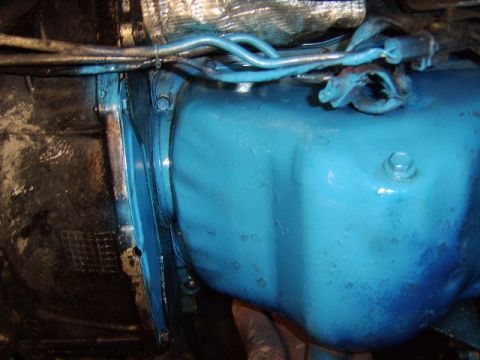

an air ratchet is a must in my opinion to remove the bolts from the oil pan. You can do it without i...

change oil pan gasket and valve cover gasket 061.jpg
1719 hits | 51.67 KB | Posted: 2/24/07

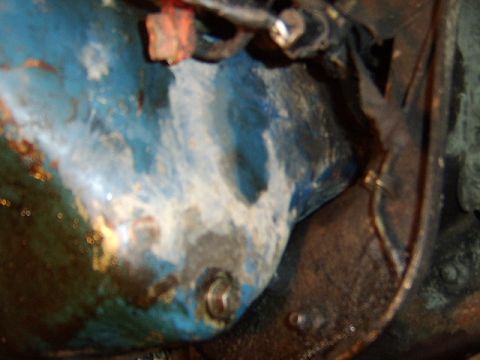

here the oil pan is unbolted and sitting on the crossmember

change oil pan gasket and valve cover gasket 062.jpg
1528 hits | 70.76 KB | Posted: 2/24/07

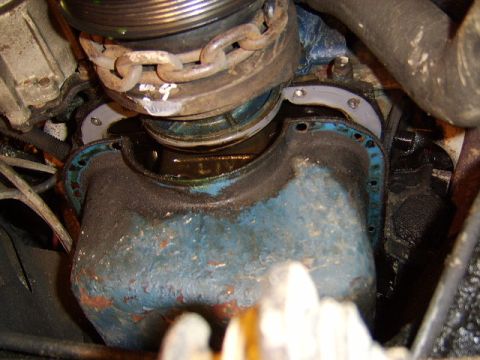

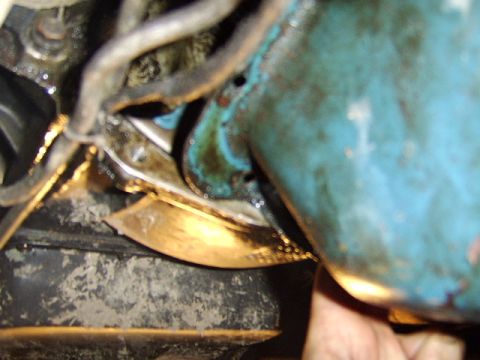

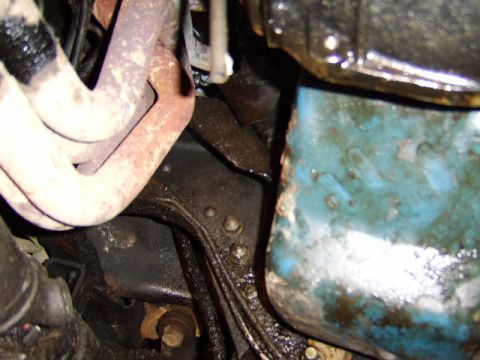

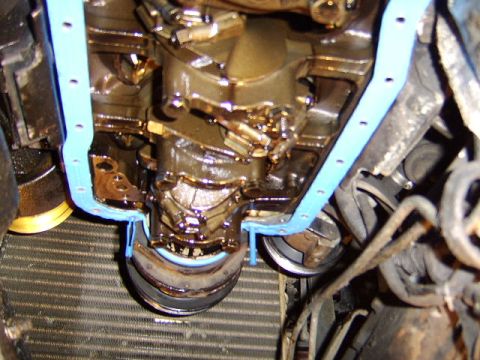

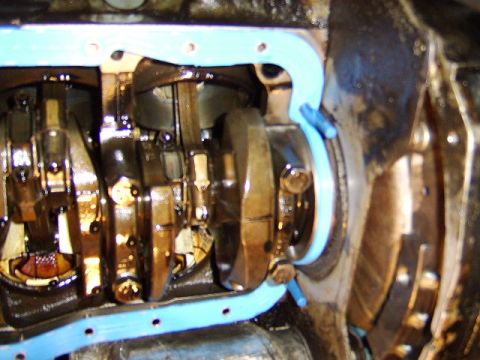

at this point I realize that I did in fact use the rubber oil pan gasket, wich makes me wonder why i...

change oil pan gasket and valve cover gasket 063.jpg
1703 hits | 57.14 KB | Posted: 2/24/07

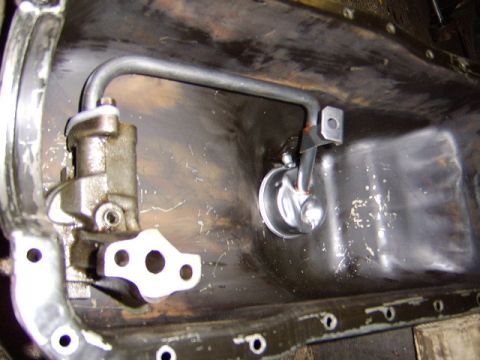

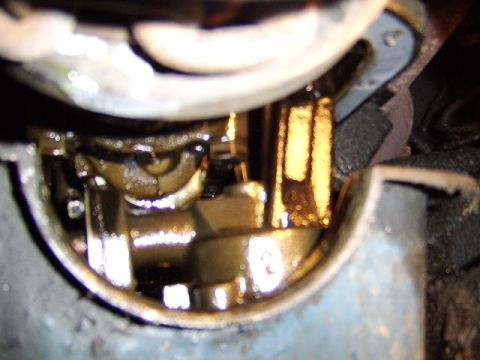

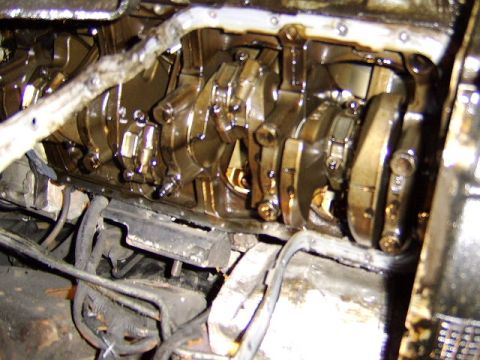

this is a shot of the oil pump and pick up tube which has to be removed before the pan can come out.

change oil pan gasket and valve cover gasket 064.jpg
1183 hits | 56.67 KB | Posted: 2/24/07

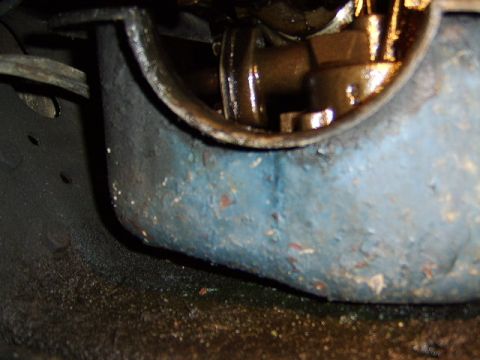

a better shot of the connection between the pickup tube and the oil pump

change oil pan gasket and valve cover gasket 065.jpg
1198 hits | 52.32 KB | Posted: 2/24/07

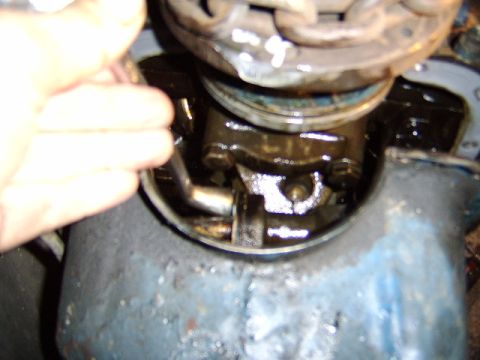

I am first unbolting the pickup tube...you need to be a bit af an acrobat to do this.

change oil pan gasket and valve cover gasket 066.jpg
1073 hits | 31.63 KB | Posted: 2/24/07

change oil pan gasket and valve cover gasket 067.jpg

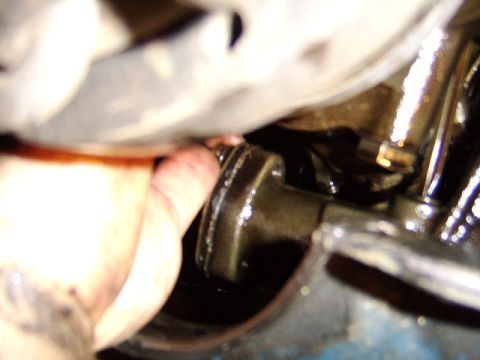

1105 hits | 45.06 KB | Posted: 2/24/07
as soon as you have loosened the bolts enough, use your fingers, it will be that much quicker.

change oil pan gasket and valve cover gasket 068.jpg
1350 hits | 49.89 KB | Posted: 2/24/07

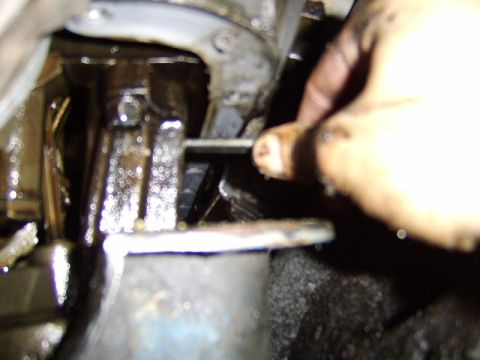

here I am unbolting the oil pump itself, starting with the rear bolt.

I should also add that ther...

change oil pan gasket and valve cover gasket 069.jpg
1200 hits | 70.74 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 070.jpg
1220 hits | 48.11 KB | Posted: 2/25/07

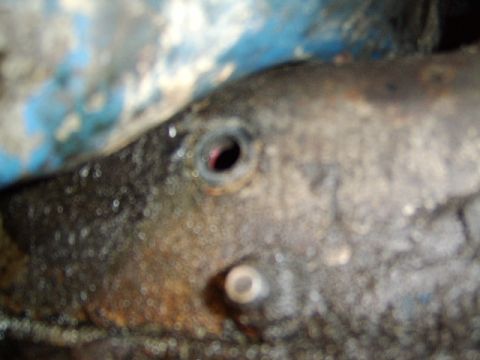

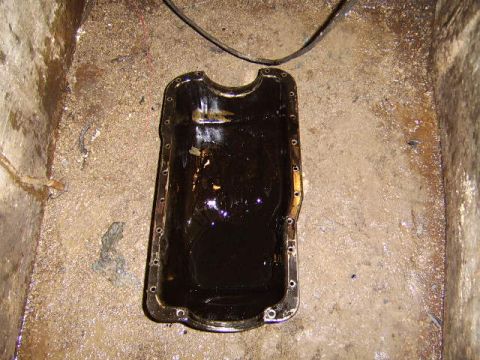

It is so tight, I had to remove this one bolt to gain that little extra room needed to remove the pa...

change oil pan gasket and valve cover gasket 071.jpg
1129 hits | 66.18 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 072.jpg
1150 hits | 55.1 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 073.jpg
1188 hits | 52.31 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 075.jpg
1192 hits | 58.09 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 077.jpg
1245 hits | 79.97 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 078.jpg
1247 hits | 76.76 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 079.jpg
1874 hits | 82.82 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 080.jpg
1316 hits | 71.28 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 081.jpg
1226 hits | 62.02 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 082.jpg
1225 hits | 46.42 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 083.jpg
1285 hits | 78.88 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 084.jpg
1120 hits | 79.37 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 085.jpg
1092 hits | 79.04 KB | Posted: 2/25/07

change oil pan gasket and valve cover gasket 087.jpg
1167 hits | 56.83 KB | Posted: 2/26/07

change oil pan gasket and valve cover gasket 088.jpg
1125 hits | 61.01 KB | Posted: 2/26/07

change oil pan gasket and valve cover gasket 089.jpg
1009 hits | 71.13 KB | Posted: 2/26/07

change oil pan gasket and valve cover gasket 090.jpg
992 hits | 71.16 KB | Posted: 2/26/07

change oil pan gasket and valve cover gasket 091.jpg
1036 hits | 80.65 KB | Posted: 2/26/07

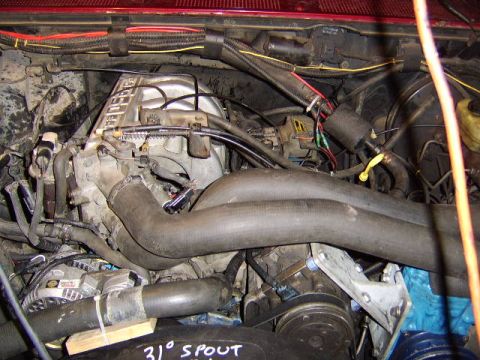

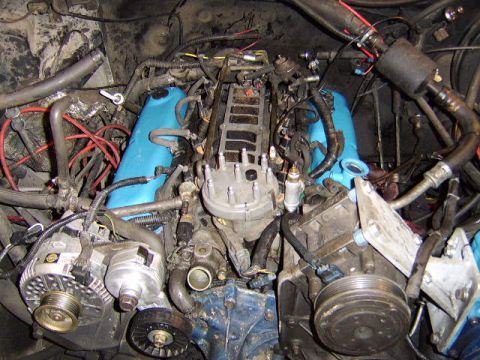

My painted valve covers look pretty good, don't thet?
They are there somewhere.

change oil pan gasket and valve cover gasket 092.jpg
1468 hits | 84.27 KB | Posted: 2/26/07
