1 ton swap and tires

From 1985 Ford Bronco “Erika”, documented by Chris Chu.

32 photos
← Back to this vehicle

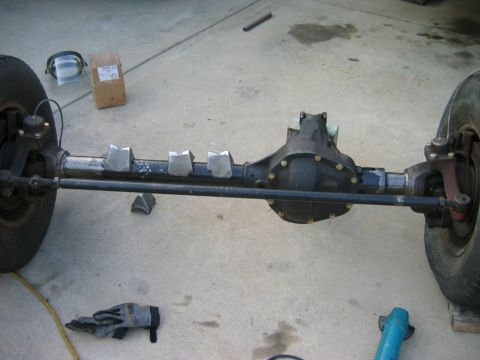

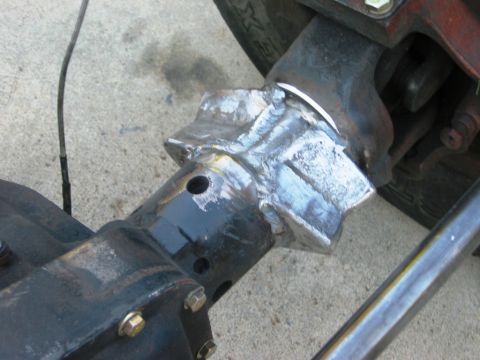

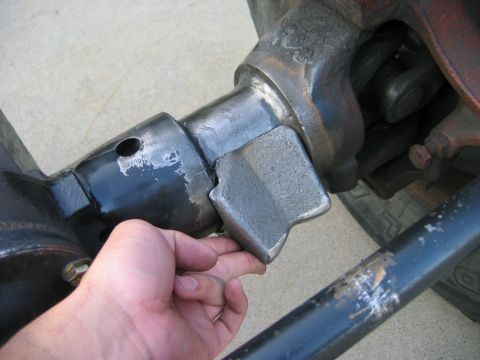

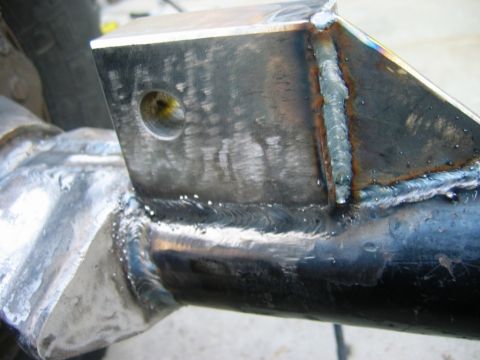

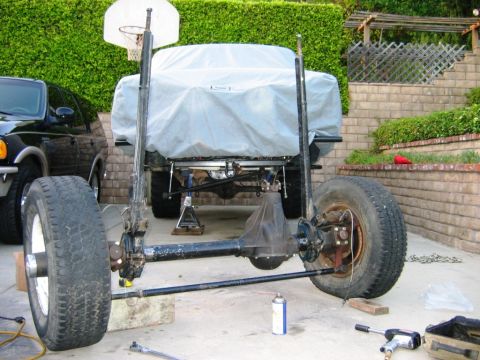

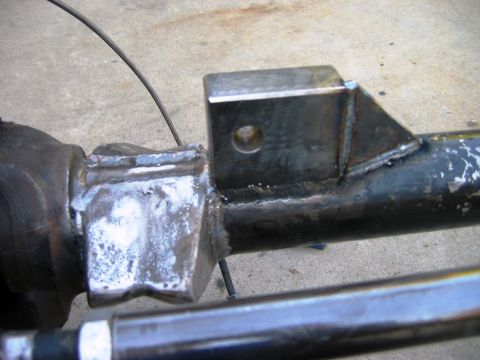

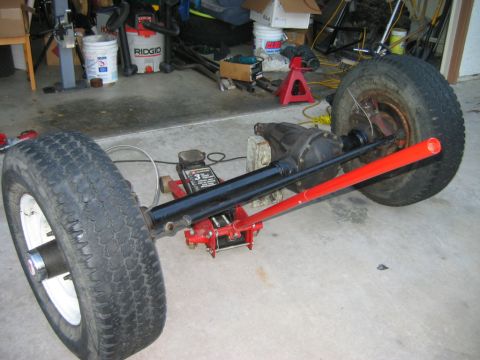

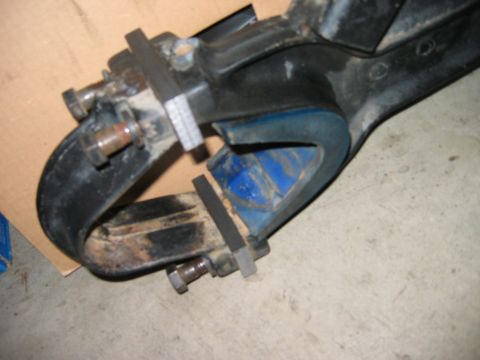

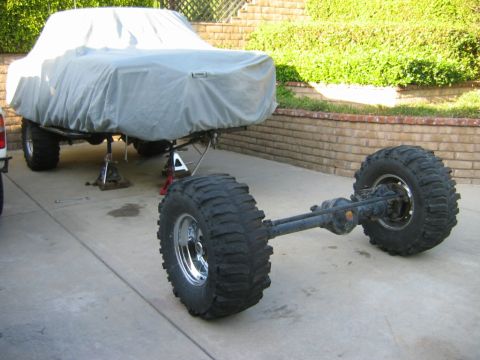

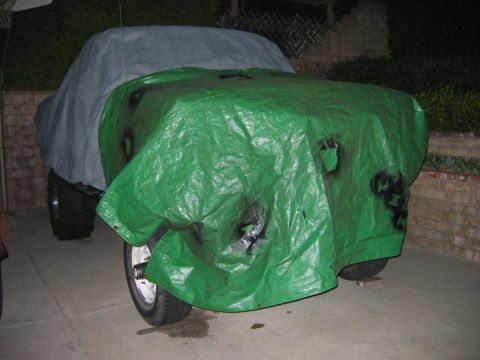

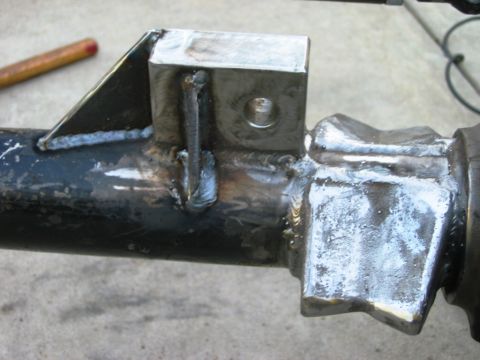

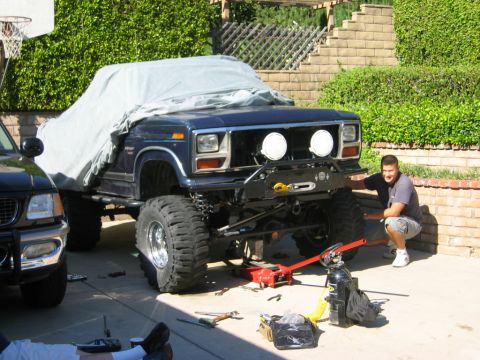

1985 Ford Bronco - taking the front end apart 1985 Ford Bronco - and its out! 1985 Ford Bronco - swapped the center link (note: tie rod is too short) and getting ready to weld on C-bushing wedges 1985 Ford Bronco - i wonder whats under the tarp... :-D 1985 Ford Bronco - notched the wedges 1985 Ford Bronco - A complete rear axle assembly removed from a vehicle, resting on tires at both ends on a concrete garage floor. The black differential hous… 1985 Ford Bronco - radius arms mounted but still need some 1/2" spacers 1985 Ford Bronco - made 1/2" spacers to put between radius arm ends. still needs to be grinded down to fit flush with the contours of the arms 1985 Ford Bronco - Close-up of a welded steel bracket assembly, likely a suspension or axle mount, with a fabricated box tab bolted/welded near a round tube a… 1985 Ford Bronco - Close-up of a fabricated steel bracket welded onto a tubular frame member, showing a bolt hole and multiple MIG weld beads with heat discol… 1985 Ford Bronco - Close-up of a freshly welded steel joint where a suspension or axle component (with a drilled bracket bearing a bolt hole) is fused to a la… 1985 Ford Bronco - Close-up of a welded steel bracket assembly on a black tubular axle or frame member, showing a fabricated box-section mount with a drilled… 1985 Ford Bronco - Underside view of a lifted 4x4's front axle, showing the differential housing, coil springs, steering linkage with tie rod and drag link, a… 1985 Ford Bronco - 5/8" u-bolts 1985 Ford Bronco - Leaf spring perches 1985 Ford Bronco - Underside rear view of a vehicle showing a custom fabricated aluminum differential cover on a solid rear axle, with leaf spring suspension,… 1985 Ford Bronco - and...............ITS STANDING BY ITSELF!!!! 1985 Ford Bronco - A large off-road mud-terrain tire mounted on a black wheel with a white beadlock ring, photographed head-on at night on a concrete surface.… 1985 Ford Bronco - Two large off-road tires photographed at night; the front one is mounted on a white beadlock wheel with a black center hub, while a second… 1985 Ford Bronco - An aggressive off-road mud-terrain tire mounted on a black wheel with a white beadlock ring secured by numerous bolts. The tire and rim are… 1985 Ford Bronco - grooved the tires and installed them onto the bronco 1985 Ford Bronco - Rear three-quarter view of a black lifted Ford truck/SUV with a covered cab, oversized mud-terrain tires, and a spare tire mounted at right… 1985 Ford Bronco - A close-up of a black beadlock-style wheel mounted on the front hub of a dark blue 1985 Ford Bronco, with the vehicle raised on a red 3-ton… 1985 Ford Bronco - cant tell but the caliper is touching the wheel 1985 Ford Bronco - grinded the caliper and bracket down 1985 Ford Bronco - A dark blue/black lifted Ford Bronco SUV seen from the rear three-quarter angle, with its cab and top draped in a gray car cover, riding on… 1985 Ford Bronco - Rear three-quarter view of a lifted Ford Bronco covered with a gray car cover, showing large off-road mud tires, a rear-mounted spare, and… 1985 Ford Bronco - Underside close-up of a live rear axle showing the leaf spring with U-bolts mounting to the axle tube, a black-painted differential housing… 1985 Ford Bronco - Close-up of a disc brake conversion showing a cast brake caliper mounted over a vented rotor behind a mud-terrain tire, with a rubber brake… 1985 Ford Bronco - front complete with new rebuilt kingpins, 5.13 gears, detroit locker, 35 spline chromoly outters and with warn hubs. 1985 Ford Bronco - rear complete with disk brakes, 5.13 gears and detroit locker 1985 Ford Bronco - A dark blue/black 1980s Ford Bronco full-size SUV, lifted on large off-road tires with steel wheels, shown from the front three-quarter ang…
