Home/ Registry/ Ford/ Bronco/ 1992-1996/ “how much $???”/ Lift & Axles supermotors.net/registry/12062/33158

Album section

Lift & Axles

From 1994 Ford Bronco “how much $???”, documented by CodysBigBlueBronco.

11 photos
← Back to this vehicle

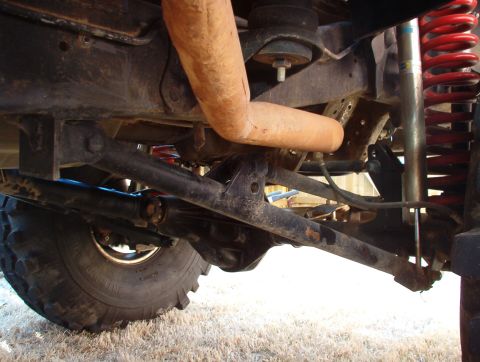

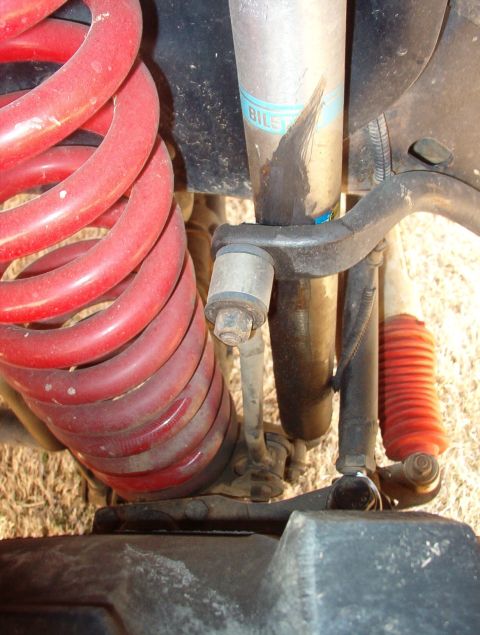

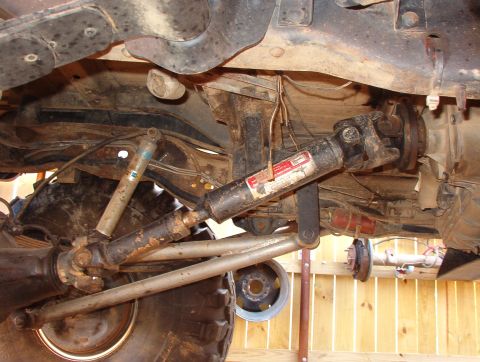

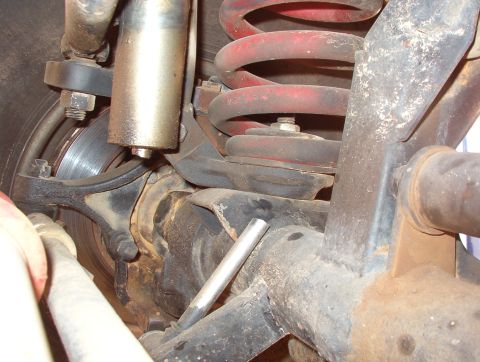

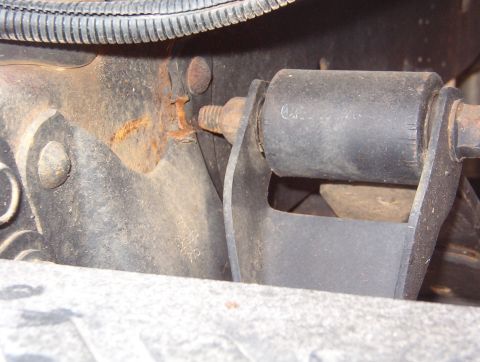

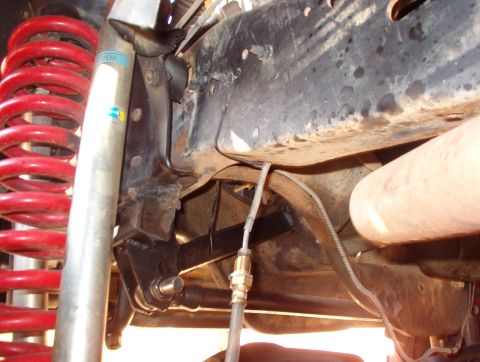

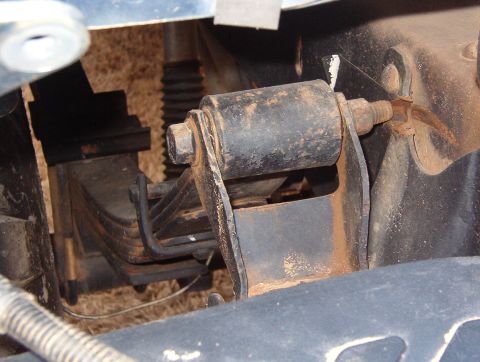

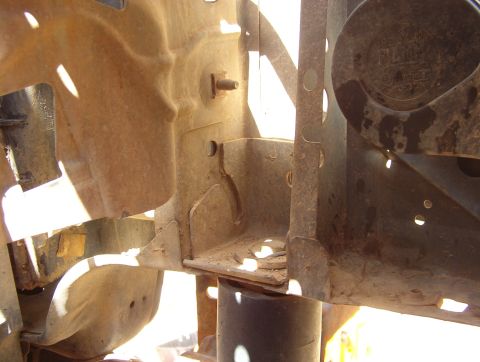

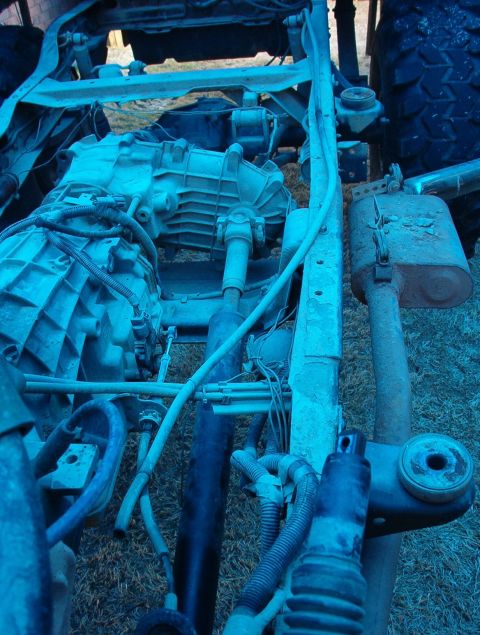

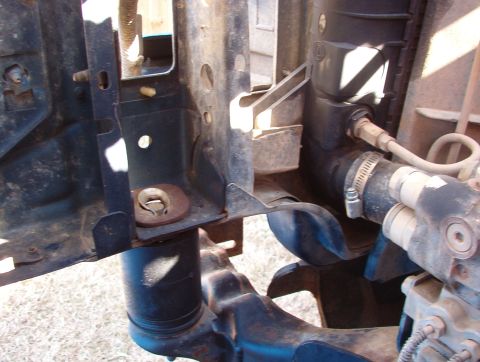

1994 Ford Bronco - Note the ridiculous gusset behind the radius arm bracket. 1994 Ford Bronco - This looks like a really bad copy of a suspension modification. 1994 Ford Bronco - These bolts are installed backward, and they've cut thru the shackle brackets. 1994 Ford Bronco - These bolts are installed backward, and they've cut thru the shackle brackets. 1994 Ford Bronco - The track arm bracket broke away from the frame because it wasn't braced, so the repair shop added the square tube & brace. Note the dangli… 1994 Ford Bronco - The end links are cobbled together, and since they're not straight, they've shifted the sway bar sideways, and it's gouging into this shock. 1994 Ford Bronco - The sway bar probably caused this shock to break. The upper mount for the radius arm (in the lower R of the photo) is rusting. 1994 Ford Bronco - This is why Gr.5 hardware isn't suited to body mounts. This washer was pulled all the way through when the truck gently laid over at about… 1994 Ford Bronco - This washer almost pulled through. All the replacement body bolts are bent. Only the 2 factory body mount bolts are still straight. 1994 Ford Bronco - The rear axle vent line was run all the way to the shifter cable. Why? We may never know. The end is lower than the frame over the axle, so… 1994 Ford Bronco - The front axle vent was also extended, and then left to rest low on the brake caliper.
