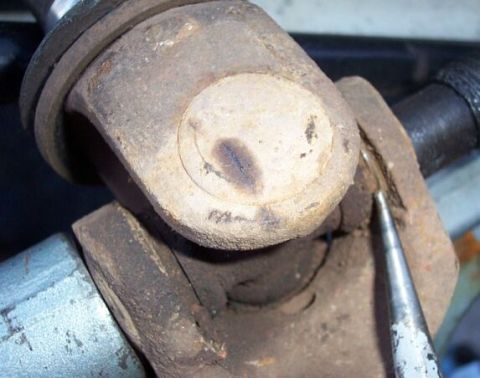

DCP_0412.JPG 2444 hits | 43.72 KB | Posted: 8/1/03 This on a D44 front axleshaft; 5-297X u-joints. First you must remove the inner snap ring - it can ...

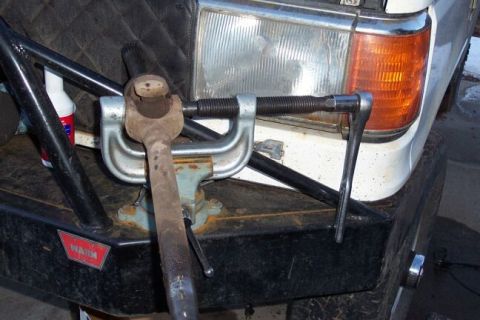

DCP_0414.JPG 2220 hits | 55.34 KB | Posted: 8/1/03 I much prefer to use my ball joint press in my vise. These go on sale at Harbor Freight for $30 and...

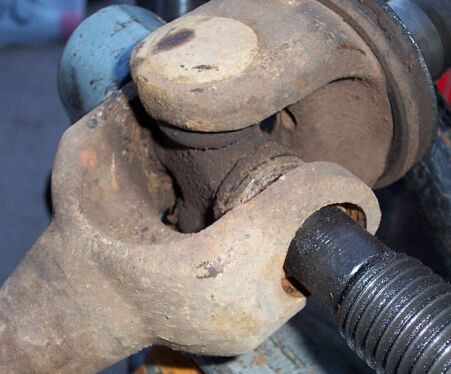

DCP_0415.JPG 2109 hits | 32.28 KB | Posted: 8/1/03 Here I start pressing out one side once the clips are removed

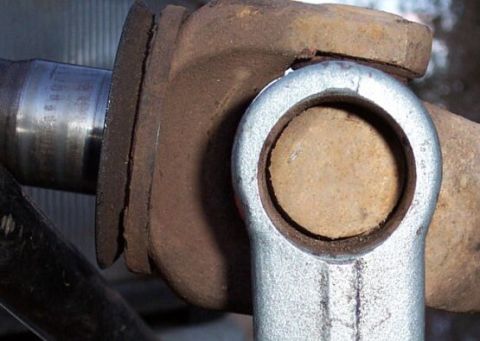

DCP_0416.JPG 2015 hits | 40.11 KB | Posted: 8/1/03 The other side of the press has a hole to accept the cap being pressed out

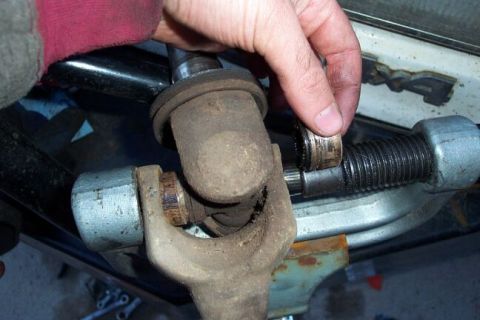

DCP_0417.JPG 1910 hits | 48.35 KB | Posted: 8/1/03 Here one cap is now out and I've flipped the axle around to press the other one out

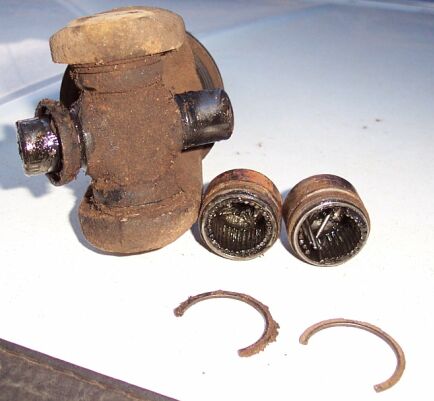

DCP_0418.JPG 2161 hits | 25.36 KB | Posted: 8/1/03 The disassembled product. Note the needles in the caps which have fallen out of place.

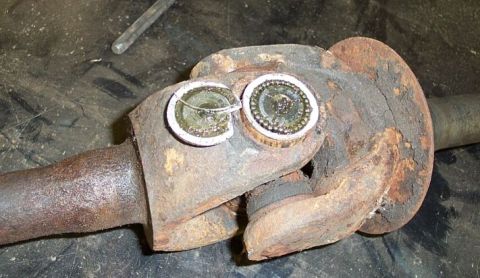

ranger 100.jpg 1792 hits | 69.43 KB | Posted: 7/12/05 Stubborn joints will spit the ends of their caps like this as you press them out. If necessary load...

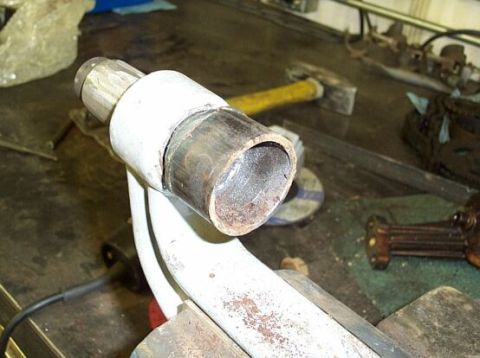

ranger 104.jpg 1561 hits | 54.58 KB | Posted: 7/12/05 I built this receiver for the larger Dana 60 caps as the existing hole is too small

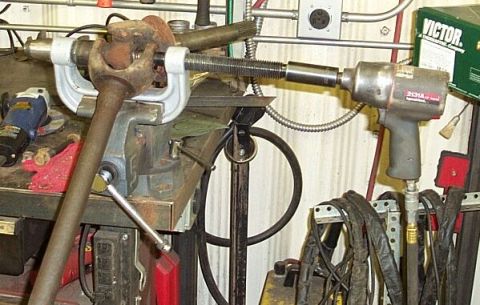

ranger 101.jpg 1739 hits | 79.79 KB | Posted: 7/12/05 U-joint press being used on a Dana 60 front axle with the larger receiver for the bigger caps
U-joint Replacement
