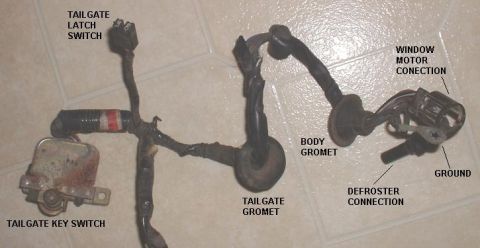

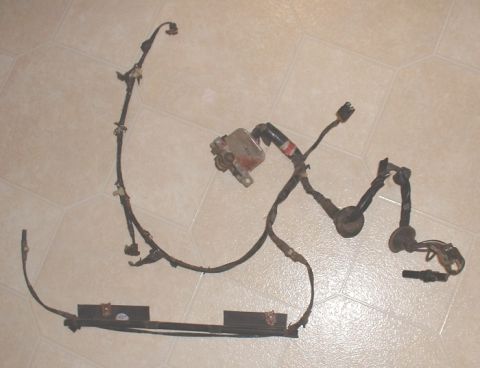

tailgate_parts_1.jpg 2446 hits | 45.93 KB | Posted: 6/29/03 Exploded view with Ford part numbers
tailgate_parts_2.jpg 3411 hits | 38.56 KB | Posted: 6/29/03 Exploded view with Ford part numbers
tailgate_parts_3.jpg 3331 hits | 40.35 KB | Posted: 6/29/03 Exploded view with Ford part numbers
tailgate_parts_5.jpg 1573 hits | 40.35 KB | Posted: 6/29/03 Exploded view with Ford part numbers
tailgate_parts_8.jpg 1526 hits | 34.96 KB | Posted: 6/29/03 Exploded view with Ford part numbers
tailgate_parts_4.jpg 3090 hits | 27.39 KB | Posted: 6/29/03 Support the tailgate while slightly open, and remove the torsion bar retainer from the body.
tailgate_parts_6.jpg 2516 hits | 36.94 KB | Posted: 6/29/03 The torsion bar mounts are bolted in from the bottom of the tailgate
tailgate_parts_7.jpg 1569 hits | 36.94 KB | Posted: 6/29/03 Hinges mount to the Tailgate on the bottom as well
tailgate_parts_9.jpg 1425 hits | 36.94 KB | Posted: 6/29/03 The window is riveted to the slider. Grind or drill VERY CAREFULLY! I've heard rumors that 1/4" x ...
tg_with_.jpg 1550 hits | 36.94 KB | Posted: 6/29/03 The regulator has a spring on the back pushing the window up. DO NOT remove motor from regulator wh...
orig_ins.jpg 1534 hits | 36.94 KB | Posted: 6/29/03 There are conections behind the drivers side brake light. disconect and slide threw hole towards ta...
DSC00009.jpg 1481 hits | 32.05 KB | Posted: 6/29/03 Key swith mounts onto a regular Ford key cylinder. a few clips and it comes off pretty easy. most ...

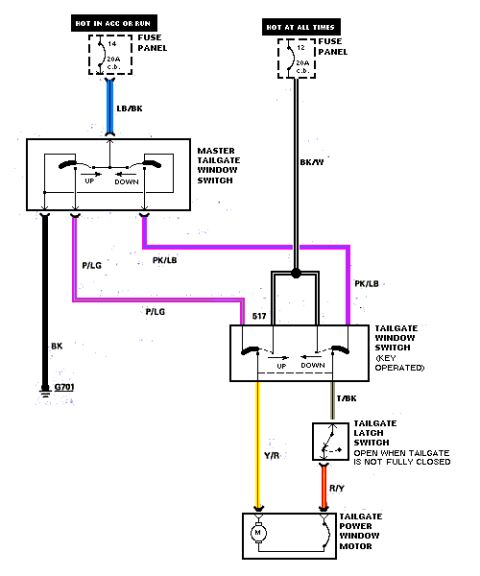

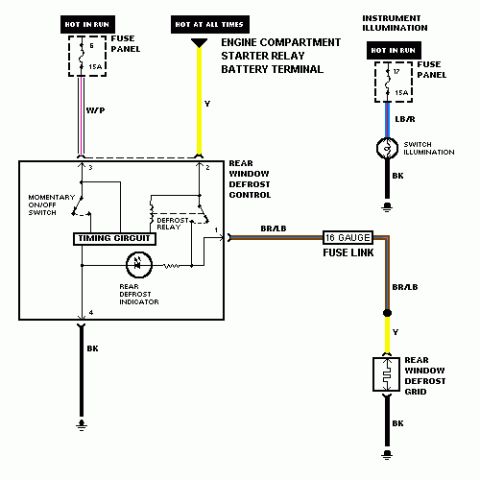

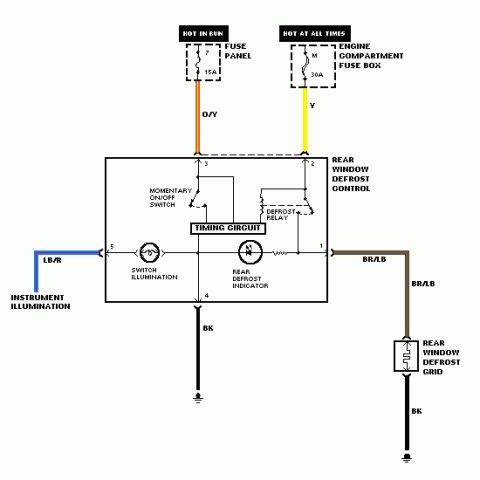

tailgate_powerwindow_schematic.jpg 1909 hits | 48.78 KB | Posted: 6/29/03 Wiring schematic for window, aplies to 1980 - 1986 Broncos. Ford changed the look and moved the das...
DSC00018.jpg 1914 hits | 25.61 KB | Posted: 6/29/03 You can buy this top of the line fiberglass tailgate from Autofab in CA. Sit down, its $750!
Tailgate
