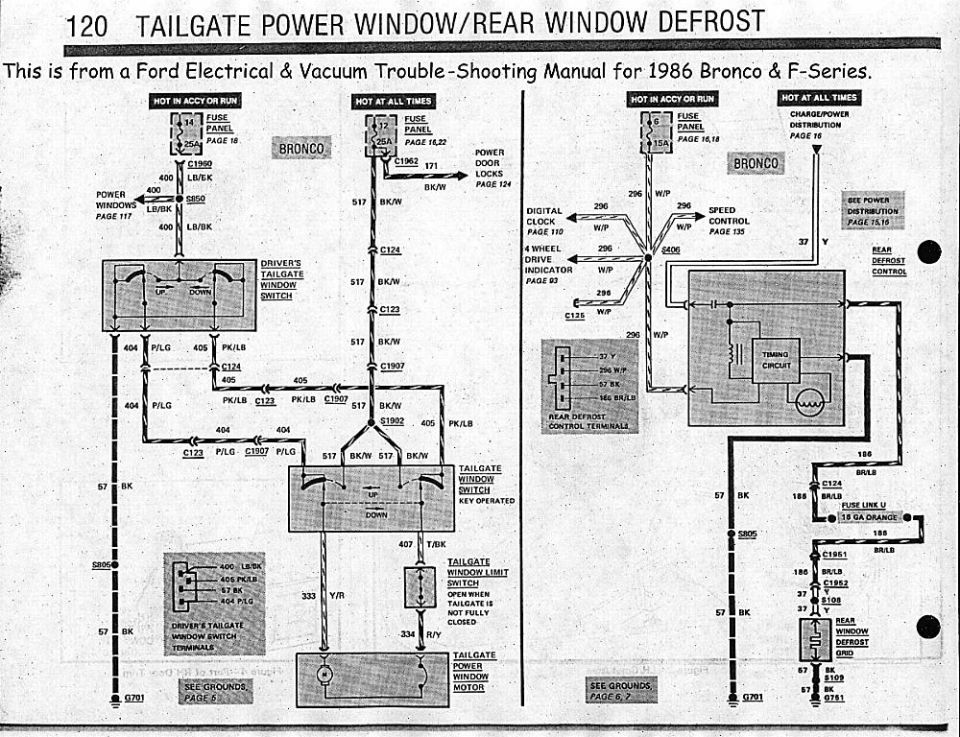

tailgate_powerwindow_schematic.jpg Wiring schematic for window, aplies to 1980 - 1986 Broncos. Ford changed the look and moved the dash switch but it works the same way.
