Rear End / Differential Rebuild

From 1989 Ford Bronco, documented by Brahma502.

10 photos
← Back to this vehicle

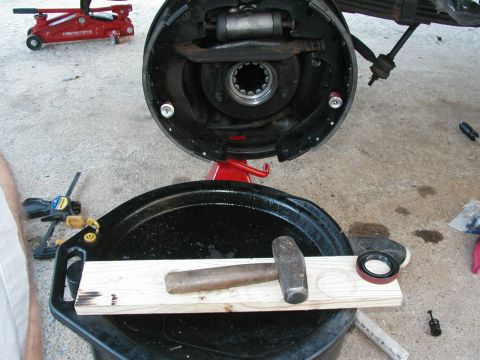

1989 Ford Bronco - First I smelled it, then I saw it....gear oil. See in the pic how my frame rail looks all nice and shiny and freshly painted....I didn't do… 1989 Ford Bronco - First, off with the tires and on a pair of stands. Make sure you secure the vehicle. Drain the rear of oil. There's 10 bolts...I used my ai… 1989 Ford Bronco - Where to start with this picture. The pinion shaft is the bar hanging down out of the carrier. The green arrow is pointing to the C clip th… 1989 Ford Bronco - This is the Differential Pinion Shaft Lock Bolt Extractor Kit from Fabbri Associates. I got this kit plus a new lockbolt for 35-40 bucks. I… 1989 Ford Bronco - The offending bolt: the head that easily comes out, and the broken end, with the bolt extractor still lodged in. 1989 Ford Bronco - Once the bolt is out, the pinion shaft should slide freely out and down. Mine stopped just short of coming all the way out, so I left it th… 1989 Ford Bronco - Picture of the passenger side with the old brakes and the axle out. The ring in the middle is the bad oil seal. Behind that you see a bit o… 1989 Ford Bronco - Slide hammer at work. I rented this one from Adavance Auto in my town. Great store. Only go there. I had to pay the full price of the tool,… 1989 Ford Bronco - Once the backing plate is clean, put the new bearing and seal in. I used my old bearing against the new one and 1x against the old bearing.… 1989 Ford Bronco - I had to give my neighbor's camera back before I put the axle back in and finished up. Sorry, no more pics. Here are my two helpers. When y…
