Diagrams

From 1999 Ford Crown Victoria, documented by metallicvic.

7 photos
← Back to this vehicle

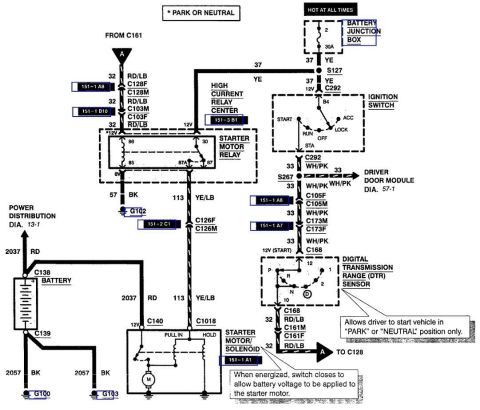

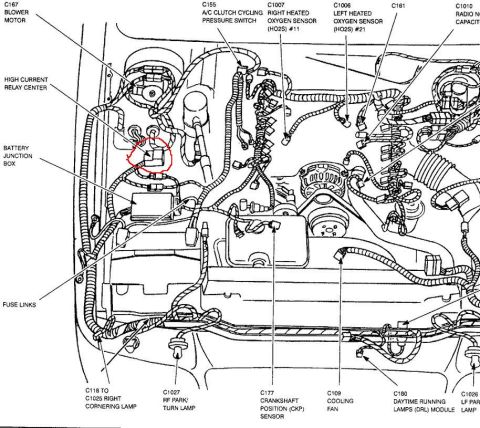

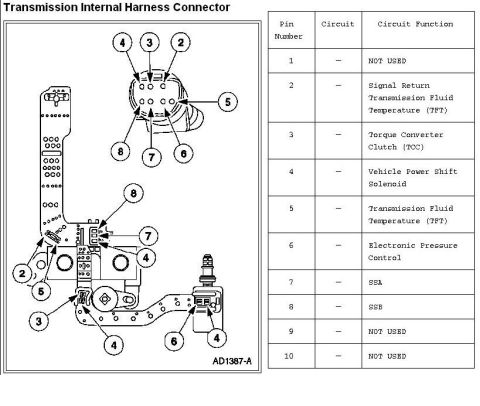

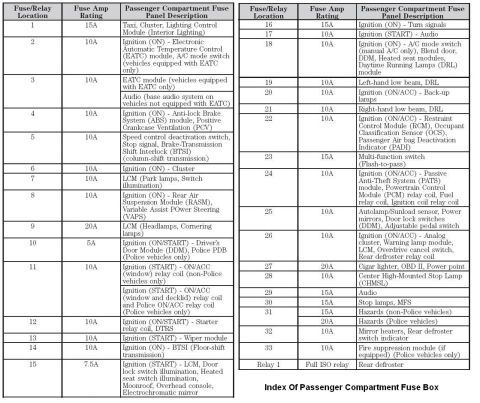

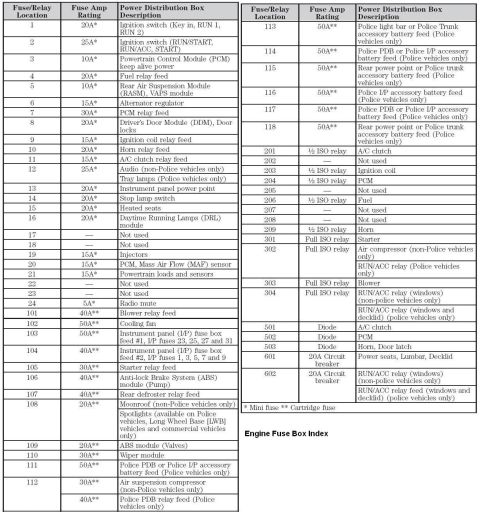

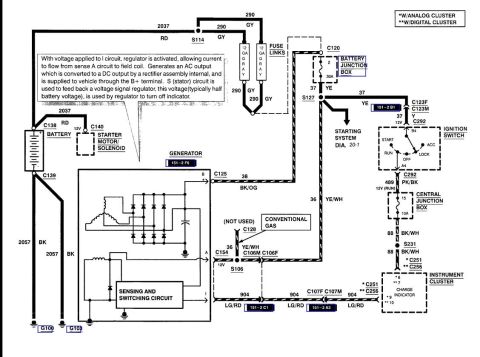

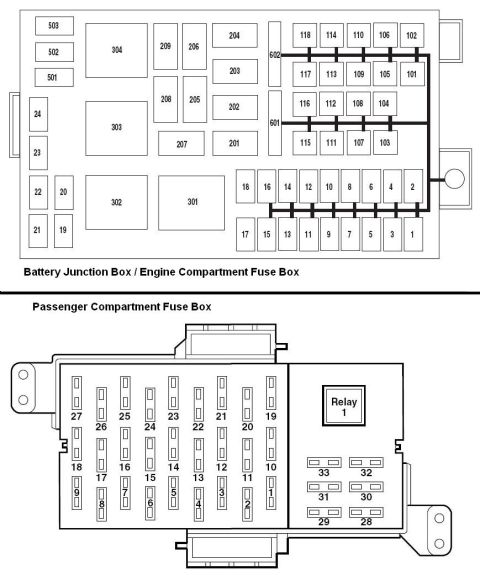

1999 Ford Crown Victoria - Starting-system schematic showing battery junction box, starter motor relay and solenoid, ignition switch positions, digital transmission r… 1999 Ford Crown Victoria - Underhood component/connector location view identifying right & left heated oxygen sensors (HO2S #11/#21), crankshaft position (CKP) sensor… 1999 Ford Crown Victoria - 2005 Vic/GM Fuse Boxes 1999 Ford Crown Victoria - 2005 Vic/GM Engine Fuse Box Index 1999 Ford Crown Victoria - 2005 Vic/GM Passenger Compartment Fuse Box Index 1999 Ford Crown Victoria - Wiring diagram of a Ford charging/generator system showing battery, starter solenoid, ignition switch and color-coded circuits with connect… 1999 Ford Crown Victoria - Internal Transmission Harness
