E4OD Transmission

From 1996 Ford Bronco “Black Iron Horse”, documented by nsasanas.

22 photos

← Back to this vehicle

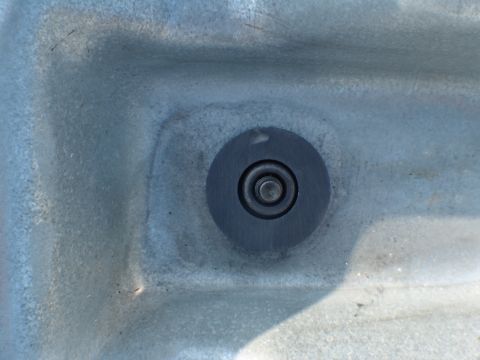

1996 Ford Bronco - A close-up view of a bolt head set within a gray, textured material, possibly part of a vehicle's undercarriage or interior.

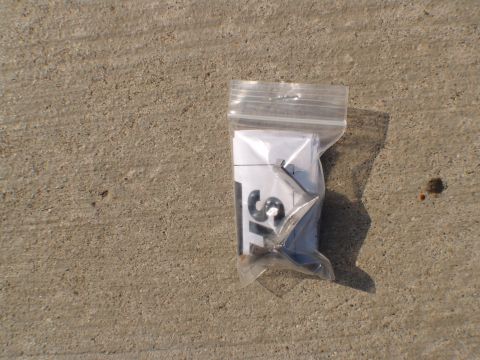

1996 Ford Bronco - A small plastic bag contains paper and metal components, possibly for a vehicle part.

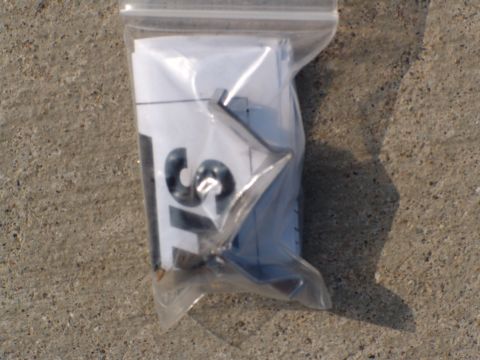

1996 Ford Bronco - A plastic bag holds papers with visible numbers and a metal emblem, resting on a concrete surface.

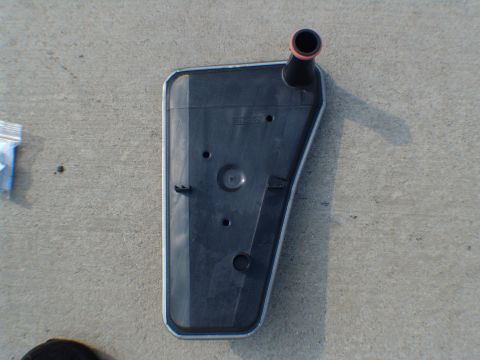

1996 Ford Bronco - A transmission filter is shown lying on a concrete surface next to a small plastic bag.

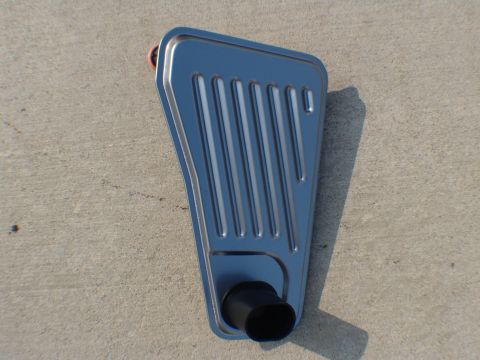

1996 Ford Bronco - Transmission filter shown resting on a concrete surface.

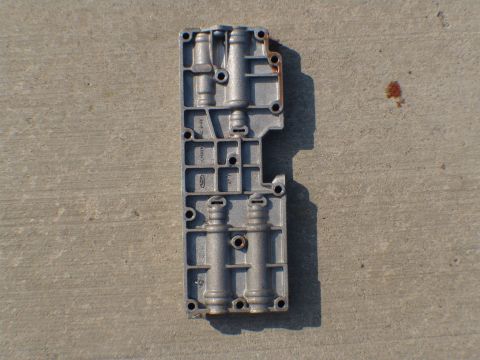

1996 Ford Bronco - A metal transmission valve body part is shown lying on a concrete surface, casting a shadow.

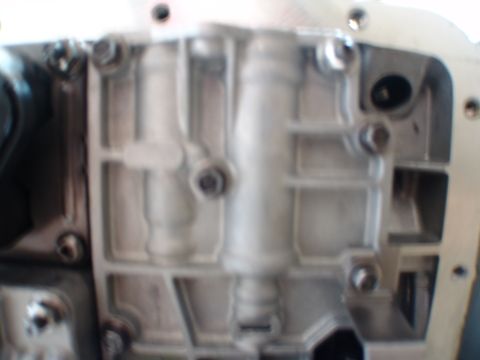

1996 Ford Bronco - A detailed view of a transmission valve body, showing its metallic components and bolt fastenings.

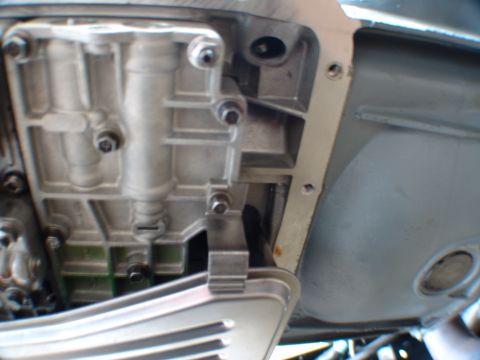

1996 Ford Bronco - Close-up view of a vehicle's transmission pan and internal casing components.

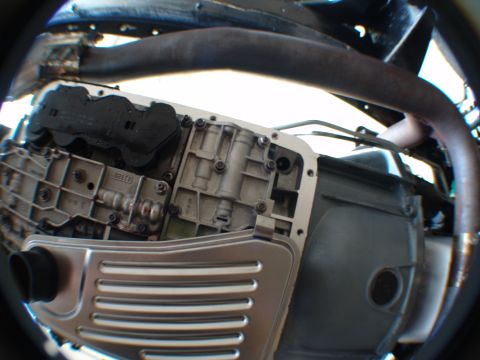

1996 Ford Bronco - Transmission pan and filter assembly, likely from a vehicle's drivetrain.

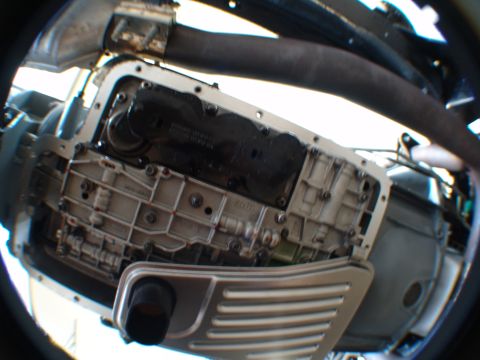

1996 Ford Bronco - The transmission pan and filter are visible, with some fluid residue present.

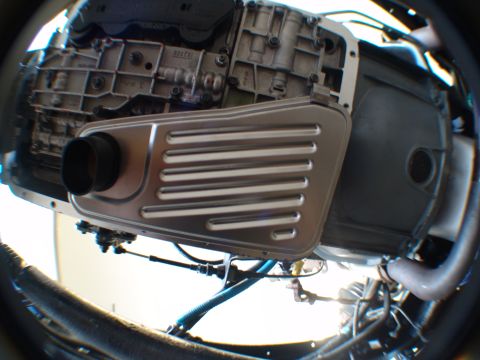

1996 Ford Bronco - Close-up view of a transmission pan and filter assembly.

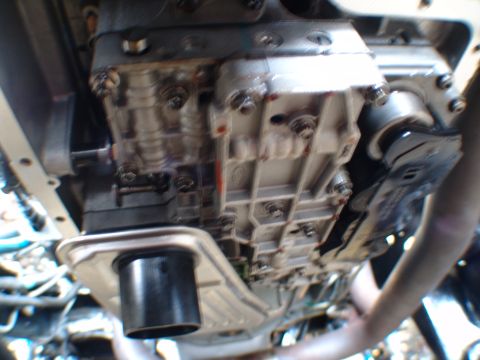

1996 Ford Bronco - Underside view of a transmission pan and filter assembly, likely from a vehicle.

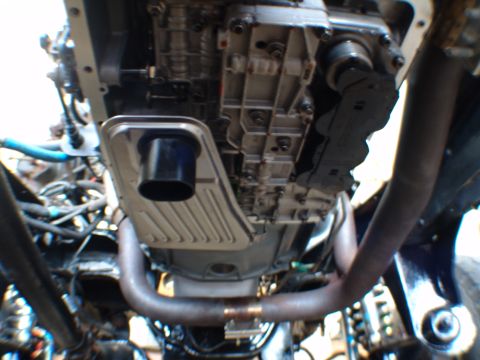

1996 Ford Bronco - Underside view shows the transmission pan and exhaust pipes of a vehicle.

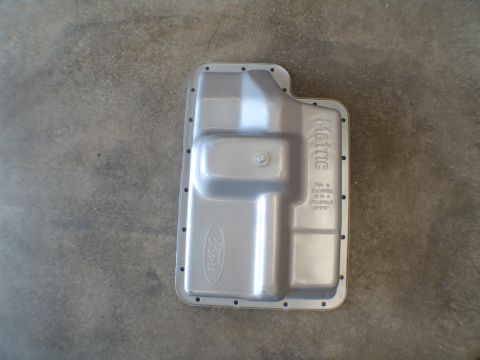

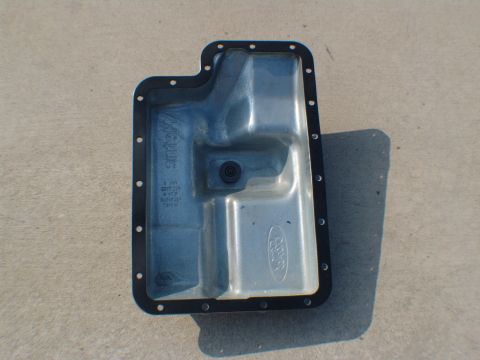

1996 Ford Bronco - A silver transmission pan with Ford branding is shown on a concrete surface.

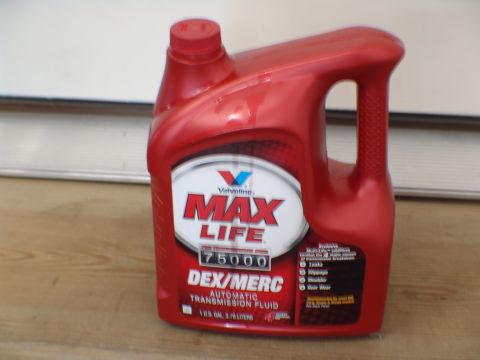

1996 Ford Bronco - A red bottle of Valvoline Max Life Dex/Merc Automatic Transmission Fluid is shown.

1996 Ford Bronco - Service procedure page illustrating removal of the transmission filter and seal assembly with a line-drawing figure and instructional text.

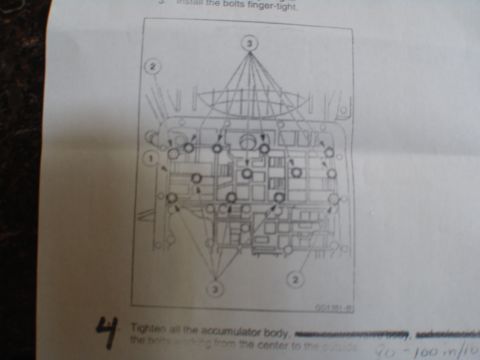

1996 Ford Bronco - Service procedure figure showing the transmission valve/accumulator body bolt locations with arrows indicating the tightening pattern.

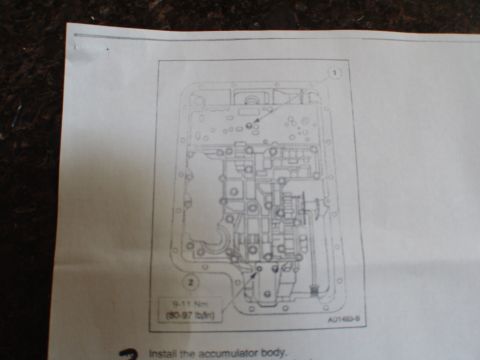

1996 Ford Bronco - Service figure for installing the accumulator body, calling out a torque specification of 9-11 Nm (80-97 lb-in).

1996 Ford Bronco - Service procedure figure showing the accumulator body bolt-tightening sequence working from the center to the outside.

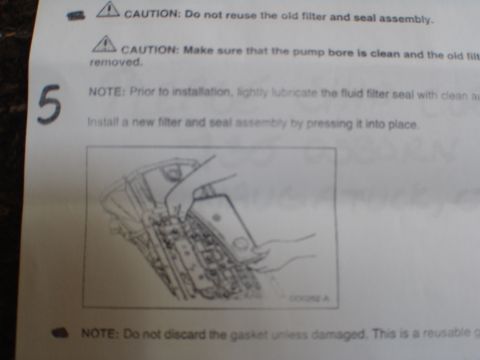

1996 Ford Bronco - Service procedure page with caution notes and a figure for installing a new transmission filter and seal assembly.

1996 Ford Bronco - Close-up view of a transmission pan and filter, likely from a vehicle's drivetrain.
