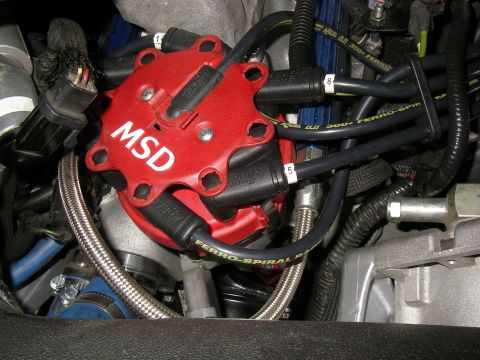

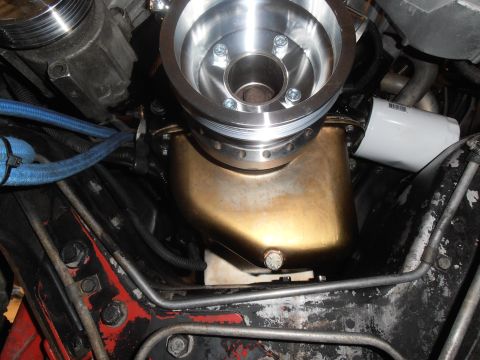

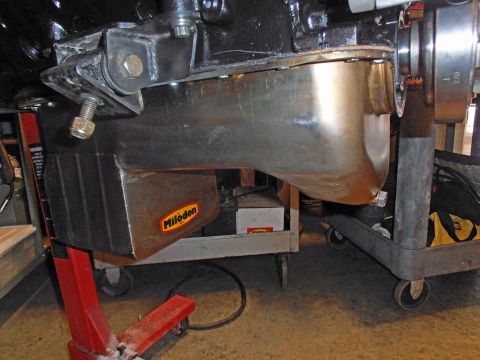

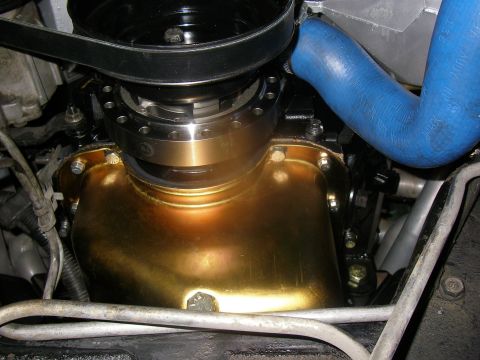

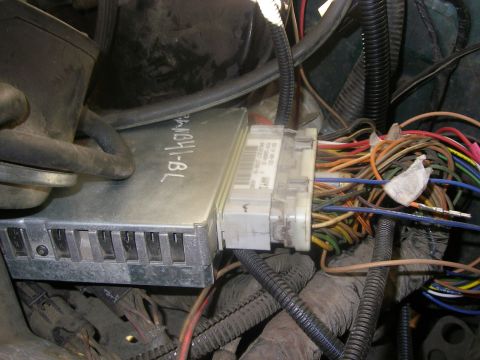

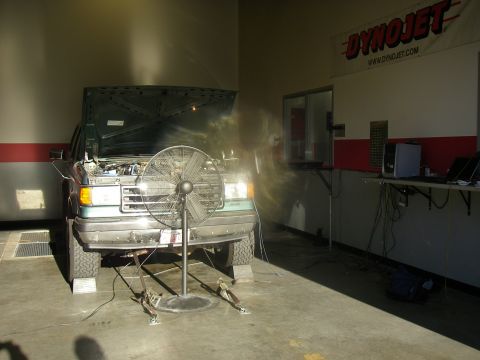

408 Stroker

From 1990 Ford Bronco “Eddie Bauer”, documented by SeattleFSB.

151 photos 5 videos
← Back to this vehicle

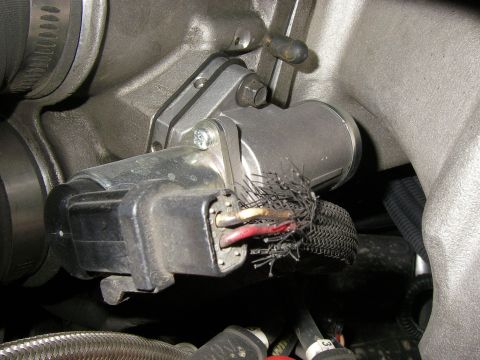

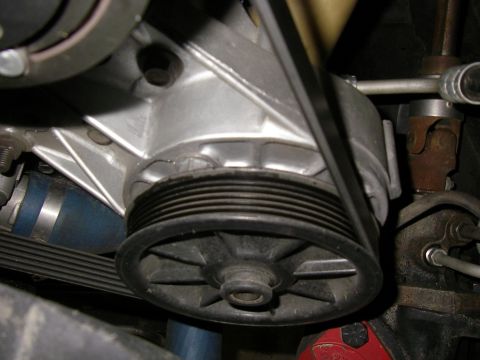

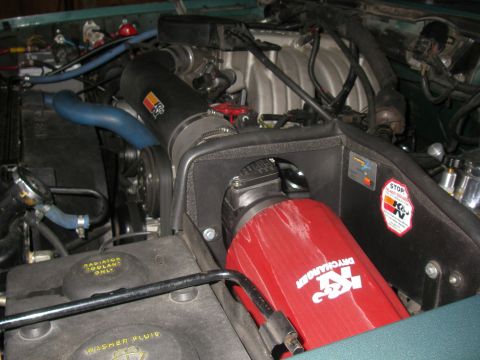

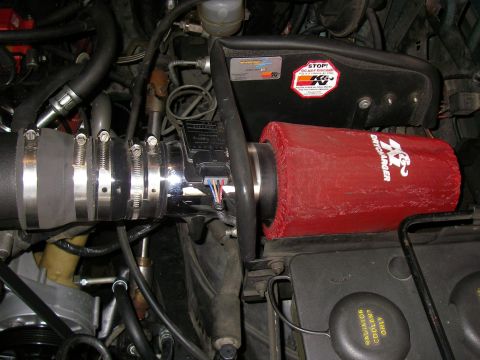

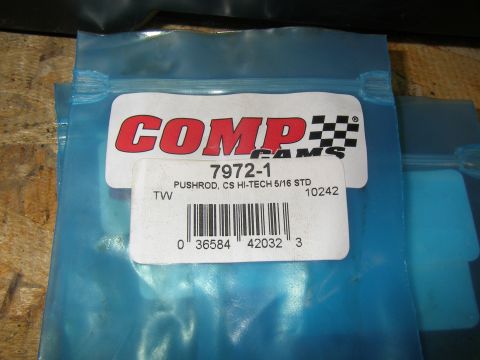

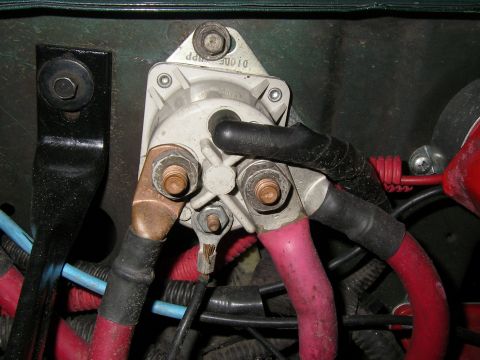

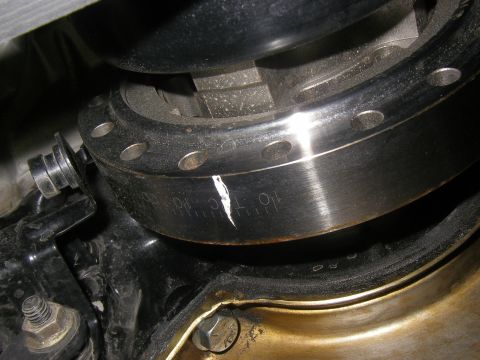

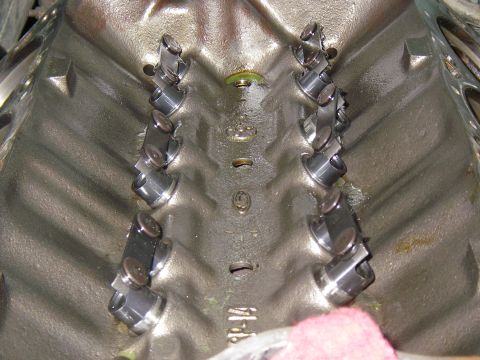

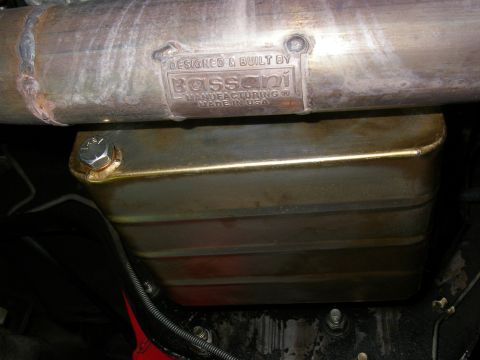

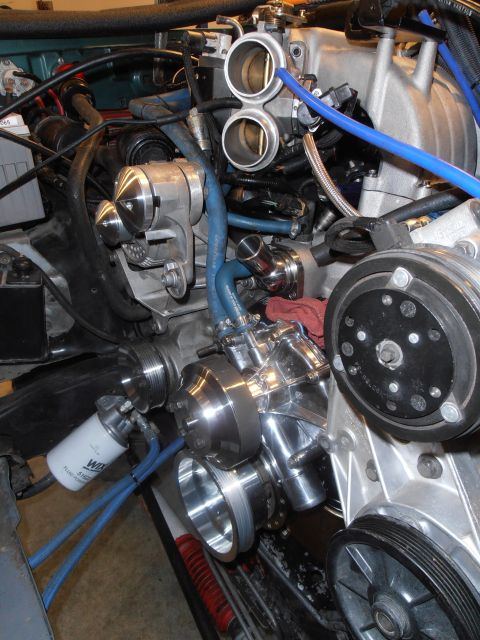

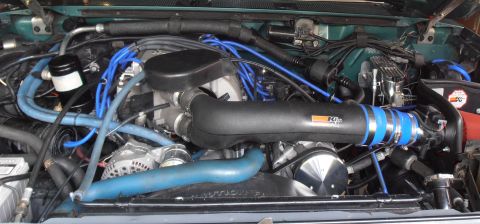

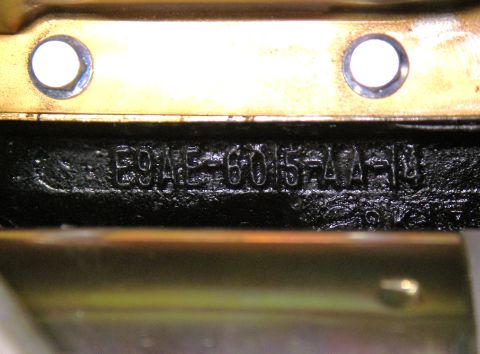

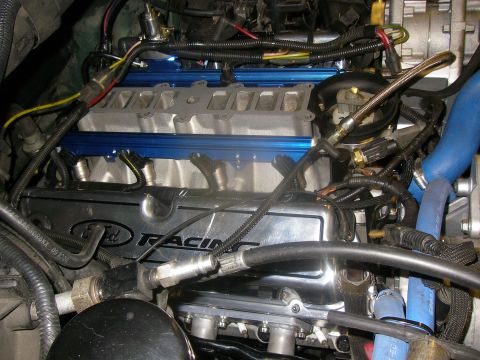

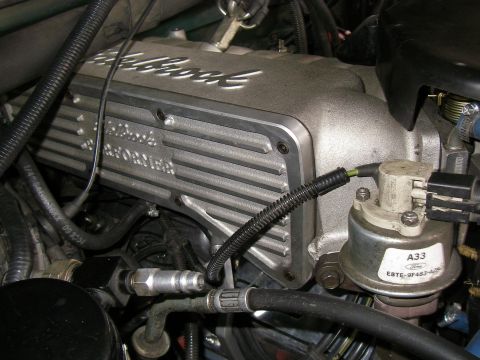

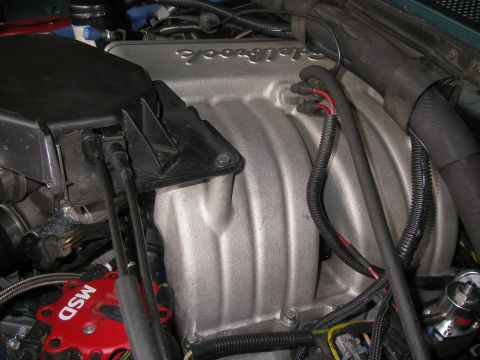

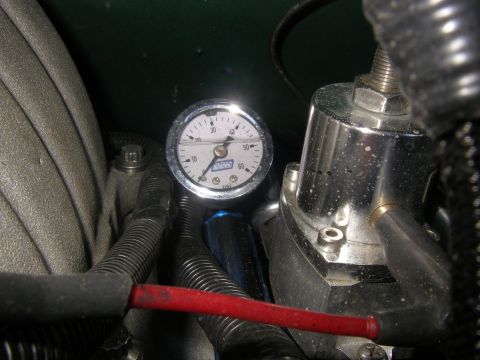

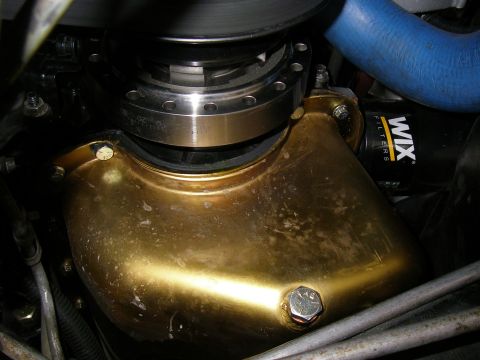

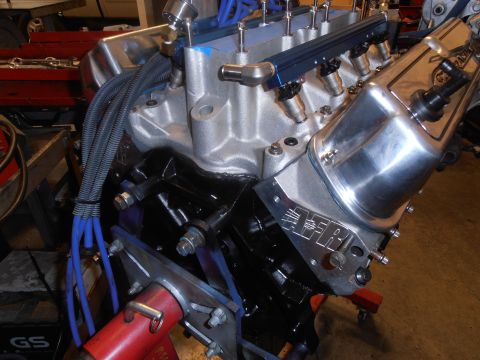

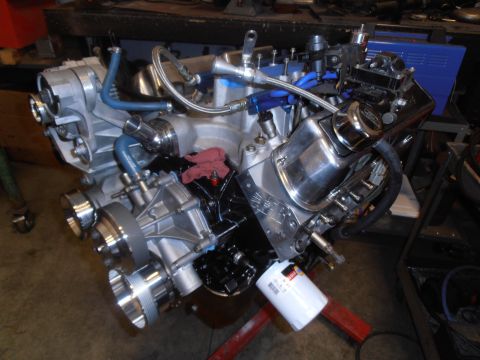

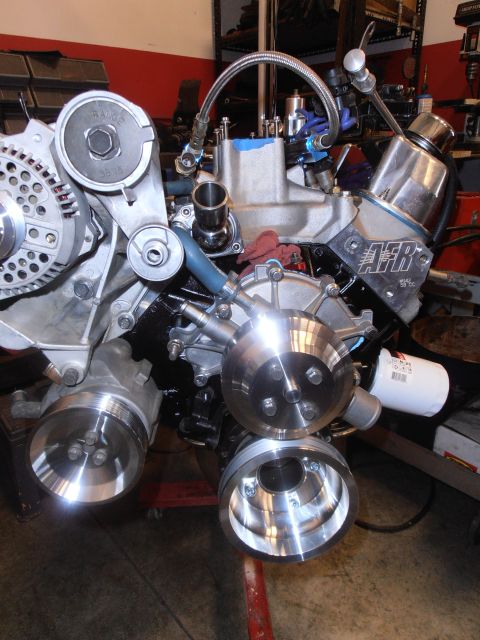

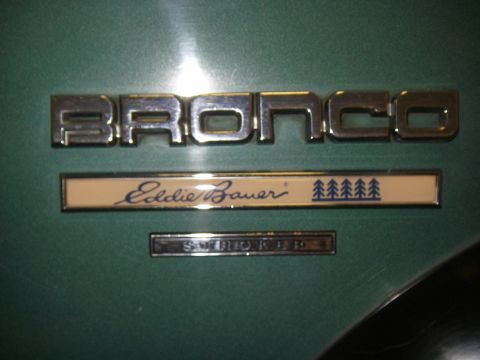

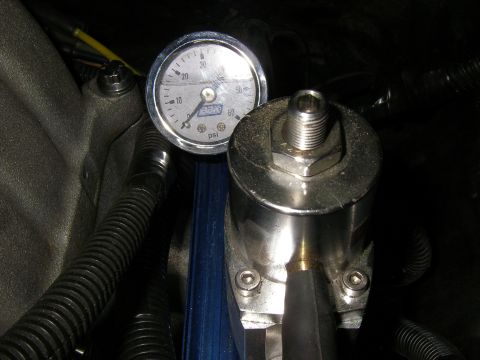

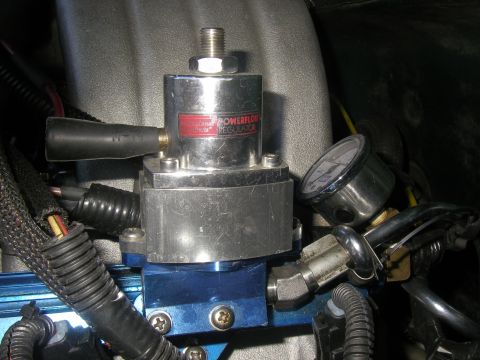

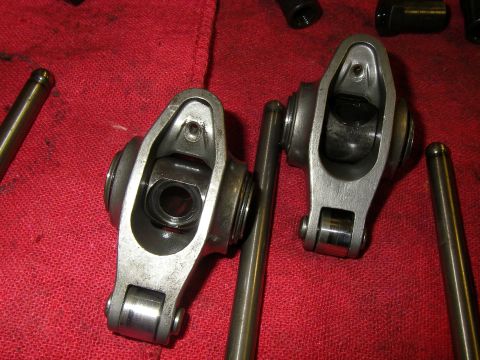

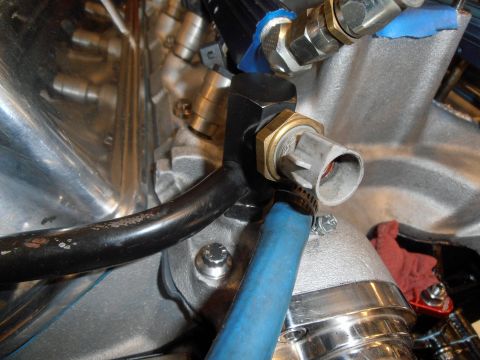

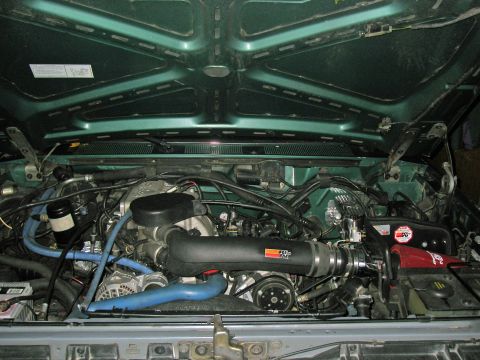

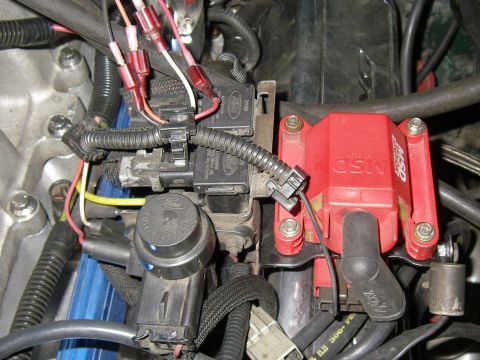

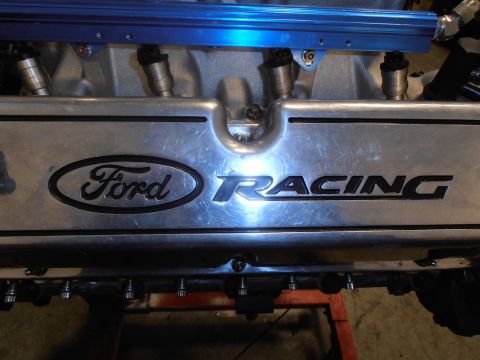

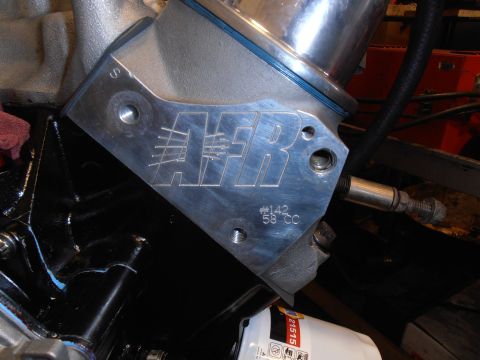

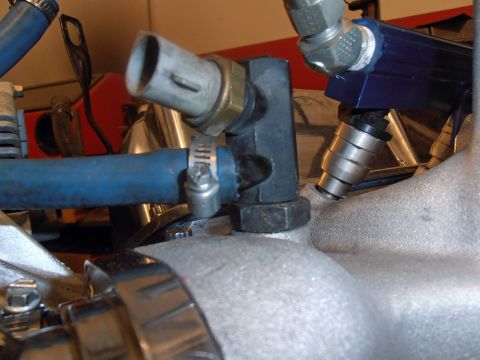

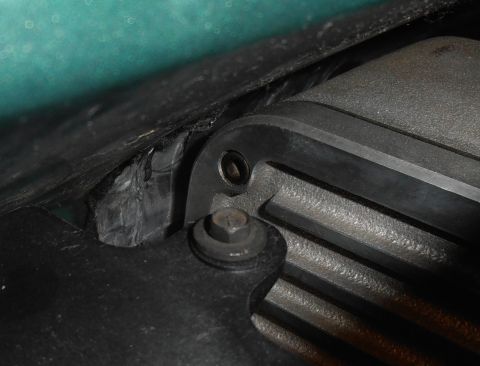

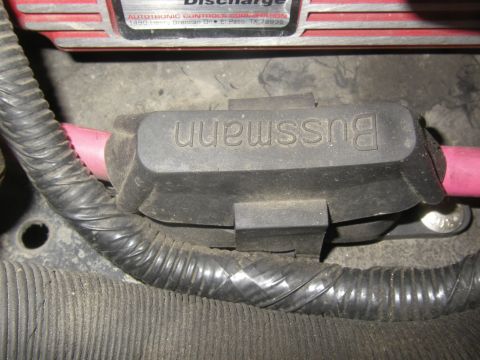

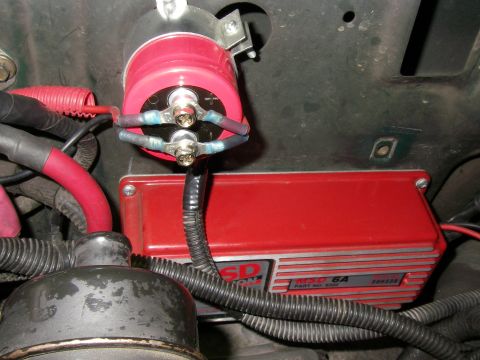

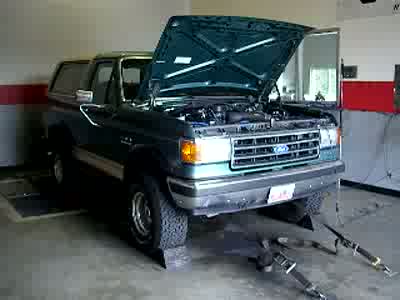

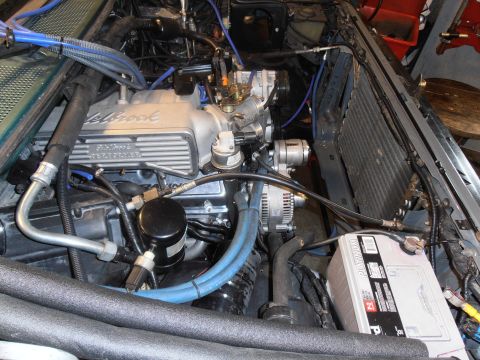

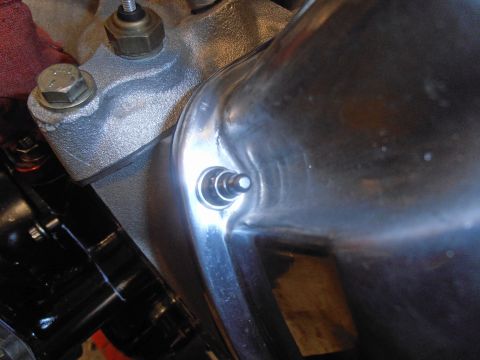

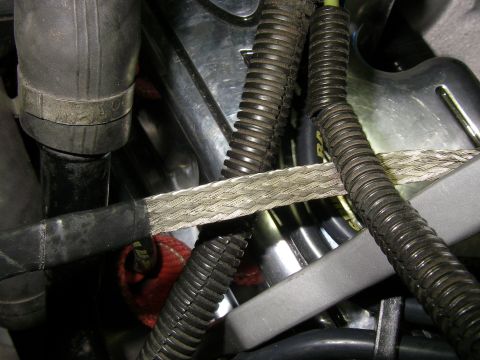

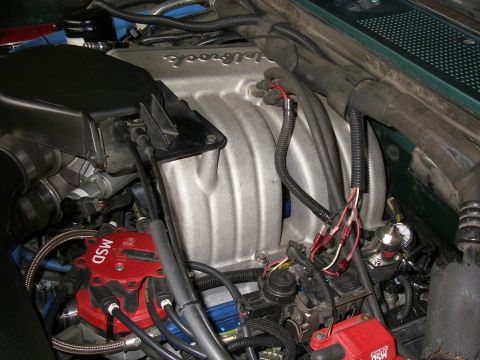

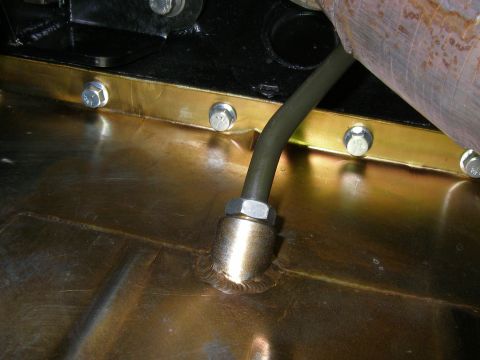

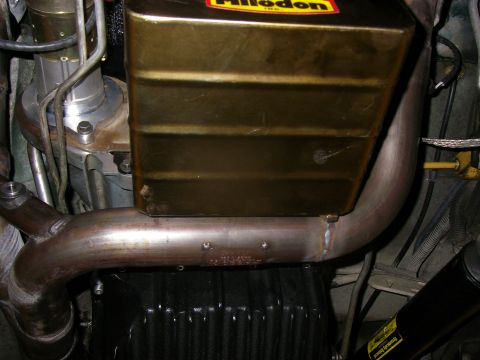

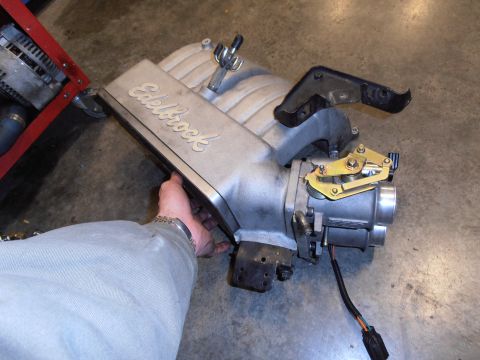

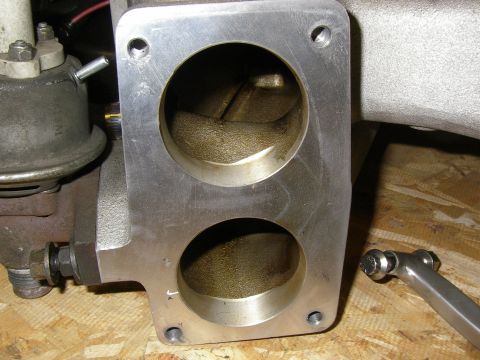

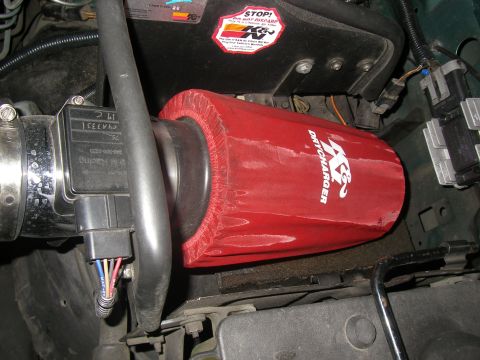

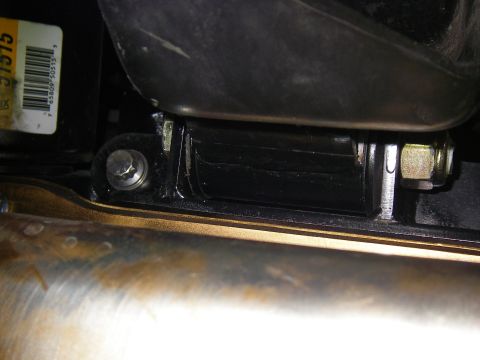

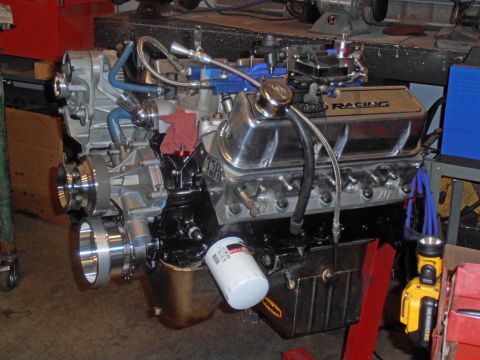

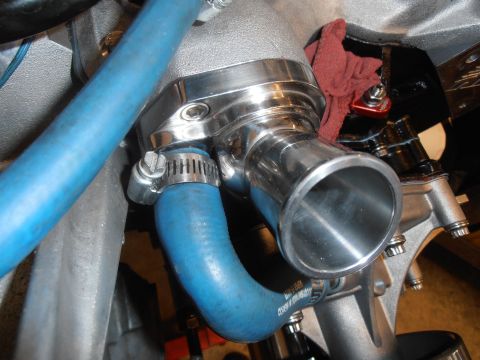

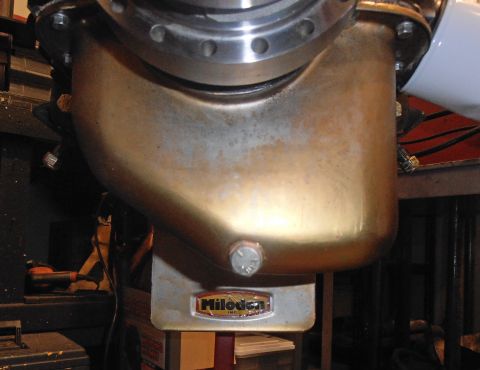

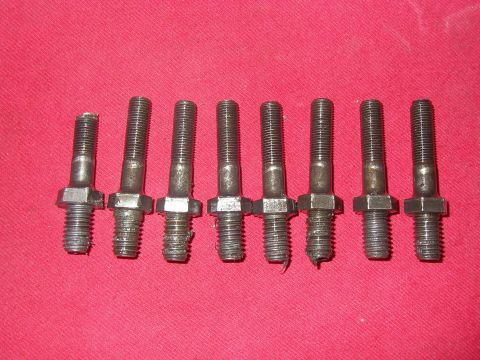

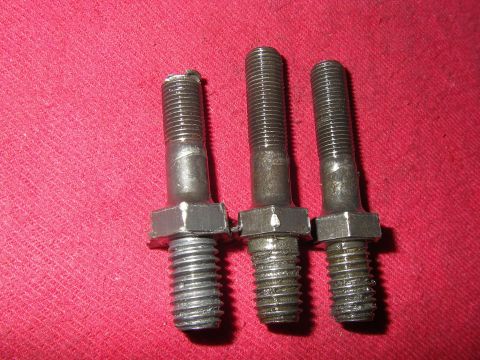

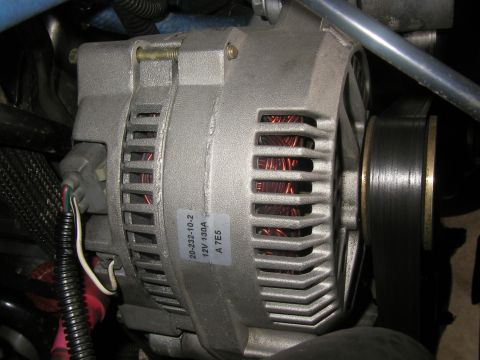

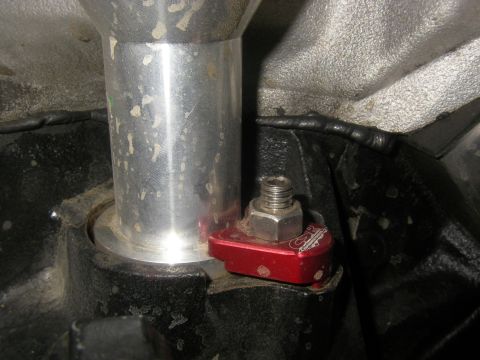

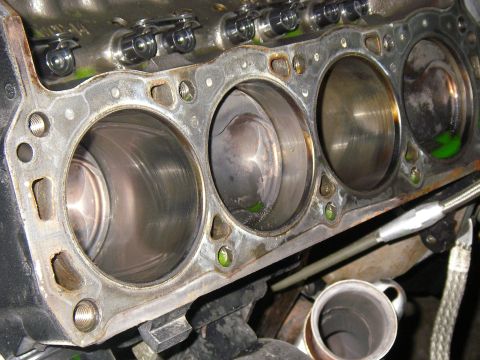

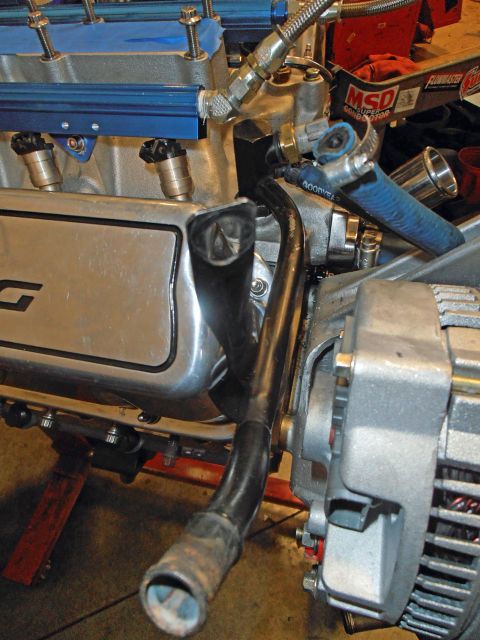

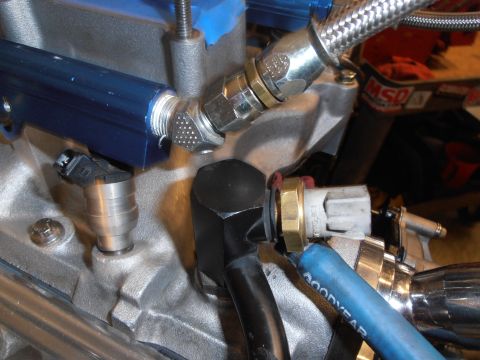

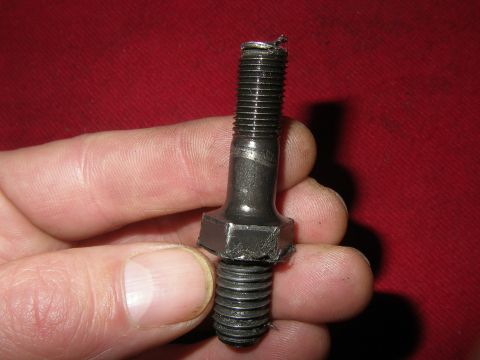

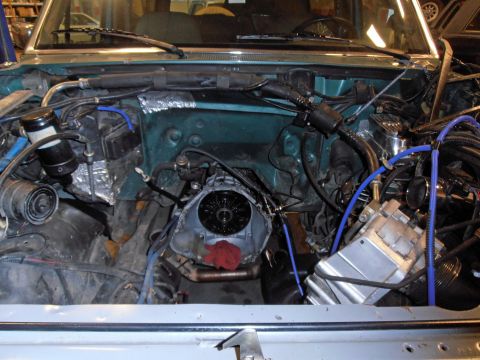

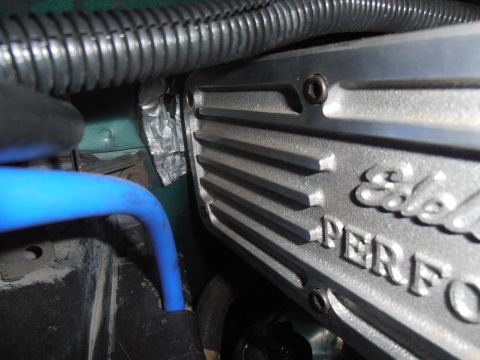

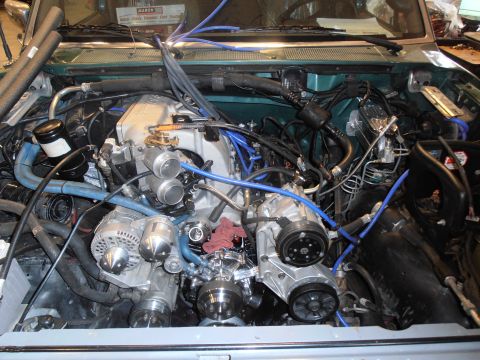

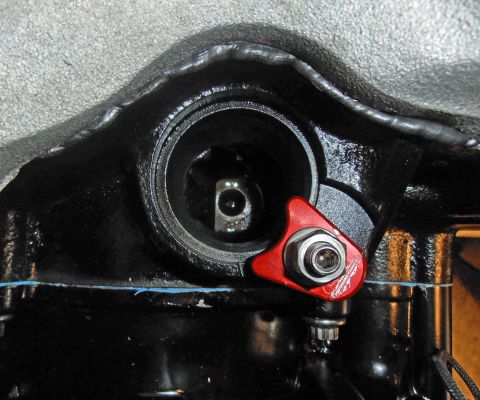

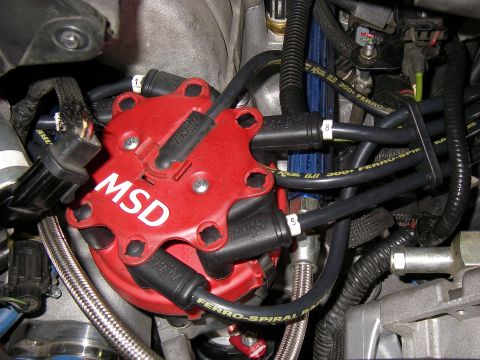

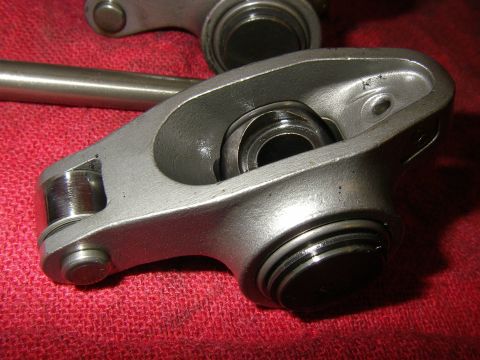

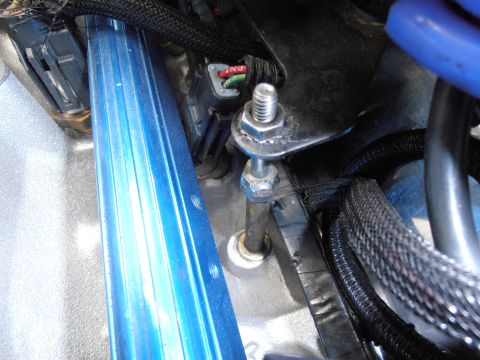

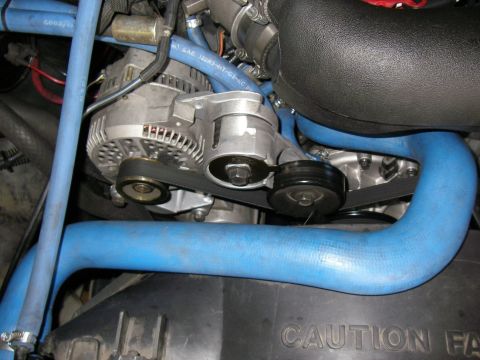

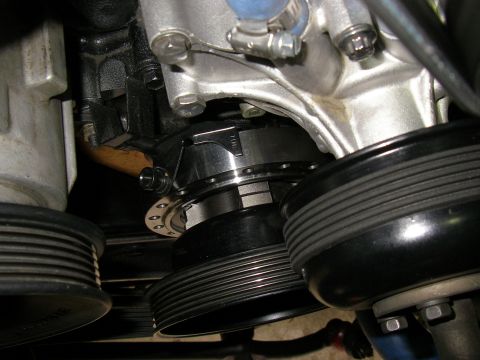

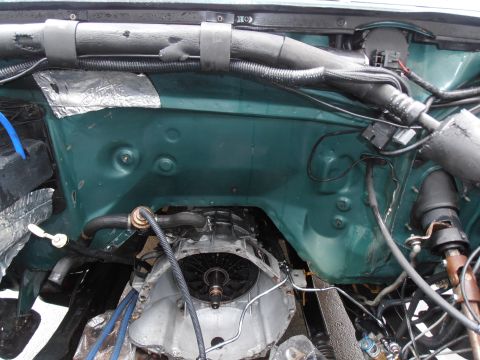

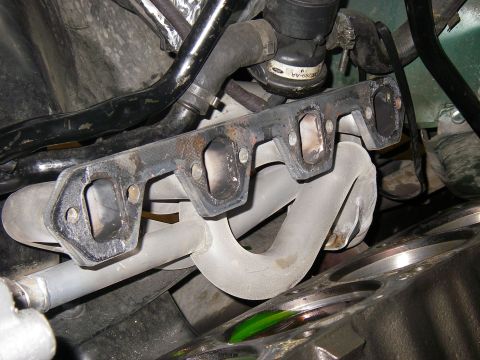

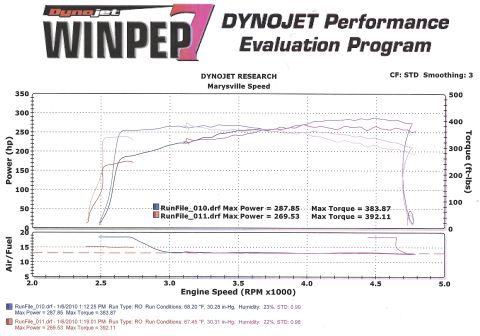

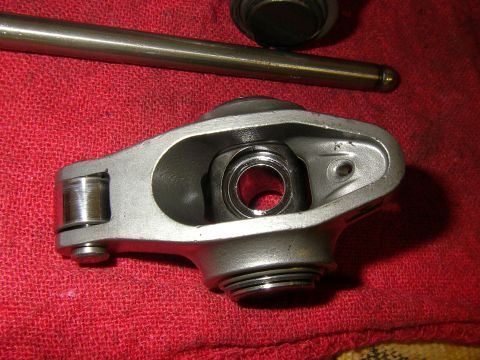

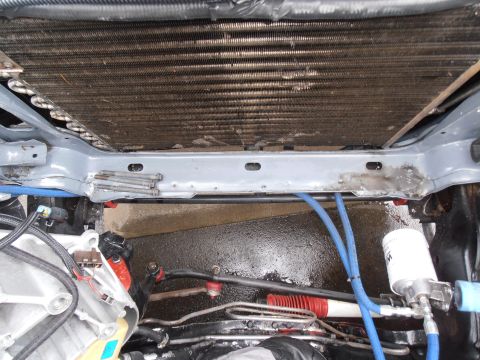

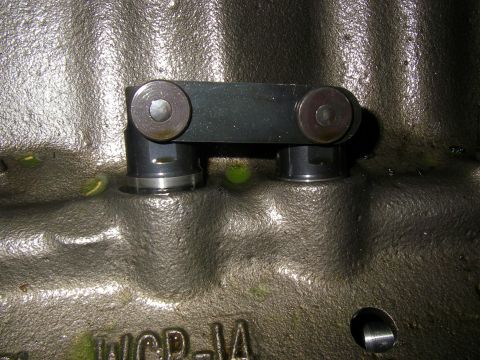

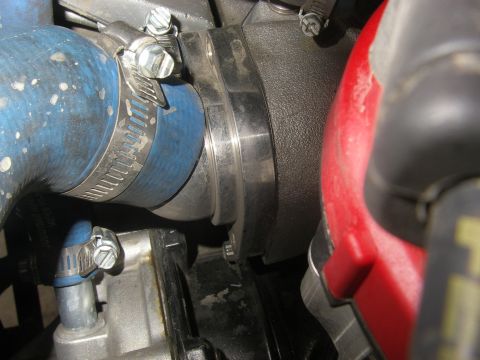

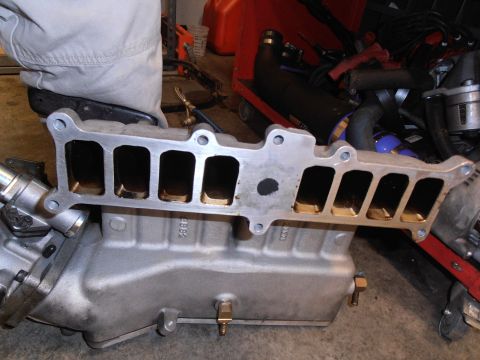

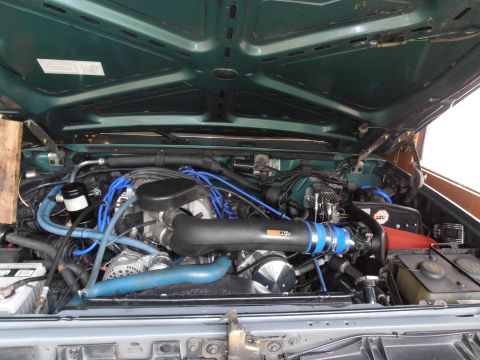

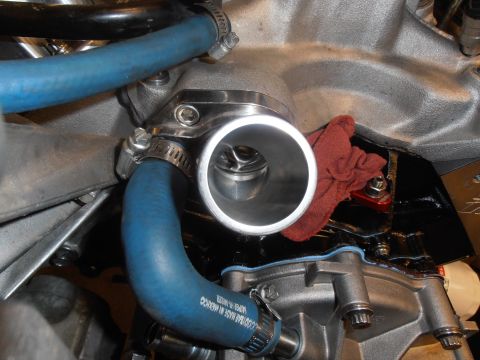

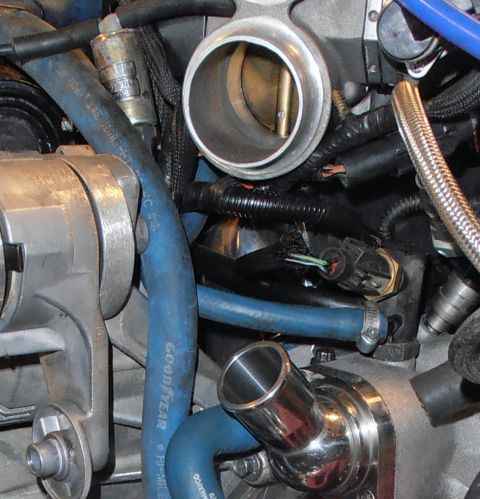

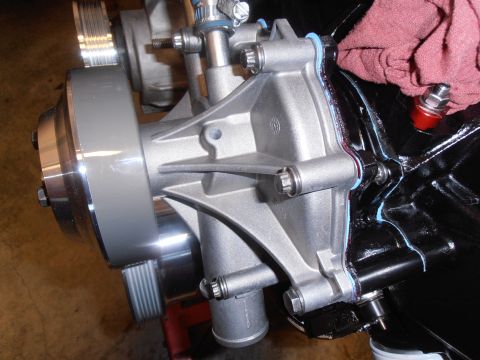

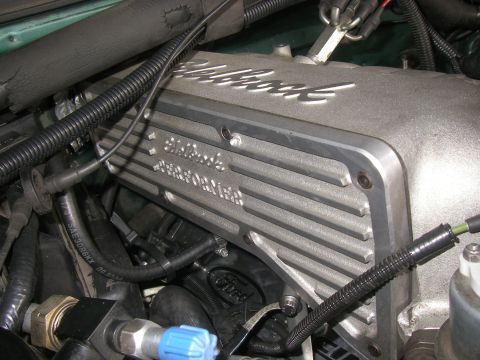

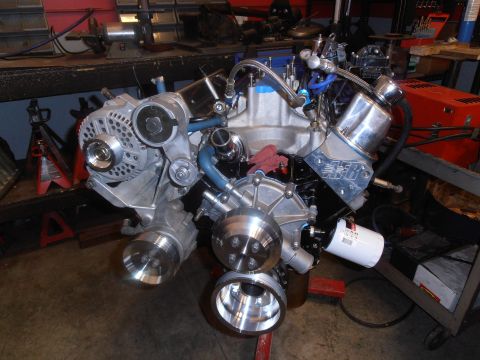

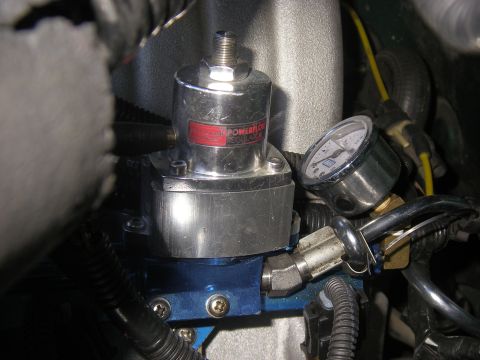

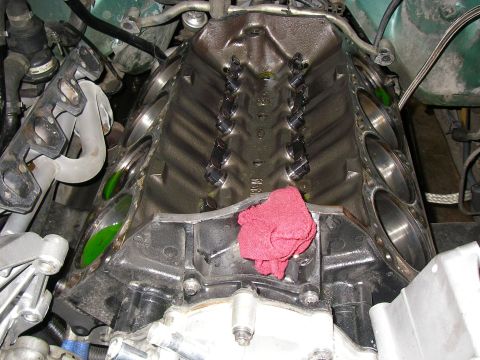

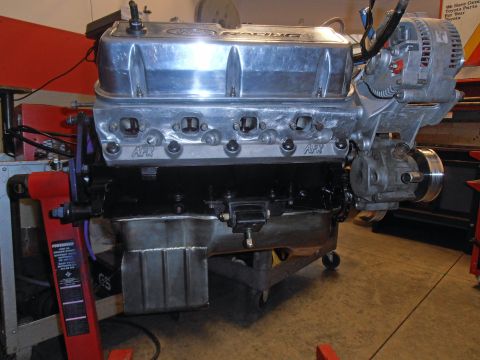

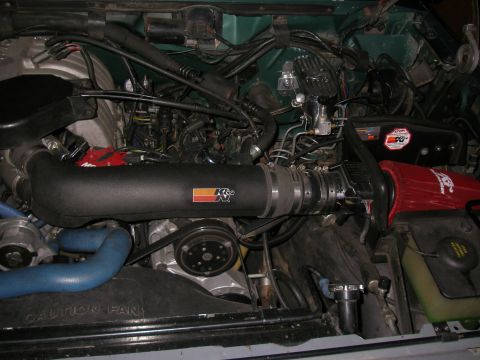

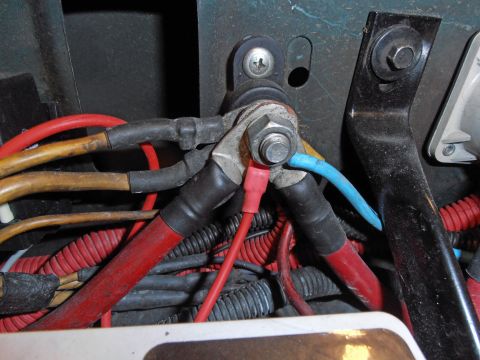

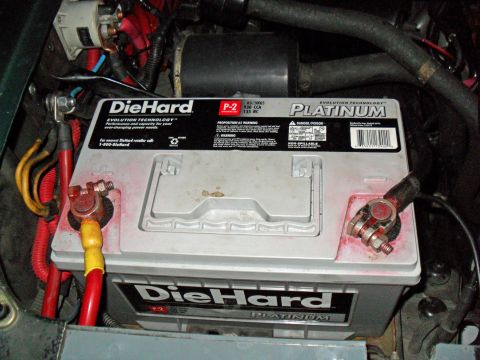

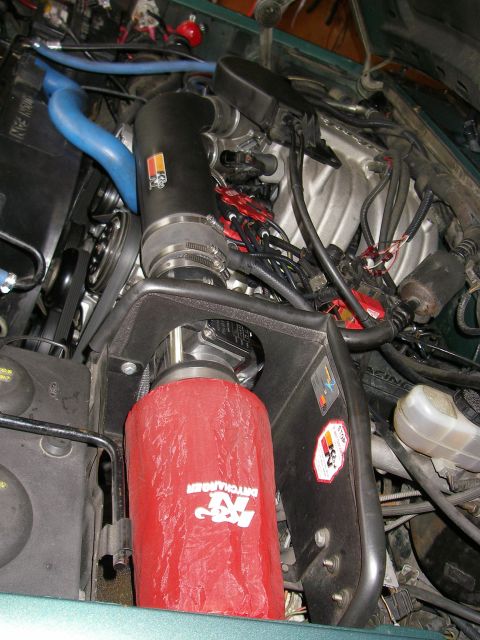

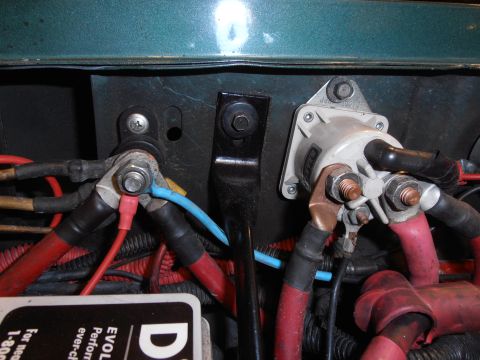

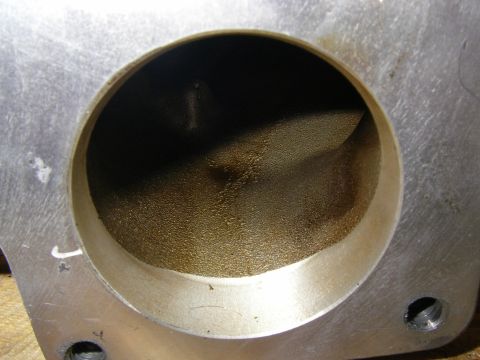

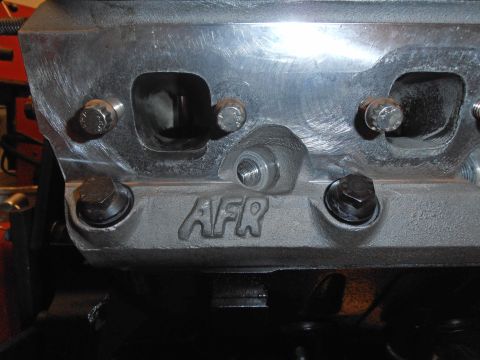

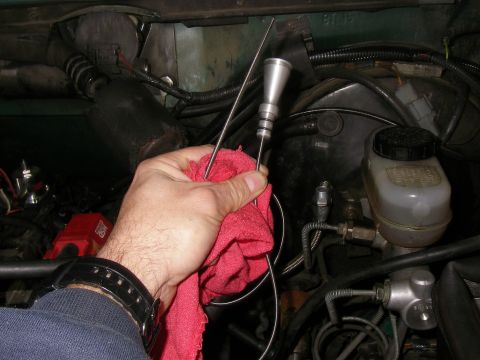

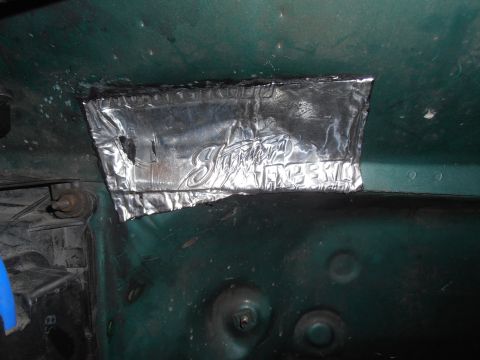

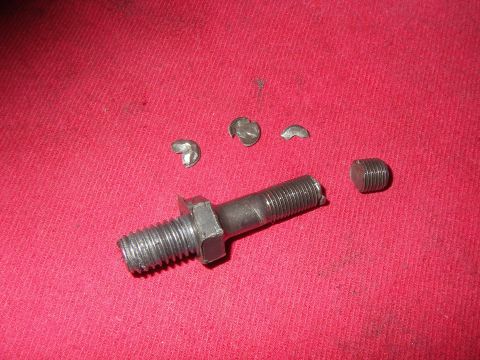

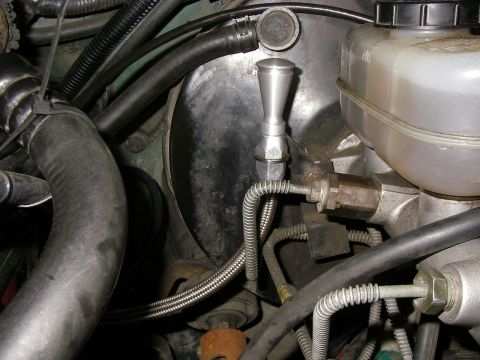

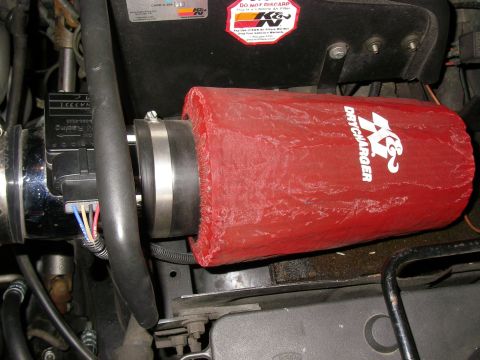

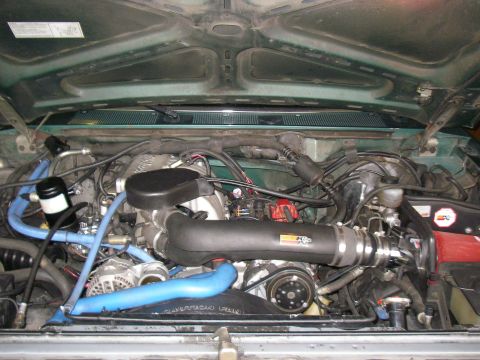

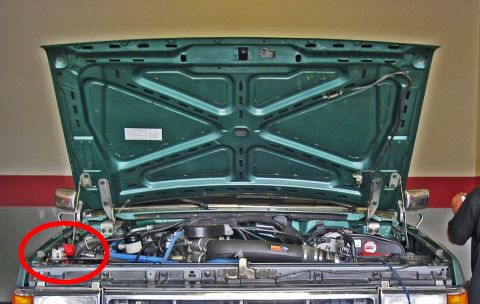

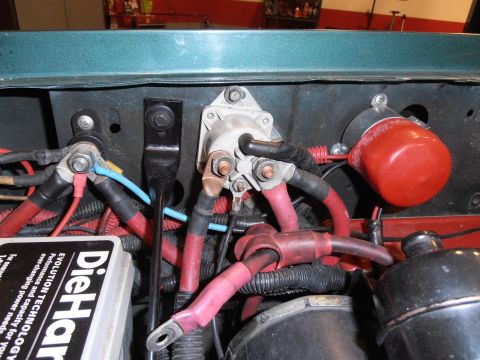

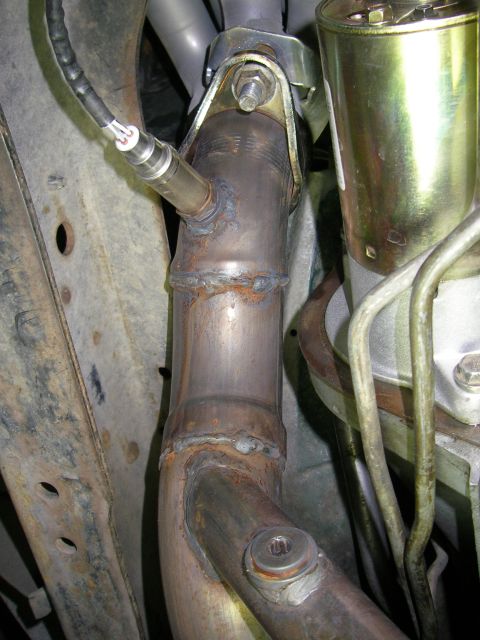

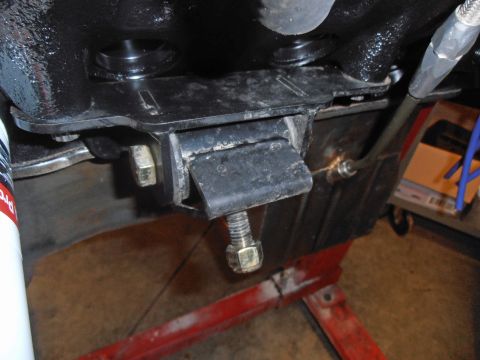

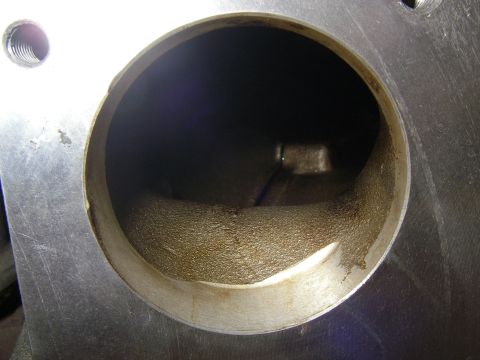

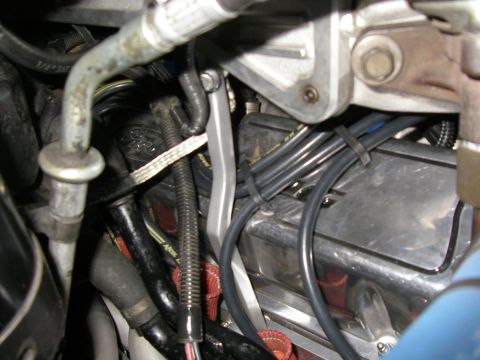

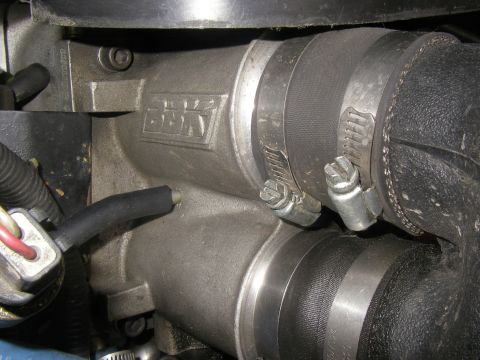

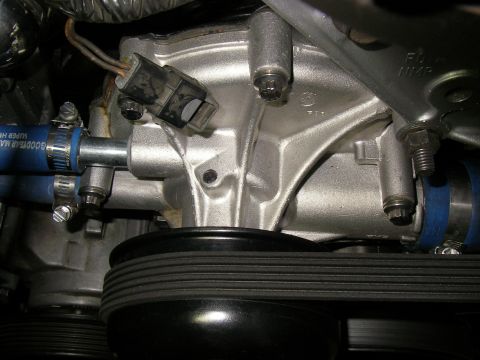

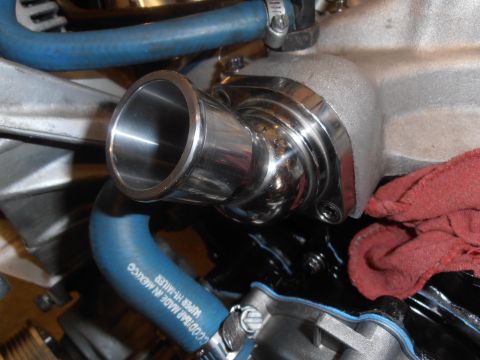

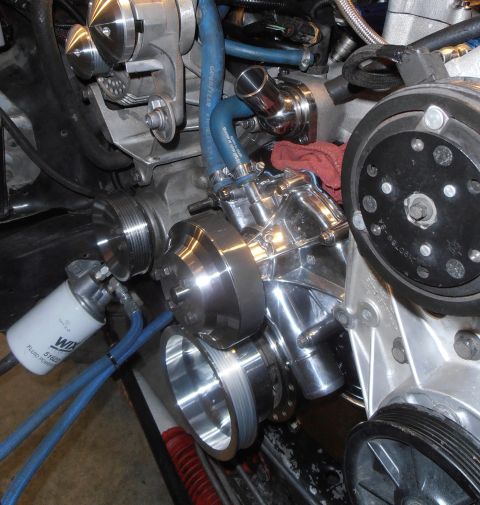

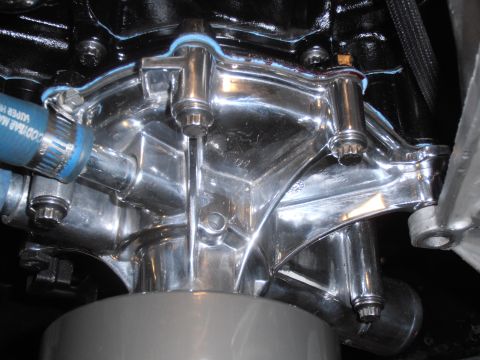

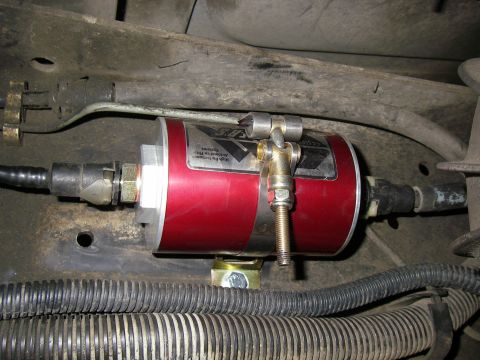

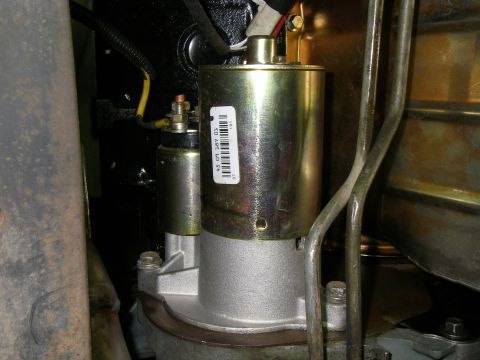

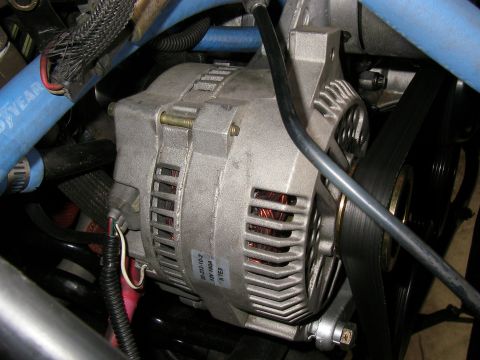

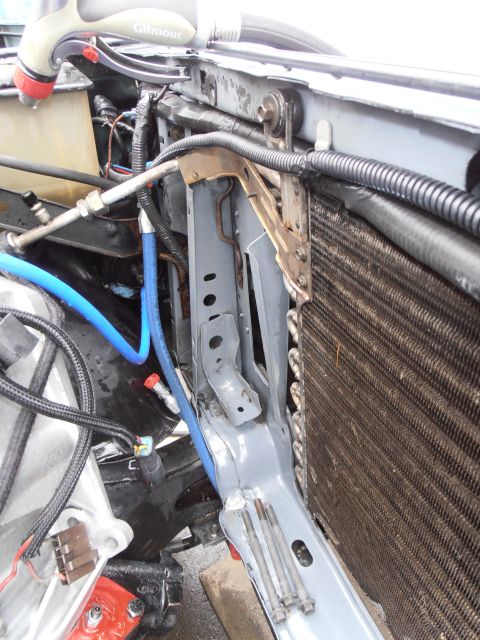

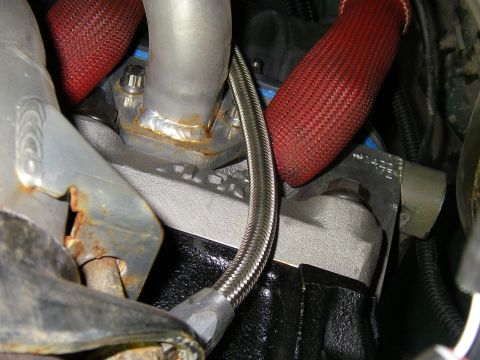

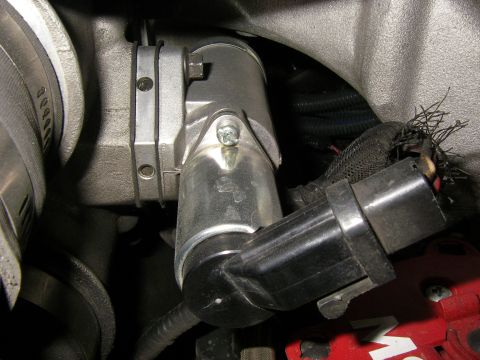

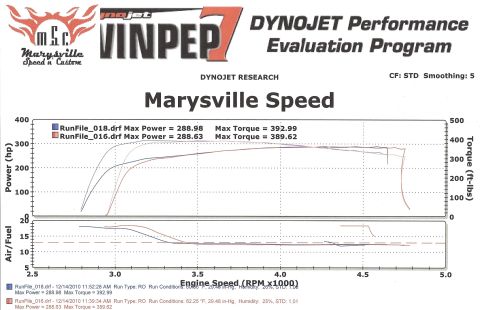

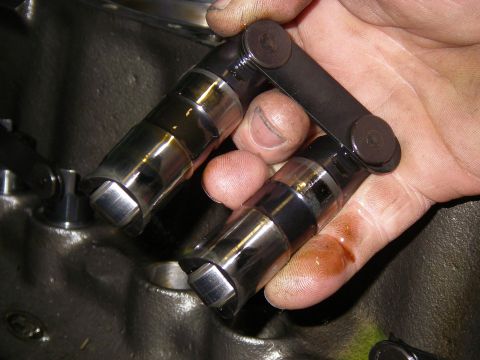

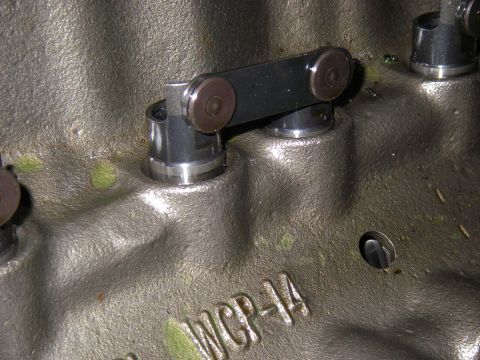

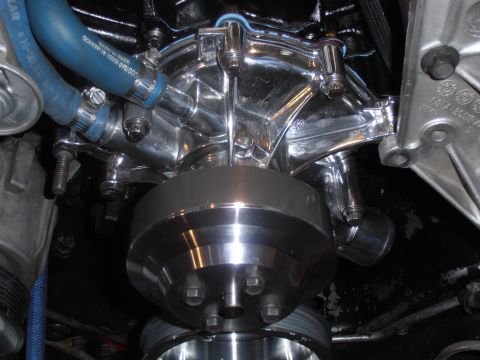

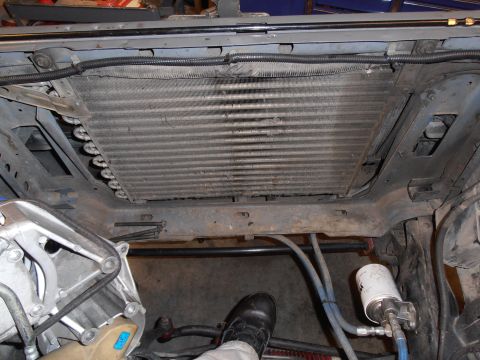

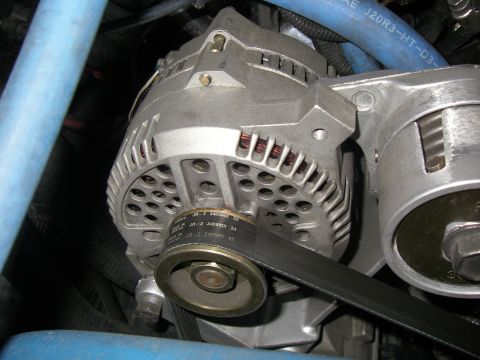

1990 Ford Bronco - Close-up of chrome 'BRONCO' emblem on a dark green metallic body panel, with an 'Eddie Bauer' script badge featuring pine tree graphics and… 1990 Ford Bronco - 408 Stroker, Edelbrock Performer Intake Manifold, AFR 185 Heads, Ford Racing Polished Valve Covers. 1990 Ford Bronco - 408 Stroker, all forged internals, balanced rotating assembly, blueprinted. 1990 Ford Bronco - Original 1990 (1989) 351W Pre-Roller Hydraulic Block fully machined and retro-fitted to Hydraulic Roller. 1990 Ford Bronco - Professional Products Fuel Rail, adjustable FPR, Accel 40 Lbs/Hr fuel injectors and RJM Injection Tech. harness 1990 Ford Bronco - Tight engine bay shot of a built Ford small-block V8 with a polished Ford Racing valve cover, bare aluminum upper intake and blue anodized… 1990 Ford Bronco - Fuel line modification due to interference with ECT Sensor. 1990 Ford Bronco - Professional Products Powerflow Fuel Rail, Adjustable FPR & BBK Gauge 1990 Ford Bronco - Under-hood close-up of a BBK fuel pressure gauge, 0-60 psi white face in a chrome bezel, mounted on a blue-anodized fitting at the fuel rai… 1990 Ford Bronco - Close-up of a polished aluminum Professional Products Powerflow adjustable fuel pressure regulator mounted on a blue anodized fuel rail blo… 1990 Ford Bronco - A polished Professional Products Powerflow adjustable fuel pressure regulator mounted on a blue anodized fuel-rail block in an engine bay,… 1990 Ford Bronco - Way1 (F5TF-12A650-JB) EEC-IV/OBD-I/MAF/E4OD PCM 1990 Ford Bronco - K&N Intake Air Tube 1990 Ford Bronco - Pro-M Mass Air Flow Meter 1990 Ford Bronco - Pro-M 75mm Mass Air Sensor & K&N Air Filter 1990 Ford Bronco - Pro-M Racing 75mm MAF Sensor mounted on a K&N Air Tube w/ K&N Air Filter. 1990 Ford Bronco - K&N Air Tube 2 1990 Ford Bronco - Edelbrock Performer Truck Intake. 1990 Ford Bronco - Edelbrock Performer Truck Intake2 1990 Ford Bronco - An Edelbrock cast-aluminum intake manifold installed on an engine, with 'Edelbrock' and 'Edelbrock Performer' cast into the finned plenum,… 1990 Ford Bronco - Installed cast-aluminum Edelbrock EFI intake manifold with the script logo on the upper plenum, surrounded by loom-wrapped harness, black a… 1990 Ford Bronco - Custom Fabricated Intake Support Shaft 1990 Ford Bronco - Close-up of a BBK cast aluminum intake casting joined to rubber coupler hoses with worm-gear clamps in an engine bay. 1990 Ford Bronco - TAD, TAB, EVR & MSD Blaster TFI Coil 1990 Ford Bronco - MSD Pro Billet Distributor & Accell 300+ Race Wires 1990 Ford Bronco - Accell 300+ Race Wires, DEI Protect-A-Boot Spark Plug Shields, CSR Billet Aluminum Distributor Clamp & Performance SS Thermostat Housing 1990 Ford Bronco - Close-up of an engine bay centered on a red MSD distributor cap with numbered spark-plug terminals and black Ferro-Spiral plug wires. Red a… 1990 Ford Bronco - MSD 6A Ignition & Noise Filter 1990 Ford Bronco - A red MSD 6A multiple-spark discharge ignition box mounted on a bracket inside an engine bay, wired with braided-sleeved harness leads. A r… 1990 Ford Bronco - Product photo of a red MSD Ignition Noise Filter capacitor with two screw terminals on its black top, labeled with part number and '9717L20… 1990 Ford Bronco - 1 Gauge Wire Upgrade 1990 Ford Bronco - New Fan Belt, Fan Belt Tensioner, Pulleys and Goodyear Hi-Miler Hoses 1990 Ford Bronco - 3G 130 Amp Alternator 1990 Ford Bronco - Close-up of a large cast-aluminum alternator mounted in an engine bay, with copper windings visible through its vented case and a serpentin… 1990 Ford Bronco - Close-up of a cast-aluminum alternator installed in an engine bay, with copper windings visible through the vented case and a white label r… 1990 Ford Bronco - Close-up of a black Bussmann rubber-covered inline fuse holder mounted near a battery, with red/pink cables entering each end and corrugate… 1990 Ford Bronco - GMB Aluminum Performance Water Pump 1990 Ford Bronco - Pioneer Harmonic Balancer and Milodon 4x4 Oil Pan 1990 Ford Bronco - Milodon 4x4 Oil Pan - Front Sump 1990 Ford Bronco - Custom Bassani Y-Pipe modification to fit around Milodon Oil Pan. 1990 Ford Bronco - Milodon 4x4 Oil Pan - Rear Sump 1990 Ford Bronco - Lokar Custom Oil Dipstick in Milodon Pan 1990 Ford Bronco - Lokar Custom Oil Dipstick Mid-shaft 1990 Ford Bronco - Lokar Custom Length Oil Dipstick Top 1990 Ford Bronco - Lokar Custom Oil Dipstick Flex Cable 1990 Ford Bronco - Stereo O2 Sensors mounted in new bungs. I need to return a single sensor to the original location as the new WAY1 PCM requires only 1. 1990 Ford Bronco - High Torque Mini Starter 1990 Ford Bronco - Super Duty Poly Motor Mounts 1990 Ford Bronco - Canton Racing Products CM EFI High Flow Fuel Filter (PN 25-910) 1990 Ford Bronco - A red anodized billet aluminum distributor hold-down clamp laser-etched with the CSR Performance Products logo, shown on a white background… 1990 Ford Bronco - Close-up of a red anodized CSR billet aluminum distributor hold-down clamp with a stainless bolt, securing a polished aluminum distributor… 1990 Ford Bronco - Studio product shot of a polished stainless-steel thermostat housing with an angled upper radiator-hose outlet, photographed on a white bac… 1990 Ford Bronco - Tight engine-bay close-up of a stainless thermostat housing joined to a blue silicone upper radiator hose with stainless worm-gear clamps.… 1990 Ford Bronco - A DieHard Platinum P-2 AGM battery installed in an engine bay, its white top labeled '930 CCA / 135 RC', with red and yellow cables clamped… 1990 Ford Bronco - Tight engine-bay shot of a wide flat braided-metal grounding strap routed across black corrugated wiring loom and rubber hoses. The strap i… 1990 Ford Bronco - Close-up of a twin-bore aluminum throttle body with the mounting flange facing the camera, showing both bores freshly ported and smoothed w… 1990 Ford Bronco - Extreme close-up down the round throttle bore of an aluminum intake elbow, showing the ported and blended casting inside with a machined bo… 1990 Ford Bronco - Close-up looking straight down a machined throttle body or intake bore, showing the smooth polished upper lip and a rougher cast, ported pa… 1990 Ford Bronco - Close-up of an engine's exhaust header bolted to the cylinder head, with ceramic-coated white tubular primaries curving down and a Ford-sta… 1990 Ford Bronco - Close-up of a polished stainless steel full-roller rocker arm showing its roller trunnion bearing and pushrod cup, with a second rocker and… 1990 Ford Bronco - Close-up of a single full roller rocker arm laid on a red shop rag, showing the roller tip, needle-bearing trunnion bore and threaded stud… 1990 Ford Bronco - Two full roller rocker arms laid out on a red shop rag, showing the needle-bearing trunnion and roller tips at the valve end. Steel pushrod… 1990 Ford Bronco - A greasy hand holds a pair of new roller lifters joined by their link bar, the polished barrels still wet with assembly oil, above a bare e… 1990 Ford Bronco - A close-up looking down into the lifter valley of a V8 engine with the intake manifold removed, exposing two rows of valve lifters and push… 1990 Ford Bronco - Overhead view down into the lifter valley of a disassembled V8 engine block with the intake manifold removed, showing two banks of eight hy… 1990 Ford Bronco - Extreme close-up of a bare aluminum engine block's lifter valley, showing a hydraulic roller lifter pair retained by a steel guide link bar… 1990 Ford Bronco - A link-bar roller lifter pair installed in two adjacent lifter bores of a bare cast-iron engine block, photographed straight on so the tie… 1990 Ford Bronco - Close-up of an engine block deck with the cylinder head removed, showing one bank of four cylinder bores with the pistons at the tops and a… 1990 Ford Bronco - A sealed blue Comp Cams parts bag resting on a plywood bench, labeled part number 7972-1, "PUSHROD, CS HI-TECH 5/16 STD" with a barcode. Th… 1990 Ford Bronco - A close-up of a package containing Comp Cams pushrods, part number 7972-1. 1990 Ford Bronco - When using Comp Cams Pro Magnum Rocker Arms, longer Studs must be used due to a thicker steel Trunion design, which creates a mechanical st… 1990 Ford Bronco - A double-ended threaded rocker stud with a hex flat in the middle lies on a red shop rag, surrounded by three curved valve locks/keepers an… 1990 Ford Bronco - A hand holds a black hex-head stud or bolt against a red cloth background; the threads run out both ends of the hex and the shank shows a s… 1990 Ford Bronco - A hand holds a double-ended threaded stud against a red cloth background, with a hex collar in the middle and coarse threads below, fine th… 1990 Ford Bronco - Three double-ended steel studs laid on a red cloth, each with a coarse-thread end, a hex wrenching flat in the middle and a finer-thread en… 1990 Ford Bronco - Three double-ended exhaust manifold studs laid on a red shop rag, each with a hex collar cast midway between a long fine-thread end and a s… 1990 Ford Bronco - Eight double-ended rocker arm studs laid out in a row on a red cloth, each with a hex shoulder between coarse lower threads and finer upper… 1990 Ford Bronco - Eight used rocker arm studs laid out in a row on a red cloth background, each with a coarse-thread lower end, a hex wrenching flat mid-shaf… 1990 Ford Bronco - White vinyl DynoJet banner with red and black block lettering and 'WWW.DYNOJET.COM' hung on an interior wall above diamond-plate trim; no v… 1990 Ford Bronco - Post TFI CCD ICM Upgrade - 375 hp & 510 tqVideo 1990 Ford Bronco - 470 lb/ft of torque at 2600 RPM and 510 lb/ft (400 at the rear wheels) at 3000 RPM. The design was for the highest torque at the lowest RPM…Video 1990 Ford BroncoVideo 1990 Ford Bronco - Pre-TFI ICM CCD upgrade.Video 1990 Ford BroncoVideo 1990 Ford Bronco - Bronco 408 Stroker on the DynoJet. 1990 Ford Bronco - Front view of a dark green Ford Bronco with its hood raised inside a shop, a large black pedestal fan positioned directly in front of the g… 1990 Ford Bronco - A teal-green square-body Ford SUV sits strapped down on a chassis dyno with its hood open and headlights on, a large pedestal cooling fan a… 1990 Ford Bronco - Engine bay of a teal-green Ford truck/SUV with the hood raised, showing a V8 with a black round air cleaner lid and a K&N-branded black int… 1990 Ford Bronco - Engine bay of a green truck viewed from the front with the hood up, showing a K&N cold-air intake kit, black intake tube with K&N decal, po… 1990 Ford Bronco - 408 Stroker Engine Compartment 1990 Ford Bronco - Engine Compartment 1990 Ford Bronco - K&N Air Tube 1990 Ford Bronco - Bronco 408 Stroker Dyno Sheet shows 287.85 RWHP & 392.11 RWTQ. Air Fuel ratio is a flat 13.0 at WOT. Estimated at 350 HP & 510 TQ at Flywhe… 1990 Ford Bronco - 30% = 375 HP and 510 TQ 1990 Ford Bronco - Close-up of chrome BRONCO lettering and an Eddie Bauer script badge with pine-tree graphics on a dark green body panel, with a small custom… 1990 Ford Bronco - Engine bay of a 1990 Ford Bronco, an aftermarket intake system. 1990 Ford Bronco - Close-up view of engine pulleys and drive belt system components. 1990 Ford Bronco - Close-up of an engine component, a blue hose and a ribbed belt. 1990 Ford Bronco - Tight close-up of a harmonic balancer installed on the engine, showing the machined timing degree scale stamped into its outer edge with a… 1990 Ford Bronco - Close-up view of a vehicle's alternator, showing its part number and electrical specifications. 1990 Ford Bronco - Close-up view of an air conditioning compressor clutch, showing a part number. 1990 Ford Bronco - Close-up of an engine's intake manifold dual throttle bodies and a blue hose. 1990 Ford Bronco - Close-up of a Ford fuel pressure regulator, part number E8TE-9F483-A2A. 1990 Ford Bronco - The protective mesh on this engine wiring harness has been chewed through, exposing the wires. 1990 Ford Bronco - A detailed view of an engine component, possibly a throttle body or sensor, with visible wiring and metal parts. 1990 Ford Bronco - Close-up view of an engine pulley system, showing the ribbed belt and associated components. 1990 Ford Bronco - Close-up of a vehicle's starter solenoid and associated wiring connections. 1990 Ford Bronco - The engine bay of a vehicle is shown with the transmission removed, revealing the engine block and surrounding components. 1990 Ford Bronco - Engine bay of a green Ford Bronco with the engine removed, showing the dark green firewall and inner fenders, exposed transmission bellhous… 1990 Ford Bronco - Close-up of sound deadening material with visible 'Shaker Expert' branding applied to a green metal surface. 1990 Ford Bronco - Close-up of sound deadening material with embossed text, possibly from a vehicle's interior. 1990 Ford Bronco - Close-up view of the engine bay, focusing on the radiator and associated plumbing. 1990 Ford Bronco - Engine bay detail showing radiator, hoses, and mounting hardware. 1990 Ford Bronco - The front end of a vehicle is disassembled, revealing the radiator and associated engine components. 1990 Ford Bronco - Engine assembly with AFR branding, ready for installation or rebuild. 1990 Ford Bronco - A custom V8 engine assembly sits on a stand, a supercharger and various polished components. 1990 Ford Bronco - Engine assembly with chrome accents and visible oil filter, mounted on a stand. 1990 Ford Bronco - Close-up of a custom engine build AFR valve covers and polished pulleys, likely a performance modification. 1990 Ford Bronco - Custom engine bay modifications a dual throttle body intake system and updated components. 1990 Ford Bronco - Detail of an engine component, showing bolted connections and textured surfaces. 1990 Ford Bronco - Close-up view of an engine's Edelbrock Performance valve cover, partially obscured by a blue hose and wiring loom. 1990 Ford Bronco - Close-up of a V8 engine bay with various components visible, including the Edelbrock valve covers. 1990 Ford Bronco - Close-up view of an engine's oil pan and pulley system, with a white oil filter visible. 1990 Ford Bronco - This is a close-up view of a vehicle's engine mount, showing its construction and attachment points. 1990 Ford Bronco - Close-up of a performance engine AFR valve covers and Ford Racing branding, likely a custom build. 1990 Ford Bronco - Close-up of an engine block a chrome valve cover and fuel injection system. 1990 Ford Bronco - This AFR cylinder head has a volume of 58cc and is marked with part number 142. 1990 Ford Bronco - Close-up of an aftermarket aluminum engine cylinder head with the AFR logo visible. 1990 Ford Bronco - Engine-bay close-up of a polished stainless thermostat housing bolted to the intake manifold, with the thermostat visible inside the open n… 1990 Ford Bronco - Engine component with blue hose and clamp, likely part of a cooling system. 1990 Ford Bronco - A shiny thermostat housing is connected to blue hoses on an engine, with a red rag resting on the side. 1990 Ford Bronco - Close-up view of engine components including pulleys, hoses, and a Wix fluid filter. 1990 Ford Bronco - Close-up of a polished chrome water pump and pulley system, connected by a blue hose. 1990 Ford Bronco - Close-up of a polished chrome water pump, part of an engine assembly. 1990 Ford Bronco - A close-up view of an engine oil pan, identified by a Milodon Inc. sticker. 1990 Ford Bronco - Close-up of an engine oil pan with a visible Milodon sticker. 1990 Ford Bronco - Close-up of an engine water pump assembly with blue sealant visible. 1990 Ford Bronco - Close-up of a Ford Racing engine component, likely a valve cover, with visible fuel injectors. 1990 Ford Bronco - Detail of a shiny engine component, possibly a valve cover or oil pan, with visible fasteners. 1990 Ford Bronco - Edelbrock intake manifold with throttle body assembly and wiring harness. 1990 Ford Bronco - An engine intake manifold is shown, with visible ports and attached plumbing components. 1990 Ford Bronco - Close-up view of a vehicle's electrical wiring and battery terminals. 1990 Ford Bronco - Close-up view of the engine bay wiring, including battery terminals and cables, with a DieHard battery visible. 1990 Ford Bronco - Engine bay wiring with starter solenoid and battery connections visible. 1990 Ford Bronco - Engine component detail showing a sensor connected to a hose and various metal parts. 1990 Ford Bronco - Close-up view of engine components including a fuel injector and fuel rail. 1990 Ford Bronco - Close-up view of engine components including fuel injectors and a blue hose attached to the intake manifold. 1990 Ford Bronco - Engine components, including fuel injectors and alternator, are visible in this close-up shot. 1990 Ford Bronco - A red engine component is attached to a black metal part with a bolt. 1990 Ford Bronco - Engine bay detail with a blue fuel rail and associated hardware. 1990 Ford Bronco - Customized engine bay with performance upgrades, including a K&N air intake system. 1990 Ford Bronco - Custom engine build dual throttle bodies and upgraded components. 1990 Ford Bronco - Close-up of an open throttle body bore surrounded by blue Goodyear coolant hoses, braided lines and a chrome intake tube. 1990 Ford Bronco - Engine compartment showing a black K&N intake tube, blue spark plug wires and an alternator on a green-painted vehicle. 1990 Ford Bronco - The engine compartment of a green vehicle is visible with the hood raised, revealing the engine and various parts. 1990 Ford Bronco - Stroker Emblem
