Ford PS Pump.jpg
809 hits | 63.67 KB | Posted: 8/5/06

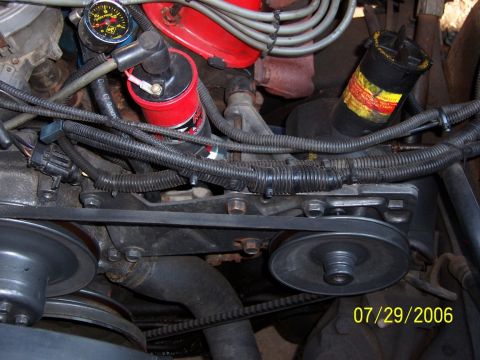

This is a photo of the Ford PS Pump instalation, or "What I started with".

849 hits | 69.93 KB | Posted: 8/5/06

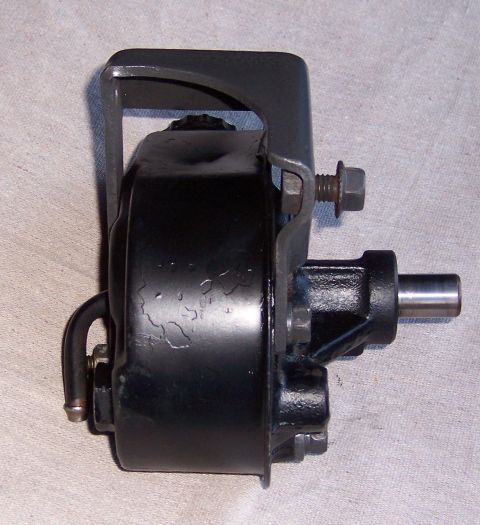

Bottom view of Saginaw pump after it was cleaned up and repainted. It came from a 1979 E350 Ambula...

819 hits | 66.67 KB | Posted: 8/5/06

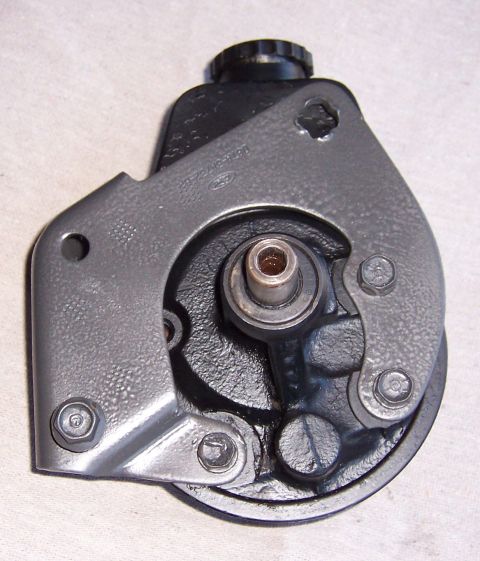

Front view with Saginaw bracket attached

847 hits | 70.4 KB | Posted: 8/5/06

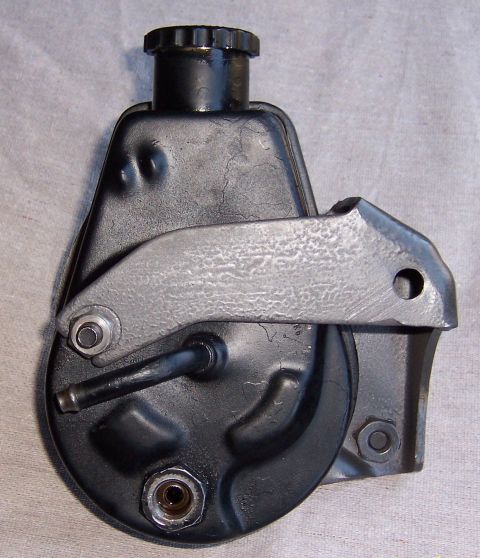

Rear view with Saginaw bracket.

2306 hits | 64.98 KB | Posted: 8/5/06

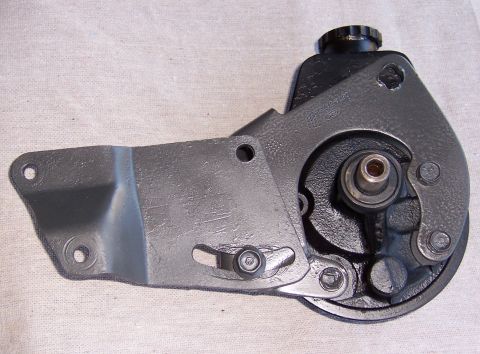

Another front view with the 460 mounting bracket attached. After taking some measurements I determi...

877 hits | 54.2 KB | Posted: 8/5/06

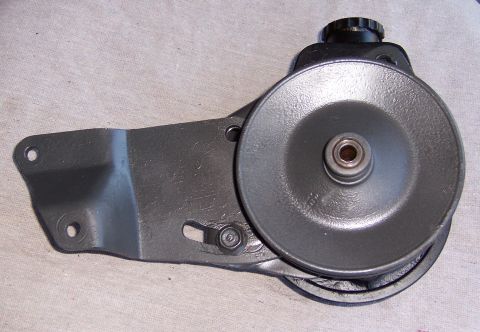

View with the pully back in place. (More to come).

Sag installed.jpg
734 hits | 68.63 KB | Posted: 9/19/08

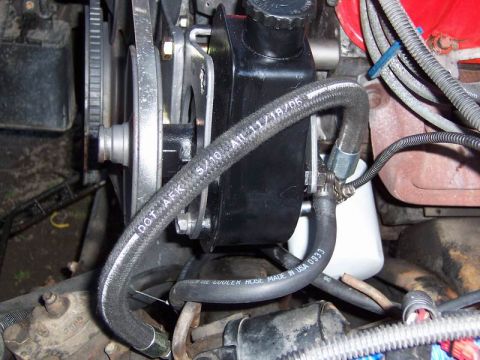

Saginaw PS pump installed

Rosie 026.jpg
781 hits | 83.1 KB | Posted: 9/20/08

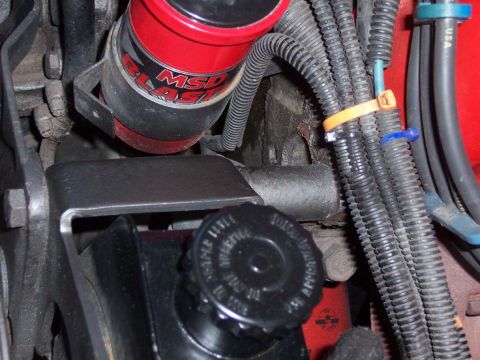

Made spacer for mounting the pump. Seen behind the bracket that holds the pump.

Rosie 027.jpg
713 hits | 60.78 KB | Posted: 9/20/08

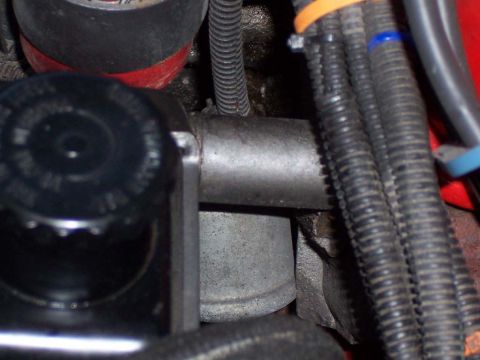

Another view of the spacer

Two Styles with seat and without seat.jpg
648 hits | 53.15 KB | Posted: 9/19/08

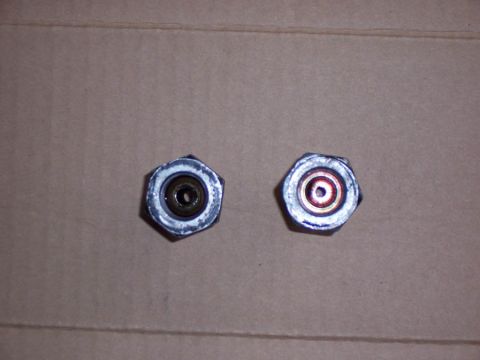

There are two types of Saginaw high pressure unions. The seats are different so I built a hose with...

Sag High Pressure end with seat.jpg
609 hits | 24.85 KB | Posted: 9/19/08

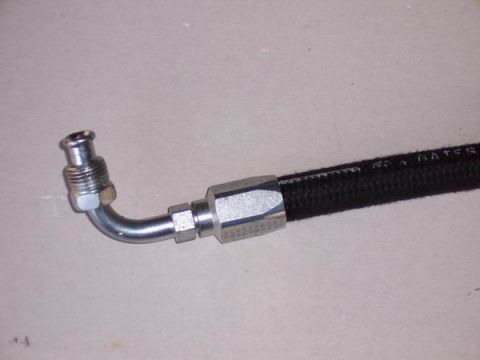

Custom high pressure hose pump end

Sag High Pressure Ford end.jpg
641 hits | 24.24 KB | Posted: 9/19/08

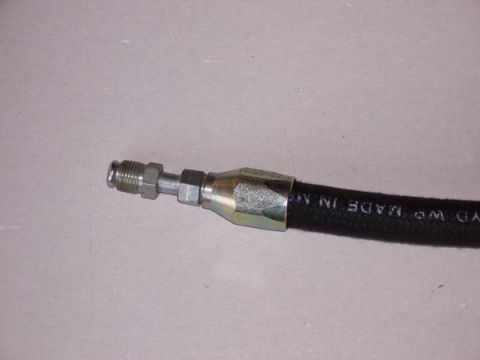

High pressure hose steering box end
