Album section

Engine parts

From 1993 Ford Bronco, documented by scld1343.

15 photos

← Back to this vehicle

1993 Ford Bronco - Circled in red is the 5/16" bolts. The rest are 1/4".

1993 Ford Bronco - Close-up of an engine part showing stamped identification numbers and text.

1993 Ford Bronco - Engine components are laid out for inspection, with labels pointing to specific parts.

1993 Ford Bronco - A blue gasket, likely for a water pump, is shown against a white background with a website watermark.

1993 Ford Bronco - A blue gasket is shown with two areas circled in red, and a website address at the bottom.

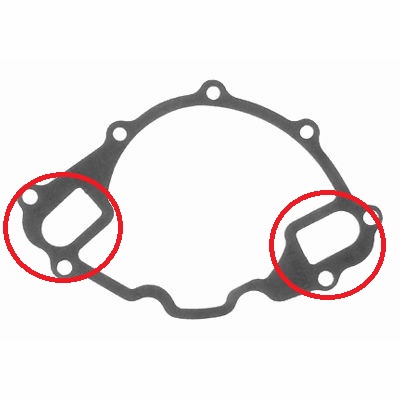

1993 Ford Bronco - Gasket for engine part, with two areas circled in red.

1993 Ford Bronco - Intake manifold gasket with seven ports, likely for a V8 engine.

1993 Ford Bronco - This is an intake manifold gasket, a part used in engines.

1993 Ford Bronco - Intake manifold gasket with visible part number text.

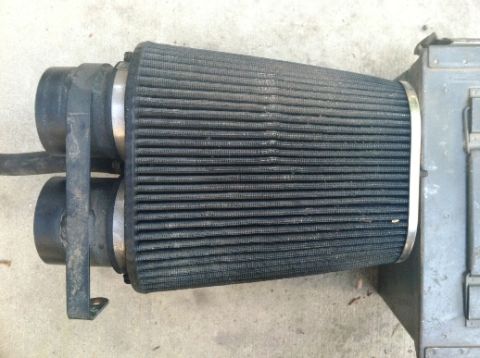

1993 Ford Bronco - This dual air intake filter features a black mesh element and metal clamps, with a Supermotors.net watermark visible.

1993 Ford Bronco - This is an engine air intake assembly, not a 1993 Ford Bronco.

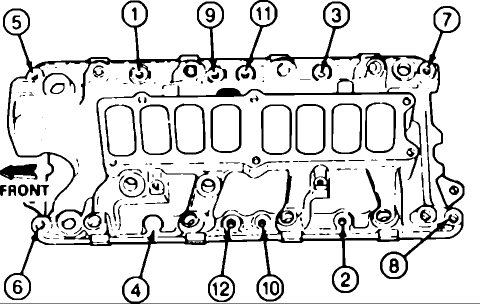

1993 Ford Bronco - Intake manifold torque-sequence diagram showing the numbered bolt tightening order with a FRONT direction arrow.

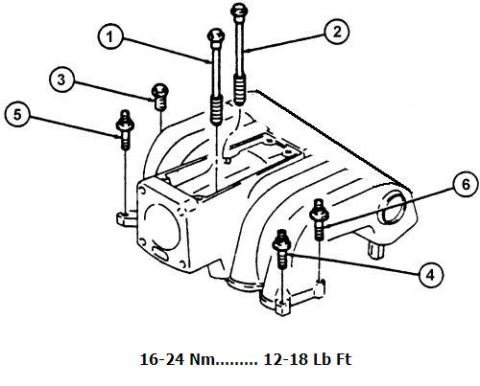

1993 Ford Bronco - Exploded intake manifold bolt diagram with numbered fasteners and a 16-24 Nm (12-18 lb-ft) torque specification.

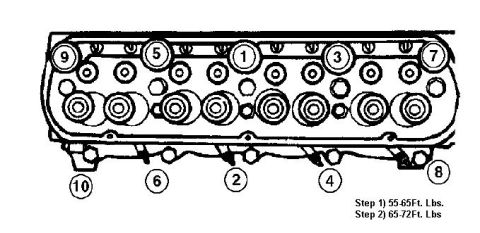

1993 Ford Bronco - Cylinder head bolt torque-sequence diagram with numbered positions and step torque values.
