Ford Bronco 1993 Lower Intake Manifold Bolt Torque Sequence Diagram (12 Bolts)

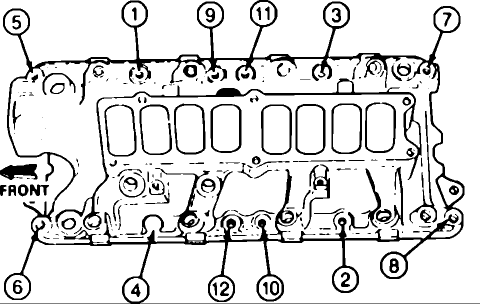

This document is a line-drawing diagram showing the bolt tightening (torque) sequence for a lower intake manifold, uploaded as a reference for a 1993 Ford Bronco. The manifold is drawn from a top-down perspective, and an arrow labeled 'FRONT' indicates the orientation toward the front of the engine. Twelve numbered callouts (1 through 12) point to the individual manifold bolt locations, indicating the order in which the bolts should be tightened. Along the top edge of the manifold, the sequence positions are 5, 1, 9, 11, 3, and 7 (left to right); along the bottom edge, they are 6, 4, 12, 10, 2, and 8 (left to right). The numbering follows a typical crisscross/center-outward pattern used to seat the manifold evenly and avoid gasket leaks or warping. The diagram contains no torque values, year, model, or engine identification text — it conveys sequence only. A reader can learn where each of the twelve intake manifold bolts is located and the exact order in which to tighten them, but must consult a companion specification (such as other pages in this album) for the actual torque figures.
