Ford Bronco Cylinder Head Torque Sequence Diagram - 55-65 & 65-72 Ft Lbs

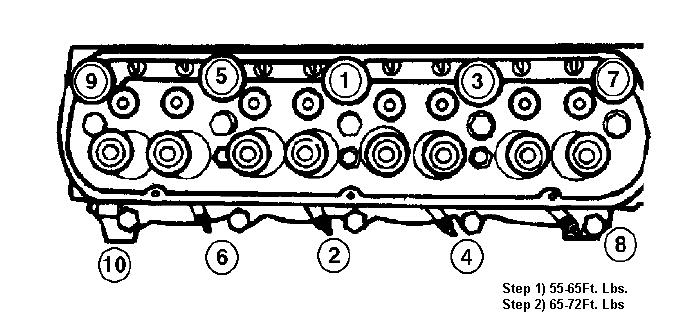

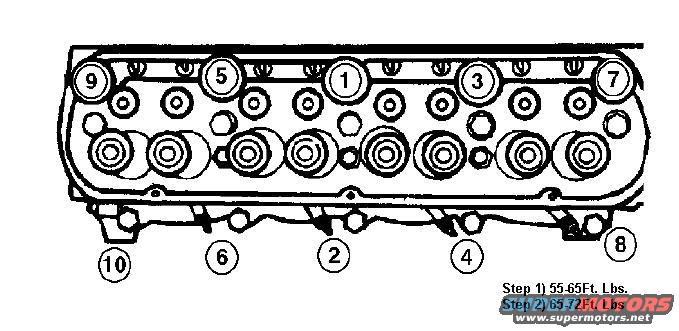

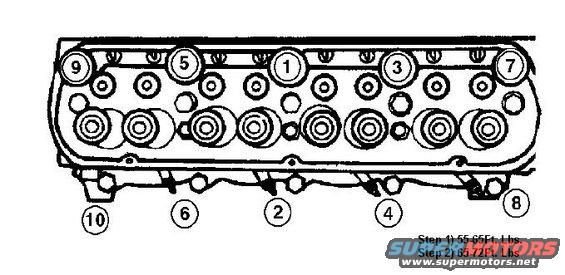

This document is a scanned illustration showing a cylinder head bolt torque sequence for an engine with ten head bolts per cylinder head. The diagram depicts a side view of a cylinder head with circled numbers (1 through 10) indicating the order in which the head bolts must be tightened. The sequence alternates across the head: the upper row of bolts is numbered 9, 5, 1, 3, 7 from left to right, and the lower row is numbered 10, 6, 2, 4, 8. The tightening pattern starts at the center bolts (1 and 2) and works outward in a crisscross fashion toward the ends of the head. Two torque steps are specified: Step 1 tightens all bolts to 55-65 ft. lbs., and Step 2 brings them to a final torque of 65-72 ft. lbs. The document was uploaded to the gallery of a 1993 Ford Bronco and is filed alongside intake manifold torque diagrams, suggesting it applies to a Ford V8 engine, though the document itself does not state a year, make, model, or engine. A reader can learn the correct bolt tightening order and the two-stage torque values needed when installing a cylinder head.
