Ford harness connector.jpg
270 hits | 32.67 KB | Posted: 8/4/13
This is a typical underhood/chassic Ford harness connector. It's made up wires, a rubber weather-tig...

Ford harness connector w keeper loosened.jpg
218 hits | 38.48 KB | Posted: 8/4/13

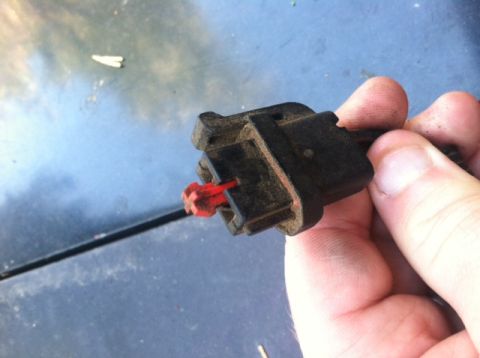

Step 2. - Once the keeper is loosened, remove it completely.

Ford harness connector w keeper removed.jpg
188 hits | 35.23 KB | Posted: 8/4/13

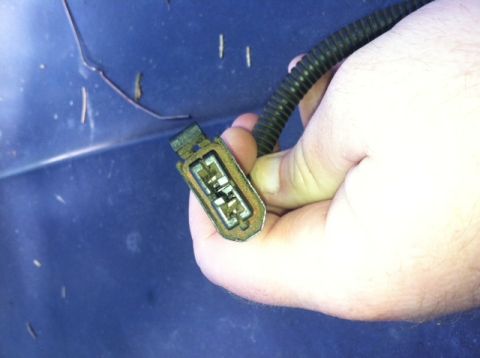

You can see the wires down inside of the connector. The wires are held in place by plastic tabs (cli...

Ford harness connector rear.jpg
213 hits | 40.79 KB | Posted: 8/4/13
Step 3 - Remove the foam/rubber weather protection from the back of the connector. This is just pres...

Ford harness connector w weather tight removed.jpg
258 hits | 37.22 KB | Posted: 8/4/13
Here you can see foam/rubber piece removed. You can also see the plastic tabs that hold the wires in...

Ford harness connector clips.jpg
256 hits | 30.23 KB | Posted: 8/4/13
View from the front side. These are the tabs that hold the wires in place. There is one tab for each...

Ford harness connector w wires removed.jpg
233 hits | 33.95 KB | Posted: 8/4/13
These are the points the plastic tabs press against.

Ford harness connector components.jpg
185 hits | 34.32 KB | Posted: 8/4/13
Disassembled harness connector.
