ezpc > 1990 Ford Bronco > open folder Door Hing Replacement

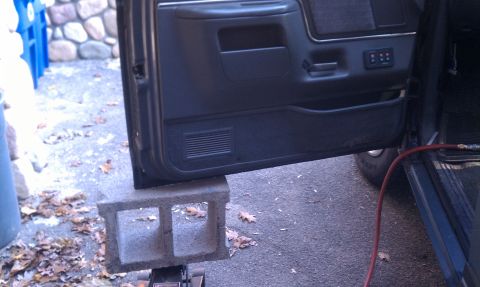

First I needed to prop the door - a cinder block and jack worked well enough.
209 hits | 95.32 KB | Posted: 11/13/11
First I needed to prop the door - a cinder block and jack worked well enough.

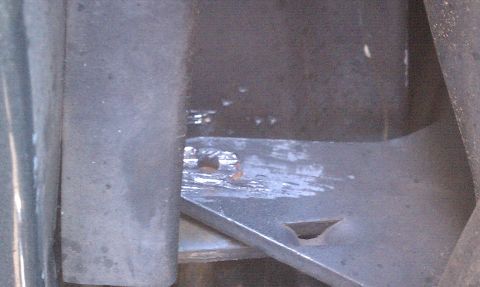

I used a impact chisel to remove the top portion of the pin
218 hits | 92.26 KB | Posted: 11/13/11
I used a impact chisel to remove the top portion of the pin

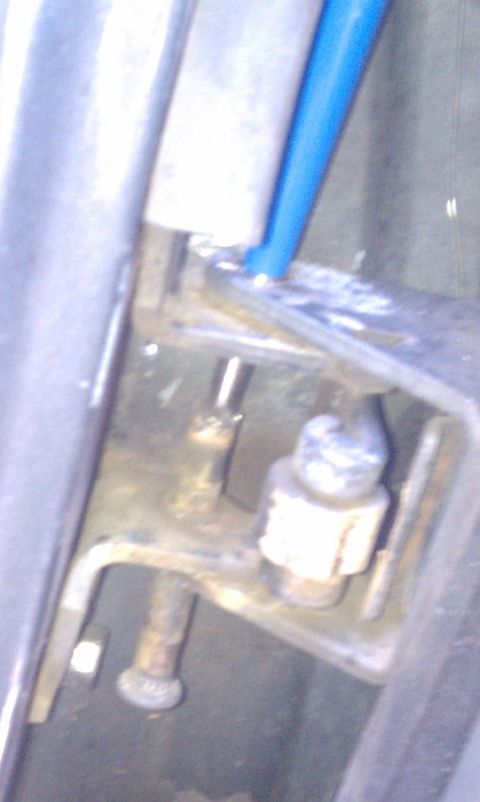

Then used a log punch to hammer out the pin.
215 hits | 64.31 KB | Posted: 11/13/11
Then used a log punch to hammer out the pin.

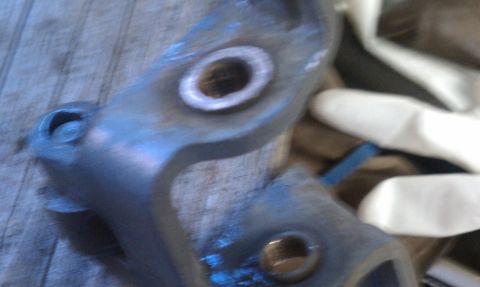

I did not expect brass bushing, thought they would be nylon or something.
216 hits | 65.86 KB | Posted: 11/13/11
I did not expect brass bushing, thought they would be nylon or something.

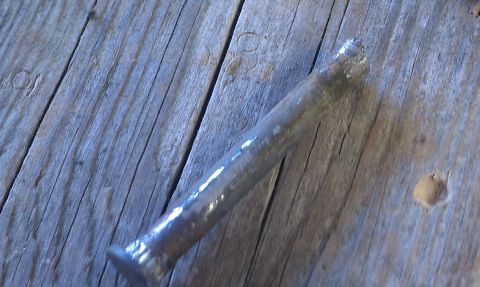

Old pin removed in one piece
306 hits | 53.83 KB | Posted: 11/13/11
Old pin removed in one piece

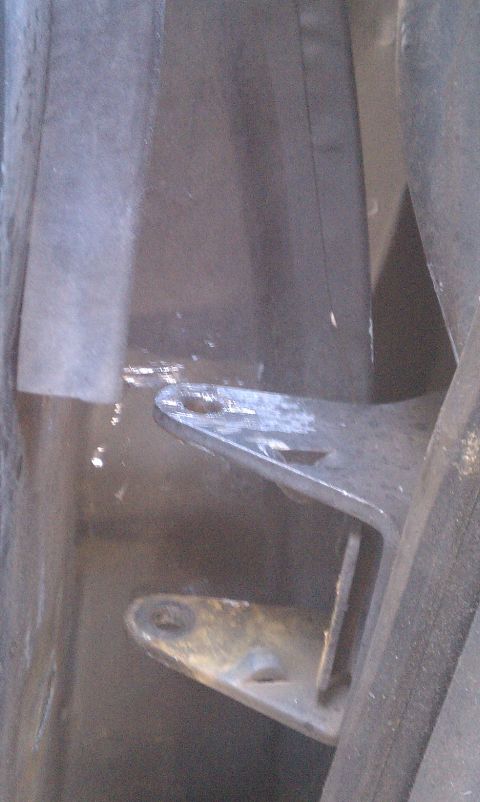

I mannged to not mangle the hing too much.
524 hits | 77.79 KB | Posted: 11/13/11
I mannged to not mangle the hing too much.

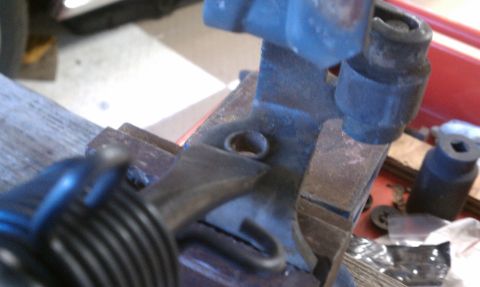

Used the impact chisel to remove the old bushings
508 hits | 71.09 KB | Posted: 11/13/11
Used the impact chisel to remove the old bushings

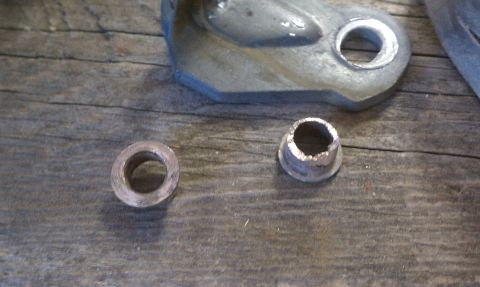

Old bushings
290 hits | 93.21 KB | Posted: 11/13/11
Old bushings

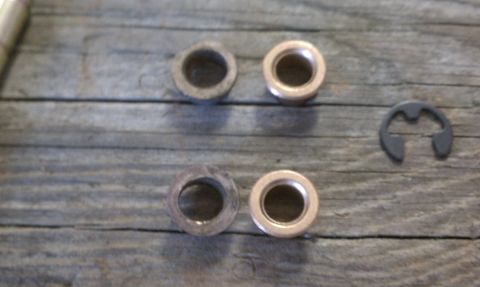

Old bushings on the left, new bushings on the right
286 hits | 69.35 KB | Posted: 11/13/11
Old bushings on the left, new bushings on the right

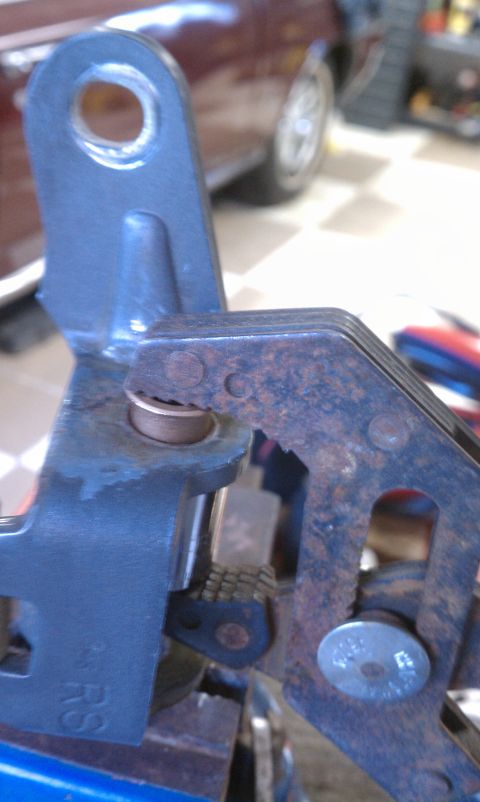

I saw this technique in another users supermotors album. It only worked for one of the bushing. I ha...
266 hits | 76.93 KB | Posted: 11/13/11
I saw this technique in another users supermotors album. It only worked for one of the bushing. I ha...

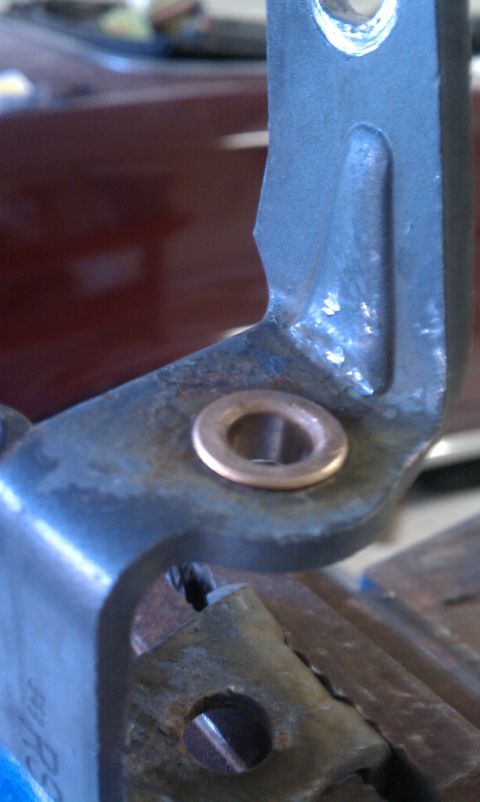

Nice an flush.
452 hits | 65.62 KB | Posted: 11/13/11
Nice an flush.

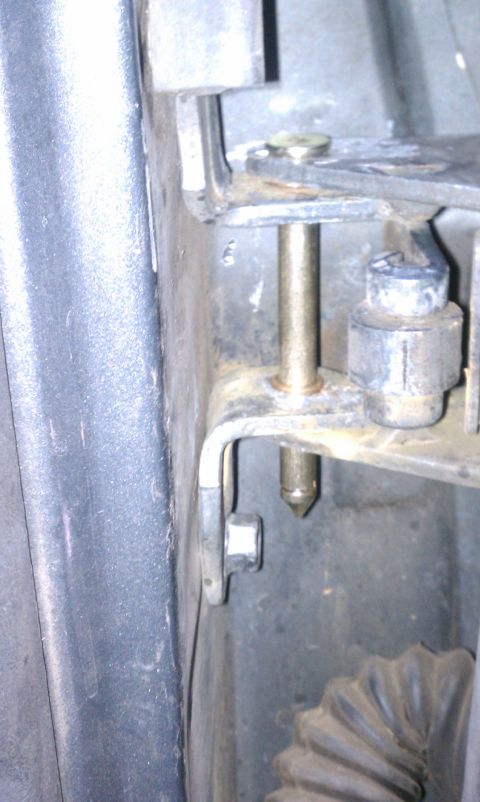

Finished install.
531 hits | 91.69 KB | Posted: 11/13/11
Finished install.

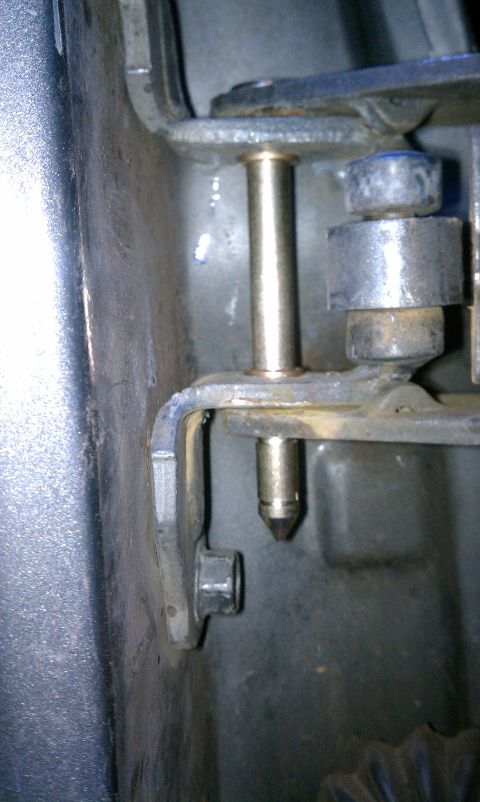

Finished install. Looks great and work even better.
290 hits | 91.18 KB | Posted: 11/13/11
Finished install. Looks great and work even better.
