Evan_P > 1992 Ford F-150 > open folder Intake Removal for Injector Swap

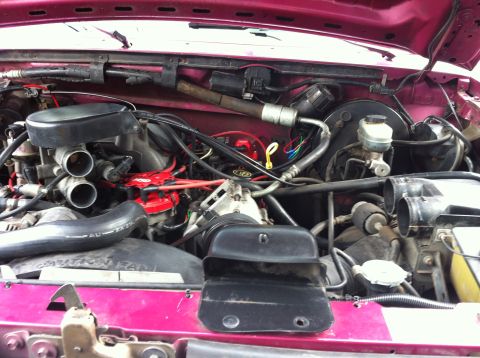

This is not a complete write-up. I sorta took these pictures as reference, but figure I would write ...
453 hits | 81.04 KB | Posted: 6/7/13
This is not a complete write-up. I sorta took these pictures as reference, but figure I would write ...

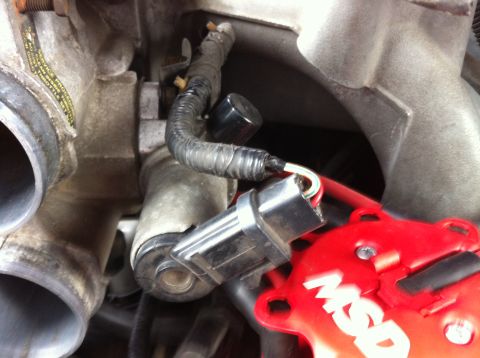

Unplug all of the sensors mounted to the throttle body. Shown is the IAC valve. There is also the TP...
369 hits | 60.74 KB | Posted: 6/7/13
Unplug all of the sensors mounted to the throttle body. Shown is the IAC valve. There is also the TP...

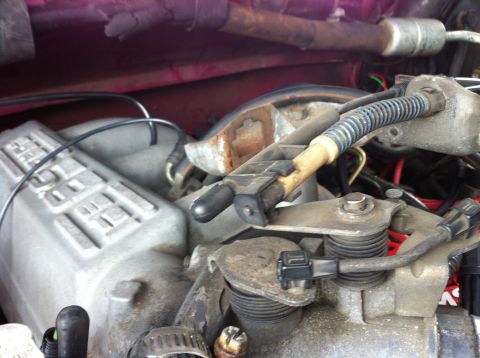

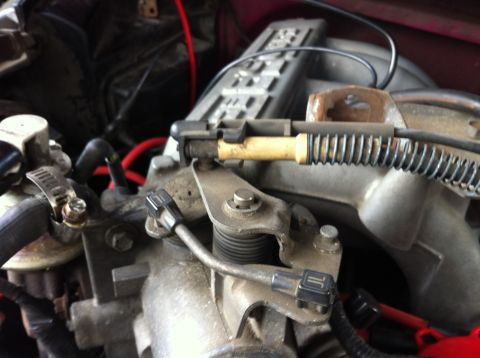

Remove the cover for the throttle cable assuming it is still there and disconnect the throttle/cruis...
377 hits | 57 KB | Posted: 6/7/13
Remove the cover for the throttle cable assuming it is still there and disconnect the throttle/cruis...
Remove the cover for the throttle cable assuming it is still there and disconnect the throttle/cruis...
350 hits | 63.61 KB | Posted: 6/7/13
Remove the cover for the throttle cable assuming it is still there and disconnect the throttle/cruis...

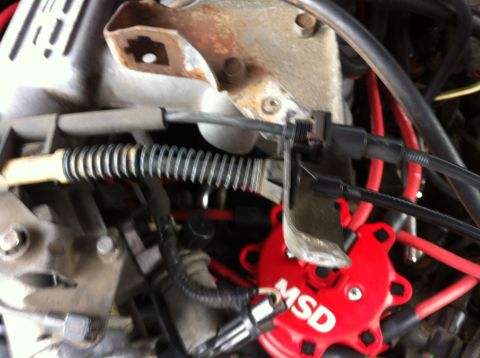

Unbolt the bracket shown above that hold the cable from the upper intake plenum and fold the cables ...
361 hits | 65.02 KB | Posted: 6/7/13
Unbolt the bracket shown above that hold the cable from the upper intake plenum and fold the cables ...

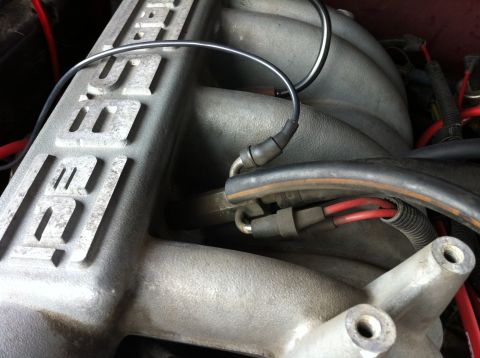

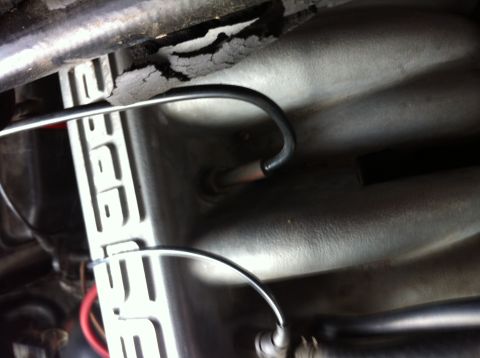

Next disconnect all of the vacuum lines from the vacuum tree. This is how mine were set up. Yours MA...
364 hits | 62.99 KB | Posted: 6/7/13
Next disconnect all of the vacuum lines from the vacuum tree. This is how mine were set up. Yours MA...

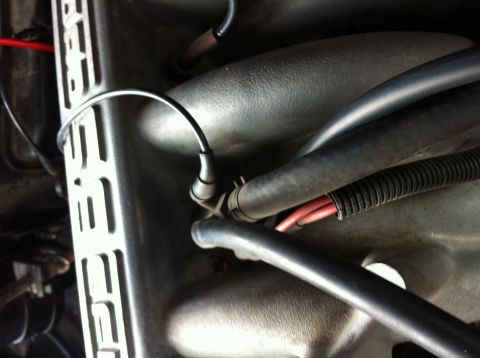

Next disconnect all of the vacuum lines from the vacuum tree. This is how mine were set up. Your MAY...
340 hits | 52.39 KB | Posted: 6/7/13
Next disconnect all of the vacuum lines from the vacuum tree. This is how mine were set up. Your MAY...
Next disconnect all of the vacuum lines from the vacuum tree. This is how mine were set up. Your MAY...
337 hits | 49.41 KB | Posted: 6/7/13
Next disconnect all of the vacuum lines from the vacuum tree. This is how mine were set up. Your MAY...

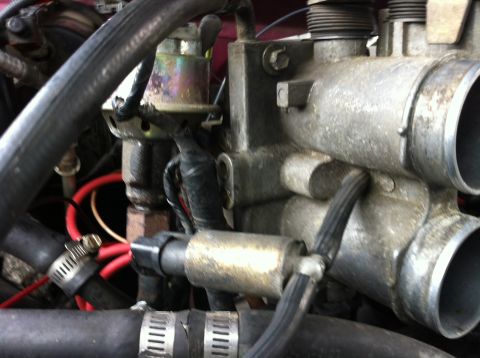

Disconnect the rubber hose running to the throttle body from this solenoid. I cannot remember its na...
330 hits | 66.38 KB | Posted: 6/7/13
Disconnect the rubber hose running to the throttle body from this solenoid. I cannot remember its na...

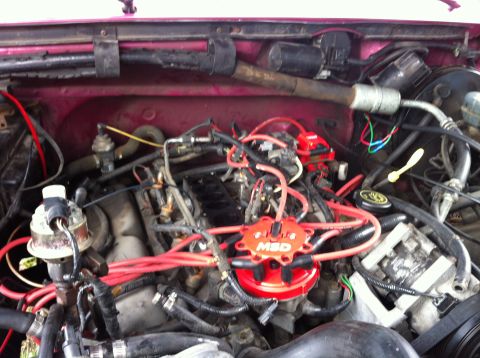

Once everything is disconnected from the throttle body and upper plenum, there are 6 bolts around th...
370 hits | 81.35 KB | Posted: 6/7/13
Once everything is disconnected from the throttle body and upper plenum, there are 6 bolts around th...

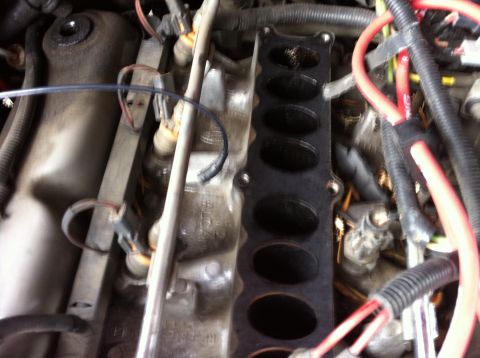

A look at the lower intake plenum and fuel rails. For me, getting to the fuel injectors was the reas...
336 hits | 66.44 KB | Posted: 6/7/13
A look at the lower intake plenum and fuel rails. For me, getting to the fuel injectors was the reas...

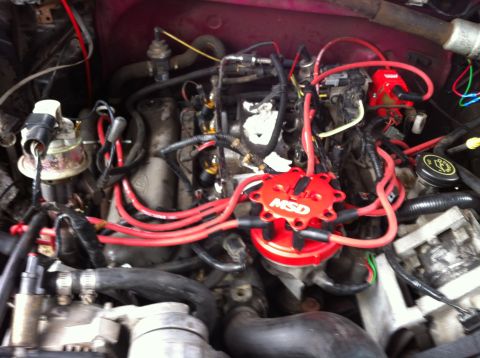

As you can see I plugged all of the intake holes with paper towel's so I could scrape the old gasket...
333 hits | 76.53 KB | Posted: 6/7/13
As you can see I plugged all of the intake holes with paper towel's so I could scrape the old gasket...

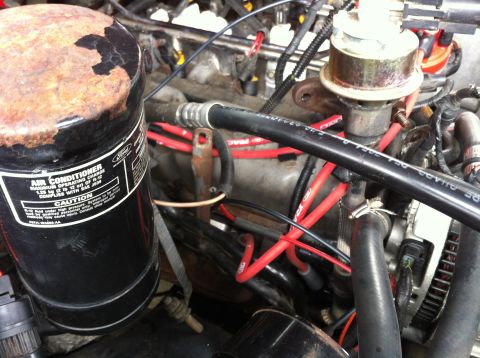

Another shot of the re-routed plug wires. Much cleaner looking.
356 hits | 83.25 KB | Posted: 6/7/13
Another shot of the re-routed plug wires. Much cleaner looking.
Once you have finished whatever it was you needed the plenum off for, re-install it with new gaskets...
IMG_0701.MOV
591 hits | 33.26 MB | Posted: 6/7/13
Once you have finished whatever it was you needed the plenum off for, re-install it with new gaskets...
