Stage 1

From 1986 Ford Bronco, documented by bebop_man.

25 photos
← Back to this vehicle

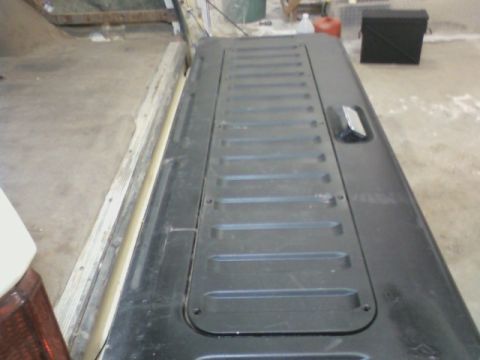

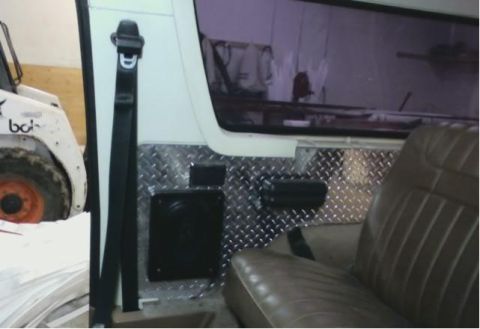

1986 Ford Bronco - This what I started with, an '86 with the 5.0 EFI and 4-speed manual. When this picture was taken I'd replaced the in-tank fuel pump and se… 1986 Ford Bronco - Front view of a white Ford Bronco with a dark grille and chrome bumper. 1986 Ford Bronco - The back was pretty bare. I stuck in some 6x9's, but it was pretty obvious that I'd have to do something better. 1986 Ford Bronco - The back was pretty bare. I stuck in some 6x9's, but it was pretty obvious that I'd have to do something better. 1986 Ford Bronco - I pulled off the siding and used it as a pattern. 1986 Ford Bronco - Nice pretty diamond plate. And new mounts for the 6x9's 1986 Ford Bronco - Nice pretty diamond plate. And new mounts for the 6x9's as well as my first subwoofer mount 1986 Ford Bronco - The interior of a vehicle is visible, with a seat and diamond plate accents. 1986 Ford Bronco - The tailgate would be getting some abuse, so I used some bedliner on it. 1986 Ford Bronco - There was no radio when I got the Bronco, so I added one. 1986 Ford Bronco - I was running out of room in the dash, so I put the add-ins (xm radio, ipod adapter, etc) in the center console and used the loom to hide t… 1986 Ford Bronco - Close-up of a vehicle's interior floor mat, showing a ribbed conduit running across it. 1986 Ford Bronco - Interior view of the floor area with shifter boots in a 1986 Ford Bronco. 1986 Ford Bronco - I never did like the white color, and I'd just seen an old trail rig that had been Rhino lined on the outside, so that decided to try that.… 1986 Ford Bronco - I spent a day removing all the trim and masking around the body in preparation. A green pad and some xylol made for the surface prep, then… 1986 Ford Bronco - The next day I came back and put on the 2nd coat. A couple hours later I touched up high traffic areas with a 3rd and 4th coat. 1986 Ford Bronco - Closeup of the texture I got. 5 years later, it's still going strong 1986 Ford Bronco - After making it through that first winter, I figured I'd better have some tow points. First, I put on a couple of tow hooks on the front. 1986 Ford Bronco - I used one existing bolt hole, and drilled a 2nd one in the frame horn. To clear the bumper, I had to notch it a little bit. 1986 Ford Bronco - For the rear, I grabbed a couple more tow hooks and rigged up a receiver mount. 1986 Ford Bronco - A tow hitch receiver with two hooks is shown resting on a concrete surface. 1986 Ford Bronco - In place and ready. 1986 Ford Bronco - Stage 1 is complete. I planned on larger tires, a lift, custom bumpers, all the good stuff. But it stayed in this condition for almost thre… 1986 Ford Bronco - This 1980 Ford Bronco is shown from a three-quarter front angle. 1986 Ford Bronco - Here it is a year later, topless and with my dog running co-pilot.
