161 hits | 28.82 KB | Posted: 9/10/12

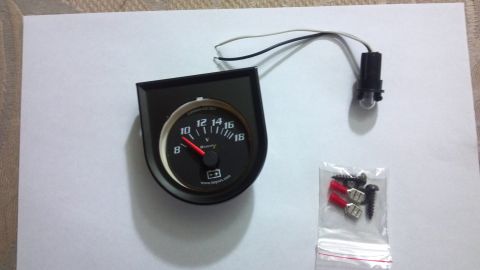

When I went to a 3G 165A alternator, I lost the use of factory ammeter gauge. I went with a voltme...

148 hits | 49.07 KB | Posted: 9/10/12

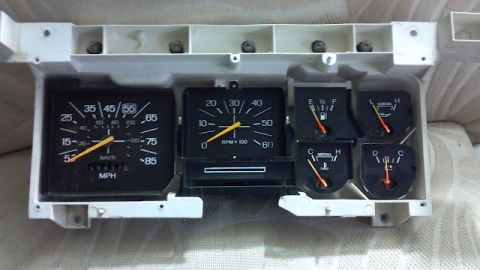

I pulled the gauge cluster and made some measurements.

158 hits | 42.7 KB | Posted: 9/10/12

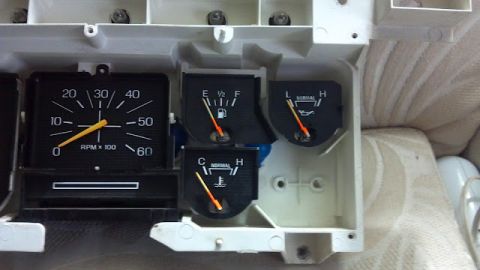

Removed the ammeter

178 hits | 45.92 KB | Posted: 9/10/12

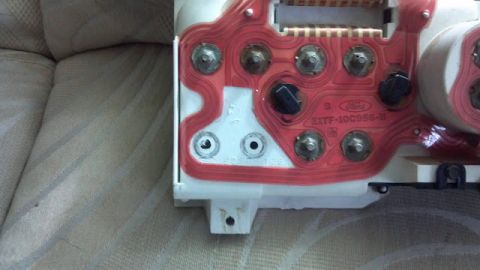

I cut away the traces of the membrane that carried the signal for the ammeter.

155 hits | 23.76 KB | Posted: 9/10/12
I disassembled the voltmeter and painted the case black

188 hits | 44.5 KB | Posted: 9/10/12

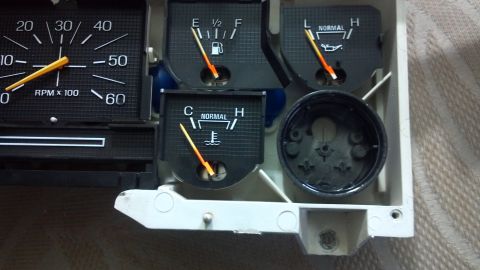

First test fit

180 hits | 41.16 KB | Posted: 9/10/12

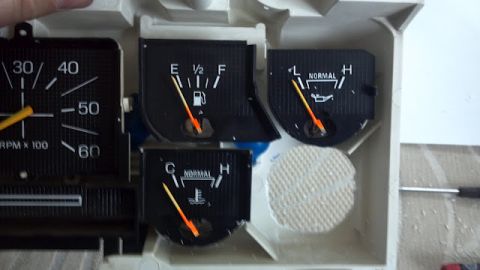

I used a Dremel and cut out the back.

176 hits | 44.4 KB | Posted: 9/10/12

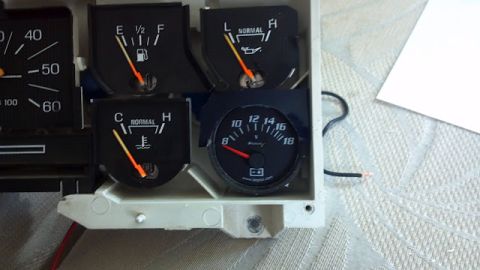

Test fit #2. I also made a light shield, and glued it to the face.

155 hits | 53.07 KB | Posted: 9/10/12

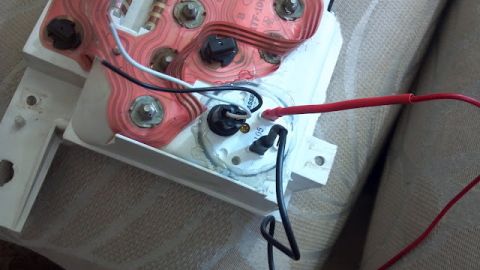

Glued in place. The white and black wires will be attached the backside of the gauge cluster to giv...

172 hits | 67.58 KB | Posted: 9/10/12

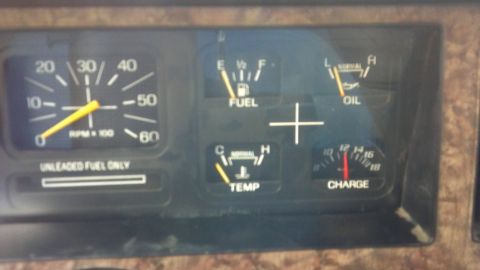

Everything is back together.

154 hits | 32.84 KB | Posted: 9/10/12

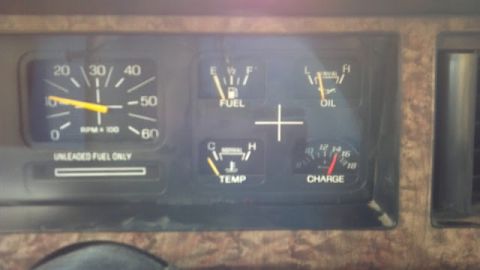

With the engine idling.

168 hits | 77.68 KB | Posted: 9/10/12

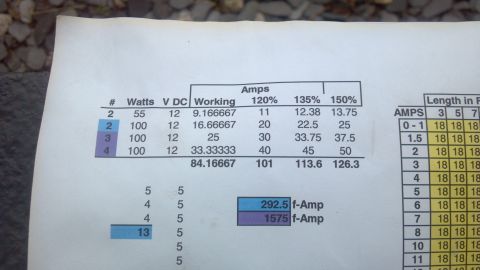

I added 7 100w off-road lights, and I needed a way to safely control them without risk of fire hazar...

155 hits | 70.82 KB | Posted: 9/10/12

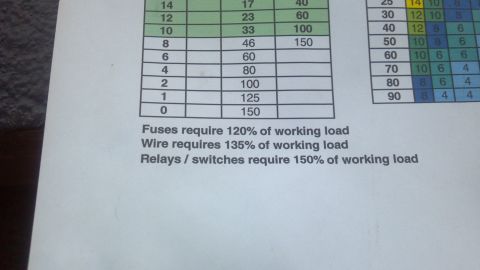

The rule of thumb for safety margins. You always want the fuse to blow first, so make that your 'we...

144 hits | 97.76 KB | Posted: 9/10/12

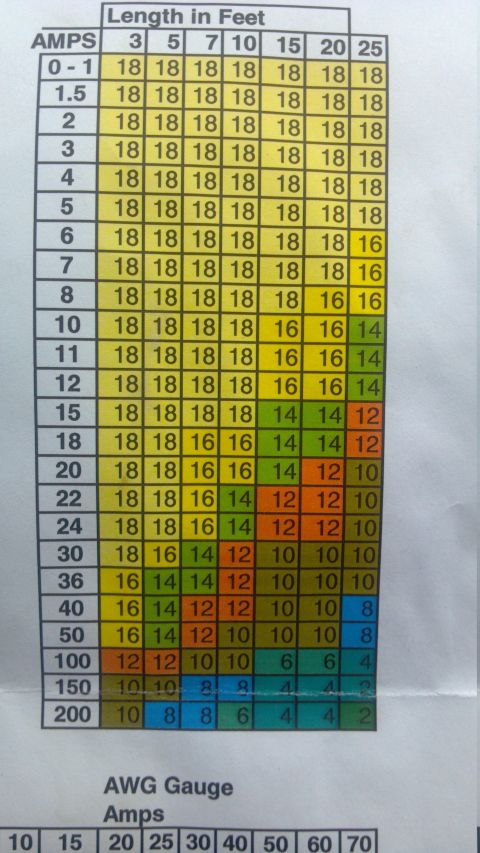

This is reference chart I used for determining what gauge of wire is needed for a specific amperage ...

171 hits | 85.09 KB | Posted: 9/10/12

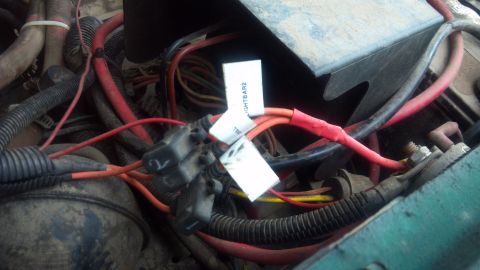

8 ga wire coming from the starter solenoid, then feeding into fuse holders for each 10 ga circuit. ...

267 hits | 84.78 KB | Posted: 9/10/12

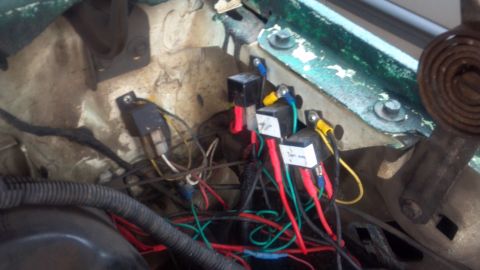

Here' some of the wiring I did for my off-road lights. These are the relays that control the lights...

237 hits | 76.75 KB | Posted: 9/10/12

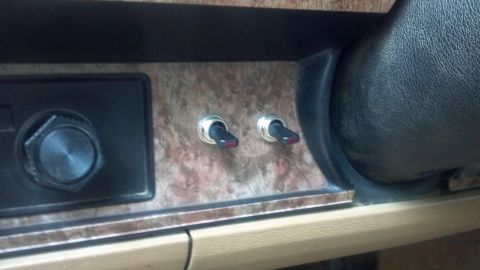

Grill lights (L) and LightBar (R)

373 hits | 74.33 KB | Posted: 9/10/12

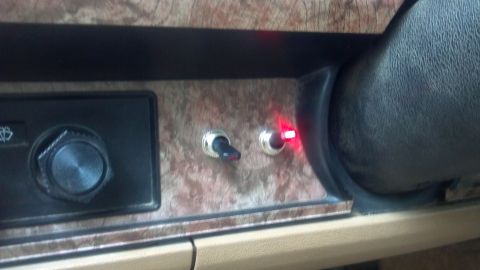

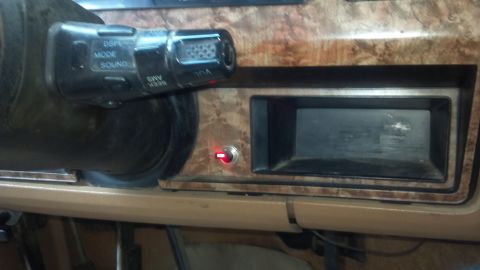

Grill lights (L) and LightBar (R). And they're lighted, too. Handy reminder to turn them off. Not...

378 hits | 72.3 KB | Posted: 9/10/12

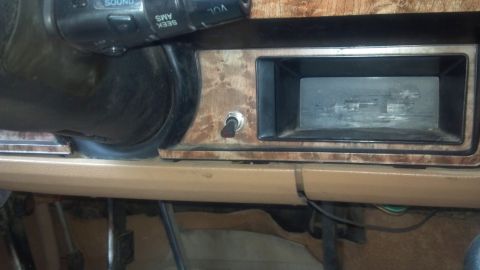

Rear utility lights. This is basically a manual switch for the backup lights. Handy when camping.

243 hits | 71.33 KB | Posted: 9/10/12

280 hits | 72.71 KB | Posted: 9/10/12

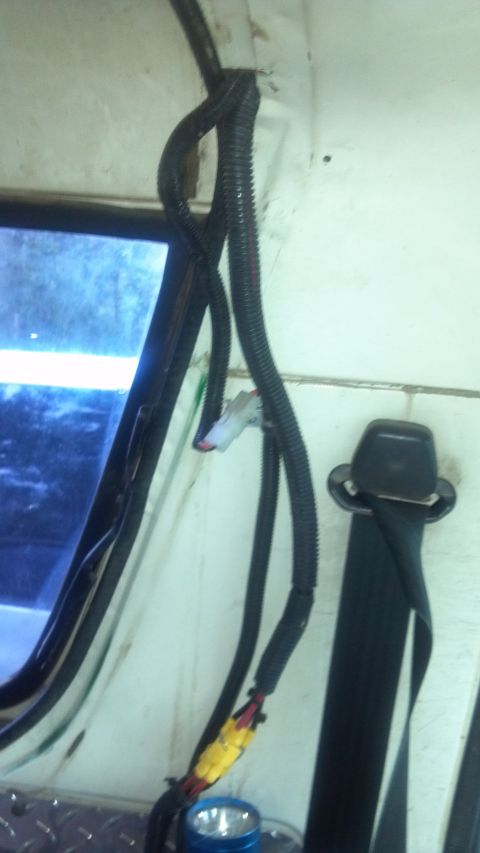

There's a small slot in the lip of the cab area there the top seals. I widened it a little bit so I...

368 hits | 83.84 KB | Posted: 9/10/12

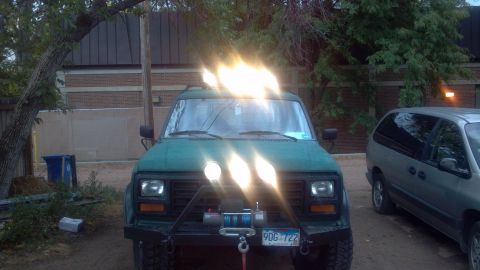

Lightbar and grill lights, all lit up. This pic was taken about 9am

377 hits | 90.71 KB | Posted: 9/10/12

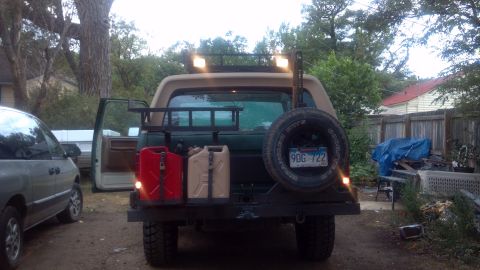

Rear lights fired up.

222 hits | 81.16 KB | Posted: 9/10/12

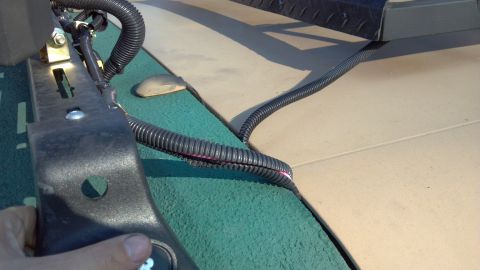

This is how the lighting looms come out of the cab area.

203 hits | 81.58 KB | Posted: 9/10/12

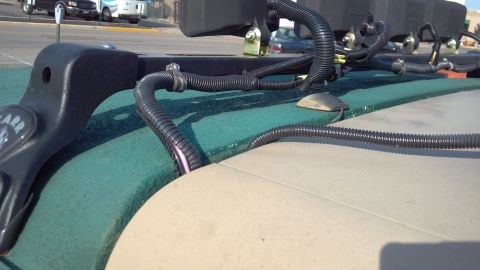

Another view of the lighting looms exiting the cab.
