Spring Tower

From 1996 Ford Bronco “Buckin Bronco”, documented by Kingfish999.

7 photos
← Back to this vehicle

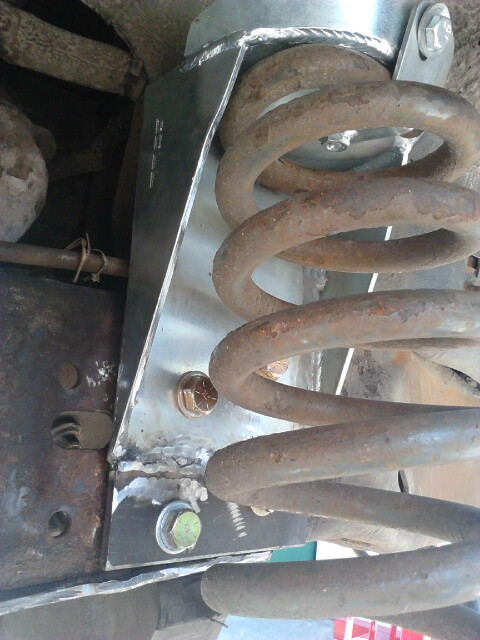

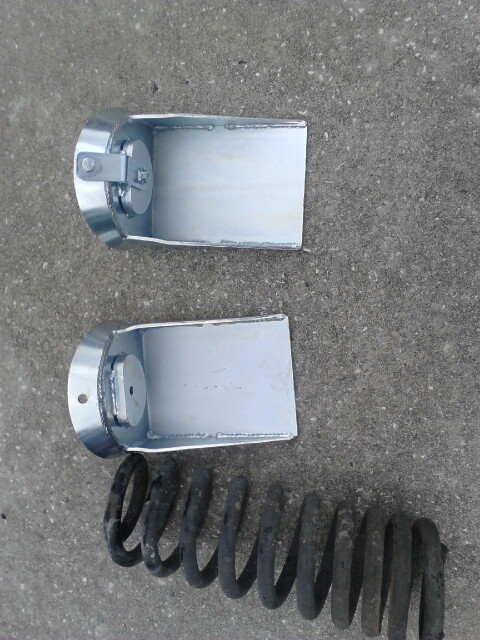

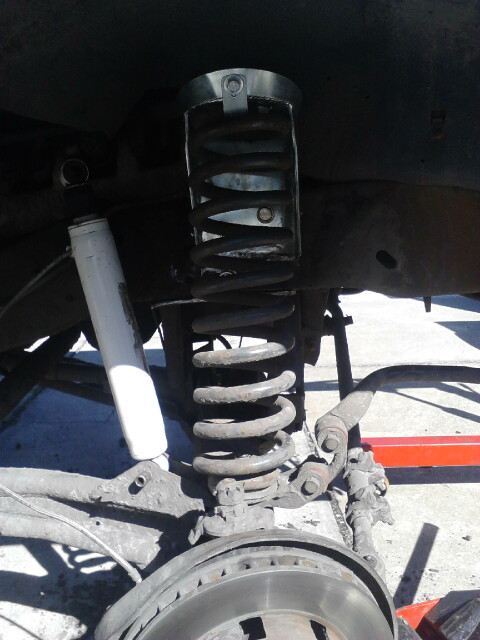

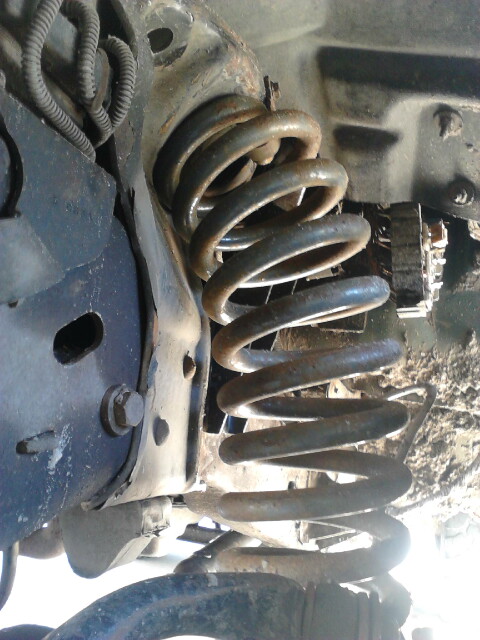

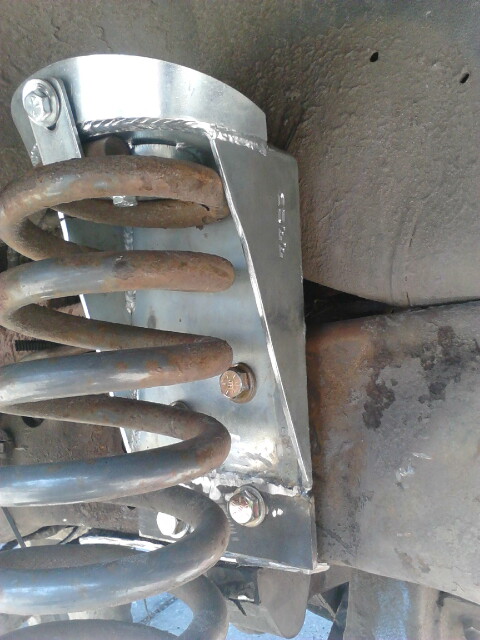

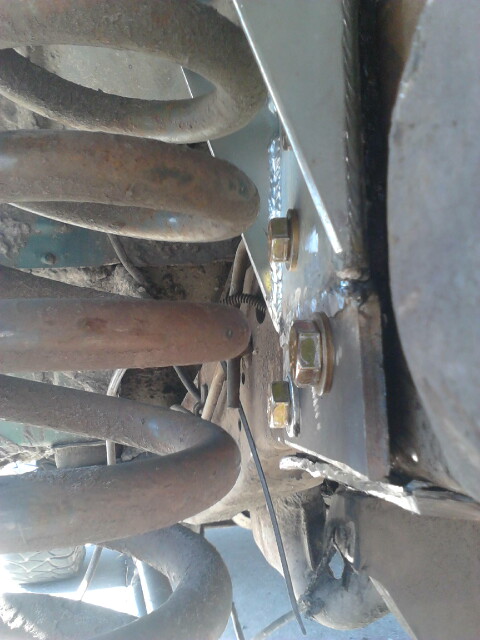

1996 Ford Bronco - Bent the hell out of stock spring tower. Time for new stronger ones 1996 Ford Bronco - Spring Towers from James Duff #5110. there about 2-3 inches shorter than stock. Had to weld an extenshion on. Dont have a pic of them after… 1996 Ford Bronco - Close-up under a truck of a bare, freshly welded steel coil spring retainer/bucket bracket bolted to the frame rail, with visible weld bead… 1996 Ford Bronco - Underside view of a lifted 4x4 front suspension, showing a black-painted coil spring seated in the frame spring pocket above the radius arm… 1996 Ford Bronco - Theres a 1/4" steel plate behind it to help reinforce the extenshion. its not as wide as the whole tower so there appears to be a gap 1996 Ford Bronco - When bolting up to the frame, do have the bolts soo close to the middle, the spring rubs on them a decent amount when flexing. I tried to u… 1996 Ford Bronco - only pic i have that shows the coil and shock tower
