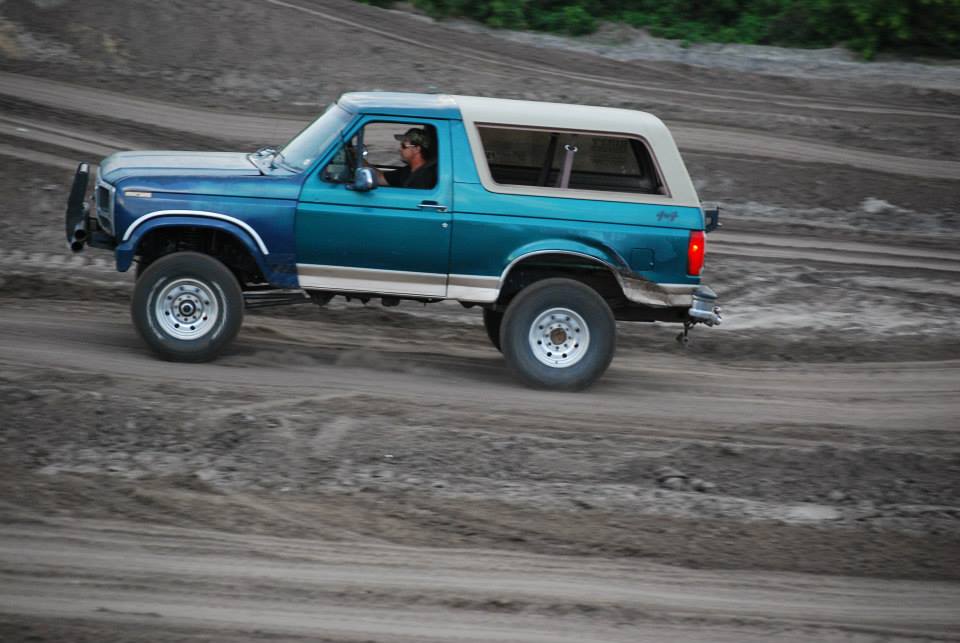

“Buckin Bronco”1996 Ford Bronco

documented by Kingfish999 403 photos documented since 7 years documented ♡ Follow this build

The story

THIS TRUCK IS KIA


Bought it from an asian girl in good condition and great price. Few years of DD till it founds its call as the Bucking Bronco. Still was a DD but i will do light mudding, alot of rally/baja trail riding, and will jump it like crazy numerous times and still drive it home. Truck has taken alot of damage but i still poured my money into it. It finally came to the point that the frame damage was too severe even by my standards and it was impossible to keep street-able. Ended up buying a new Bronco AKA B3 to replace it.

After buying the new truck I took this for 1 last ride at the Trucks on the Track events and beet the piss out of it. I was planning on making a grand finally jump to kill the truck off but unfortunately it didn't happen. When driving on the track, the front wheel bottomed out and ripped my wiring harness and computer to hell making it dead.

It is being disassembled in Operation Organ Donor and is going to transfer pretty much everything into my 88 Bronco. Engine, tranny, axles, suspension, and everything important. — Kingfish999

Day one vs. today

Drag to compare 2012 against 2019.

1996 Ford Bronco in 2019
1996 Ford Bronco in 2012
2012 2019

Photo history

403 photos across 7 years — drag the dot to travel through this vehicle’s life. Captions are the owner’s; where there isn’t one, the AI caption fills in.

2012

87 photos added — showing 8

1996 Ford Bronco - Jack up the side of the truck. put support under it, take the tire off. take the lockout cap bolts out and tap the cap off. I have Warn Sta… 1996 Ford Bronco - Take off the small C-clip that is around the axleshaft 1996 Ford Bronco - Use a pick or 2 to remove the big clip around the inside of the hub. its usually hidden by grease and can be a pain to get out without pick… 1996 Ford Bronco - Place 2 of the cap bolts back in a good number of threads. use them to help pull it out. my lockout being slightly damaged made it very tri… 1996 Ford Bronco - Use a 4 prong spindle nut socket to get the first spindle nut off. my threads on my spindle are damaged so i used an impact wrench to zip i… 1996 Ford Bronco - with the first spindle nut out, use a pick or needlenose to take out the lock washer. once out, use the spindle nut socket to take out the… 1996 Ford Bronco - Take the caliper off. support it so it doesnt hang by the hose. since the hose is getting replaced i didnt really worry about it too much s… 1996 Ford Bronco - This is a slide hammer and 4WD Spindle Puller Adapter i use to quickly take the spindle off. Ive gotten some badly rusted spindles off no p…

107 photos added — showing 8

1996 Ford Bronco - Deaver 5.5" Superflex Coils. Shocks. Bigger calipers and pads for the front. New rotors pads and upgraded dual piston calipers for the… 1996 Ford Bronco - rear disk was destroyed from a stuck caliper. chewed almost 1/4" through the rotor within 3 weeks 1996 Ford Bronco - old Procomp 6" coil vs new Deaver 5.5" Superflex coil 1996 Ford Bronco - Pillar guages durring the day 1996 Ford Bronco - Autofab poly transmission mount. abit costy but definatly worth it and work great with JBG poly motor mounts 1996 Ford Bronco - got stuck on the motocross track. front axleshaft popped out and limited my steering a lot. that's my friend there not me 1996 Ford Bronco - starting front clip swap. also doing alot of other work 1996 Ford Bronco - starting front clip swap

32 photos added — showing 8

1996 Ford Bronco - Redneck Yatch Club May 28th. on the way home the dam wheel came off cause the wheel studs broke off. Not fun. shouldn't have let my hungove… 1996 Ford Bronco - Redneck Yatch Club May 28th. From creepin in the mud as slow as i can, as deep as i can, as long as i can. never got stuck but stalling was… 1996 Ford Bronco - Day 3: Started the process of cutting up the body. got the top cut off and unbolted all the body mounts. took the tailgate and doors off to… 1996 Ford Bronco - Day 3: Started the process of cutting up the body. got the top cut off and unbolted all the body mounts. took the tailgate and doors off to… 1996 Ford Bronco - Day 4: Got the body ripped off from the frame 1996 Ford Bronco - Day 4: Got the body ripped off from the frame 1996 Ford Bronco - Day 4: Got the body ripped off from the frame 1996 Ford Bronco - Day 5: Got front and rear axle, steering, suspension and wiring harnesses pulled. Fuel tank, hitch and rear bumper removed. Most of the fra…

3 photos added

1996 Ford Bronco - Dana 60 semi floating axle i swapped in. came from an E-250 van somewhere around ~2000 year. reason i chose it is because it has factory di… 1996 Ford Bronco - only pic i have that shows the coil and shock tower 1996 Ford Bronco - the night that ruined this truck. stuck for 10 hours and nobody couldget me out expeet my friend with a Dodge cummins on 46" tires. it…

85 photos added — showing 8

1996 Ford Bronco - Wiring diagram of Ford C101 in-line connector showing female/male pin layouts and a pin-to-circuit color-code table for 4.9L-7.5L engines. 1996 Ford Bronco - Wiring diagram of Ford C103 in-line connector showing female/male views with wire color codes for 4.9L-7.5L engines. 1996 Ford Bronco - Wiring diagram of Ford C202 in-line connector with numbered pin layout and pin-to-circuit color-code table for F-series 4.9L-7.5L engines. 1996 Ford Bronco - Wiring diagram of Ford C205 in-line connector showing female/male pin layouts and a pin-to-circuit color-code table for 4.9L-7.5L engines. 1996 Ford Bronco - Wiring diagram of 5.8L engine controls showing PCM, fuel pump relay, EGR and EVAP circuits with color-coded wires and connector callouts 1996 Ford Bronco - Engine controls wiring diagram for 1996 Ford Bronco 5.8L showing idle air control valve and fuel injector circuits. 1996 Ford Bronco - Engine controls wiring diagram for 1996 Ford Bronco 5.8L showing EGR, coolant temperature, throttle position and DPFE sensor circuits. 1996 Ford Bronco - Engine controls wiring diagram for 1996 Ford Bronco 5.8L showing intake air temperature and heated oxygen sensor circuits.

58 photos added — showing 8

1996 Ford Bronco - Backup lamp wiring diagram showing the manual transmission backup lamp switch and automatic park/neutral position switch circuits. 1996 Ford Bronco - Backup lamp wiring diagram showing the E4OD transmission range sensor and starting/all-wheel-drive circuit connections. 1996 Ford Bronco - Backup lamp wiring diagram showing trailer backup lamp relay and left/right backup lamps for flare side, chassis cab and other body styles. 1996 Ford Bronco - Backup lamp wiring diagram showing the manual backup lamp switch, transmission range sensor and starting system circuits. 1996 Ford Bronco - Backup lamp wiring diagram showing left/right backup lamps, automatic day/night mirror and trailer backup lamps relay circuits. 1996 Ford Bronco - Backup lamp wiring diagram showing the manual transmission backup lamp switch and park/neutral position switch circuits. 1996 Ford Bronco - Backup lamp wiring diagram showing the E4OD/4R70W manual lever position sensor and starting/all-wheel-drive circuits. 1996 Ford Bronco - Backup lamp wiring diagram showing trailer backup lamps relay and left/right backup lamps for Bronco, F-series and flare side bodies.

6 photos added

1996 Ford Bronco - Wiring diagram of 5.8L California engine controls showing PCM power relay, fuel pump relay, and EVAP canister purge circuits with wire colo… 1996 Ford Bronco - Wiring diagram of 5.8L California engine controls showing fuel injectors, idle air control valve, and secondary air injection solenoid with… 1996 Ford Bronco - Wiring diagram of 5.8L California engine controls showing EGR control solenoid, ECT sensor, throttle position sensor, and EGR valve positio… 1996 Ford Bronco - Wiring diagram of 5.8L California engine controls showing intake air temperature sensor, data link connector, and heated oxygen sensor circ… 1996 Ford Bronco - Wiring diagram of 5.8L California engine controls showing malfunction indicator lamp, data link connector, and LH heated oxygen sensor circ… 1996 Ford Bronco - Wiring diagram of 5.8L California engine controls showing inertia fuel shutoff switch and fuel pump module sender circuit with resistance v…
