fuel pump acces and pump upgrade

From 1996 Ford Bronco “B3”, documented by Kingfish999.

11 photos
← Back to this vehicle

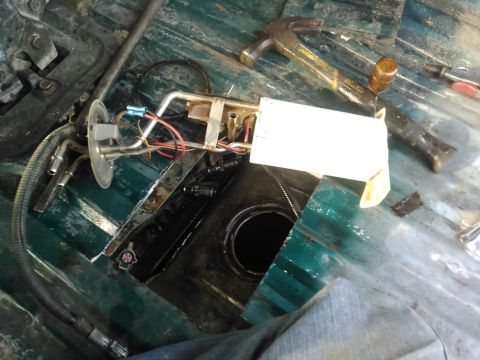

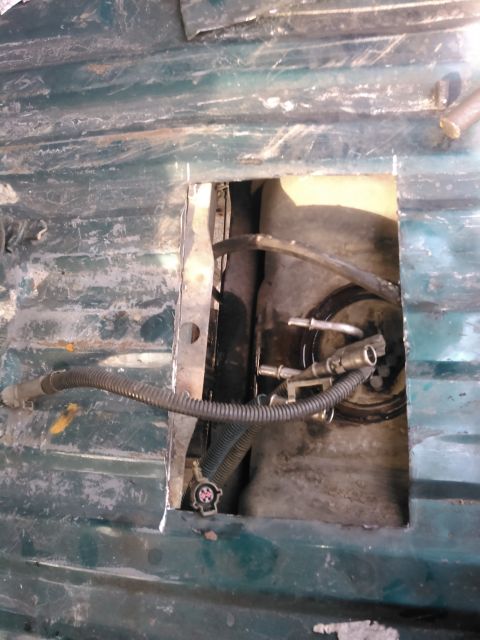

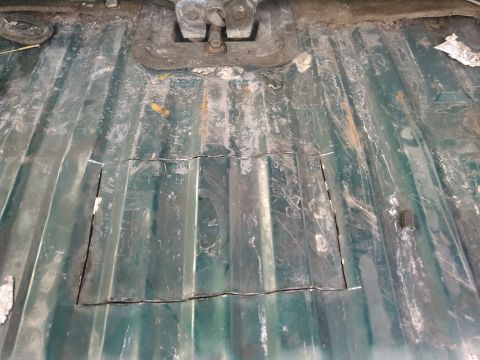

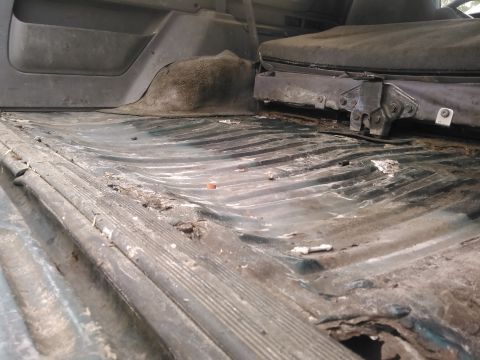

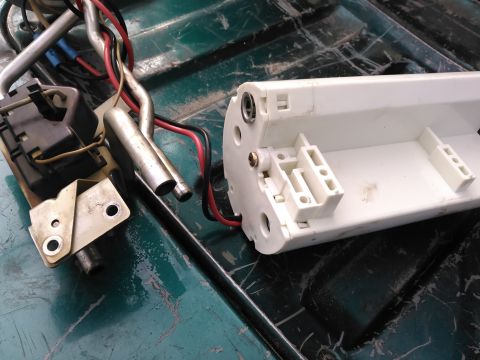

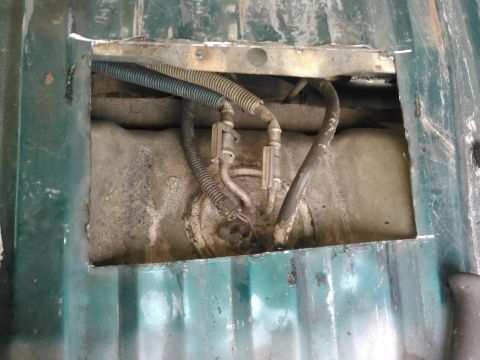

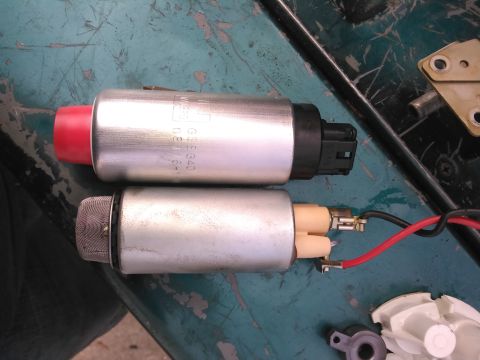

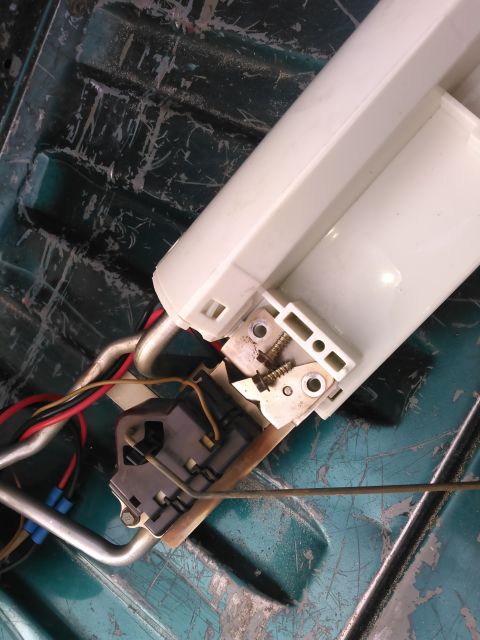

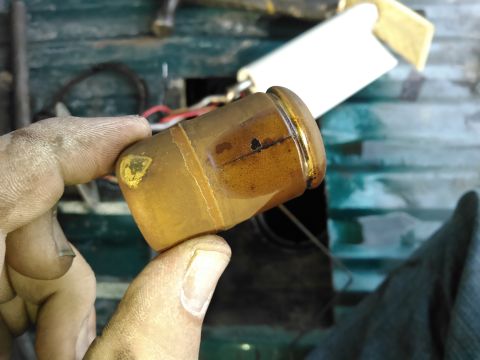

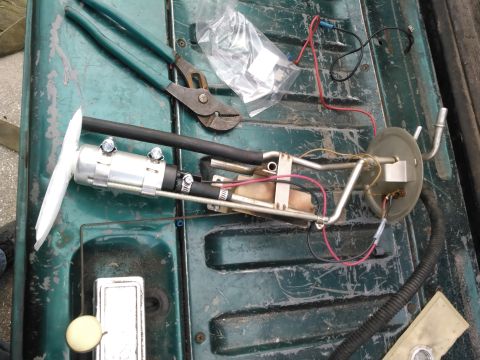

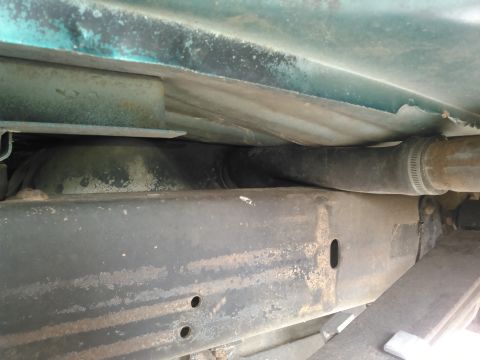

1996 Ford Bronco - due to my 425w engine build, i wanted to upgrade my fuel pump to a 255lph pump. also i wanted to fix my fuel guage which never worked since… 1996 Ford Bronco - the floor is soo collapsed, its starting to pinch my fuel filler hose. this is why i dont want to drop the tank 1996 Ford Bronco - i looked at the floor for the line of spot welds. this is where a crossmember is to hold the floor. i started cutting alittl away form the… 1996 Ford Bronco - pulled the section out. you can see i cut too close to the spotwelds and hit the crossmember. also i should have cut further back to make r… 1996 Ford Bronco - disconnect the fuel lines and electrical. knock the lock ring off. i had plenty of mud on the lock ring. i used a small hammer to lightly t… 1996 Ford Bronco - the old pump. the previous owner replaced it at some point before i bought it i imagine. it looked brand new 1996 Ford Bronco - this is why my fuel gauge didn't work. the float had a crack in it, filled up with fuel and sank. thats 3 of 3 trucks that the float was th… 1996 Ford Bronco - remove these 2 screwes. the pump is locked in by a lock ring around 1 of the tubes 1996 Ford Bronco - old pump disconnected. you can see the lock ring around one of the holes in the pump 1996 Ford Bronco - i was hoping to reuse the housing of the pump and swap my Walbro 255lph pump into it. it was jsut too big and the electrical connector was… 1996 Ford Bronco - i got a foot of EFI fuel hose and connected the pump so the sock filter would be in the same depth as the original. the rest i used to lowe…
