cowl induction/air filter

From 1996 Ford Bronco “B3”, documented by Kingfish999.

21 photos
← Back to this vehicle

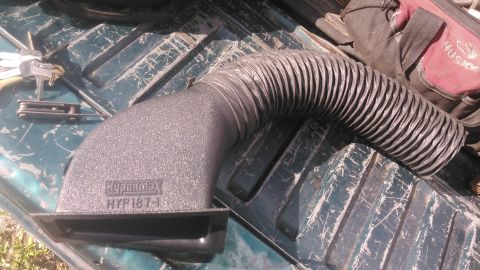

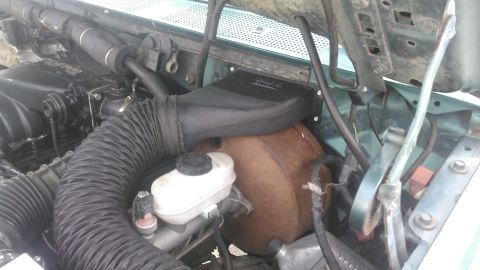

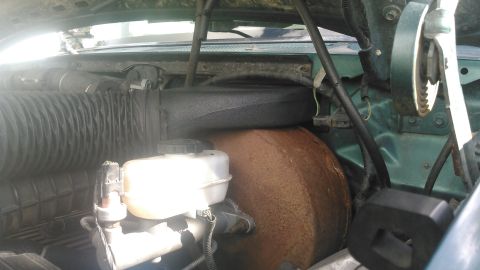

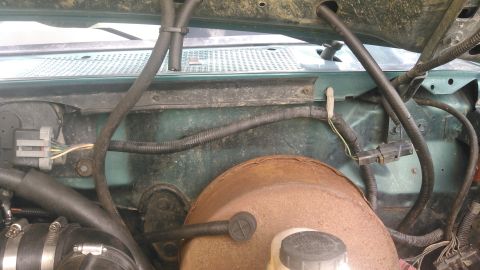

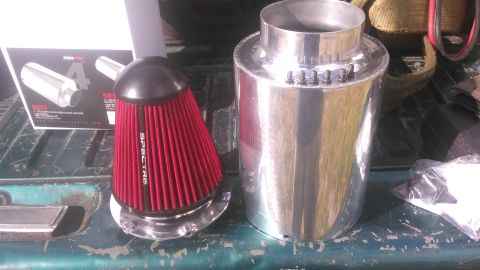

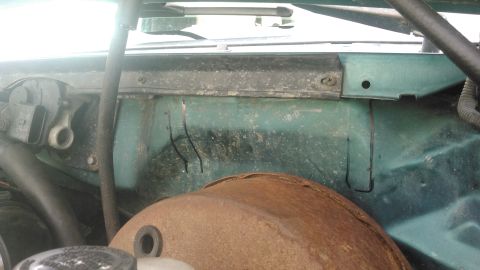

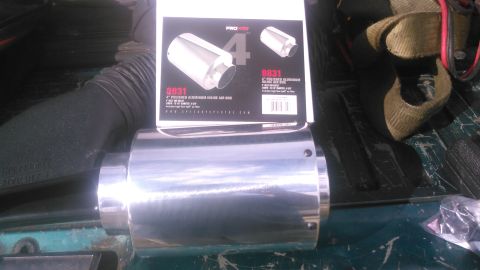

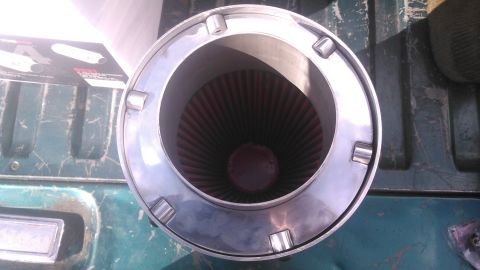

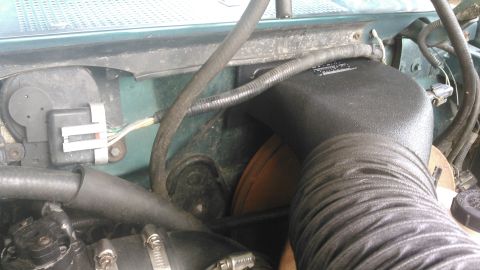

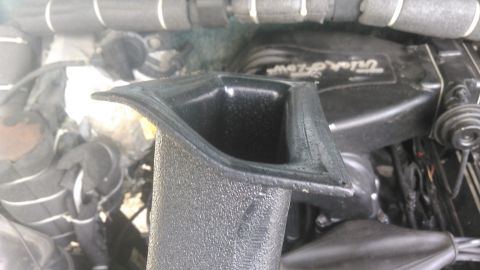

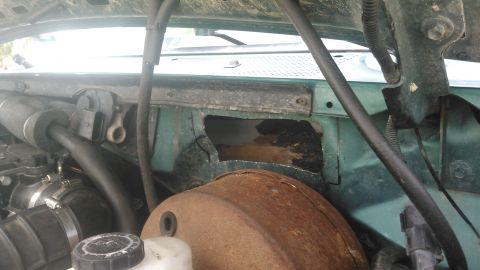

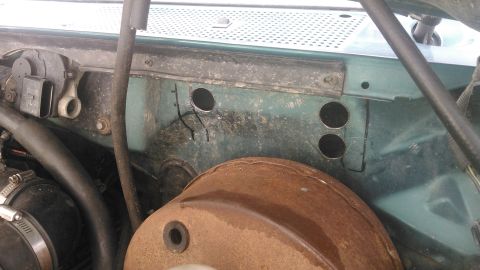

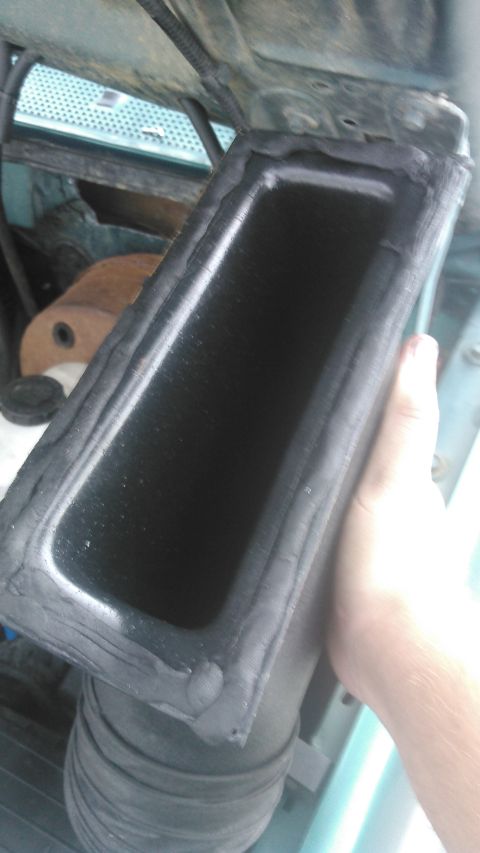

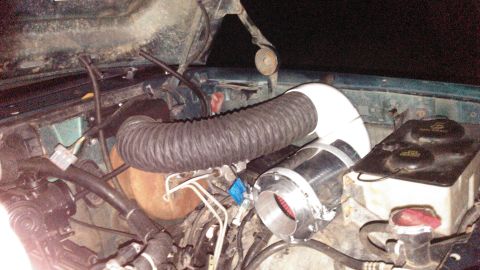

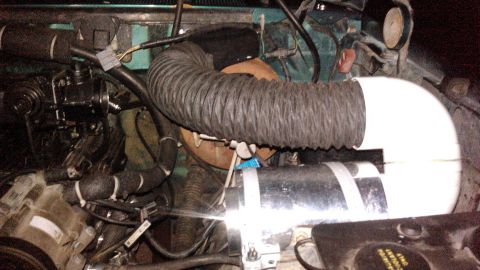

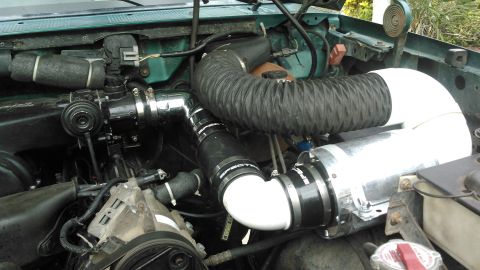

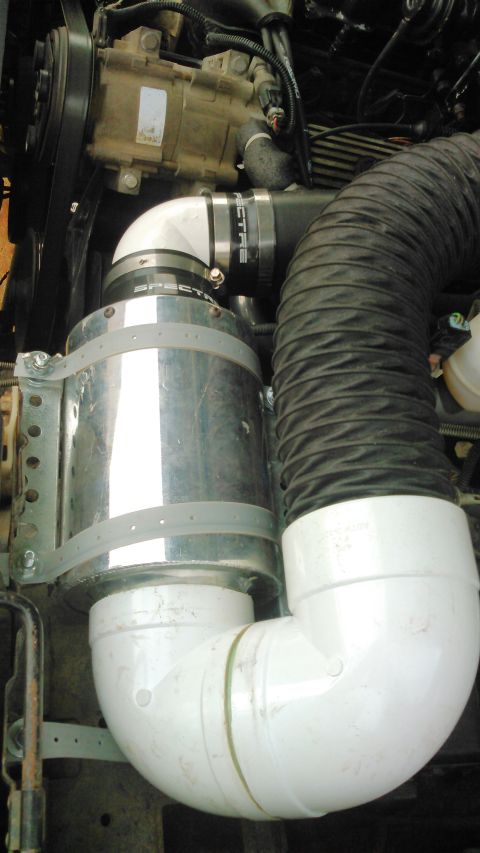

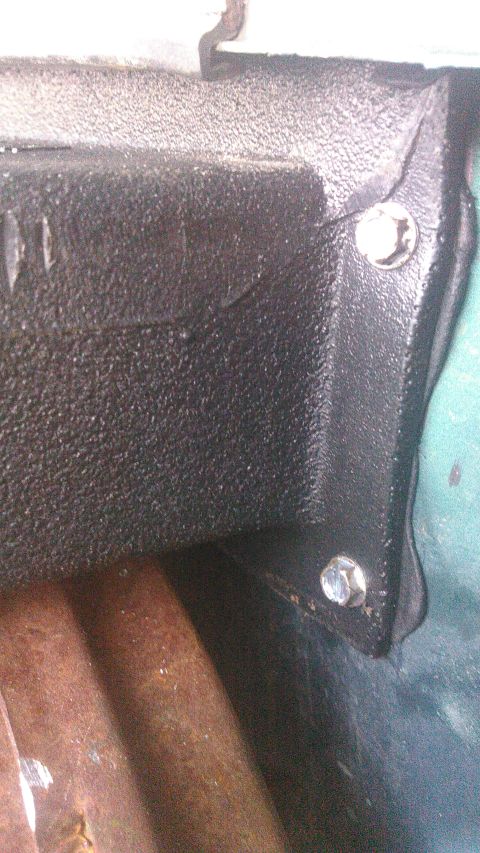

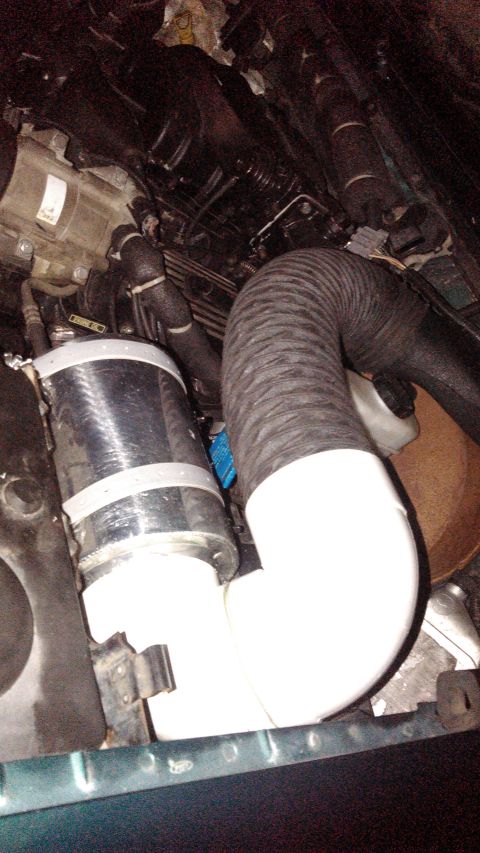

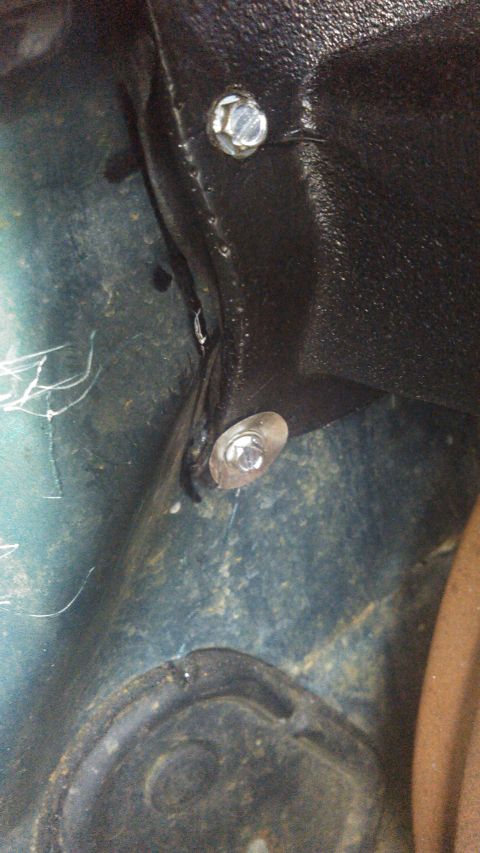

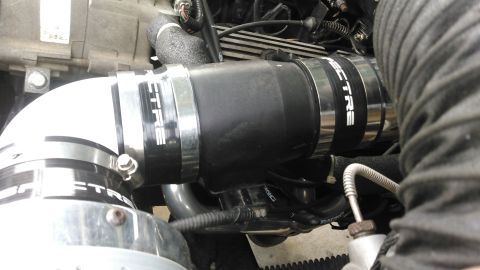

1996 Ford Bronco - Hypermax HYP187-1 this is a cowl induction kit designed for diesels OBS fords 1996 Ford Bronco - Spectre Performance 9831 air filter and housing. this is a universal air filter housing offered by Spectre that uses a high flow oiled cone… 1996 Ford Bronco - the filter housing appart 1996 Ford Bronco - it has a big 4" inlet and outlet. this is the outlet side shown. the housing is held together by 6 little allen screws. the 2 halfs of the… 1996 Ford Bronco - this is it mocked up. it goes through the firewall, above the brake booster 1996 Ford Bronco - it is formed to fit the shape of the firewall 1996 Ford Bronco - the area of the firewall 1996 Ford Bronco - the formed end 1996 Ford Bronco - mocked it up and used a sharpy to outline it. then i marked the area i actually need to cut 1996 Ford Bronco - i used a 1" hole saw to cut the corners. i couldnt do the bottom left hole due to the angle. 1996 Ford Bronco - i used a sawzall to connect the dots and cut it out unfortunatly i missed my cut line on the bottom left and went too far down. im not worr… 1996 Ford Bronco - the kit inclueded 4 screwes. i mocked it up and drilled the pilot holes 1996 Ford Bronco - the kit came with some weather stripping. does it really need it? no but its there so i used it. its not like this intake really needs to b… 1996 Ford Bronco - fully installed on right side. 1996 Ford Bronco - left side. it mostly formed to the firewall 1996 Ford Bronco - i have the inlet of the filter complete. i struggled finding a good way to do this. but this is the end result of the inlet side of the fil… 1996 Ford Bronco - Custom intake piping is visible in the engine bay, connected to a silver canister. 1996 Ford Bronco - Aftermarket air intake system installed in the engine bay of a vehicle. 1996 Ford Bronco - the outlet finished going to the engine. because of my aftermarket mustang style intake, this is how i needed to run my intake. my MAF sens… 1996 Ford Bronco - a somewhat better look at how the housing is mounted. i have 2 strips of angle iron mounted to the original air filter mounting bracket. i… 1996 Ford Bronco - i have a Pro-M 75mm bullet unflanged MAF. i choose to have it upside down so the connector can reach and its more hidden. i will be adding…
