MAF screen

From 1996 Ford Bronco “B3”, documented by Kingfish999.

6 photos

← Back to this vehicle

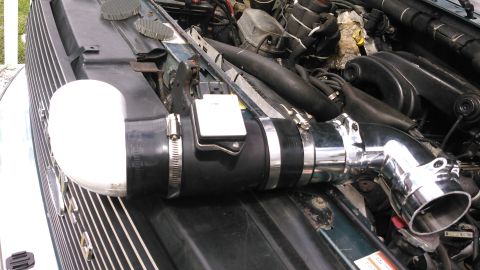

1996 Ford Bronco - this is my intake ducting with a MAF sensor right in the middle of two 90 degree elbows. these sharp elbows create turbulance and uneven ai…

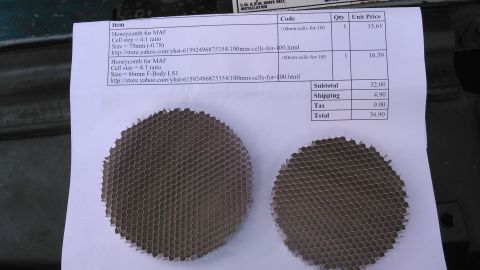

1996 Ford Bronco - these are 2 honeycomb style screens i got from www.SaxonPC.com in the 'Airflow Straighteners' section even tho my MAF housing is a classifi…

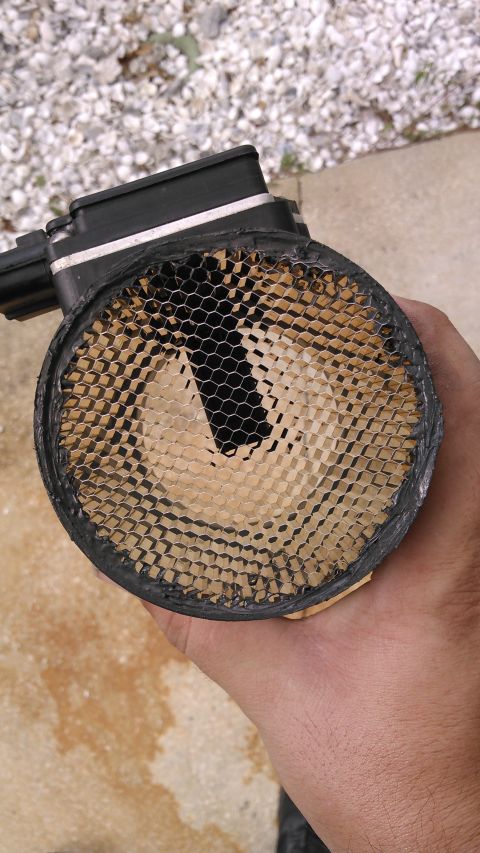

1996 Ford Bronco - the 86mm was abit big for my inlet but the 75mm was too small so im glad i ordered the bigger size. i rolled the screen on a hard surface t…

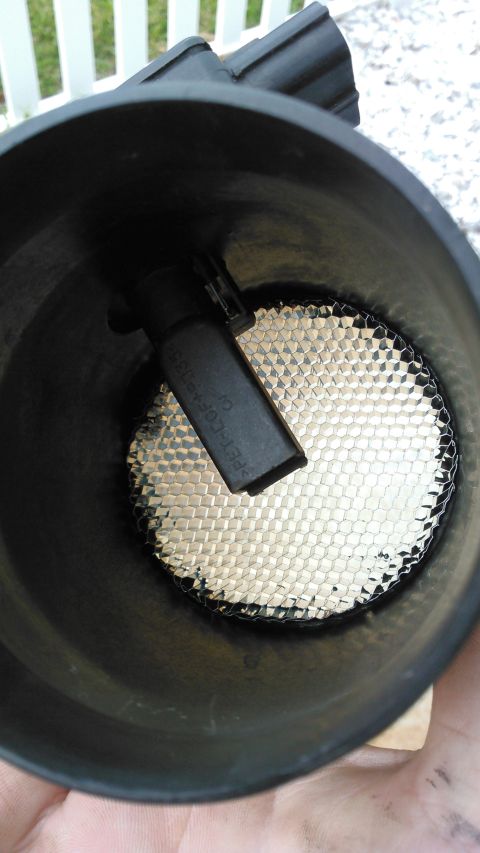

1996 Ford Bronco - view of the screen from backside of the MAF

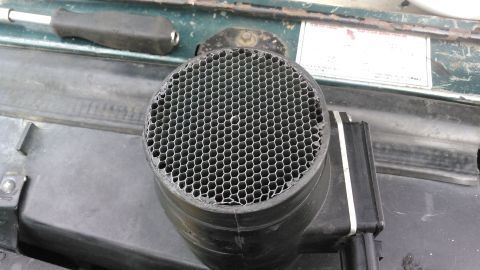

1996 Ford Bronco - since i had the 75mm screen and it fit in the back of the housing i went ahread and installed it the same way.

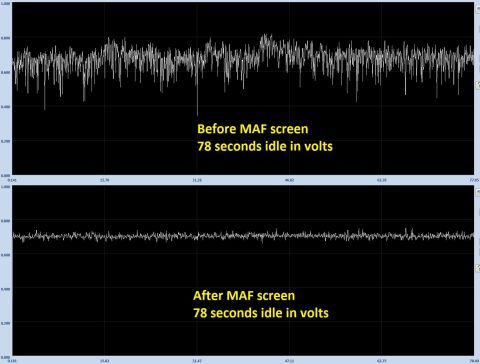

1996 Ford Bronco - because i have a Quarterhorse tuner, i can datalog. i let the truck idle for several minutes till fully warmed up and datalogged it for a t…
