97-03-10 Frame Noise

From 1983 Ford Bronco “That dirty old truck”, documented by Steve83.

15 photos
← Back to this vehicle

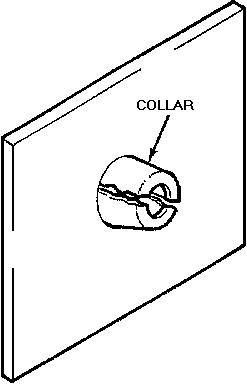

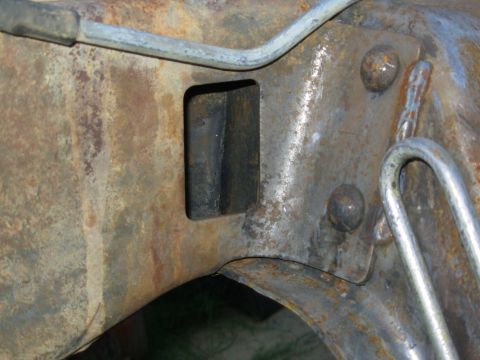

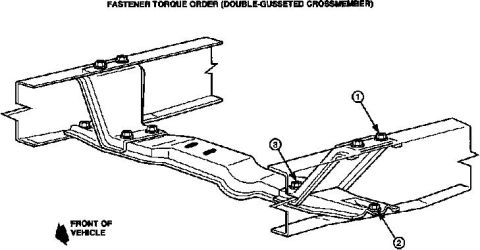

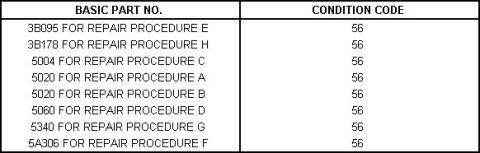

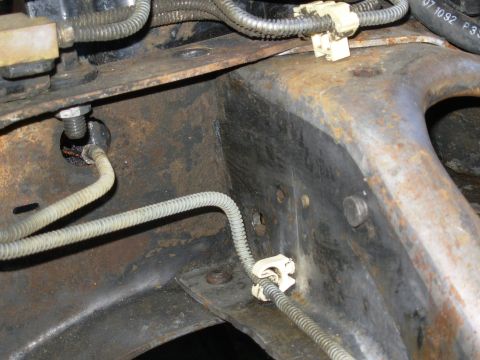

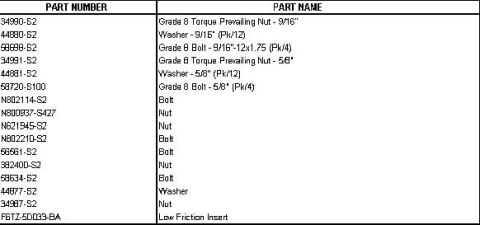

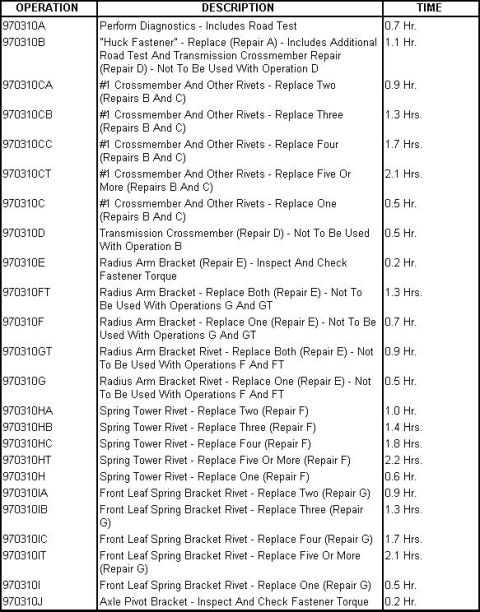

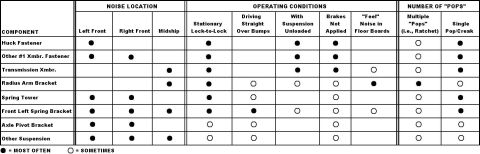

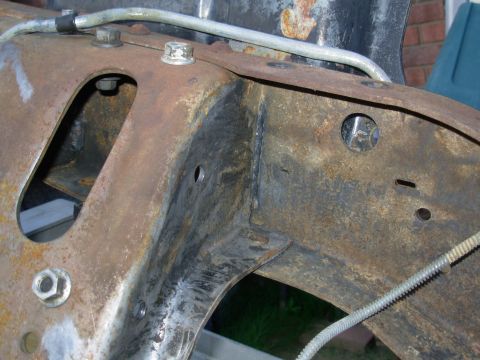

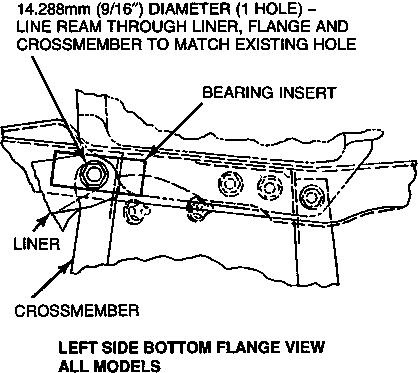

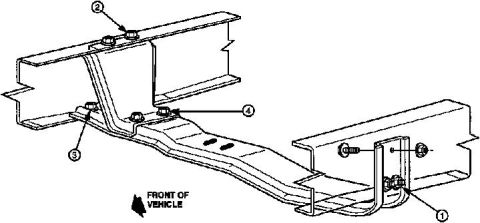

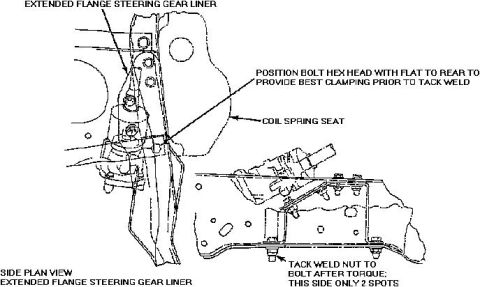

1983 Ford Bronco - TSB 97-03-10 Frame Noise Publication Date: FEBRUARY 3, 1997 IF THE IMAGE IS TOO SMALL, click it. LIGHT TRUCK: 1980-96 BRONCO, F-150, F-250… 1983 Ford Bronco - 3. INSPECT FRAME BOLTS FOR PROPER INSTALLATION TORQUE Inspect and tighten all front end components which bolt to the frame to confirm that… 1983 Ford Bronco - Knock the rivet pin out of the blind side with a 6.35mm (1/4") drift punch and hammer (Figure 2). Click "Next" beside the image above to co… 1983 Ford Bronco - > Cut the rivet's head off with a hammer and flat chisel (Figure 3). Click "Next" beside the image above to continue. See also: http://www.… 1983 Ford Bronco - > Knock the sleeve out of the blind side with a 9.525mm (3/8") drift punch and hammer (Figure 4). CAUTION: DO NOT REMOVE THE FASTENER WITH… 1983 Ford Bronco - 2. After removing the rivet, verify the noise came from this location by pounding a wedge between the crossmember and the frame liner, then… 1983 Ford Bronco - IF THE IMAGE IS TOO SMALL, click it. 5. Install a 9/16" Grade 8 torque prevailing Nut (34990-S2) with a Washer (44880-S2) and a Grade 8 Bol… 1983 Ford Bronco - a. Slide the bolt and washer into the "window" opening on the outside of the frame siderail, and insert it into the newly-reamed hole. NOTE… 1983 Ford Bronco - a. Torque all three (3) bolts/nuts at the crossmember-to-frame siderail at the wraparound side (Figure 7, Number 1). b. Torque the gusset-t… 1983 Ford Bronco - a. Torque the gusset-to-frame bolts (Figure 8, Number 1). b. Torque the crossmember-to-frame bolts (Figure 8, Number 2). c. Torque the guss… 1983 Ford Bronco - Warranty LABOR ALLOWANCE Click "Next" beside the image above to continue. 1983 Ford Bronco - DEALER CODING OASIS CODES: 305000, 390000, 702000, 702100 If viewing a single image per page, click "Next" beside the image above to contin… 1983 Ford Bronco - Factory welds in a '93 Bronco #1 (engine) crossmember LHR. 1983 Ford Bronco - Factory welds in a '93 Bronco #1 (engine) crossmember RHF. 1983 Ford Bronco - Factory welds in a '93 Bronco #1 (engine) crossmember RHR.
