Header Install turned Head job

From 1996 Ford F-250, documented by Dave Beverly.

21 photos
← Back to this vehicle

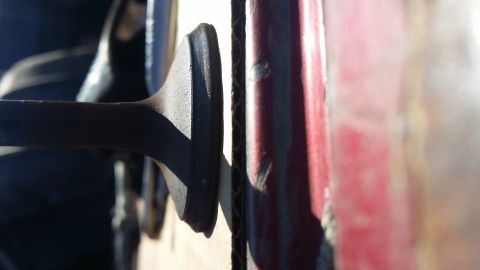

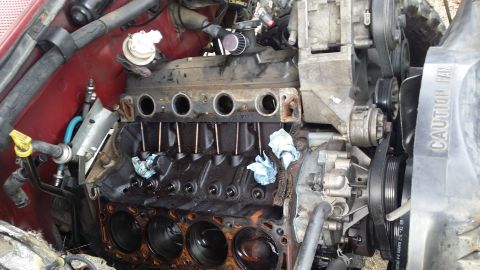

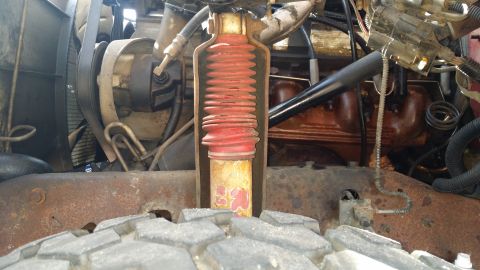

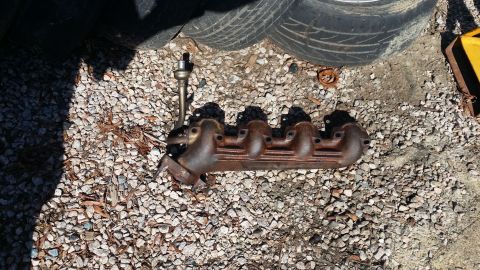

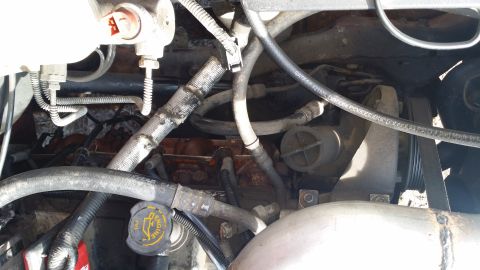

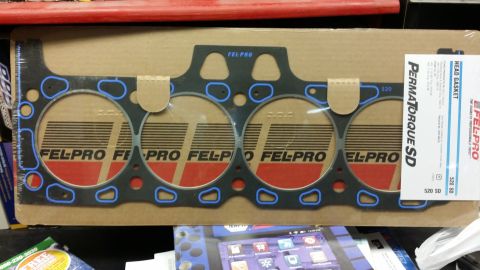

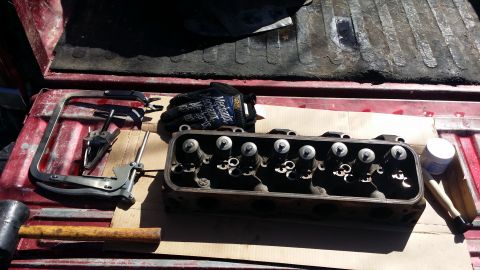

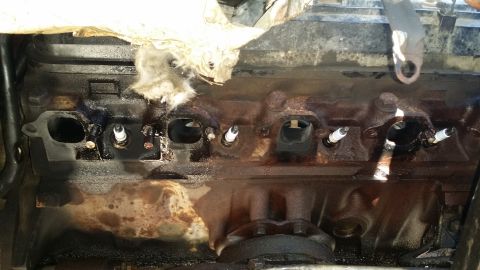

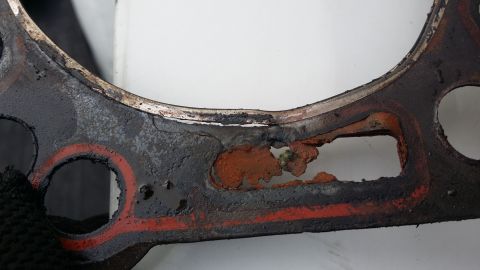

1996 Ford F-250 - Now that those pesky fender liners are out of the way I have unrestricted access to the manifold bolts. Driver side. Since there is virtual… 1996 Ford F-250 - Doing this from the top isn't really a viable option, if you don't want to pull the liners. Doable but not worth the headache to me. 1996 Ford F-250 - OUT! Passenger side manifold.There are two brackets bolted to the back of the cylinder head (both utilizing 14mm heads) that will need to b… 1996 Ford F-250 - The hard part. I fully expected to not even get to 50% completion today. Both bolts in cylinder 4 (far left port in picture) were broken by… 1996 Ford F-250 - Just for two exhaust manifold bolts.... 1996 Ford F-250 - Well, good thing I did pull the head. Ran fine...surprising well, actually. This explains a few things. 1996 Ford F-250 - Getting there. Intake gaskets have been leaking for some time. I am surprised at how clean the valley looks. 1996 Ford F-250 - Such a purdy head gasket. 1996 Ford F-250 - Looks like some fun is about to happen. 1996 Ford F-250 - Hm. Going to need new valves. I had one or two better, some worse. Going to need new valves. Oh well, back in they go. If I order new valve… 1996 Ford F-250 - Valve seat. Can't remember if this is before or after lapping. I think after? 3 hours per head to do. I think I spent a bit too much time.… 1996 Ford F-250 - Getting there...Stilll needs FEAD bolted up and bolt up the oil pan. Much as I did not want to tear the engine apart, I am glad I did. So m… 1996 Ford F-250 - Ah, finally! I am at the point where I should have been two weeks ago. Header is there just for mock up. Some of the bolt holes that did no… 1996 Ford F-250 - Need to pull the EGR elbow out of the driver side manifold. 1996 Ford F-250 - Well....that just happened. If you expect us to pay $100 for a stpuid fitting, Ford, we expect $100 quality. This is not. 1996 Ford F-250 - Added bonus! EGR tube is junk. Wonder how long it has been split open.... 1996 Ford F-250 - It is an engine again! Note: Ford Racing 302 wires, PN: FMS-M-12259-C301, fit ALMOST perfect on a 460. Wires for cylinders 3 and 4 are a bi… 1996 Ford F-250 - Wire separators are far too under appreciated on a daily driver. First time using the zip tie-wire separator method. Compared to the bundle… 1996 Ford F-250 - F*** you Ford. A piece of metal that is the size of an egg costs that much....EGR tube fitting. At least this one looks like it is one piec… 1996 Ford F-250 - Hedman, the master of mediocrity strikes again. Y-pipe does not fit; although I do not think I can completely blame it on Hedman this time.… 1996 Ford F-250 - "Fixed" y-pipe....both my stupid moment fix and Hedmans unfit problem. Only needed a fraction of an inch, that was the worst part. Interest…
