DSCF0536 - York adapter mount template.jpg
55 hits | 57.21 KB | Posted: 12/29/18

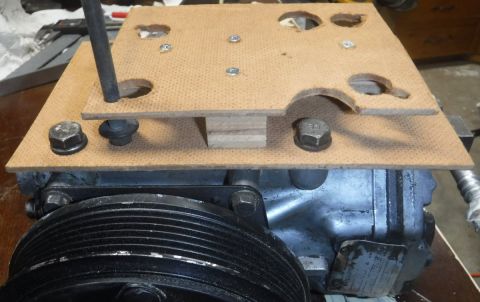

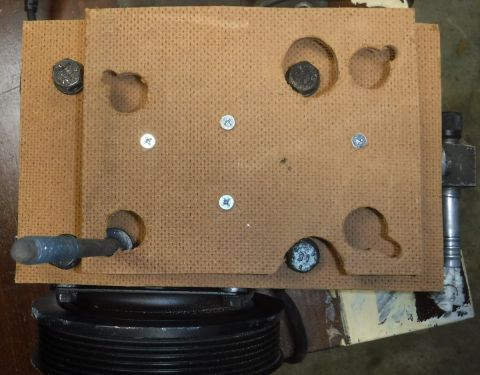

Adapter mount mock up for the stock A/C location.
DSCF0537 - York adapter mount template.jpg
50 hits | 46.19 KB | Posted: 12/29/18

Adapter mount mock up for the stock A/C location.
DSCF0539 - York adapter test fit.jpg
60 hits | 58.1 KB | Posted: 12/29/18

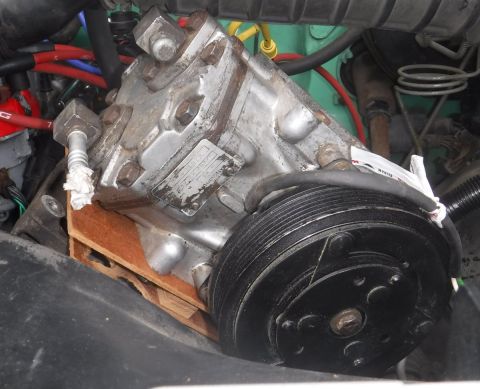

Mock up test fit. Not quite enough room below the stock MAF intake tube...

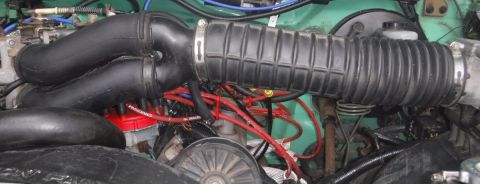

DSCF0559 - stock MAF intake tube.jpg
55 hits | 33.14 KB | Posted: 12/29/18

Stock MAF air intake tube.
DSCF0561 - MAF intake tube mated to SD twins.jpg
53 hits | 29.58 KB | Posted: 12/29/18

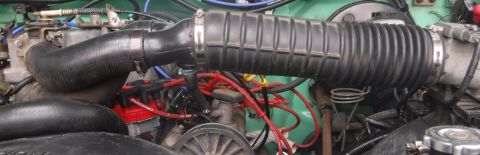

MAF main intake tube mounted to chopped SD twin tubes for their horizontal arrangement, MAF y-pipe t...
DSCF0562 - angle iron mount.jpg
43 hits | 61.54 KB | Posted: 12/29/18

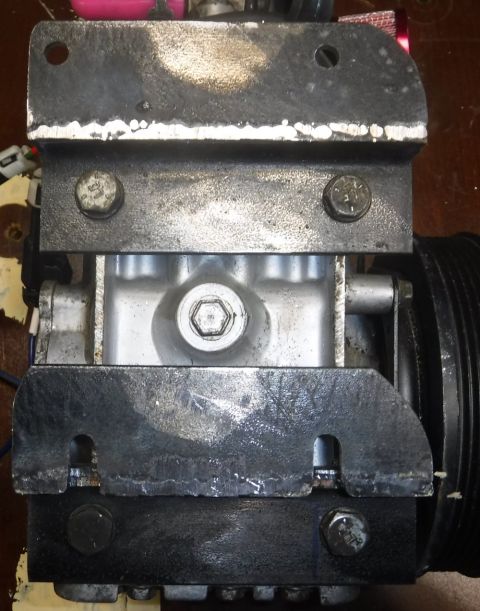

Realized it would be tough to weld up the tight spaces of the mock up spacers, so went with an angle...
DSCF0563 - angle iron mount.jpg
55 hits | 64.67 KB | Posted: 12/29/18

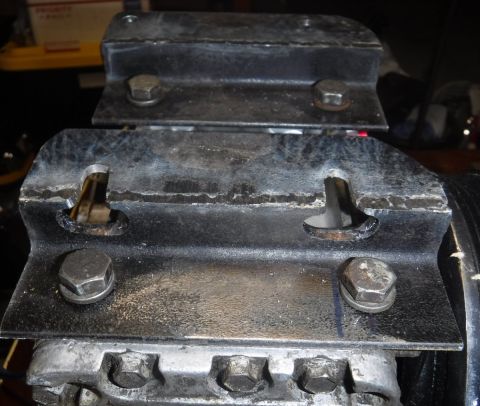

Angle iron mount; had to slot the two lower bolt holes and pre-thread them most of the way in, since...

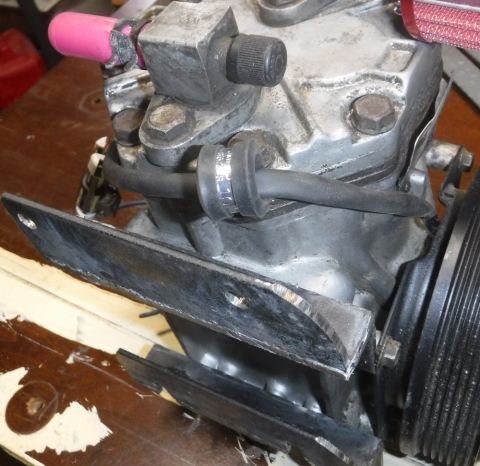

DSCF0564 - angle iron mount.jpg
57 hits | 71.02 KB | Posted: 12/29/18

Z-shaped angle iron mount. The pieces were cut down height-wise before welding together.
DSCF0575 - mounted.jpg
56 hits | 49.13 KB | Posted: 12/29/18

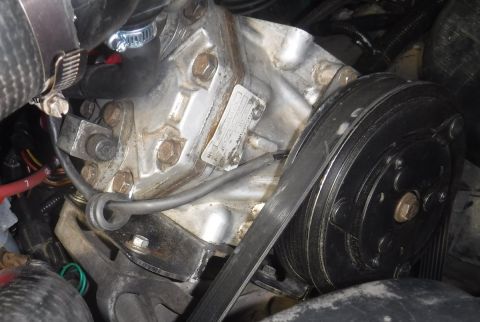

Mounted! With a whisker of daylight to spare below the intake tube and alongside the crank case ven...
DSCF0569 - pulley alignment.jpg
53 hits | 26.16 KB | Posted: 12/29/18

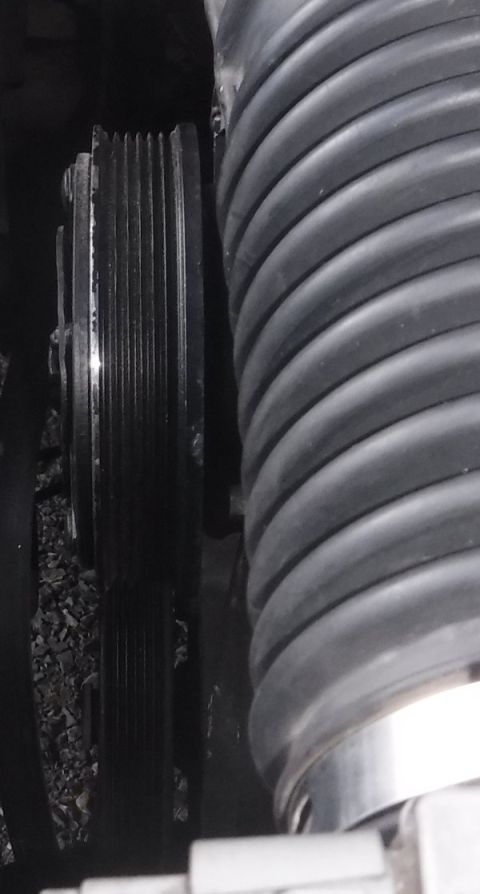

Pulley alignment came out perfect after tweaking the forward positioning of the mock up's offset bol...
DSCF0571 - smog pump bypassed.jpg
58 hits | 54.85 KB | Posted: 12/29/18

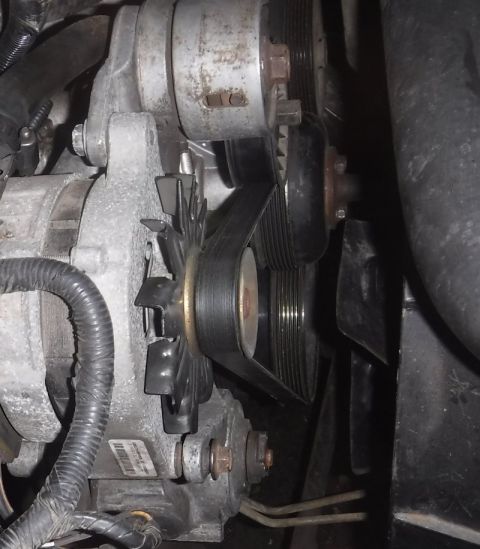

Smog pump bypassed...later removed once my long shot hope was confirmed that the bigger diameter Yor...
DSCF0579 - MAF tube clearance.jpg
55 hits | 25.02 KB | Posted: 1/5/19

Close-up view of how much (or little) clearance there is between the MAF intake tube and the York's ...
DSCF0589 - tank mounted.jpg
46 hits | 65.63 KB | Posted: 1/5/19

Tank secured in crude but effective fashion, inline circuit breaker lined up (awaiting a proper moun...
DSCF0574 - PS reservoir clearance.jpg
58 hits | 45.42 KB | Posted: 1/6/19

PS reservoir clearance, just enough room to remove the cap.
DSCF0604 - tank re-plumbed.jpg
35 hits | 80.53 KB | Posted: 1/11/19

Tank re-plumbed with better fittings and improved layout.
DSCF0606 - tank re-plumbed.jpg
35 hits | 73.7 KB | Posted: 1/11/19

Tank re-plumbed with better fittings and improved layout.
DSCF0605 - hose strain relief.jpg
31 hits | 41.96 KB | Posted: 1/11/19

K.I.S.S. hose and fittings strain relief, using a magnet hook.
DSCF0619 - circuit breaker mount.jpg
42 hits | 73.7 KB | Posted: 1/16/19

Mounting plate added for the circuit breaker, excess wiring tidied up, fittings cinched up tighter ....
DSCF0618 - tank, wide view.jpg
31 hits | 67.99 KB | Posted: 1/16/19

Wide view of the tank install, to get a better sense of the space it fits in.
tire inflator - a.jpg
38 hits | 16.81 KB | Posted: 1/22/19

Custom tire inflator, all finished except for side-mount bleeder valve.
tire inflator - b.jpg
41 hits | 36.12 KB | Posted: 1/22/19

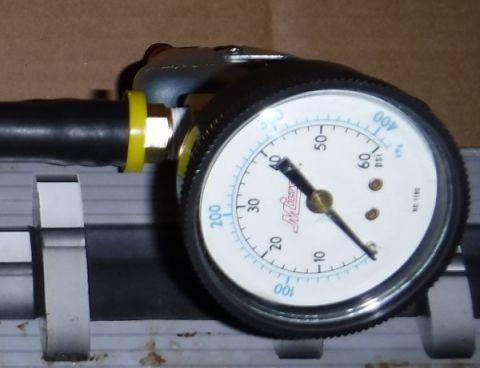

Custom tire inflator's pressure gauge view.
tire inflator - c.jpg
35 hits | 17.09 KB | Posted: 1/24/19

Tire inflator, complete with bleeder valve.

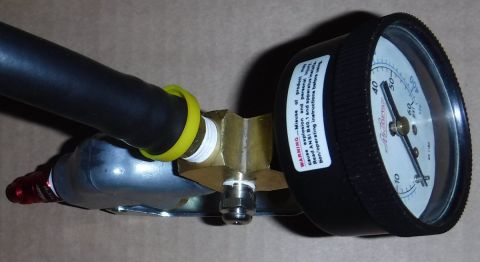

tire inflator - d.jpg
40 hits | 31.52 KB | Posted: 1/24/19

Tire inflator, complete with bleeder valve.
DSCF0706 - rotolock fitting SS hose.jpg
34 hits | 78.18 KB | Posted: 1/24/19

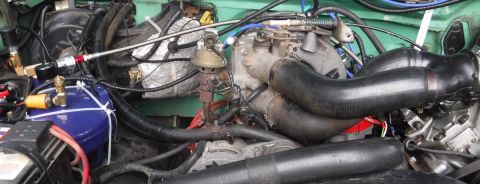

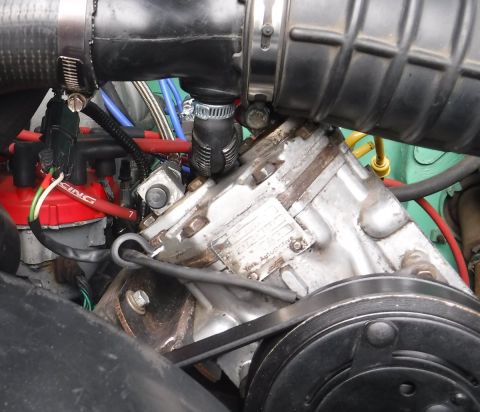

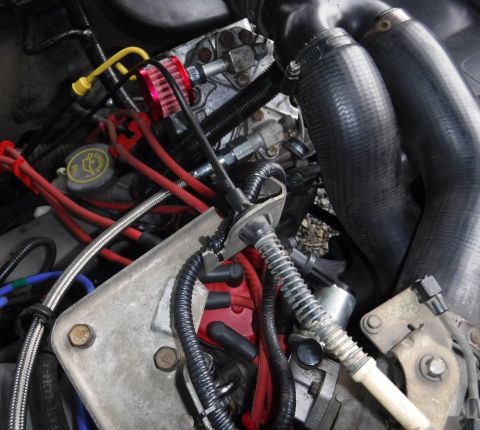

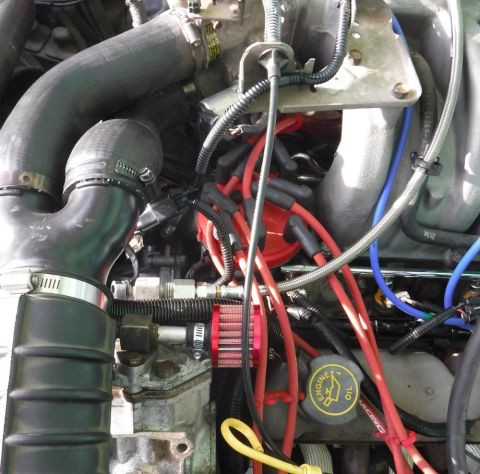

Compressor plumbing finalized with Rotolock flange fitting on discharge port, and SS braided, teflon...
DSCF0711 - rotolock fitting SS hose.jpg
34 hits | 39.43 KB | Posted: 1/24/19

Compressor plumbing finalized with Rotolock flange fitting on discharge port, and SS braided, teflon...
DSCF0715 - rotolock fitting SS hose.jpg
37 hits | 69.65 KB | Posted: 1/24/19

Compressor plumbing finalized with Rotolock flange fitting on discharge port, and SS braided, teflon...
DSCF0717 - rotolock fitting SS hose.jpg
38 hits | 62.8 KB | Posted: 1/24/19

Compressor plumbing finalized with Rotolock flange fitting on discharge port, and SS braided, teflon...
DSCF0733 - suction tap to air box.jpg
36 hits | 19.29 KB | Posted: 1/31/19

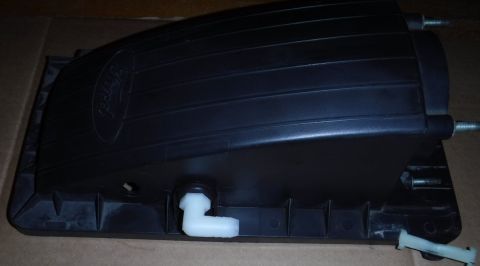

Added a barb to the MAF air box to run the York's suction port to it, instead of the breather filter...
DSCF0735 - suction tap to air box.jpg
49 hits | 42.89 KB | Posted: 1/31/19

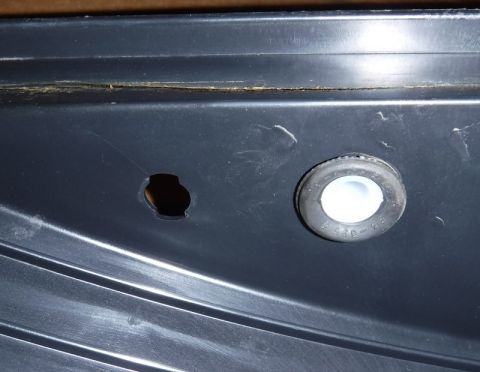

Inside view of the air box add-on, using a grommet for a very snug fit.
DSCF0741 - suction port to air box.jpg
39 hits | 58.51 KB | Posted: 2/4/19

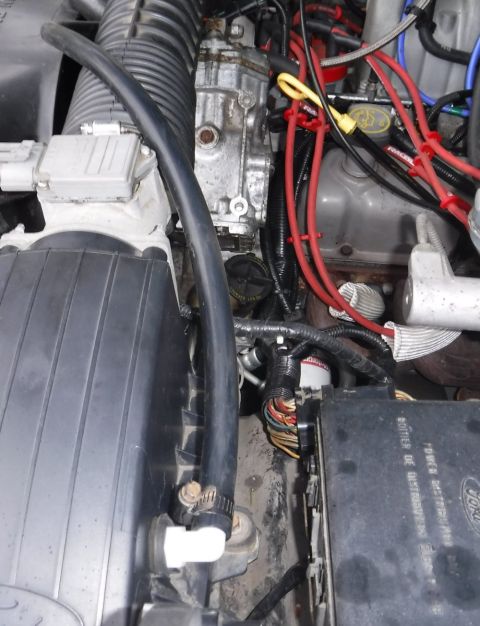

Suction port hooked up to air box with 1/2" hose, reoriented to the front of the York to not re...
DSCF0742 - suction port to air box.jpg
46 hits | 47.78 KB | Posted: 2/4/19

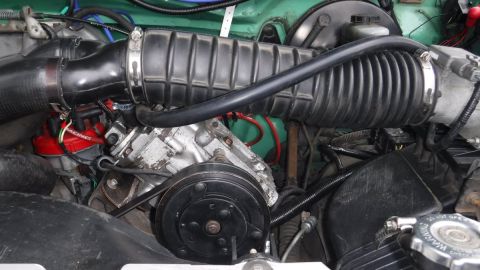

Slightly odd looking suction hose routing...
mobile York setup from craigslist.jpg
62 hits | 64.8 KB | Posted: 2/23/19

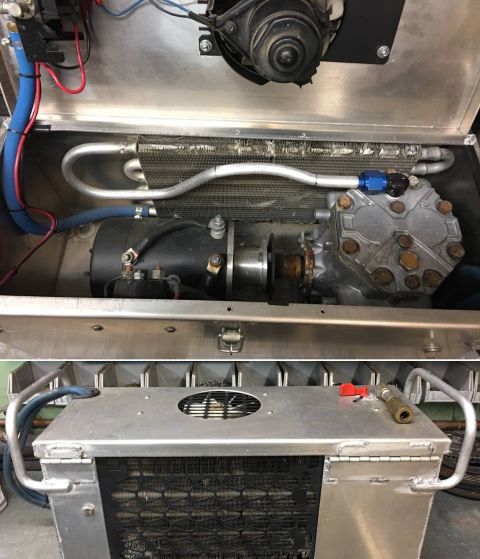

Interesting mobile OBA setup I saw in a craigslist ad, using a starter solenoid and starter motor to...
DSCF0815 - F250 big block fender tray.jpg
61 hits | 56.42 KB | Posted: 3/13/19

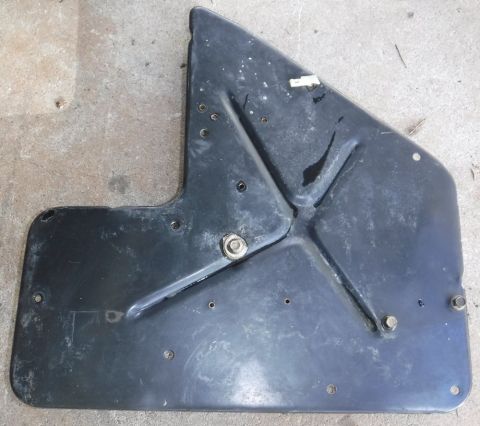

Passenger fender tray from a F250 big block.

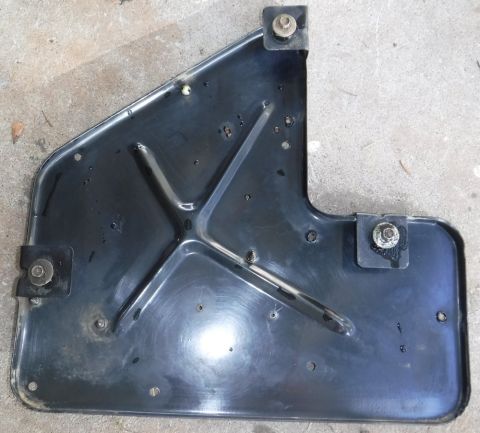

DSCF0816 - F250 big block fender tray.jpg
62 hits | 58.15 KB | Posted: 3/13/19

Bottom side of the fender tray.
DSCF0818 - tank sans zip ties.jpg
46 hits | 73.85 KB | Posted: 3/13/19

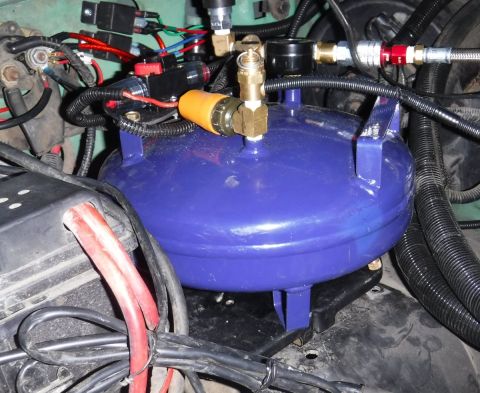

Tank remounted on fender tray, no more unsightly zip ties!

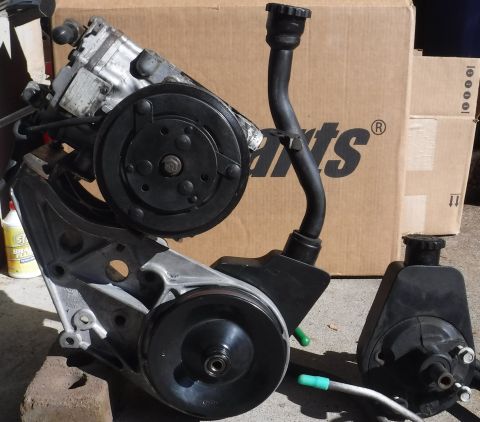

DSCF1458 - York-Saginaw.jpg
36 hits | 60.33 KB | Posted: 9/13/19

Saginaw PS upgrade in process, using an Econoline bracket and Chevy S-Series long neck, highly offse...
DSCF1475 - York mount trimmed.jpg
37 hits | 65.54 KB | Posted: 9/13/19

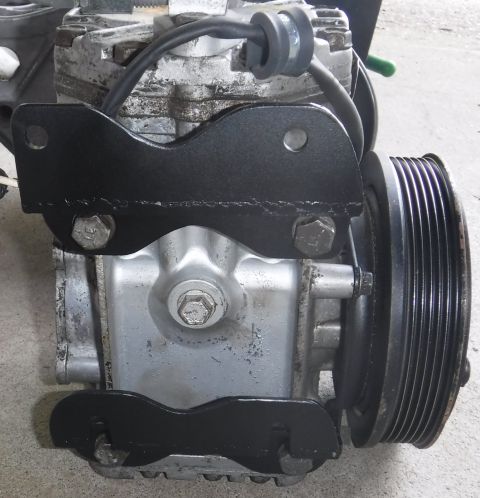

Trimmed up and painted the mount.
DSCF1476 - York mount backside.jpg
45 hits | 56.86 KB | Posted: 9/13/19

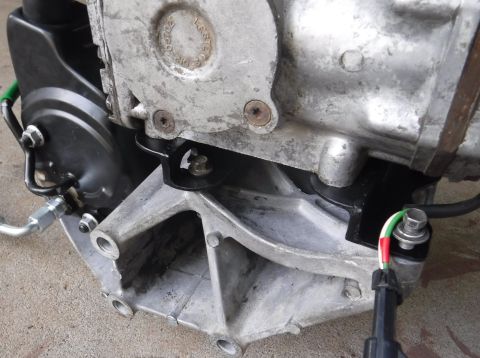

Mount backside, super easy to tighten down the lower bolt when the accessory bracket is off the bloc...

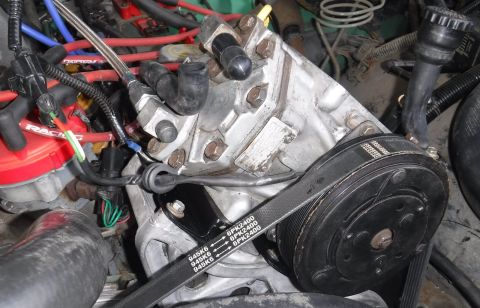

DSCF1477 - York wiring plumbing unobstructed.jpg
45 hits | 59.7 KB | Posted: 9/13/19

Intake tube out of the way...unobstructed view of the wiring and plumbing.
DSCF1479 - York offset Saginaw clearance.jpg
38 hits | 65.78 KB | Posted: 9/13/19

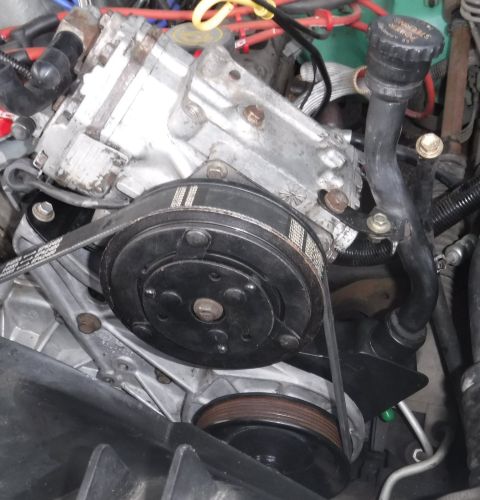

Loads of clearance with the offset Saginaw reservoir.
DSCF1480 - York mount measurement notes.jpg
49 hits | 24.78 KB | Posted: 9/13/19

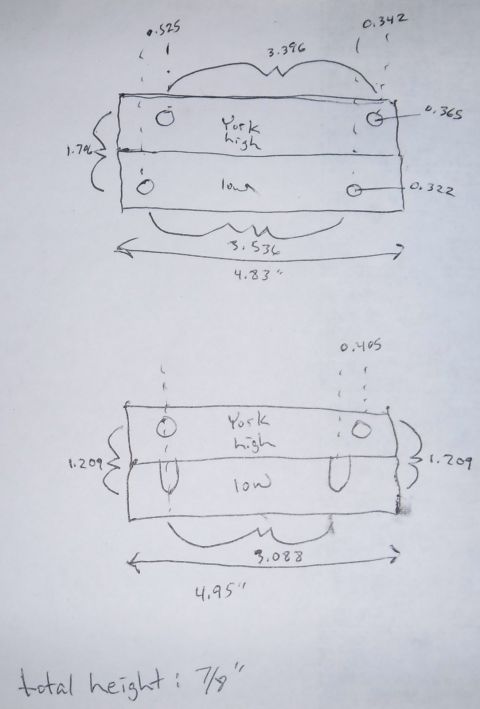

Quick 'n dirty measurement notes for the mounting brackets.
DSCF3161 - rear hose added.jpg
21 hits | 60.97 KB | Posted: 6/21/21

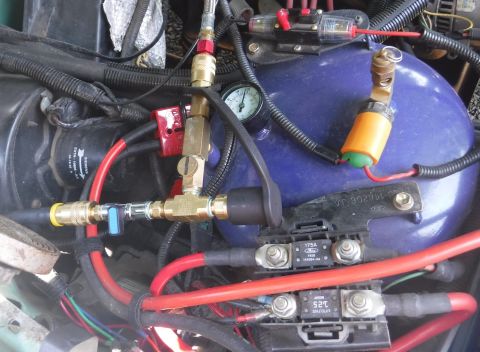

Reconfigured the air tank with a tee to a rear bumper hard line and shut-off valve, so that long hos...
DSCF3162 - temp rear bumper mount.jpg
19 hits | 40.79 KB | Posted: 6/21/21

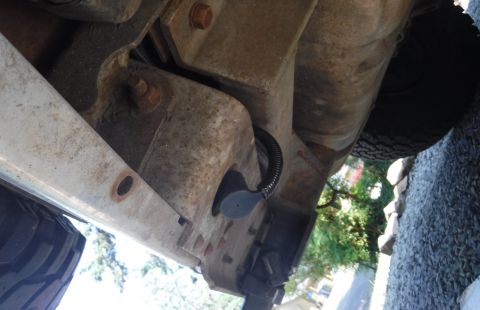

Temporary "mount" for the rear air coupler, using the dust cover to secure it through one ...

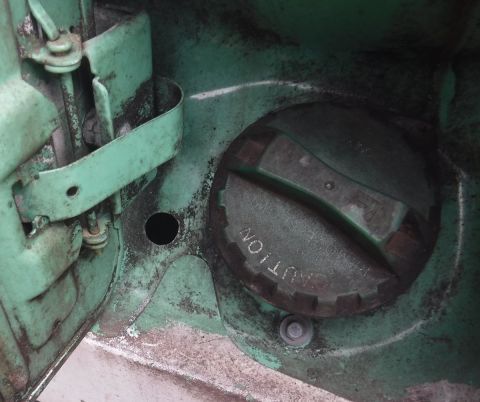

DSCF3206 - gas filler hole.jpg
28 hits | 53.15 KB | Posted: 7/13/21

Not sure what the hole is for next to the gas filler cap (since told it was for the gas cap tether o...
DSCF3214 - gas filler hole - rear coupler.jpg
20 hits | 50.56 KB | Posted: 7/13/21

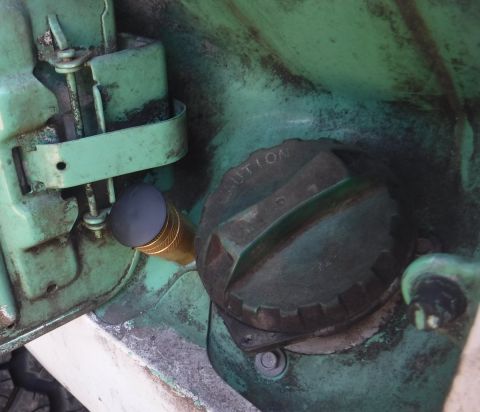

Rear air coupler installed. I ground a big washer at an angle to go on the backside of the body pan...

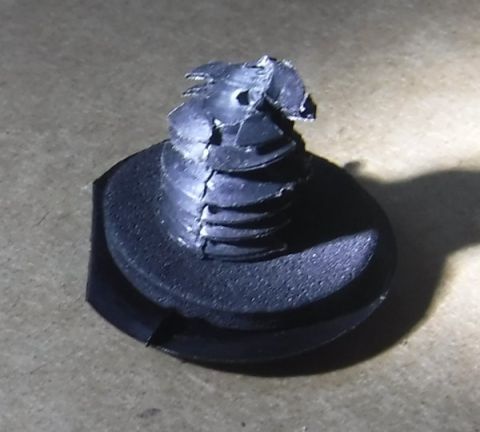

DSCF3216 - rear coupler push pin plug.jpg
30 hits | 43.04 KB | Posted: 7/13/21

Scrounging through my bag of plastic push pins, I found one the perfect size to function as a couple...
DSCF3213 - sealed pressure switch.jpg
26 hits | 69.35 KB | Posted: 7/13/21

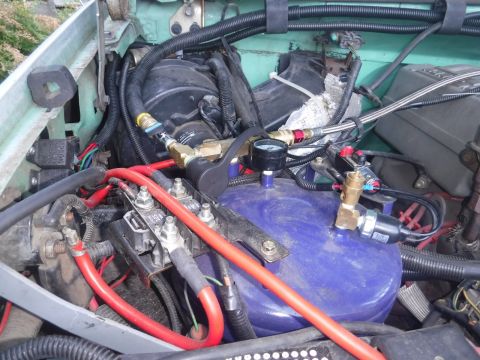

Having recently learned of sealed pressure switches -- no danger of moisture causing a short across ...
