BW1356 Manual swap

From 1987 Ford Bronco “Nacho”, documented by Joey Stokes.

33 photos
← Back to this vehicle

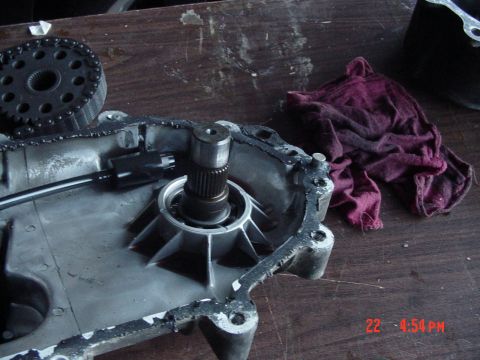

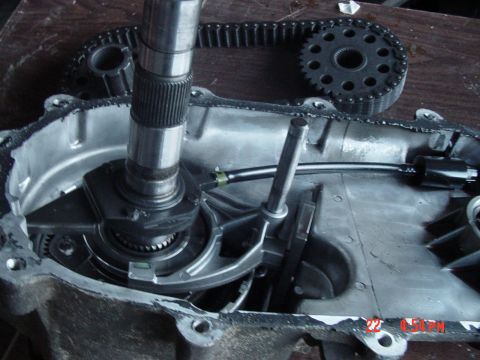

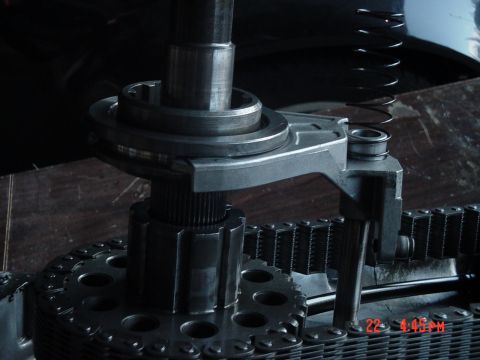

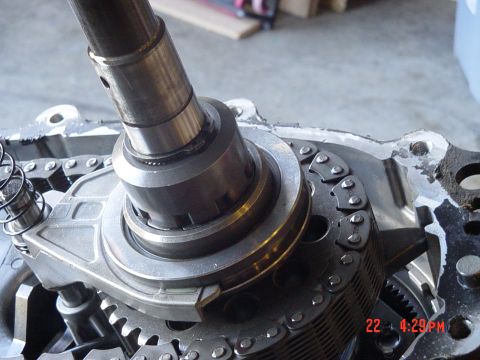

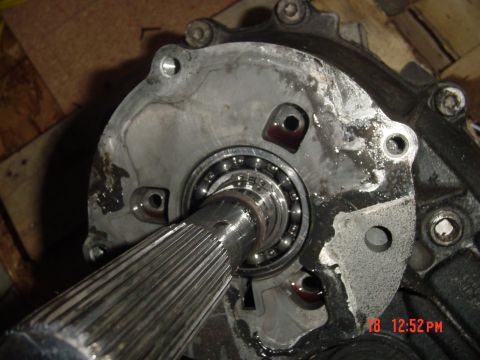

1987 Ford Bronco - shift linkage for a 88ZF, still waiting to see if it might be the right length. 1987 Ford Bronco - theres the beauty, cant wait to intstall it. im going to need to swap out the tail shafts though, id much rather keep my fixed yoke and sho… 1987 Ford Bronco - shot of the PTO hookup i will now have, im goin to do some research and see if it would be worth it to run a PTO winch. 1987 Ford Bronco - woohooo! the case is home, time to tear into it 1987 Ford Bronco - A black cast-aluminum transfer case sits strapped down with yellow ratchet straps on a wooden pallet outdoors. One output shaft/yoke area i… 1987 Ford Bronco - ready to go under the knife 1987 Ford Bronco - my tools where starting to rust its been so long since i had to tear into the rig. 1987 Ford Bronco - Remove the 4 torqx bolts then the tailshaft cover comes off to reveal the vss gear and some kinda rubber gaurd 1987 Ford Bronco - worm gear and c-clip removed, just remove the clip right infront of the bearing and then you can reomve the rest of the cover. 1987 Ford Bronco - reference pic 1987 Ford Bronco - nextr 10 or so pics are for reference (in case if i get stuck) 1987 Ford Bronco - Close-up of a metal cylindrical component, likely a transfer case shaft or bearing area, seated on a perforated cast-metal plate with multi… 1987 Ford Bronco - Close-up of transfer case internals during teardown, showing the drive sprocket on a splined shaft with its wide multi-row silent chain sti… 1987 Ford Bronco - A chain-drive transfer case opened for teardown, with one aluminum case half face-up on the bench, the splined output shaft standing uprigh… 1987 Ford Bronco - A transfer case torn down on a workbench, showing the case half with old sealant on the mating surface, the output shaft and internal oil-p… 1987 Ford Bronco - A transfer case drive chain looped around its two splined sprockets, removed and laid flat on a dark workbench during a teardown. A camera… 1987 Ford Bronco - A long splined transfer case shaft with a bearing retainer plate and toothed tone ring lies on a workbench during a teardown, with a shop r… 1987 Ford Bronco - Extreme close-up of a disassembled transfer case or transmission output shaft, showing the polished bearing journals, splines and a machine… 1987 Ford Bronco - Close-up looking into a partially disassembled transfer case, showing the planetary low-range reduction assembly seated inside its toothed… 1987 Ford Bronco - Extreme close-up inside an opened aluminum transfer case during teardown, showing a shift fork and shaft, the oil pump housing and gear tee… 1987 Ford Bronco - theres the planetery, im not tearing it down past this, i have a hunch this case has been rebuilt before, so i only am going to worry about… 1987 Ford Bronco - theres the stupid little c clip that i lost in the planetary. 1987 Ford Bronco - oil pump 1987 Ford Bronco - Round machined steel retainer plate with five bolt holes lying on a wooden workbench, with a small two-piece shaft coupler resting across i… 1987 Ford Bronco - close-up 1987 Ford Bronco - Disassembled transfer case interior showing the internal output shaft with splines, planetary gears, and a chain-drive sprocket, laid open… 1987 Ford Bronco - Close-up of transfer-case parts during a teardown on a wooden workbench: a case section with a bearing sits over a large toothed drive spro… 1987 Ford Bronco - Close-up of a C-shaped cast-aluminum shift fork with pale green wear pads on both tips, laid on a dark surface; the filename suggests it is… 1987 Ford Bronco - Out-of-focus close-up of a small white nylon bushing-style fitting with a notched top and flanged base, photographed on a dark surface with… 1987 Ford Bronco - A small white plastic clip or retainer with a slotted, ribbed body photographed alone on a dark surface, badly out of focus. A red camera d… 1987 Ford Bronco - Close-up of a small part held between fingers above a computer keyboard: a squared metal block with a keyhole-shaped slot alongside a small… 1987 Ford Bronco - modifyed oilpump arm 1987 Ford Bronco - Close-up of a hand holding a small home-fabricated bare-metal bracket, a T-shaped rod welded to a flat mounting tab with a single bolt hole…
