Opened transfer case half on a workbench with output shaft uprig…
BW1356 Manual swapView all 33

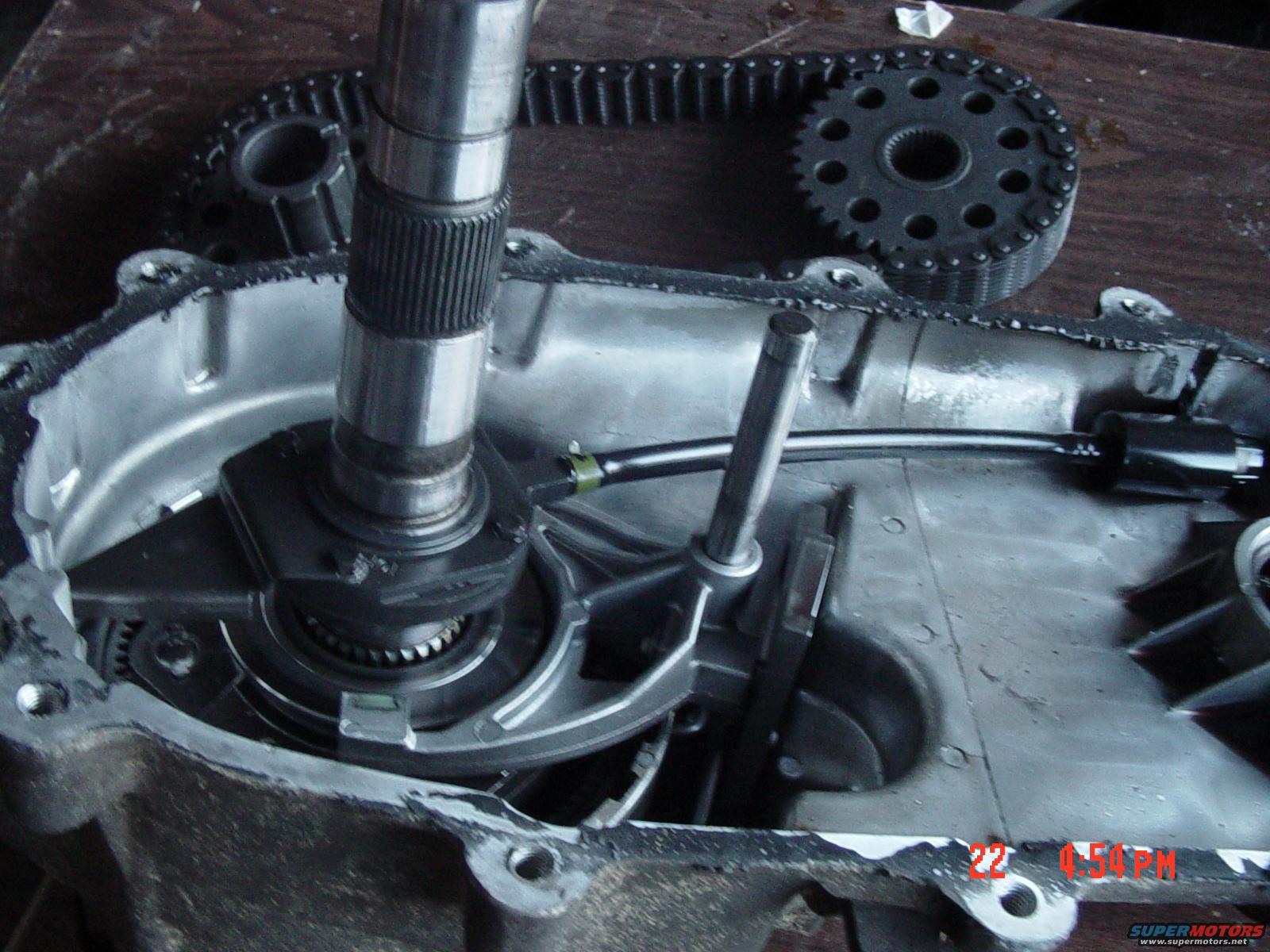

A chain-drive transfer case opened for teardown, with one aluminum case half face-up on the bench, the splined output shaft standing upright, and a shift rail alongside. The drive chain and a removed sprocket lie on the dark wood workbench above the case.
