Rear Bumper and backup lights

From 1986 Ford Bronco “The Mall-Crawler” — documented by Gacknar.

24 photos
← Back to this vehicle

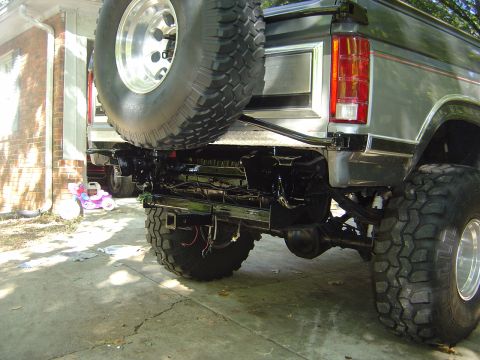

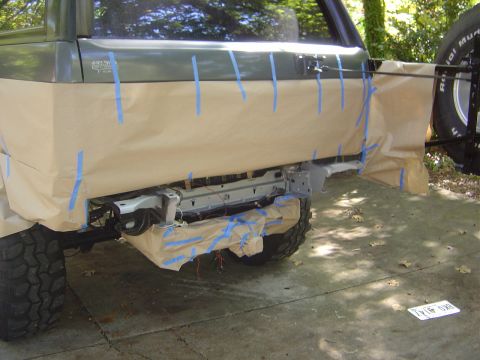

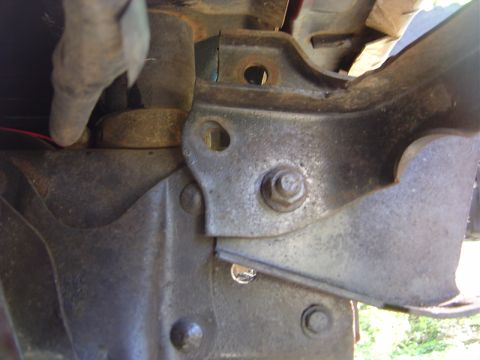

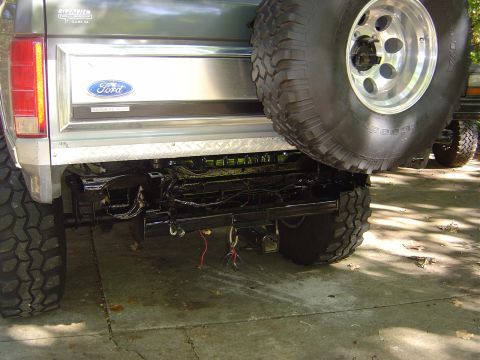

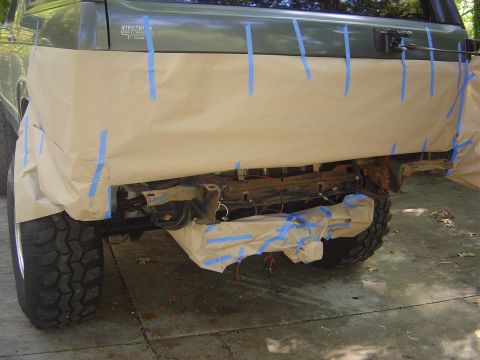

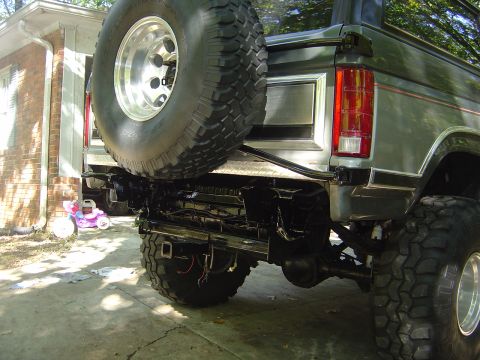

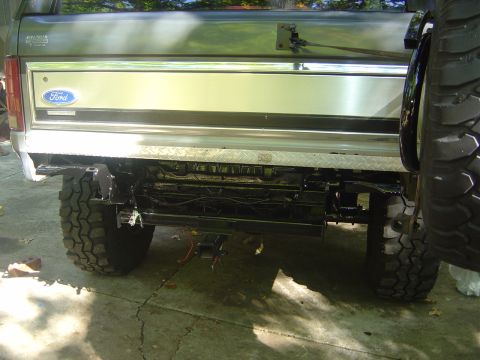

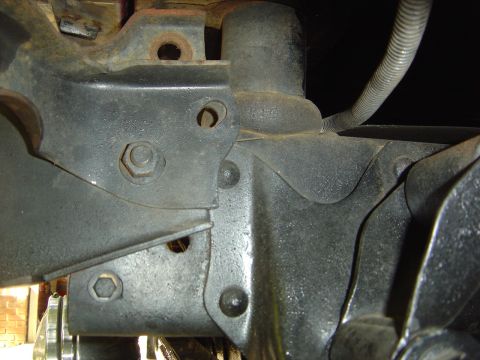

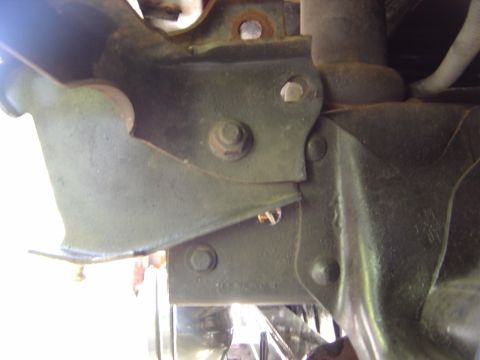

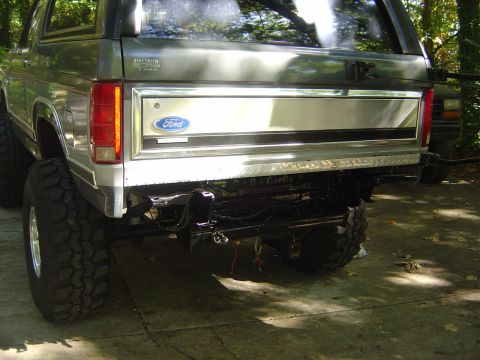

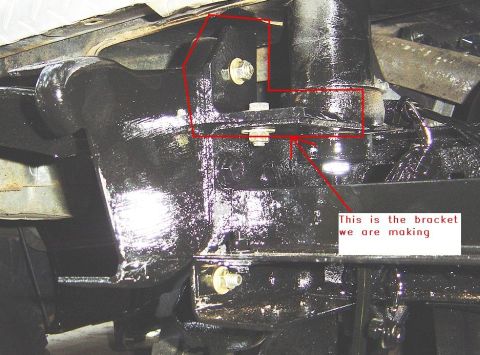

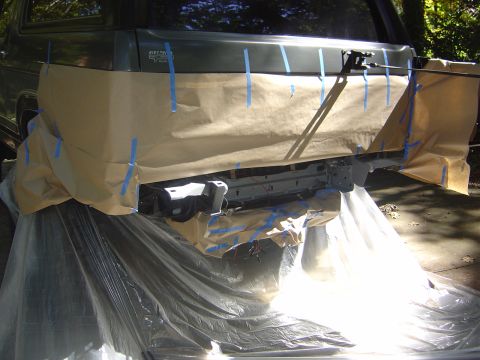

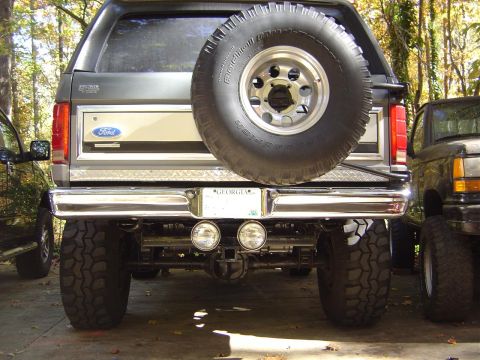

1986 Ford Bronco - Old backup light bracket made from the sheet metal light display rack discarded by Advance Auto parts back in the "90s Also note each… 1986 Ford Bronco - Side view of drivers side bracket. To move the smoothie bumper up to match the body lift I placed the bottom hole in the bumper bracket in… 1986 Ford Bronco - Pass side showing same raised bracket with one bolt halding it to the frame. 1986 Ford Bronco - Another view of the pass side showing same raised bracket with one bolt holding it to the frame. 1986 Ford Bronco - Any time I expose an area on the Bronco I rust proof that area. Here we are taping off to prevent over spray. 1986 Ford Bronco - I then brushed on a silver rust encapsulating paint. 1986 Ford Bronco - Remember, over spray is ugly and can be avoided with a little work. 1986 Ford Bronco - The finished product after being sprayed with a 2-part polyurethane. 1986 Ford Bronco - Rear view of a lifted silver Ford Bronco, showing the bumper area and chrome trim with a Ford logo. 1986 Ford Bronco - Rear view of a 1986 Ford Bronco, showing the bumper, spare tire, and Ford badging. 1986 Ford Bronco - Rear view of a lifted Ford Bronco, showing the bumper, spare tire, and suspension. 1986 Ford Bronco - The rear of a lifted SUV is shown, a spare tire and custom bumper modifications. 1986 Ford Bronco - New backup light mount made from 1/8" angled steel. 1986 Ford Bronco - New backup light mount made from 1/8 inch angled steel. 1986 Ford Bronco - 1/4inch angled steel connecting the top of the frame to the upper bolt in the bumper bracket. 1986 Ford Bronco - 1/4" angled steel connecting the top of the frame to the upper bolt in the bumper bracket. 1986 Ford Bronco - Close-up view of a custom-fabricated rear bumper bracket, highlighted with a red outline. 1986 Ford Bronco - Undimensioned CAD orthographic and isometric views of a fabricated angle bracket with mounting holes. 1986 Ford Bronco - A detached metal trim piece rests on a concrete surface, surrounded by scattered autumn leaves. 1986 Ford Bronco - A detached vehicle bumper section lies on a concrete surface with fallen leaves. 1986 Ford Bronco - Rear view of a 1986 Ford Bronco showing the bumper, hitch, and auxiliary lights. 1986 Ford Bronco - The rear of a vehicle is shown, a hitch receiver and diamond plate trim, with a utility knife and tape nearby. 1986 Ford Bronco - The rear of a gray Ford Bronco is shown with a spare tire mounted and a chrome bumper. 1986 Ford Bronco - Rear view of a lifted 1986 Ford Bronco, a spare tire on the tailgate and a chrome bumper with auxiliary lights.
