Lifting to 6"

From 1988 Ford Bronco “da Money Pit”, documented by Ironclad.

27 photos
← Back to this vehicle

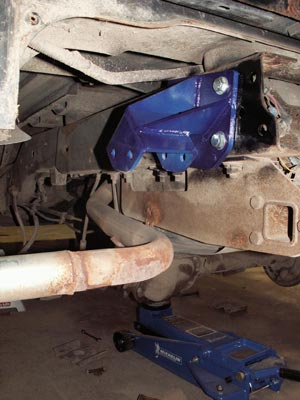

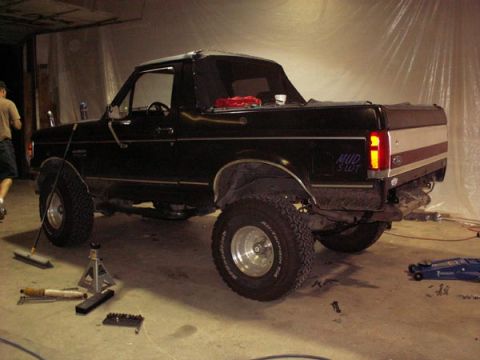

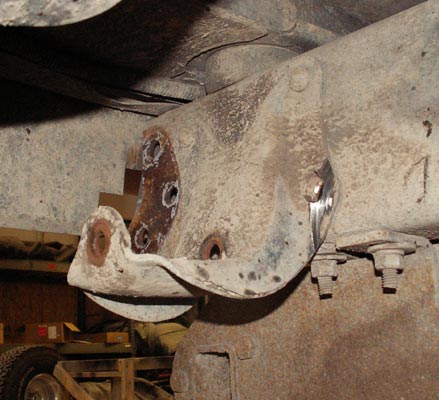

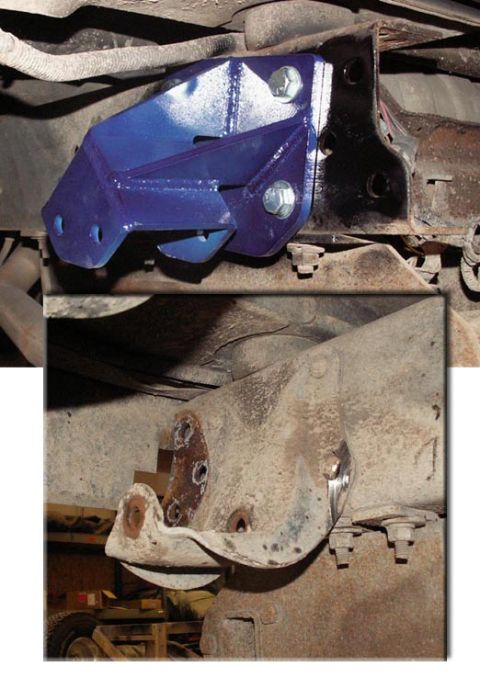

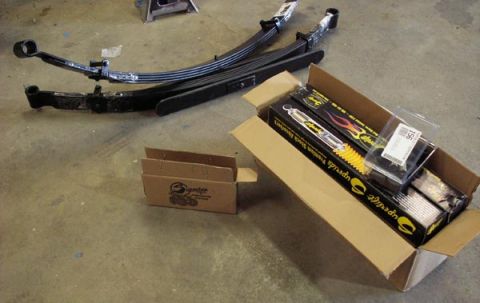

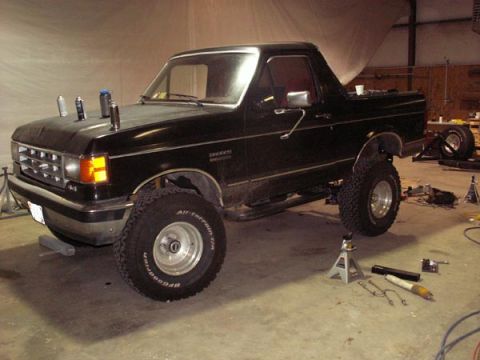

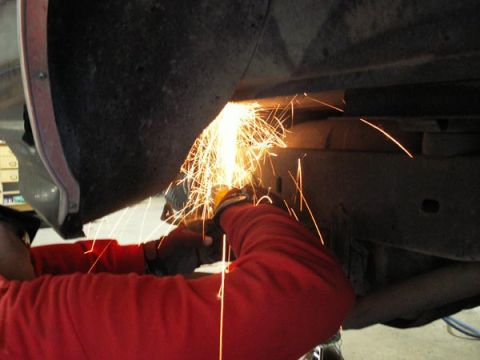

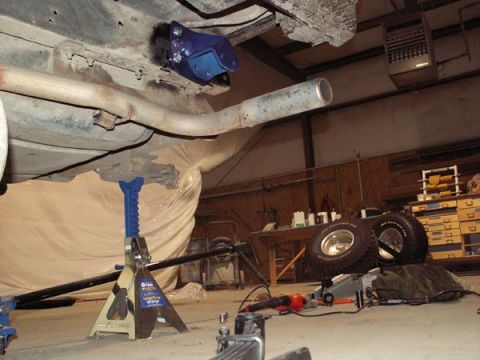

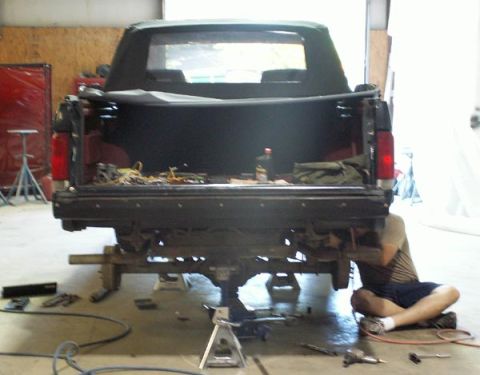

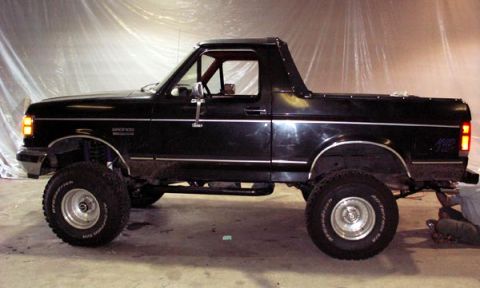

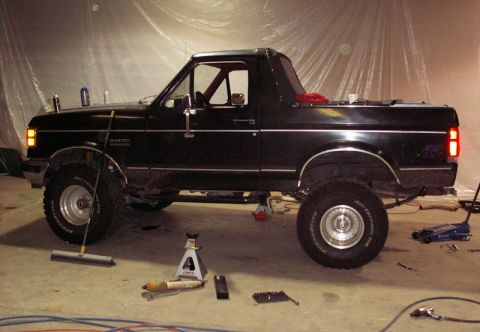

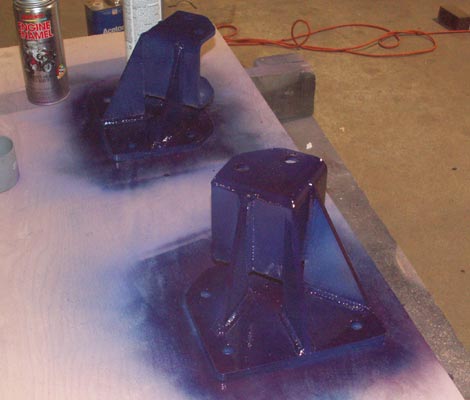

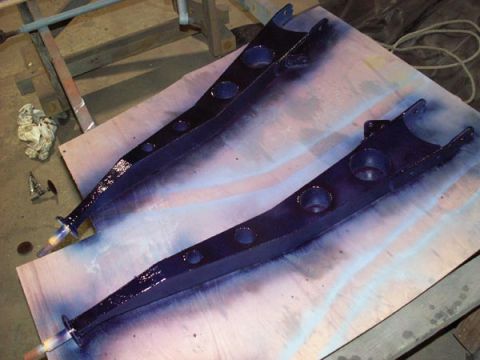

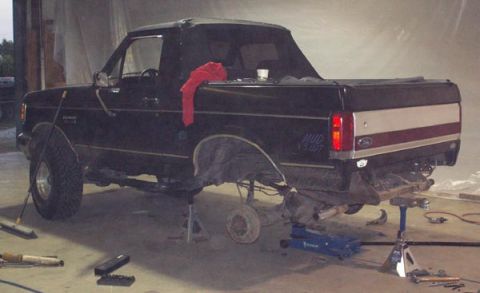

1988 Ford Bronco - Super Lift 6" lift rear springs. SL's six inch springs give 4.5" of lift. Go figure? 1988 Ford Bronco - I bought these extended radius arms from a fellow FSB'er last fall. They've been waiting while I ammased the rest of the parts from going f… 1988 Ford Bronco - Sky shackle flip brackets. Man oh man are these things built! 1988 Ford Bronco - CSN.Rebel lending an ever so helpful hand. Jeff is a great friend. Goes above and beyond constantly offering up assistance and his expertic… 1988 Ford Bronco - Springs off and rear end resting on the jack. 1988 Ford Bronco - Gotta cut the old brackets off. 1988 Ford Bronco - Not to much of a chore with the right tools. 1988 Ford Bronco - Sky number one is on. 1988 Ford Bronco - Significant difference between the factory bracket and the Sky bracket. 1988 Ford Bronco - Yep.... The tail pipe is gonna cause problems. Both sides (true duals) have to be cut and modified. 1988 Ford Bronco - We got on a roll after getting the brackets on so no pics of the springs going on. But here's a front viewwith the rear all back together.… 1988 Ford Bronco - Tomorrow...... we do the front. 1988 Ford Bronco - The reason I'm lifting it another two inches is that my 35" rub the back side of the fender when the wheels are turned and she dips. Some t… 1988 Ford Bronco - I've got a "Big Mike" rear bumper. The Sky brackets are bolted on through the factory holes. The size of the bracket means the bumper brack… 1988 Ford Bronco - Two black coil springs laid side by side on a concrete floor for comparison, labeled with red overlay text reading 6" on the taller top spr… 1988 Ford Bronco - Side view of a black full-size Bronco in a plastic-sheeted shop with its hardtop removed and the front fender, inner fender and front wheel… 1988 Ford Bronco - .....da other Jeff comtemplating SNAFU's. 1988 Ford Bronco - A black full-size Ford Bronco sits in a garage with its right front wheel removed and the front end supported on a floor jack and jack stan… 1988 Ford Bronco - Undercarriage view of a vehicle's suspension system, with a forklift in the background. 1988 Ford Bronco - Low-angle shot under a truck on a blue Michelin floor jack, showing a purple-powdercoated radius arm with lightening holes, the front axle,… 1988 Ford Bronco - Right front suspension of a lifted truck torn down in a garage, with a purple-powdercoated radius arm, black coil spring and two purple-boo… 1988 Ford Bronco - Left side is done! 1988 Ford Bronco - Ashley stopped by to check out the progress and took the opportunity to install his G-3 alternator. 1988 Ford Bronco - All back together. 1988 Ford Bronco - Two men stand celebrating beside a freshly painted black lifted full-size Ford Bronco with the top removed, an interior roll bar and white… 1988 Ford Bronco - Two full-size Ford Broncos photographed from directly behind on a gravel lot, each with a heavy rear bumper and a swing-out spare on a whit… 1988 Ford Bronco - A four-panel vertical progression collage of a black full-size Ford Bronco shot from the driver's side, captioned "As bought," "4" Lift on…
