Fan Install Day

From 1986 Ford Bronco “Eddie Bauer” — documented by Sixlitre.

15 photos
← Back to this vehicle

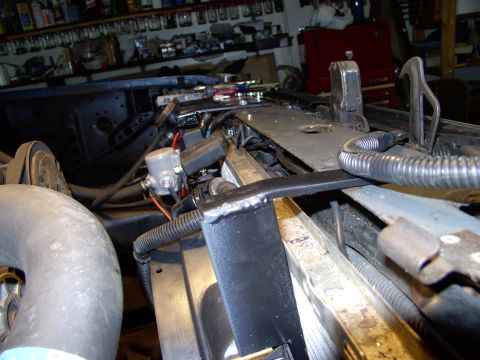

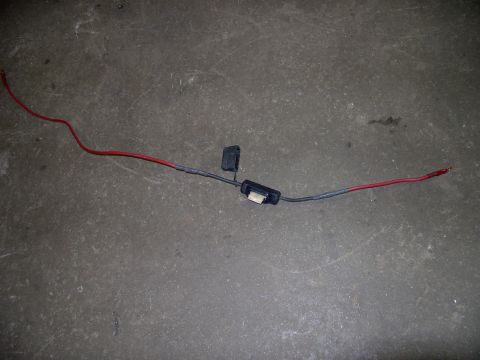

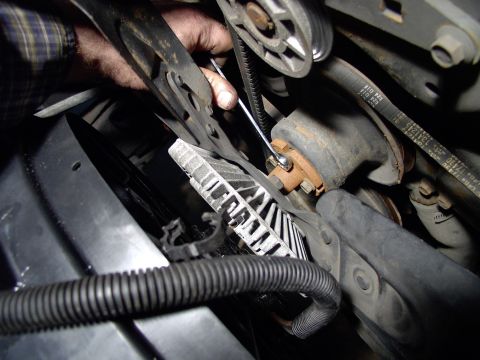

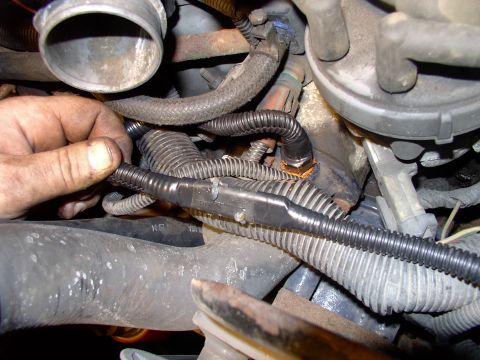

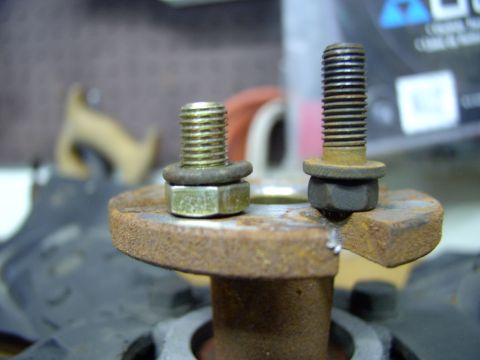

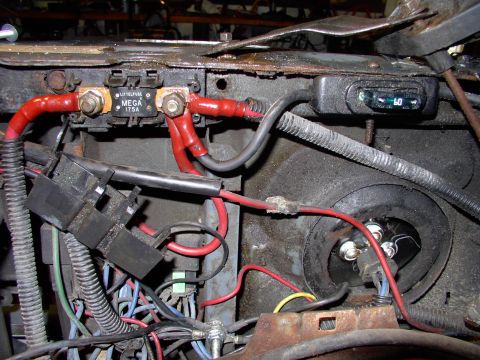

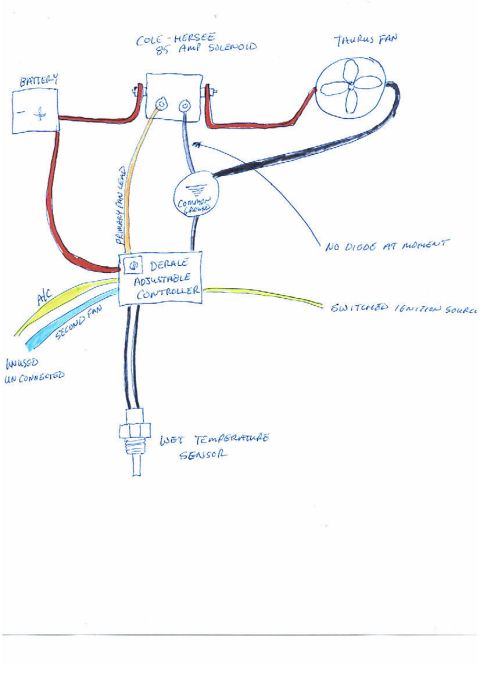

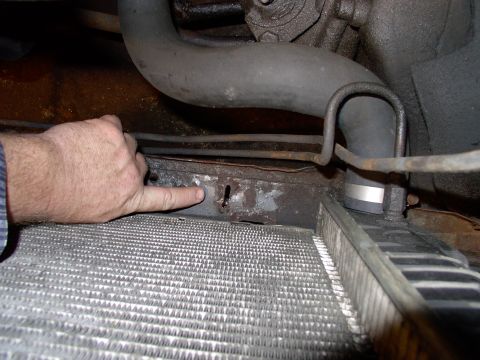

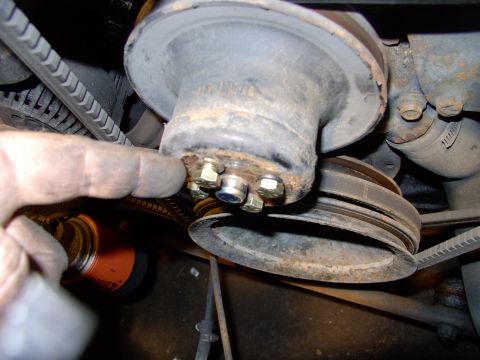

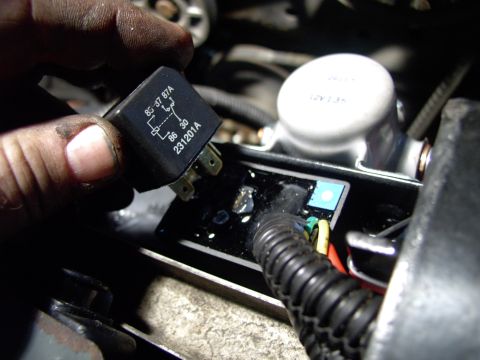

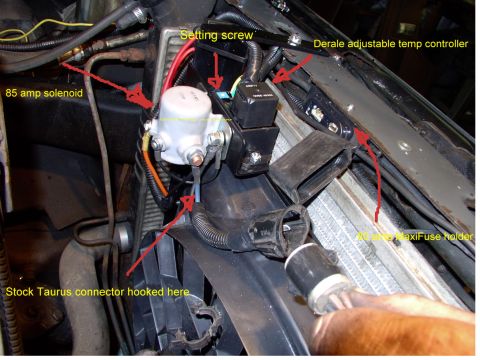

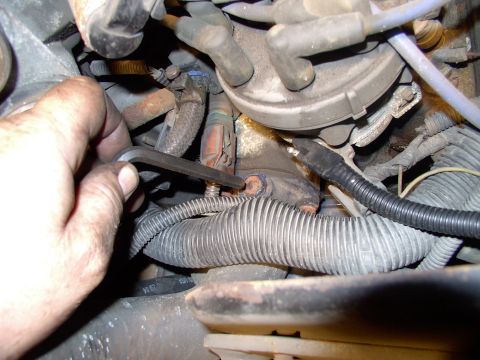

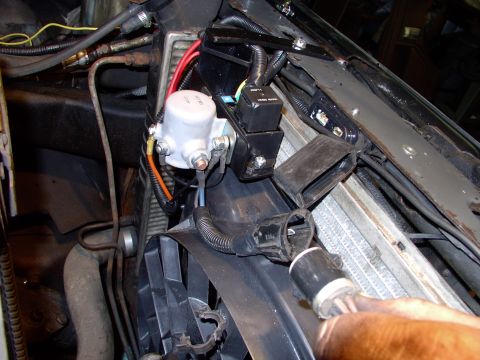

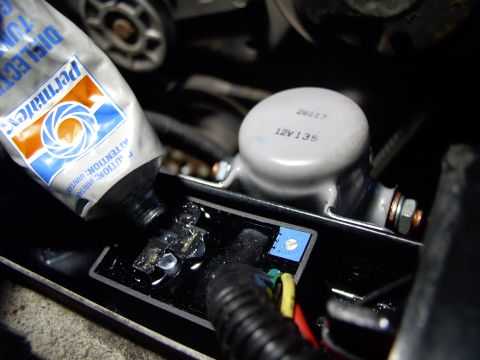

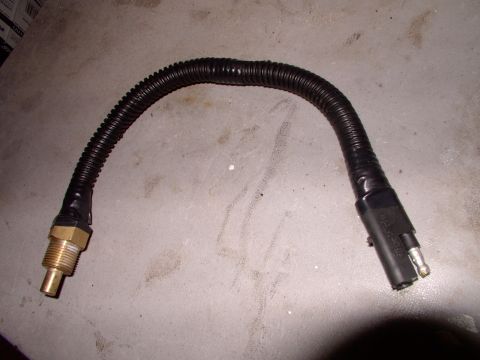

1986 Ford Bronco - Here's one of the slots cut in the lower fan support to accept the tab on the bottom of the angle iron. 1986 Ford Bronco - Here's the MaxiFuse holder with the copper eyelets soldered onto the 6 gauge wires and heat shrink over them. 1986 Ford Bronco - Here's the connection to the right (supply side) of the MegaFuse. It's the 6 gauge in total red. The black wire that goes into the 60 amp M… 1986 Ford Bronco - You can make out the empty MaxiFuse holder for the fan supply just above the rad, tucked under the overhang of the upper rad support. The r… 1986 Ford Bronco - Stuffing the relay sockets on the adjustable controller full of dielectric grease. Great shot of adjustable white slot inside the blue squa… 1986 Ford Bronco - Relay for adjustable controller being pressed in. 1986 Ford Bronco - I cut and lengthened the supplied wet sensor's wires to reach the T-stat housing, which has a threaded provision. The taped on wiring convo… 1986 Ford Bronco - Here's where the sensor will thread into. 1986 Ford Bronco - Here's the the quick disconnect all together and stuffed full of dielectric grease. The sensor, behind it is coated in sealant and threaded… 1986 Ford Bronco - You can just make out one of only two self tapping bolts that hold the framework in place. Note that as low profile as the framework is, th… 1986 Ford Bronco - All this time there has been clearance enough, on an 80-86, to try the new fan, with the old one still in place. Now it's time to yank the… 1986 Ford Bronco - I bought shorter 5/16" UNF-24 (fine thread) bolts to allow for the fan, with it's thick mounting flange, which would be gone. 1986 Ford Bronco - Called it right as you can see these have plenty of shaft to hold the threads but won't stick in too far, like the longer stock bolts would… 1986 Ford Bronco - Here's a pic with descriptions of the components 1986 Ford Bronco - Test diagram
