More RA Stuff 001.jpg
662 hits | 61.9 KB | Posted: 10/15/03

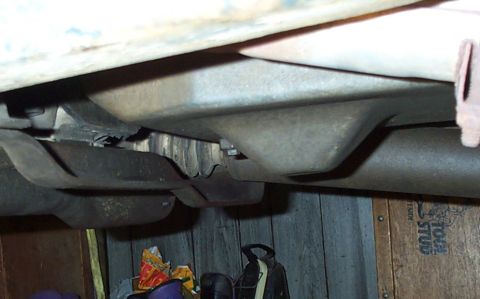

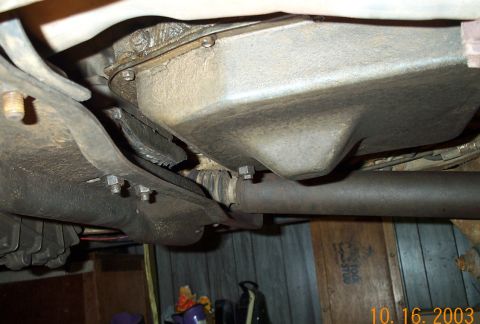

Pic of driveshaft, No Binding @ full droop

More RA Stuff 002.jpg
625 hits | 75.53 KB | Posted: 10/15/03

More RA Stuff 004.jpg
616 hits | 77.63 KB | Posted: 10/15/03

Quads 001.jpg
701 hits | 69.85 KB | Posted: 12/7/03

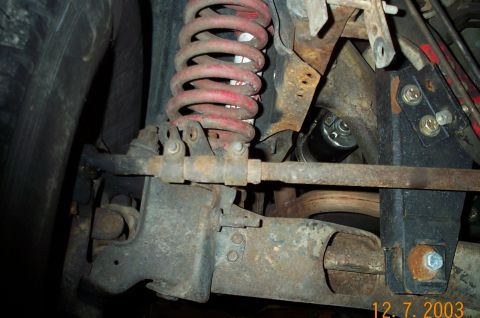

Passenger side TTB has Quad shock mount.

Quads 002.jpg
711 hits | 73.39 KB | Posted: 12/7/03

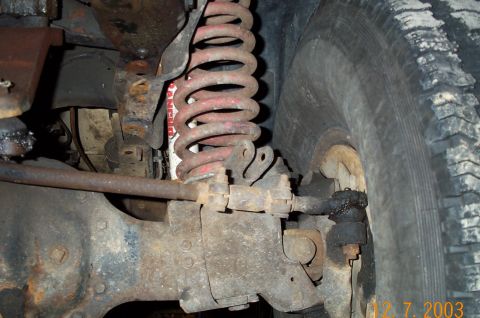

Driver's side TTB doesn't have the shock mount ? wonder why?

632 hits | 96.57 KB | Posted: 1/19/04
Quad Shock Towers and Stock radius arms to extend

6 and4InchSpings.jpg
612 hits | 67.9 KB | Posted: 1/19/04
New 6" lift Spring s to go with the quad towers. I was running 4" springs with lowered towers.

quad 001.jpg
603 hits | 67.96 KB | Posted: 2/16/04
6"springs with quad shock towers installed

quad 004.jpg
610 hits | 59.52 KB | Posted: 2/16/04

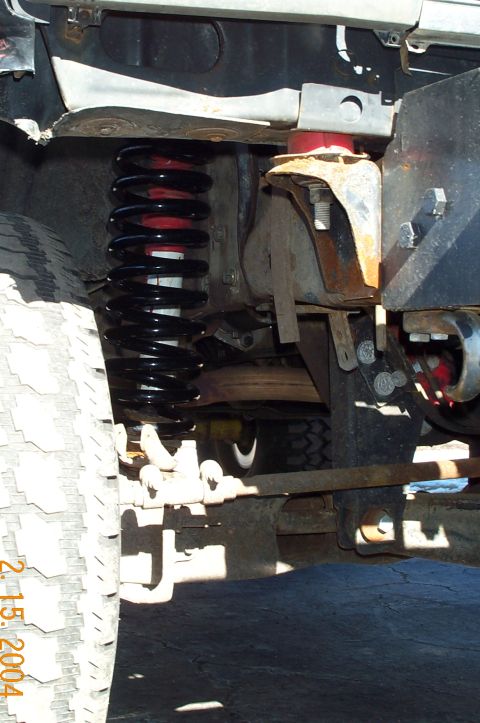

Passenger 6" Superlift coil and new quad shock tower

quad 005.jpg
621 hits | 62.77 KB | Posted: 2/16/04

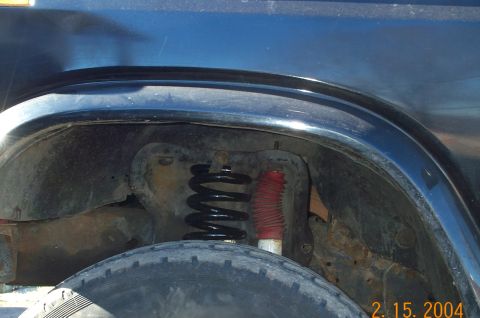

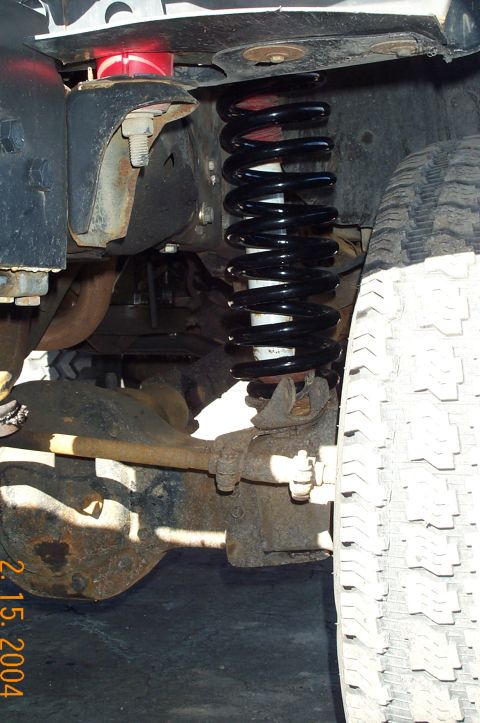

Driver's 6" Superlift coil and new quad shock tower

quad 006.jpg
591 hits | 46.36 KB | Posted: 2/16/04
Driver's 6" Superlift coil and new quad shock tower

quad 007.jpg
636 hits | 65.05 KB | Posted: 2/16/04

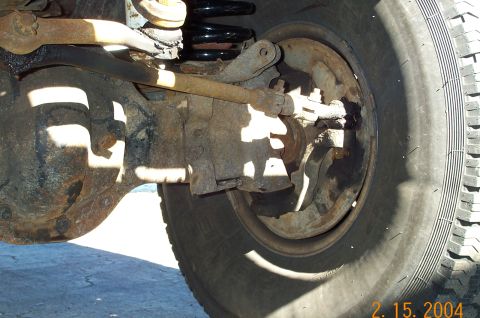

Wonder why no shock mount on this side of the TTB?

quad 008.jpg
623 hits | 69.29 KB | Posted: 2/16/04

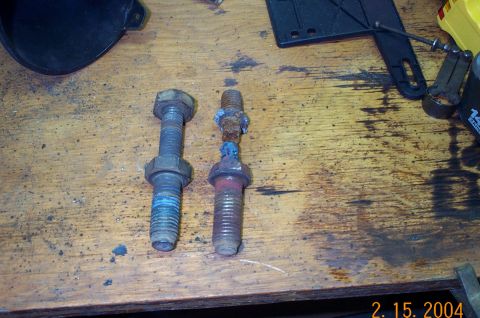

New coil spring retainer bolt compared to old rusty broken one!

Shock mount 001.jpg
611 hits | 53.96 KB | Posted: 4/26/04

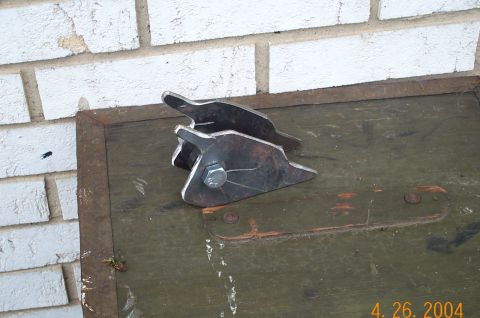

Shock Mount to hold front shock of driver's side axle.

Shock mount 002.jpg
647 hits | 53.76 KB | Posted: 4/26/04

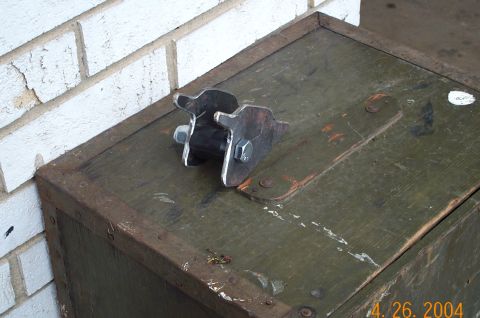

This mount is shpaed to fit onto the strap where the lower quad shock mount would be if my Bronco ca...

Shock mount 003.jpg
626 hits | 63.91 KB | Posted: 4/26/04

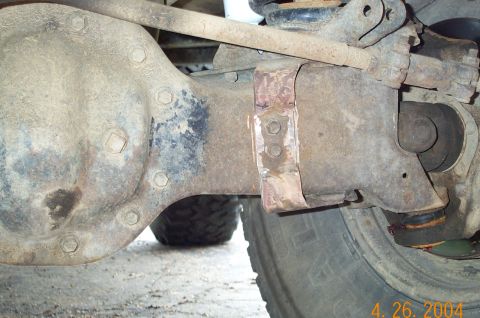

Cleaning the strap before welding the mount

Shock mount 005.jpg
624 hits | 54.36 KB | Posted: 4/26/04

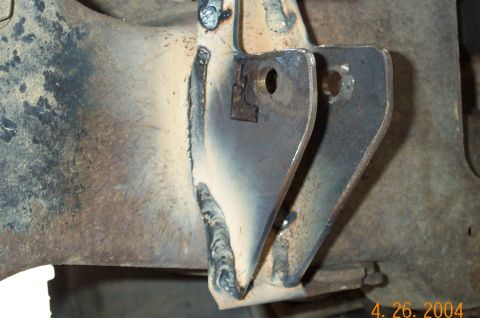

Mount all welded up to the strap.

Shock mount 007.jpg
613 hits | 70.55 KB | Posted: 4/26/04

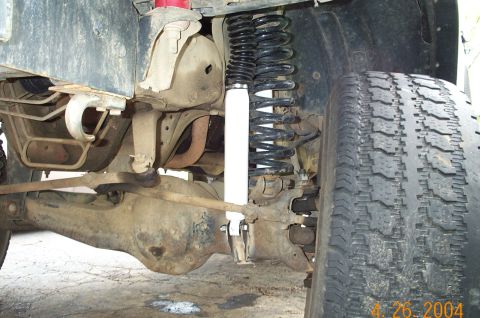

Shock in place

Shock mount 009.jpg
610 hits | 70.83 KB | Posted: 4/26/04

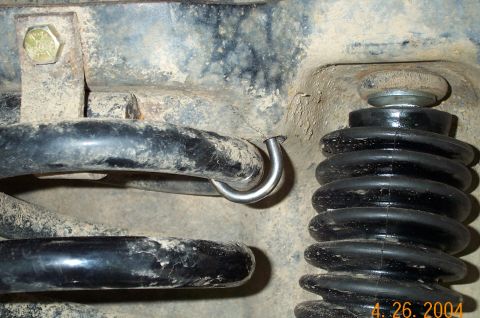

To fix my escaping spring. Just incase.
