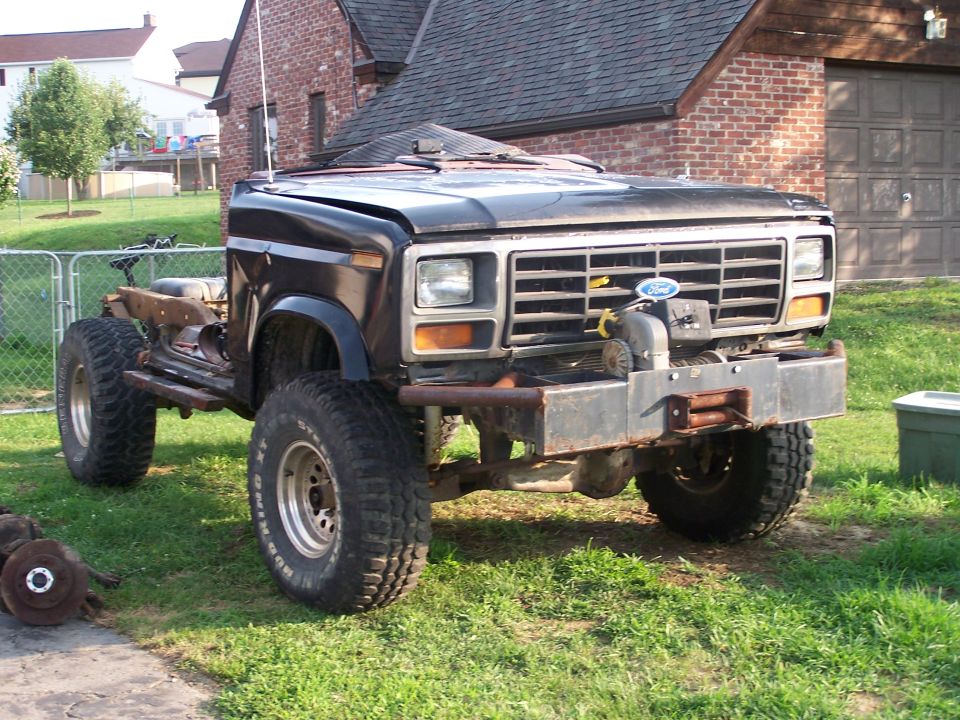

1986 Ford Bronco “TheBull”: 145 photos

The story

6" suspention lift,
8000lb Warn winch in a custom Bumper, rear bumper with built-in receiver.
Knuckel over tierod swap
Rock sliders/side steps, center consol, Herculined rear and tailgate, needs scraped off and CAMO'ED
MTS plastic fuel tank. W/ 1/4" steel skidplate
Dual batteries
130amp Alternator
Dual Electric Fans
Air filter housing from an 87 f150(raised my air intake from my bumper to my hood
On Board Air using a York
Sony Explode MP3 Player · SuperDave77

Day one vs. today

Drag to compare 2006 against 2007.

2006 2007

Photo history

145 photos across 5 years. Drag the dot to travel through this vehicle’s life. Captions are the owner’s; where there isn’t one, the AI caption fills in.

2003

40 photos added · showing 8

1986 Ford Bronco: Here are all the parts. To the left is the stock engine mount bracket for the Power steering pump Top Right i…

1986 Ford Bronco: The motor portion of the bracket.

1986 Ford Bronco: How the Stock Bracket needs to be modified.

1986 Ford Bronco: Saginaw pump and its own bracket. Bolt holes are 3-1/8" apart.

1986 Ford Bronco: Stock Pump with it's bracket. bolt holes are 3-3/8" apart.

1986 Ford Bronco: All done. I just had to turn the oil pressure sending unit so that it was pointing up.

Line-drawing technical diagram of an M1009 utility truck top, front and rear views with camo pattern numbering

Technical line diagram of an M1009 utility truck left side and front views with camo zones and dimensions

2004

71 photos added · showing 8

1986 Ford Bronco: Quad Shock Towers and Stock radius arms to extend

1986 Ford Bronco: New 6" lift Spring s to go with the quad towers. I was running 4" springs with lowered towers.

Front corner of a black Ford pickup or Bronco on jack stands with a winch bumper in a garage

White CB antenna mounted on the tailgate of a black Ford Bronco with FORD BRONCO decal

1986 Ford Bronco: 6" and 4" springs . I will be using the 6" springs with the quad shock towers.

Woman in green shirt holding large tan dog upright against brick fireplace in living room

1986 Ford Bronco: 6"springs with quad shock towers installed

2006

6 photos added

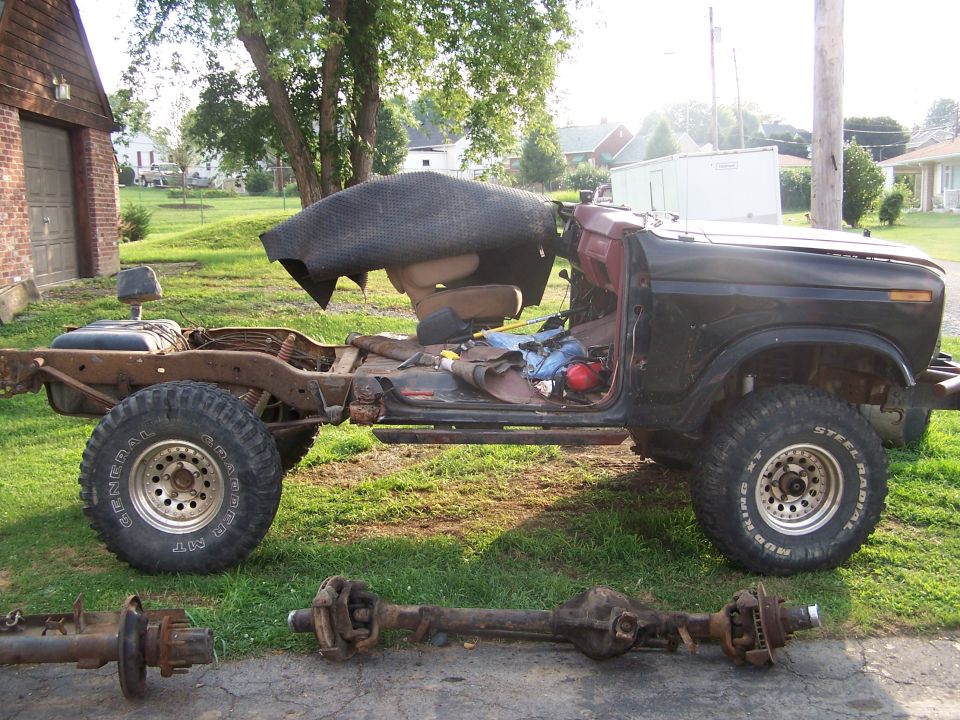

1986 Ford Bronco: Cut at the bottom of the windshield and behind the front seats. I'd like to make it a tube buggy, but I need…

1986 Ford Bronco: Stripped rusty Ford truck frame on mud tires in a yard, body removed, red cab behind

Black Ford Bronco stripped to the frame on a lawn with TTB axle parts laid out in front

Lifted black Ford Bronco stripped to the frame, front bumper winch, mud tires, parked on grass

1986 Ford Bronco: Here is the scrap packed in the back of my Dodge

1986 Ford Bronco: White Dodge Ram 1500 pickup loaded with scrap body panels and a roll bar in the bed

2007

19 photos added · showing 8

1986 Ford Bronco: Mesh pattern on new 4.56 ring ang pinion on the Detroit Locker

Yellow-painted axle housing in a black axle stand under a vehicle

1986 Ford Bronco: Black disc brake caliper bracket bolted to a rusty axle hub under a yellow shop press ram

1986 Ford Bronco: Rusty five-stud wheel hub bolted to a black caliper bracket under a yellow shop press

1986 Ford Bronco: Rusty axle hub and wheel studs under a yellow shop press with a black steel bracket

1986 Ford Bronco: Black U-shaped caliper bracket framing a yellow jack arm, rusty hub flange in foreground

1986 Ford Bronco: Rusty brake caliper with coil-spring parking brake actuator and hose on a yellow jack

1986 Ford Bronco: Rusty disc brake caliper with braided brake hose resting on a yellow floor jack

2010

9 photos added · showing 8

Black fixed-blade knife in a Kydex sheath with IOMC marked on the handle

Open folding pocket knife lying on dark blue cloth

Folding pocket knife with dark blade lying on a gray cloth

Black knife with textured handle engraved IOMC

Browse all 145 photos

Albums · 16

How the owner organised this build. Open an album for every photo in it.

Saginaw Swap 6 photos

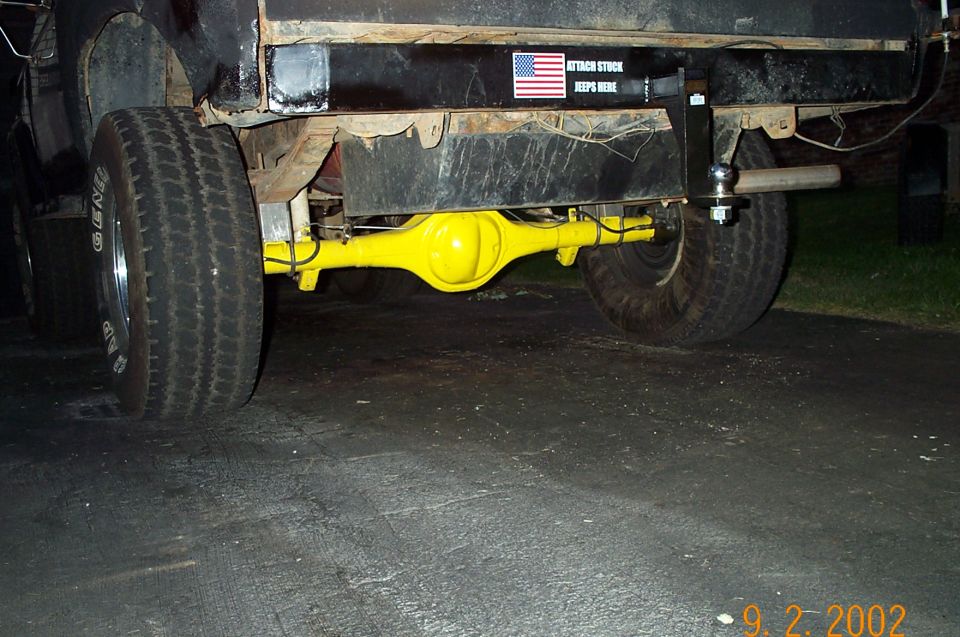

9" Rear Axle 19 photos

Camo Painting 6 photos

Front Suspention 19 photos

Casparis3/14/04 34 photos

Casparis4/10/04 1 photo
