Bronco Brake Job

From 1986 Ford Bronco “Dylans 86 XLT” — documented by Dylan Corbett.

19 photos
← Back to this vehicle

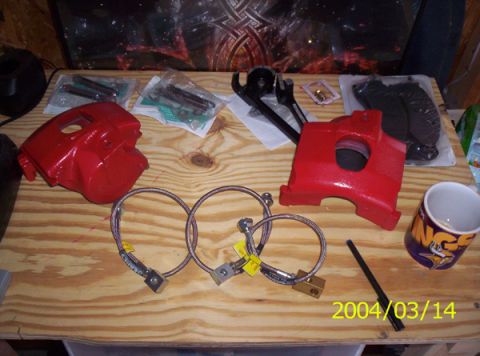

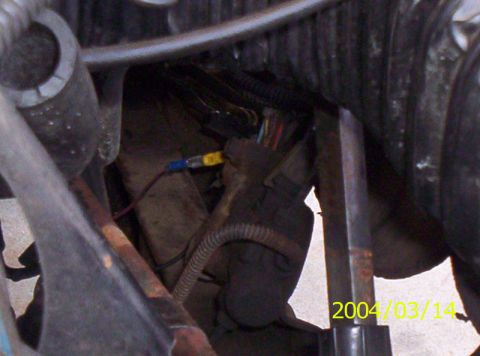

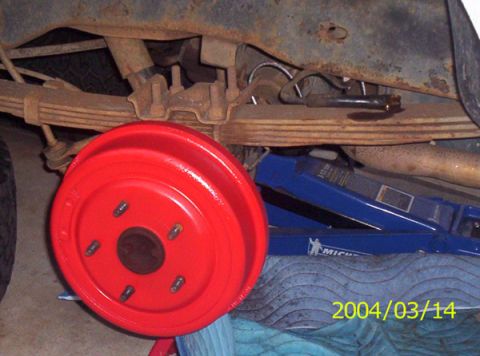

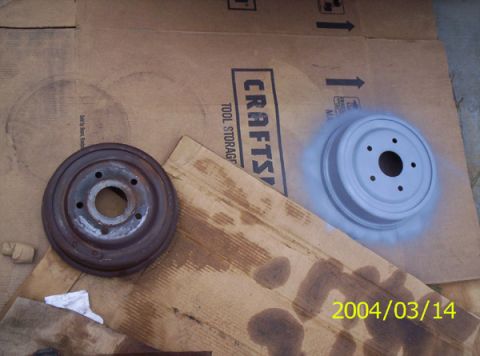

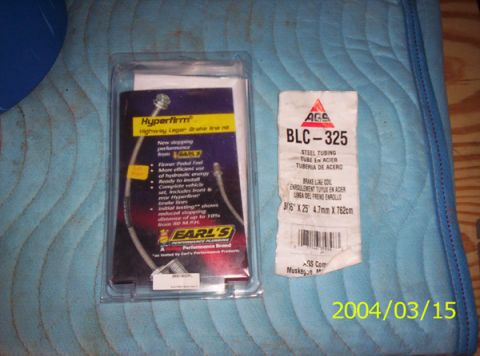

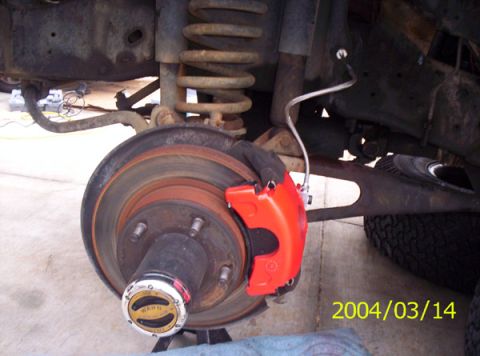

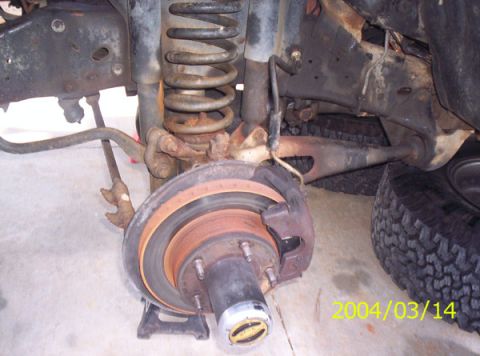

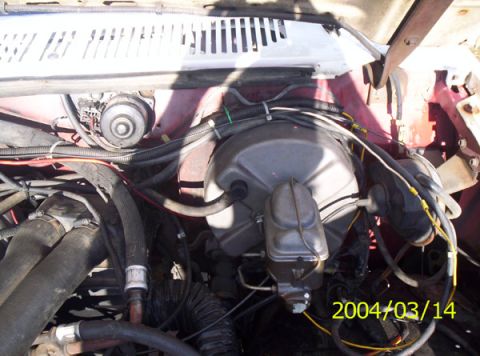

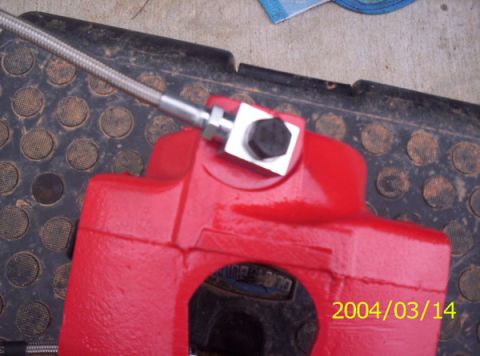

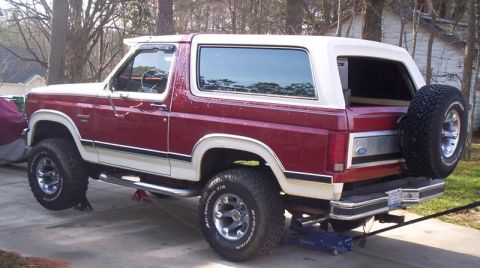

1986 Ford Bronco - I took this time to do a few things. This is just how the truck looked before I redid almost the entire braking system. MC, all the way to… 1986 Ford Bronco - This is where it all started. I was getting that dreaded air leak when applying brakes. I decided to go with the Booster from Advanced Auto… 1986 Ford Bronco - When doing the Booster, I noticed the brake line on my right front wheel was ripped. It wasn't leaking, but I decided since I did the MC, I… 1986 Ford Bronco - When doing my booster, I noticed the brake line on my right front wheel was ripped. It wasn't leaking, but I decided since I did the MC, I… 1986 Ford Bronco - This is the stainless steel flex lines I used, and the hard line. I believe it was 25 ft, and this stuff is bendable. MUCH Easier than tryi… 1986 Ford Bronco - Heres a shot of the proportioning (sp?) valve. Its where the lines from the MC run to. It shouldn't be hard to find. I found it easier goin… 1986 Ford Bronco - I just had to put in a plug for my christmas present. Thanks baby!! ::rockon 1986 Ford Bronco - Okay, heres some pictures of what the wheels looked like before everything, lets just hope it all turns out.. 1986 Ford Bronco - This is what the rears looked like. In order to swap out the Wheel cylinders, you are going to have to take these off. They did take a litt… 1986 Ford Bronco - I figure nows a good time to paint everything.. Ricer huh?!? I don't really care ::goodfinge 1986 Ford Bronco - Here's where the 2 lines connect, and then go to 1 line in the front. This is the only place for a rear braided line. The ones going to eac… 1986 Ford Bronco - Install the new braided line... 1986 Ford Bronco - Now this is just a picture I found on the camera when dling the pics. Its my roomates, girlfriends, brother (say that 10 times fast) Sorry… 1986 Ford Bronco - Heres the lines attached to the caliper. Make sure not to overtighten the bolt. You don't want to strip those threads. 1986 Ford Bronco - Right before going back on the truck. 1986 Ford Bronco - The caliper on the rotor, and the braided line connected to the line coming from the MC.I went ahead and put new pads on while I was down t… 1986 Ford Bronco - Rear drum on. 1986 Ford Bronco - Rear wheel on 1986 Ford Bronco - All done. bleed everything.. and check for leaks. You should be good to go.
