Onboard Air (OBA)-belt driven-Not York

From 1995 Ford Bronco “Shadofax”, documented by Mark Zoelch.

60 photos
← Back to this vehicle

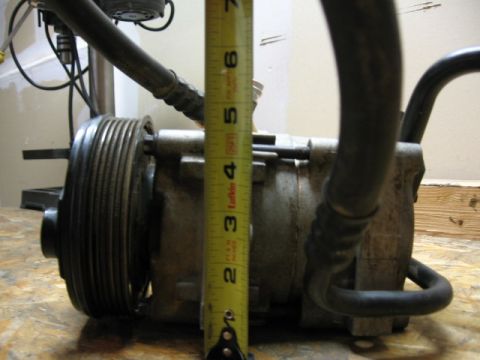

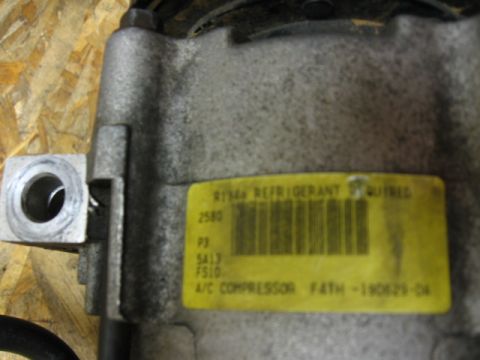

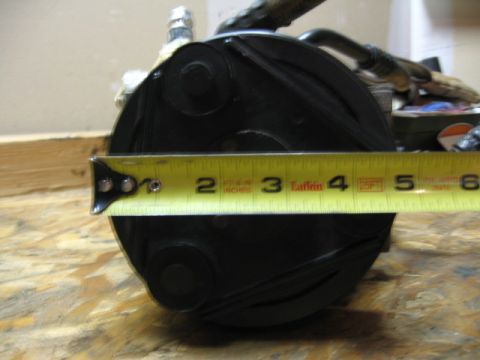

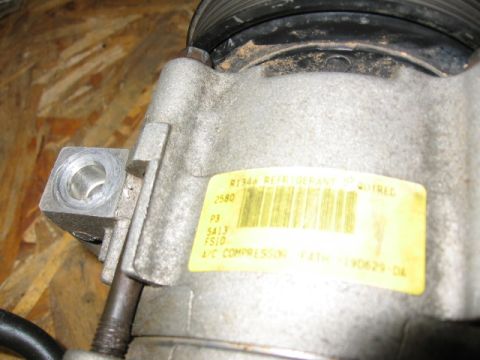

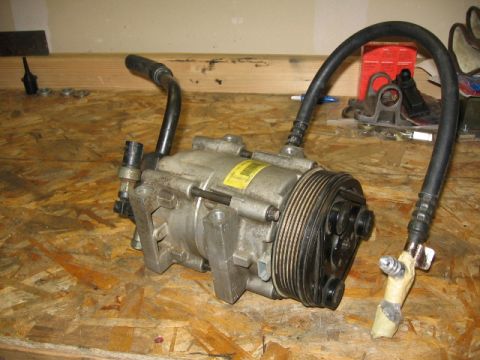

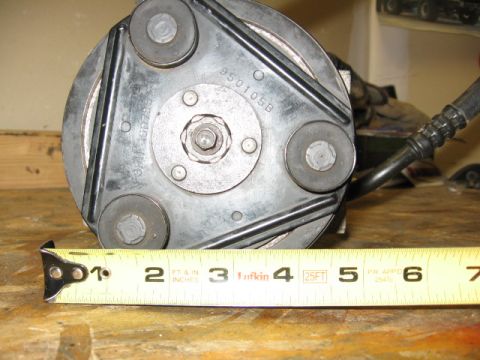

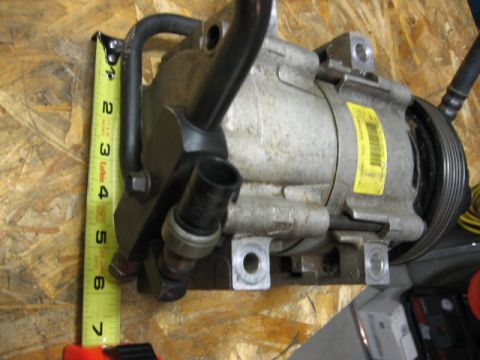

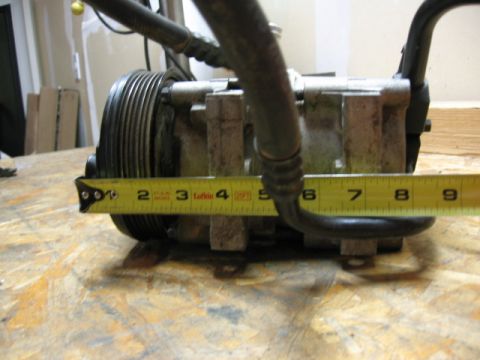

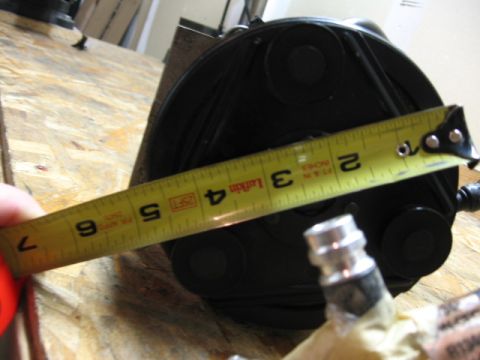

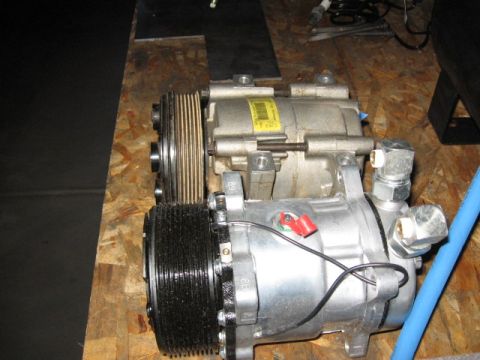

1995 Ford Bronco - All the pics for now are just of the stock '95 compressor I removed. The idea is to use this location and put another compressor in there f… 1995 Ford Bronco - Close-up of an aluminum A/C compressor with a yellow specification label reading 'R134a Refrigerant Required' and part number info includin… 1995 Ford Bronco - Close-up of an aluminum A/C compressor with a yellow label reading 'R134a REFRIGERANT REQUIRED' and 'A/C COMPRESSOR F4TH-19D629-DA' with a… 1995 Ford Bronco - An automotive A/C compressor removed from the vehicle, sitting on a plywood workbench with a yellow tape measure showing it spans roughly 6… 1995 Ford Bronco - A black cylindrical automotive part, likely an A/C compressor, sits on a plywood workbench with a yellow Lufkin tape measure held across it… 1995 Ford Bronco - Front view of an automotive A/C compressor with its black clutch pulley and central hub, marked with casting number '950105B', resting on a… 1995 Ford Bronco - A black automotive A/C compressor with attached refrigerant fittings and hoses, laid on a plywood surface with a yellow Lufkin tape measure… 1995 Ford Bronco - An automotive A/C compressor with a ribbed serpentine clutch pulley, sitting on a workbench with a yellow Lufkin tape measure standing vert… 1995 Ford Bronco - An automotive A/C compressor with a ribbed serpentine pulley and attached refrigerant lines, resting on a paint-stained plywood workbench.… 1995 Ford Bronco - so you prob. got bored with the stock AC pics wondering WTF? Here is the kit I ordered, with the stock AC at left against my new OBA compre… 1995 Ford Bronco - Blue hose for high temp output, and manifold, pressure switch, 1 way valve, and blow off. 1995 Ford Bronco - another view of the compressors side by side. What's that red thing/nipple up top? 1995 Ford Bronco - another view. This baby uses redline grease for lube. There is no blow by to catch, it's simple compressed air out to the tank. rated a lit… 1995 Ford Bronco - so there you go, that's the kit. I plan a full install writeup on fullsizebronco.com which will include the few other little misc. items I… 1995 Ford Bronco - Schematic of an onboard air system showing compressor, air tank, hoses and gauges with a numbered component legend. 1995 Ford Bronco - Under-hood view of a newly installed silver A/C compressor with a black serpentine pulley, mounted low near the engine block. Red ignition… 1995 Ford Bronco - Close-up of an engine bay showing a silver AC compressor with a multi-groove serpentine pulley and a red service port cap, next to a black… 1995 Ford Bronco - Close-up of an engine bay showing a newly installed black A/C compressor with a clutch pulley, surrounded by blue-wrapped hoses, wiring, a… 1995 Ford Bronco - Engine bay view of a light-colored vehicle showing blue and black vacuum/coolant hoses, a black component with a 'Stop' warning sticker, an… 1995 Ford Bronco - Under-hood engine bay view of a white Ford, showing the black ribbed air intake tube, plastic engine cover with warning decals, blue-marked… 1995 Ford Bronco - Close-up of an engine bay showing twin black accordion-style intake tubes with a red-and-white 'STOP DO NOT DISCARD' warning label, alongsi… 1995 Ford Bronco - Close-up of a newly installed black-clutch A/C compressor with a multi-groove serpentine pulley, mounted low in the engine bay behind a lar… 1995 Ford Bronco - manifold up on drivers side by hood hinge. 1995 Ford Bronco - Little brass plug over on the engine intake box will be the filtered intake for the compressor. Plug has like a 1" catch on the inside and… 1995 Ford Bronco - 1/2" ID CPVC tube painted black 1995 Ford Bronco - Close-up of an engine bay showing a newly installed A/C compressor with braided black hoses, blue-jacketed wiring, and a brake master cylin… 1995 Ford Bronco - Engine bay view of a vehicle showing black plastic air intake ducting with two large round openings, a translucent brake master cylinder re… 1995 Ford Bronco - Engine bay view showing two large black ribbed intake tubes running down the center, with blue spark plug wires and yellow-tagged accessory… 1995 Ford Bronco - Several brass hose barb fittings and a stainless steel worm-gear hose clamp laid out on a wood table, with a hand holding a yellow pencil o… 1995 Ford Bronco - Several brass hose fittings laid out on a dark wood-grain surface, including two ribbed barb connectors on the left and two hex-bodied thre… 1995 Ford Bronco - Interior cargo area of an SUV with the rear seats folded or removed, showing tan carpet and trim, a folding table or panel, a moving blanke… 1995 Ford Bronco - Interior rear cargo area of a tan/beige SUV with folded towels laid over the flat floor, a coiled bright green hose or cable on the carpet,… 1995 Ford Bronco - Underbody view of a vehicle showing the exhaust system, including a tan/silver muffler or catalytic converter connected to a rusty exhaust… 1995 Ford Bronco - Underside view of a vehicle showing a black cylindrical tank (likely an air suspension or onboard air reservoir) mounted to the frame, with… 1995 Ford Bronco - Underside view of a black cylindrical air tank mounted to a vehicle frame rail, with a bright green air line and a shorter black hose fitti… 1995 Ford Bronco - Underside view of a vehicle chassis showing the driveshaft with U-joint, a black shock absorber, frame rail, exhaust pipe with surface rust… 1995 Ford Bronco - Underbody view of a vehicle where a hand points two fingers toward a black cylindrical tank fitted with a brass valve and blue quick-connec… 1995 Ford Bronco - Underbody view of a black cylindrical tank (likely an air or accumulator/receiver tank) with a green braided hose connected at the top fitt… 1995 Ford Bronco - little harbor freight inflator w/gauge I picked up cheap. has a little quick lock at the end so should be very handy in airing up tires qui… 1995 Ford Bronco - switch off and protected 1995 Ford Bronco - switch on. just flip the protector back down to turn off the switch underneath. 1995 Ford Bronco - the little "curtis" hour meter gauge I put in line to monitor "on" time for the compressor so it would help me determine the next time for… 1995 Ford Bronco - front the 4 gal tank under the truck, the green 3/8ths hose feeds up through the floor and into a regulator which I've mounted out of the w… 1995 Ford Bronco - no psi now, but it's regulated to about 90-95psi and then comes out and back to the floor behind the drivers seat. 1995 Ford Bronco - all ready for hookup for airing up, stashed neatly hidden behind drivers seat. 1995 Ford Bronco - lame drawing, but I'm trying to show 2 possible mounting locations for a high idle solenoid. Basically I get one of these, mount it so that… 1995 Ford Bronco - I have the solenoid now, and in testing it, it's as I was told....it only draws a tiny amount of amperage and so it cannot push the throttl… 1995 Ford Bronco - Ok so this is the bracket it's going into. Couple more pics coming on how this mounts by the throttle and where it's wired to. 1995 Ford Bronco - Close-up of an electrical component, likely a solenoid or pressure switch, mounted on a bent metal bracket with a brass fitting protruding… 1995 Ford Bronco - Close-up of a throttle linkage on an engine, showing an aftermarket idle solenoid with a brass-tipped plunger mounted on a small metal brac… 1995 Ford Bronco - Under-hood close-up of a black cylindrical solenoid bolted to a fabricated aluminum bracket with a red jumper wire and blue crimp connector… 1995 Ford Bronco - Close-up of an engine-bay-mounted component on a metal bracket: a fitting secured by a large brass hex nut with a coiled steel-braided air… 1995 Ford Bronco - Engine bay of a fuel-injected Ford 5.8L V8 with the hood up in a garage, showing a bracket-mounted throttle-body actuator wired with red an… 1995 Ford Bronco - after adjusting it, I hit the OBA switch and it turns on, and then I tap the gas pedal and the rpm's settle just above 1550. when the OBA c… 1995 Ford Bronco - A close-up under the hood showing throttle linkage and a small solenoid or actuator wired with red and blue leads near the throttle body, w… 1995 Ford Bronco - Close-up under an open hood of a throttle body and linkage, showing the throttle cable, return spring, and a fabricated bracket with an add… 1995 Ford Bronco - A close-up of a fabricated bare-metal bracket in an engine bay, with a large coil spring on a shaft, a red wire, and a gold hex fitting nea… 1995 Ford Bronco - How it looks all closed up and protected with the cover back on. 1995 Ford Bronco - Engine-bay close-up on a white Ford truck showing the EFI-lettered upper intake plenum with a small metal bracket and red wiring newly moun… 1995 Ford Bronco - A few earlier pics showed a black PVC tube going from air intake to intake on compressor, and that was swapped out for a goodyear hose as s…
