Clutch

From 1983 Ford Bronco “Jezebel”, documented by michael collins.

17 photos
← Back to this vehicle

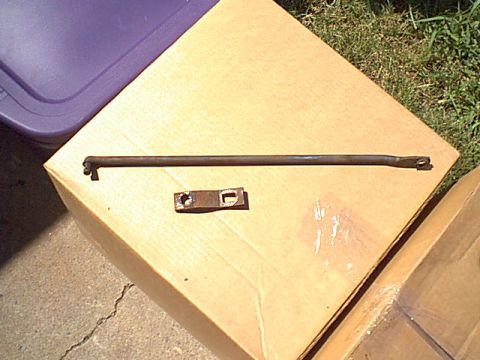

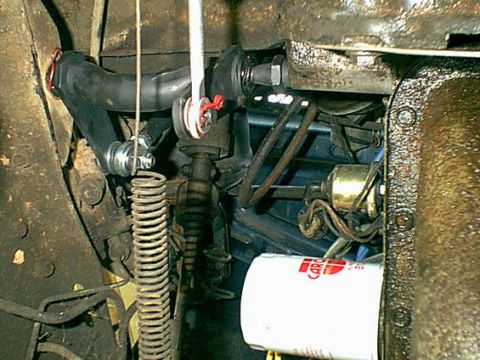

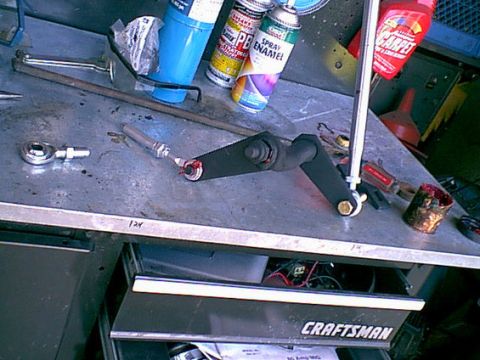

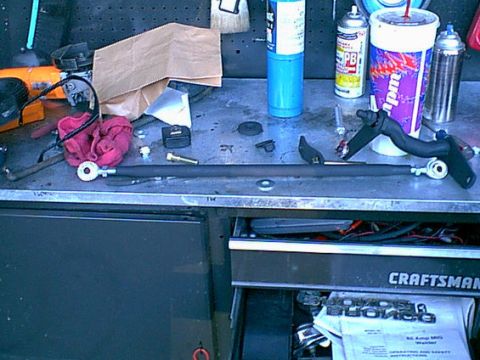

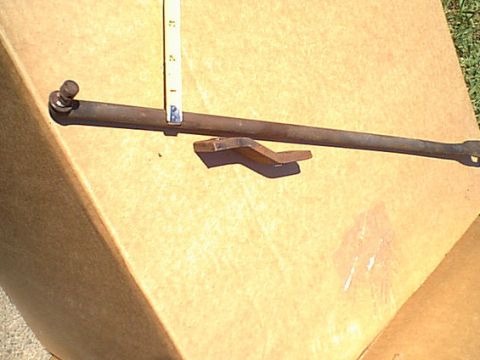

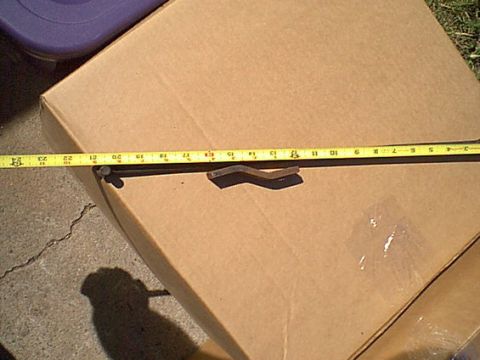

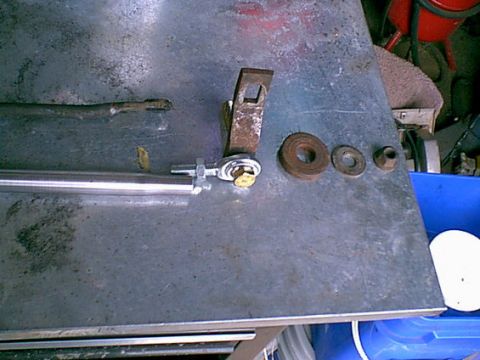

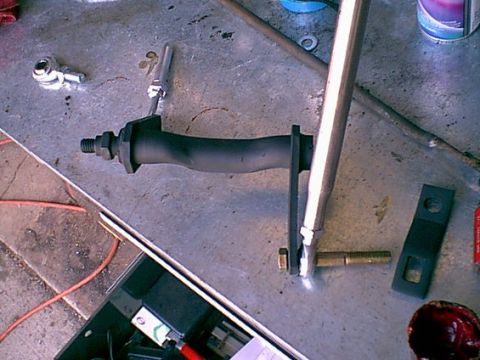

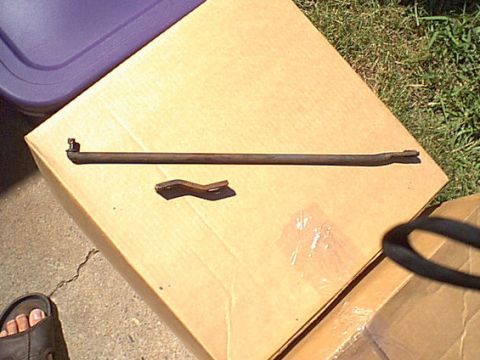

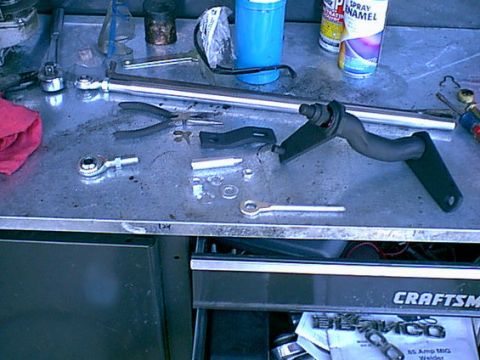

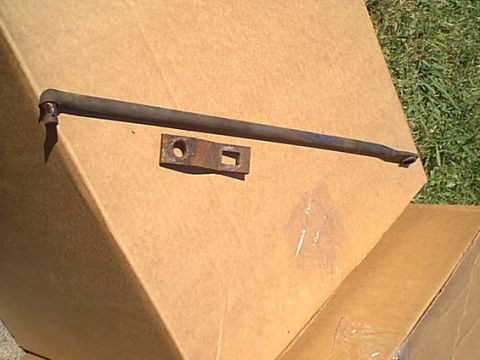

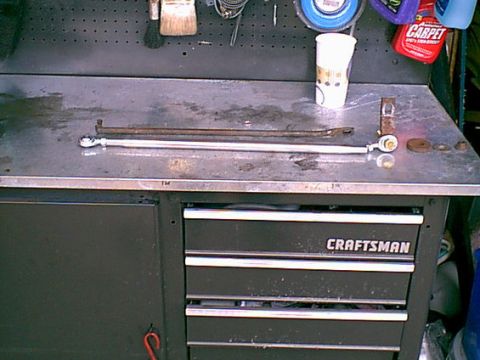

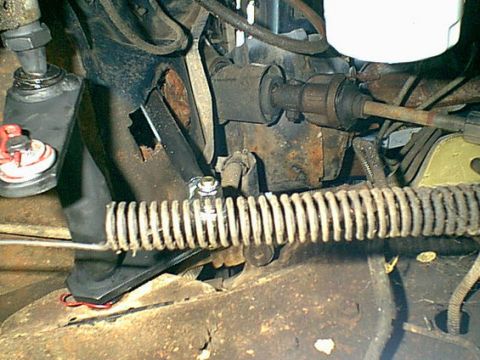

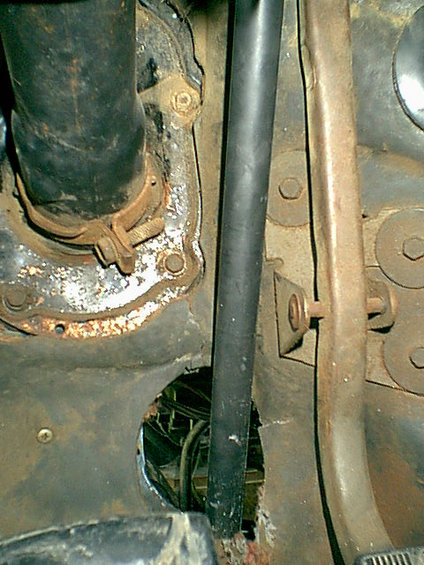

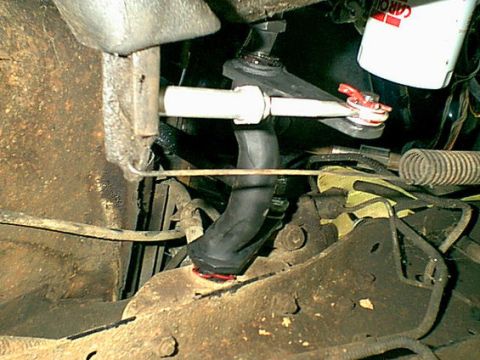

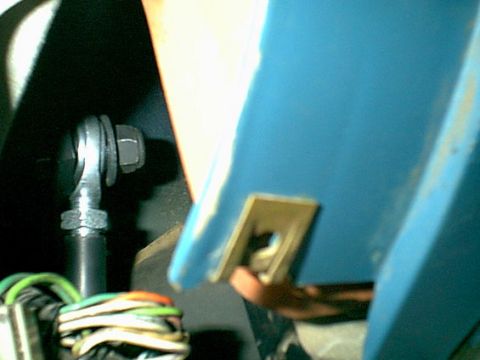

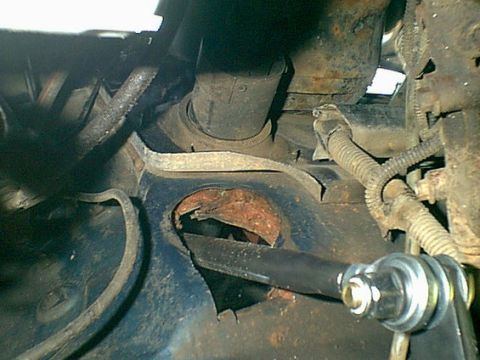

1983 Ford Bronco - After the body lift i was forced a question. What to do with the mechanical clutch system.i was going to add 3" to the rod but as you can s… 1983 Ford Bronco - here is another angle. you can see the pivet end is junk. 1983 Ford Bronco - The rod is almost 1/2 thick. 1983 Ford Bronco - the leagth is 23" so i need one 3" longer to off set the body lift and i added 1/2 for the taller body mounts. 1983 Ford Bronco - The equlizer rod (Below the linkage) the rectangle hole rounds out and causes slop in the shifter and makes you think the clutch needs repl… 1983 Ford Bronco - I looked at the sprint car circuit and got a custom made rod and heim joints. 1983 Ford Bronco - Here is a closeup of how it was going to connect the equlizer. bar 1983 Ford Bronco - Here is all the rod parts and the bellcrank. i found the plastic bushings were broken and had to goto ford to get new ones. 1983 Ford Bronco - Here is the bell crank all rebuilt and ready to go back in the truck. 1983 Ford Bronco - Here is the bell crank end of the clutch rod. 1983 Ford Bronco - Here is the rod all painted and ready to reinstall. 1983 Ford Bronco - Here is the bell crank back in the bronco. 1983 Ford Bronco - Here is the connection to the throw out arm. 1983 Ford Bronco - here is a shot of the rod going up to the equlizer bar. it is here i found another issue. the hole thru the floor was on the angle of the f… 1983 Ford Bronco - Not the cleanest hole but it will work for now. 1983 Ford Bronco - Here is the top end of the hole in the floor. 1983 Ford Bronco - Here is the connection to the equlizer bar. This setup works great.
