Electric fan

From 1983 Ford Bronco “Jezebel” — documented by michael collins.

6 photos
← Back to this vehicle

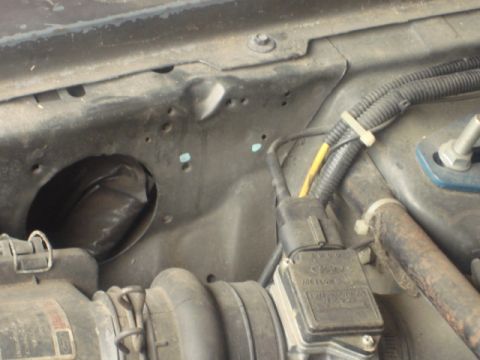

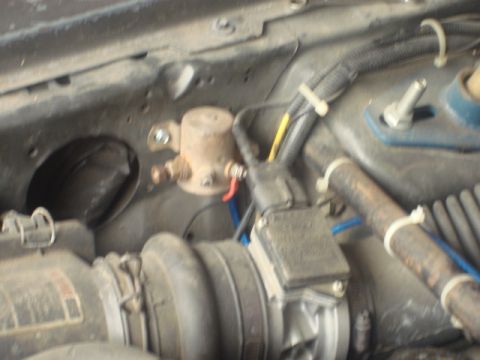

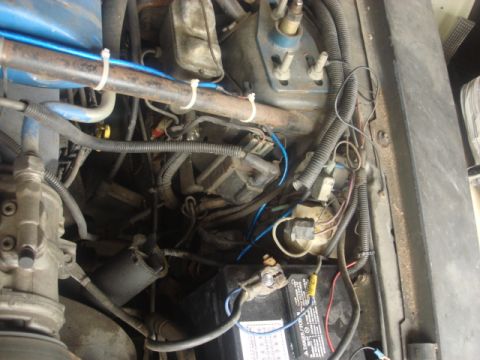

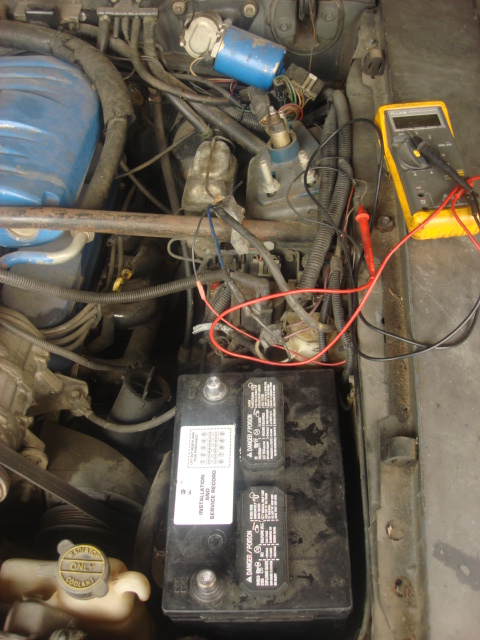

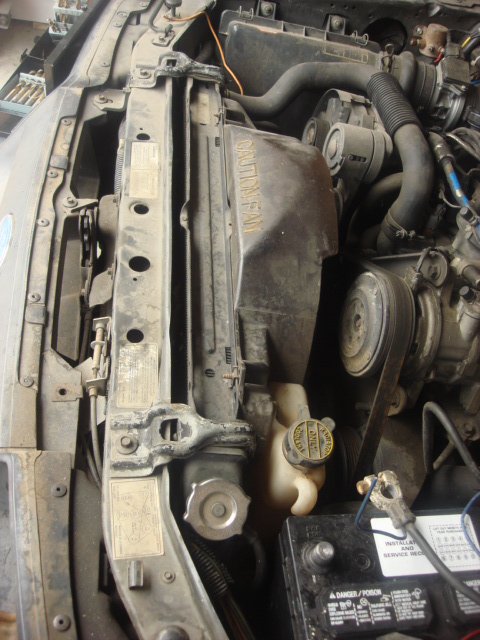

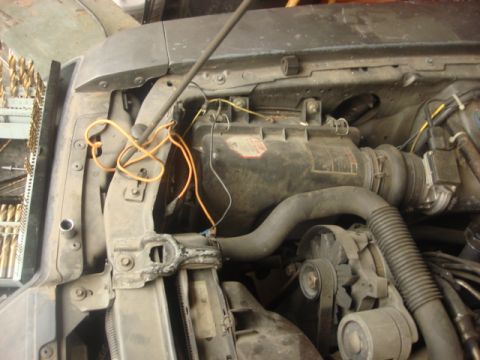

1983 Ford Bronco - well it was time to bring the old mustang back to life. the battery i had is 5 years old and will not hold a charge and the electric fan wi… 1983 Ford Bronco - i had no relay and no inline fuse and used a wire jumper to turn on the fan. there was a ton of not needed wiring.here it was as i started. 1983 Ford Bronco - i needed to install a constant duty relay (it handles the high start amps better than the smaller ones) this spot is perfect. i marked it a… 1983 Ford Bronco - with the relat installed i needed a battery poer point (the firewall solinod) and ran the wires to the new relay. i conecceted the ground w… 1983 Ford Bronco - i was able to toss all the wires that were running in front of the raditor and tucked next to the fill cap of the raditor. the orange wire… 1983 Ford Bronco - this is showing the new power wire. this is a much cleaner install.
