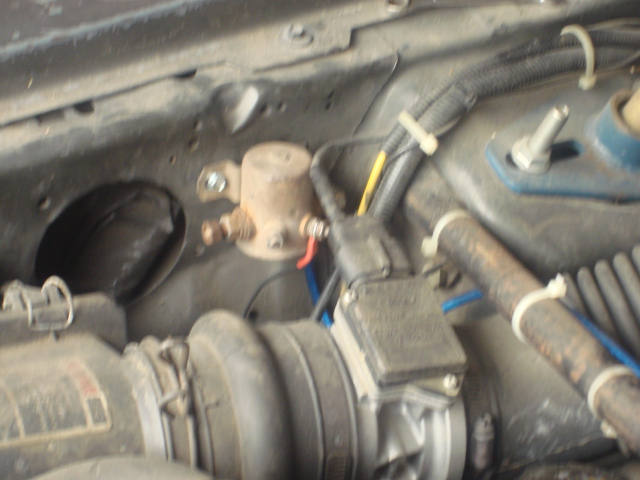

fan-wiring-04.jpg with the relat installed i needed a battery poer point (the firewall solinod) and ran the wires to the new relay. i conecceted the ground wire to the relay. this ground is a temp switch on the intake manifold and it will provide a ground at 170 degrees and drop the gorund at 160 degrees.
fan-wiring-04.jpg | Hits: 385 | Posted on: 7/13/08 | View original size (135.91 KB)

with the relat installed i needed a battery poer point (the firewall solinod) and ran the wires to the new relay. i conecceted the ground wire to the relay. this ground is a temp switch on the intake manifold and it will provide a ground at 170 degrees and drop the gorund at 160 degrees.
