Electric Cooling Fan

From 1996 Ford Bronco “White Cloud” — documented by Al Stu.

11 photos 1 video
← Back to this vehicle

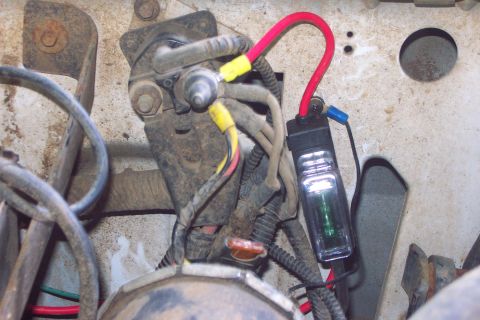

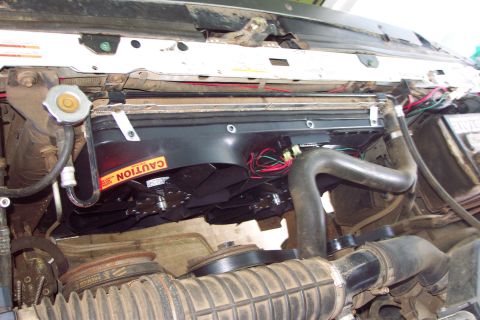

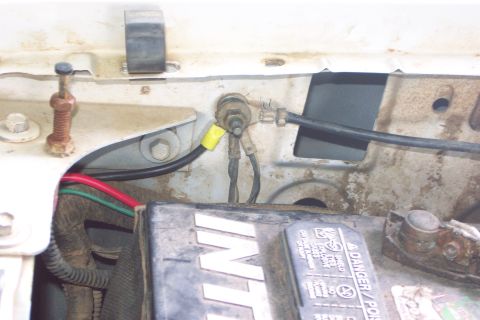

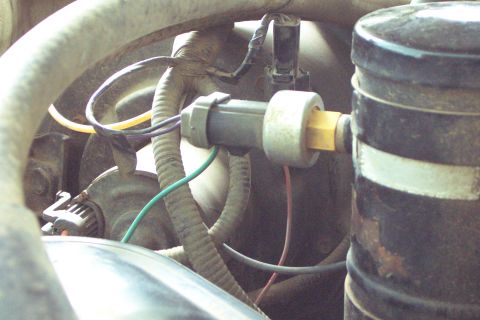

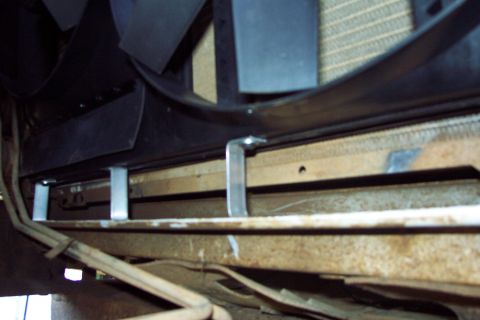

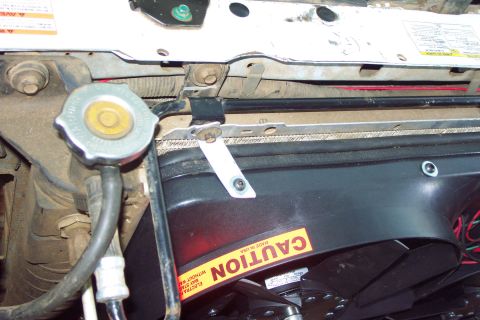

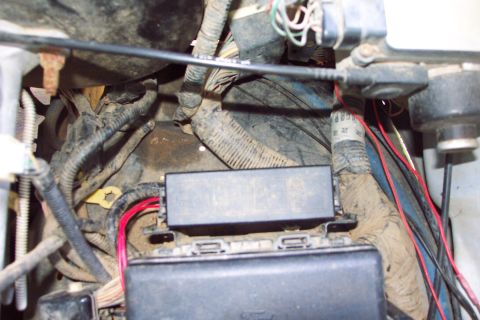

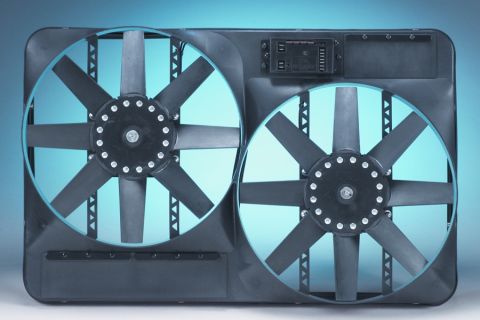

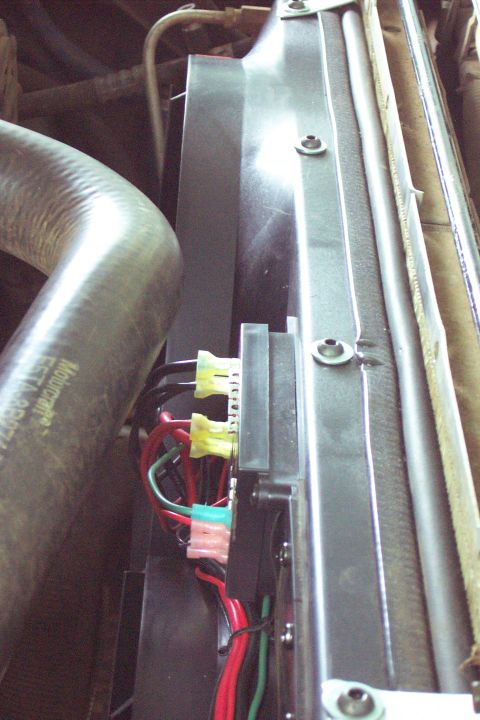

1996 Ford Bronco - Flex-A-Lite Model #295 Electric Cooling Fan (4/29/2006) 1996 Ford Bronco - Flex-A-Lite Model #295 Electric Cooling Fan Installation. (4/29/2006) 1996 Ford Bronco - Top Mounting Brackets The top mounting brackets hold the shroud against the radiator core but do not carry any weight and are made of 1/16… 1996 Ford Bronco - Bottom Mounting Brackets The bottom mounting brackets carry the weight and sit on the tray under the radiator. There are 4 (3 visible in pi… 1996 Ford Bronco - Variable Speed Controller The variable speed controller is mounted on the fan shroud. Wiring is zip tied to the shroud to keep them away fr… 1996 Ford Bronco - Ground Connection The ground connection is made to the factory ground post next to the battery at right front of engine compartment. (4/29/… 1996 Ford Bronco - Fuse Holder Mounting & Connection The fuse holder is mounted next to the starter relay on the right fender. The fuse holder is connected to… 1996 Ford Bronco - Ignition On Signal The ignition on signal source is obtained from trailer battery charge relay. Connection is made by taping into the wire… 1996 Ford Bronco - A/C Compressor On Signal The A/C compressor on signal is sourced from the pressure switch connector. Since this is a non critical signal, a… 1996 Ford Bronco - Temperature Probe The temperature probe is installed in the radiator core next to the coolant return port (upper hose returning coolant fro… 1996 Ford Bronco - Why Conversion To Electric For improved fuel mileage? You're kidding right. In a 6,000 lb. non aerodynamic vehicle you really think removin… 1996 Ford Bronco - Flex-A-Lite Electric Cooling Fan Model #295 Operation. (4/29/2006)Video
