A/C Compressor On Signal

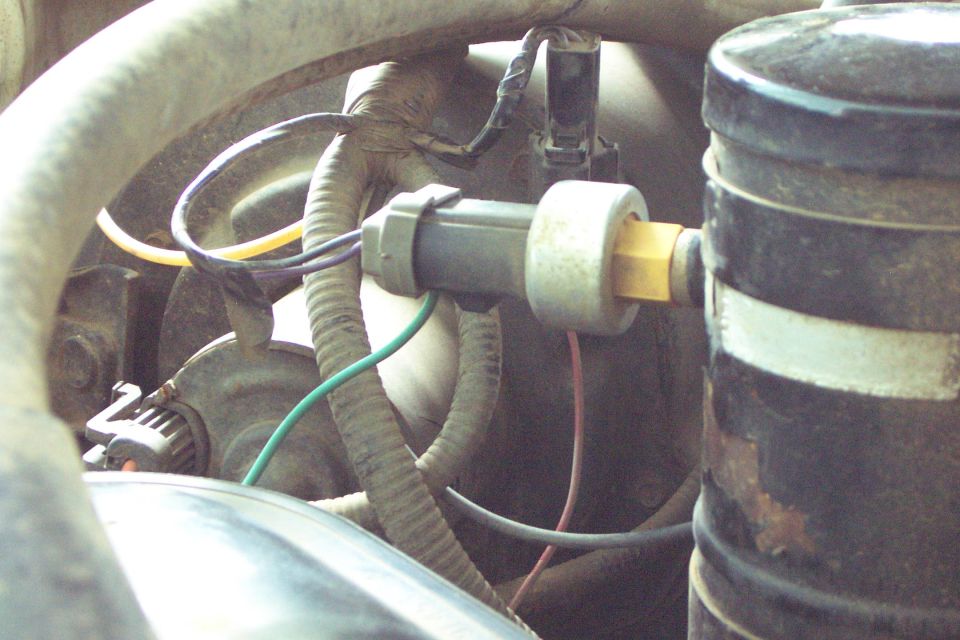

The A/C compressor on signal is sourced from the pressure switch connector.
Since this is a non critical signal, about 1-1/2 to 2 inches of insulation was removed to allow the bare wire to be sandwiched into the connector. (that’s just how much I hate those crimp on wire taps).
(4/29/2006)
